130G32-0148-F1 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump and Lubrication Group Parts Diagram

Horizontal Engine

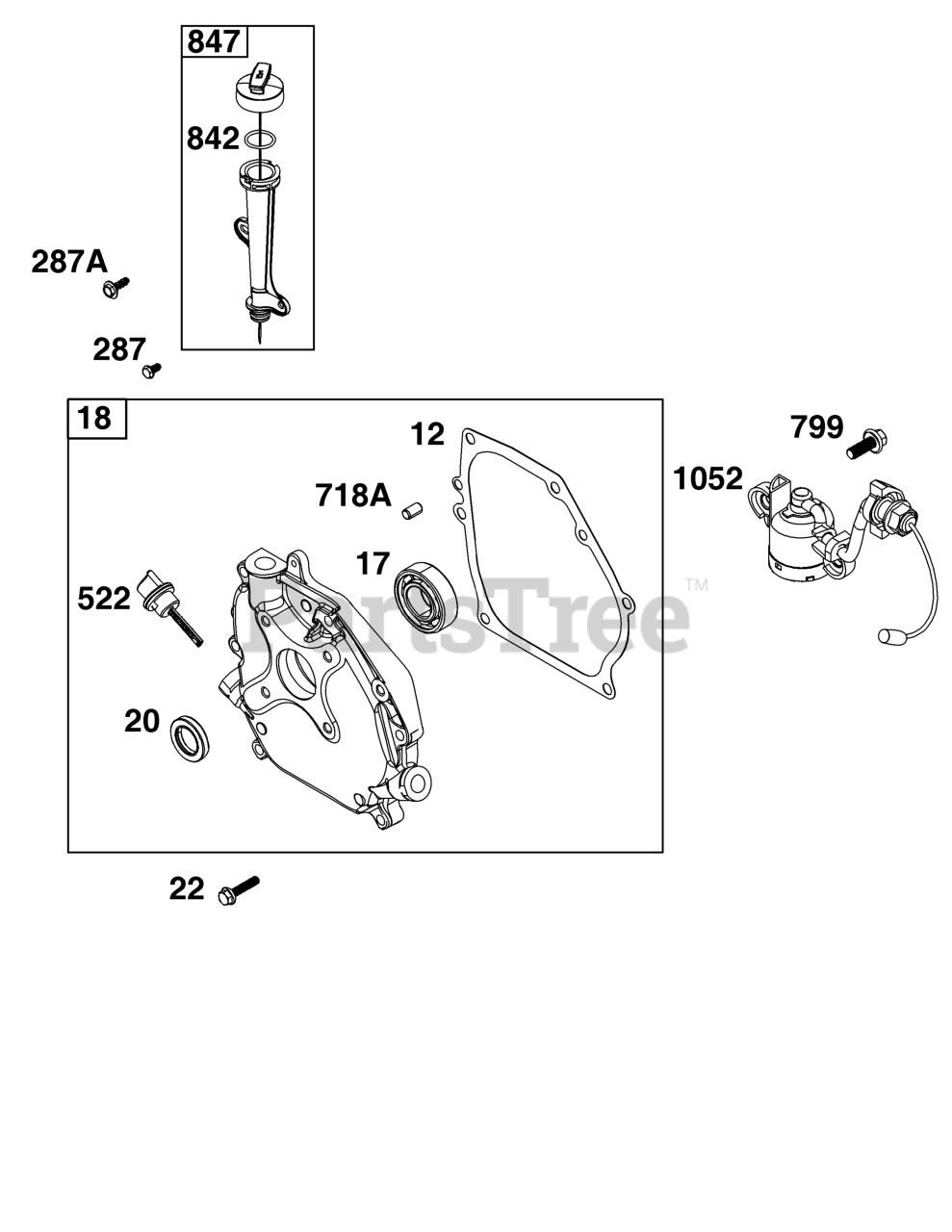

Crankcase Cover/Sump and Lubrication Group Parts Diagram

  • Title

12

Briggs & Stratton 590608

GASKET, Crankcase

$10.99

$

In Stock, Qty 18

0

17

BEARING, Ball

Note: (Part information located in Cylinder Group.)

$

$

Not available

18

Briggs & Stratton 596200

COVER, Crankcase
(Superseded to 84002443)

$109.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 590712

SEAL, Oil

Note: (PTO Side)

$12.99

$

In Stock, only 2 left!

0

22

Briggs & Stratton 590714

SCREW

Note: (Crankcase Cover/Sump)

$3.99

$

Usually ships in 2-12 days

0

287

Briggs & Stratton 590850

SCREW

Note: (Dipstick Tube)

$3.99

$

In Stock, Qty 7

0

287A

Briggs & Stratton 790557

SCREW

Note: (Dipstick Tube)

$4.99

$

In Stock, only 1 left!

0

522

Briggs & Stratton 590716

PLUG, Dipstick/Fill

$8.99

$

In Stock, only 1 left!

0

718A

Briggs & Stratton 590713

PIN, Locating

$6.99

$

Usually ships in 2-12 days

0

799

Briggs & Stratton 590703

SCREW

Note: (Oil Sensor)

$3.49

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691031

SEAL, O-Ring

Note: (Dipstick Cap)

$5.49

$

In Stock, Qty 20+

0

847

Briggs & Stratton 591444

DIPSTICK/TUBE ASSEMBLY

$16.99

$

Usually ships in 2-12 days

0

1052

Briggs & Stratton 590671

SENSOR, Oil

$56.99

$

Usually ships in 2-12 days

0
