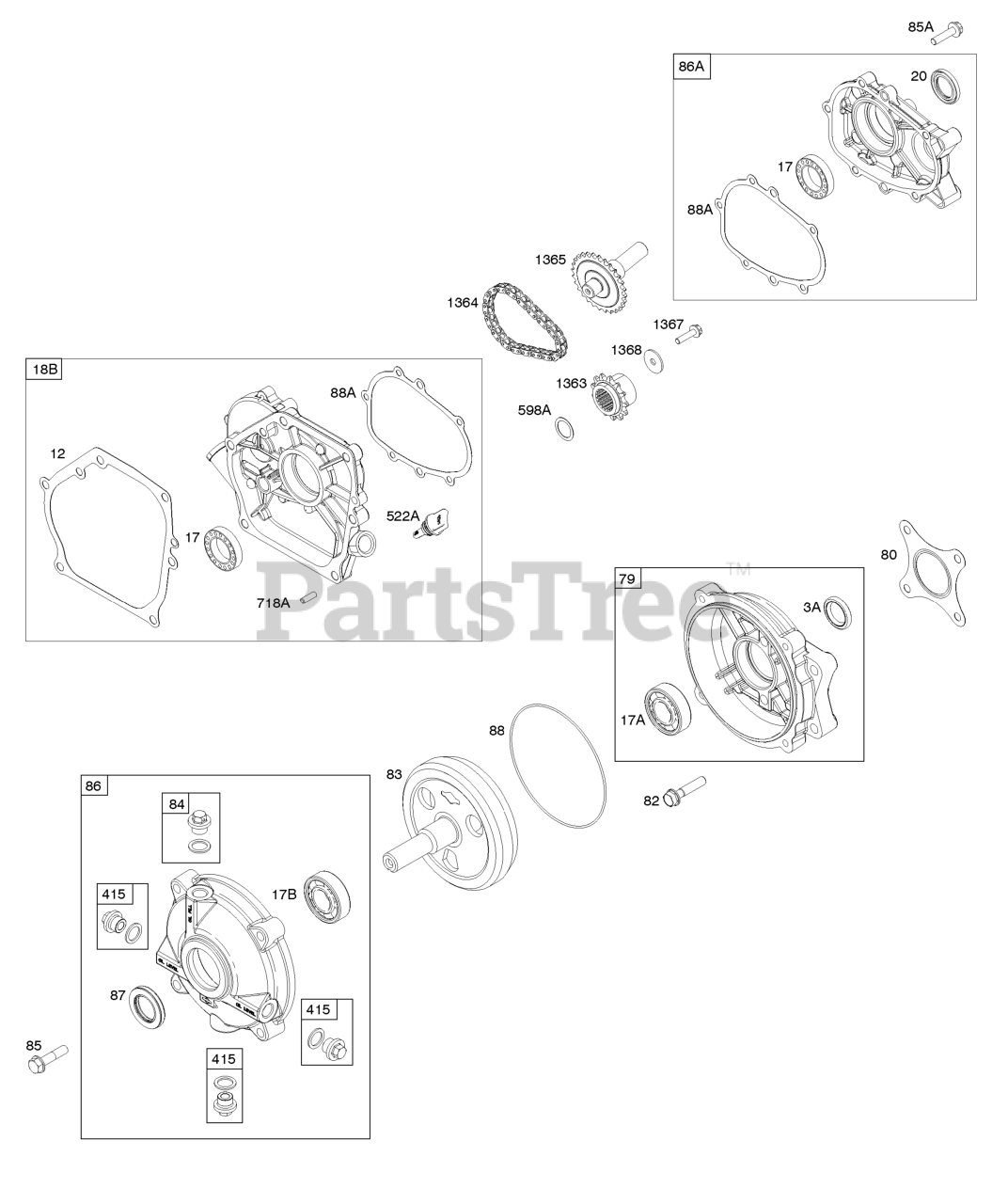

130G32-0101-F1 - Briggs & Stratton Horizontal Engine Gear Reduction Parts Diagram

Horizontal Engine

Gear Reduction Parts Diagram

  • Title

3A

Briggs & Stratton 299819S

SEAL, Oil

Note: (Magneto Side)

$5.49

$

In Stock, Qty 20+

0

12

Briggs & Stratton 590608

GASKET, Crankcase

$10.99

$

In Stock, Qty 18

0

17

Briggs & Stratton 590715

BEARING, Ball

$13.99

$

In Stock, only 1 left!

0

17A

Briggs & Stratton 99158

Bearing-Ball

$20.99

$

Usually ships in 2-12 days

0

17B

Briggs & Stratton 792745

Bearing-Ball

$60.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 590712

SEAL, Oil

Note: (PTO Side)

$12.99

$

In Stock, only 2 left!

0

79

Briggs & Stratton 792746

Case-Gear Reduction

$119.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 792755

Gasket-Gear Case

$9.49

$

Usually ships in 2-12 days

0

82

Briggs & Stratton 792753

Screw

Note: (Gear Reduction Case)

$7.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 792756

Shaft-Auxiliary Drive

$235.99

$

Usually ships in 2-12 days

0

84

Briggs & Stratton 792759

Plug-Breather

$9.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 690711

Screw

Note: (Gear Cover)

$6.99

$

Usually ships in 2-12 days

0

85A

Briggs & Stratton 807421

SCREW

Note: (Gear Cover)

$3.49

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 792748

Cover-Gear

$161.99

$

Usually ships in 2-12 days

0

86A

Briggs & Stratton 595449

COVER, Gear

$55.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 792752

Seal-Gear Reduction

$36.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 792760

Gasket-Gear Cover/Housing

$11.99

$

Usually ships in 2-12 days

0

88A

Briggs & Stratton 595445

GASKET, Gear Cover/Housing

$15.99

$

Usually ships in 2-12 days

0

415

Briggs & Stratton 596721

Plug

Note: (Gear Cover)

$10.99

$

Usually ships in 2-12 days

0

598A

Briggs & Stratton 595451

SHIM, End Play

Note: (Crankshaft or Camshaft Bearing)

$5.49

$

Usually ships in 2-12 days

0

718A

Briggs & Stratton 590713

PIN, Locating

Note: (Crankcase Cover)

$6.99

$

Usually ships in 2-12 days

0

1363

Briggs & Stratton 595446

SPROCKET, Gear Reduction

$17.99

$

Usually ships in 2-12 days

0

1364

Briggs & Stratton 595447

CHAIN, Gear Reduction

$70.99

$

Usually ships in 2-12 days

0

1365

Briggs & Stratton 595448

SHAFT, Output Gear Reduction

$58.99

$

Usually ships in 2-12 days

0

1367

Briggs & Stratton 596202

SCREW

Note: (Gear Reduction Sprocket)

$3.99

$

Usually ships in 2-12 days

0

1368

Briggs & Stratton 595450

WASHER

Note: (Gear Reduction Sprocket)

$5.49

$

Usually ships in 2-12 days

0
