13099 - Troy-Bilt Hydro LTX Lawn Tractor (SN: 130990100101 & Above) LIFT ASSEMBLY Parts Diagram

Hydro LTX Lawn Tractor

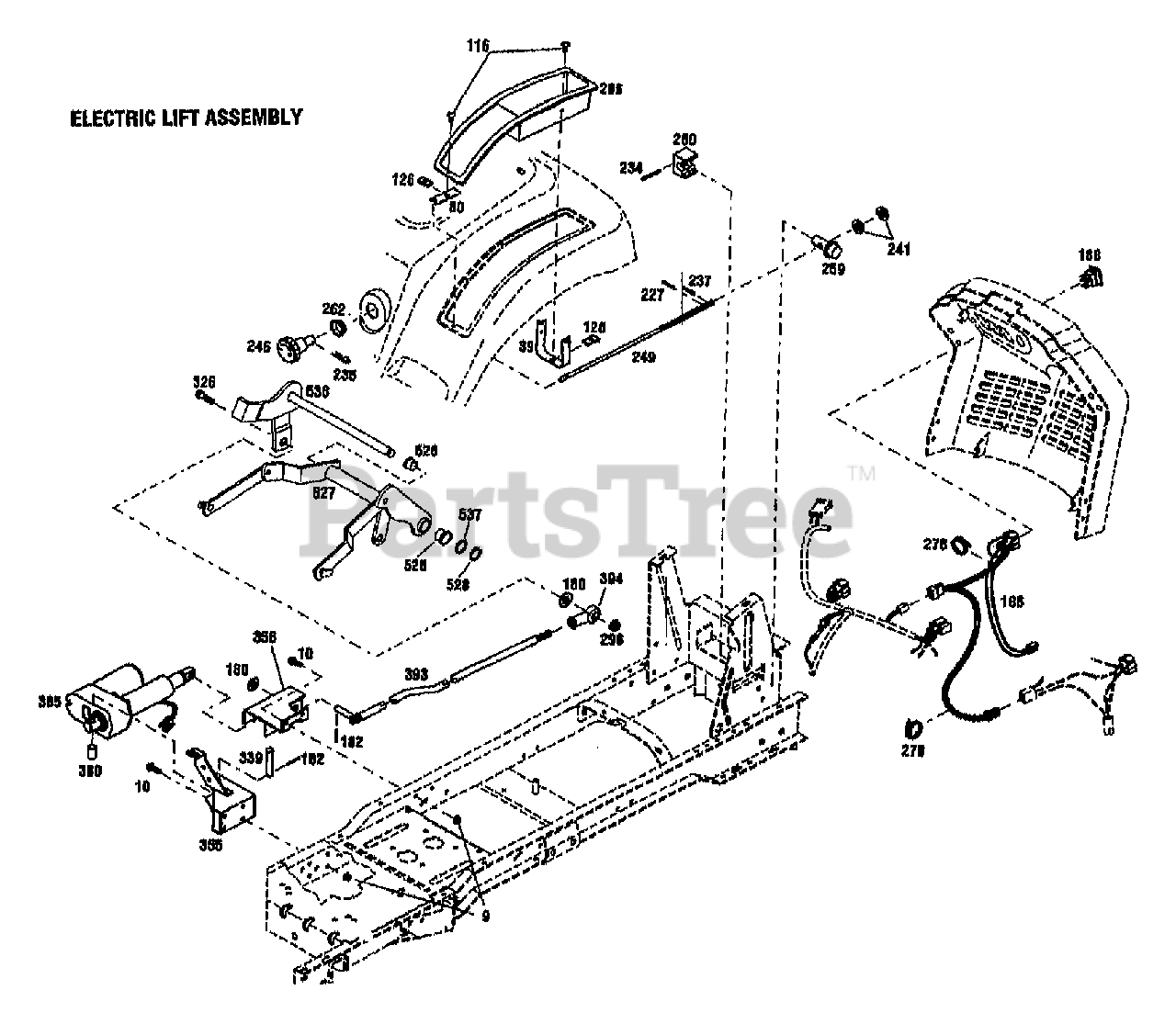

LIFT ASSEMBLY Parts Diagram

  • Title
9

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

39

MTD 1772088

RETAINER-UTILITY BOX

$

$

Not available

80

MTD 1772156

RETAINER-UTILITY BOX

$

$

Not available

116

MTD 1772164

SCR-1/4-20X5/8

$

$

Not available

126

MTD 1772157

SPEED NUT-1/4-20

$

$

Not available

180

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, only 2 left!

0

182

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

186

Troy-Bilt 1771681

HARNESS-ACTUATOR

$

$

Currently unavailable

188

MTD 1771668

SWITCH-ROCKER

$

$

Not available

227

Troy-Bilt 1100349

PIN-COTTER .125 X .75 ZP
(Superseded to 914-0474)

$

$

Not available

234

MTD 1185376

PIN-DRIVE

$

$

Not available

235

MTD 1817091

PIN-HITCH

$

$

Not available

237

Troy-Bilt 1187961

PIN-ROLL .156X1.0
(Superseded to 915-0249)

$6.99

$

In Stock, Qty 20+

0

241

$

$

Not available

246

MTD 1765485

KNOB-HEIGHT ADJUST

$

$

Not available

249

MTD 1766048

KIT-SVC SCR HGT ADJ

$

$

Not available

259

MTD 1766257

BLOCK-HEIGHT ADJUST

$

$

Not available

260

MTD 1766259

COLLAR-HEIGHT ADJUST

$

$

Not available

262

MTD 1766346

GROMMET-SNAP BUSHING

$

$

Not available

278

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

285

MTD 1771873

UTILITY BOX

$

$

Not available

296

$

$

Not available

326

MTD 1771784

SCR-SPECIAL 1/2-13X1 1/2

$

$

Not available

339

MTD 1706621

PIN-CLEVIS .5X2.75

$

$

Not available

355

MTD 1770688

SUPPORT-FRONT

$

$

Not available

356

Troy-Bilt 1771799001

SUPPORT-REAR

$

$

Currently unavailable

380

$

$

Currently unavailable

385

$

$

Currently unavailable

393

MTD 1771802

ROD-LIFT

$

$

Not available

394

MTD 1771814

ROD-END

$

$

Not available

526

$5.49

$

In Stock, Qty 11

0

527

$

$

Not available

528

Troy-Bilt 1185649

RING-RETAINING EXT .694 ID

$

$

Not available

537

Troy-Bilt 1701447

WASHER-1.25X.765X.049

$4.49

$

In Stock, Qty 18

0

538

$

$

Currently unavailable
