13097 - Troy-Bilt Hydro LTX Lawn Tractor (SN: 130970100101 & Above) STEERING ASSEMBLY Parts Diagram

Hydro LTX Lawn Tractor

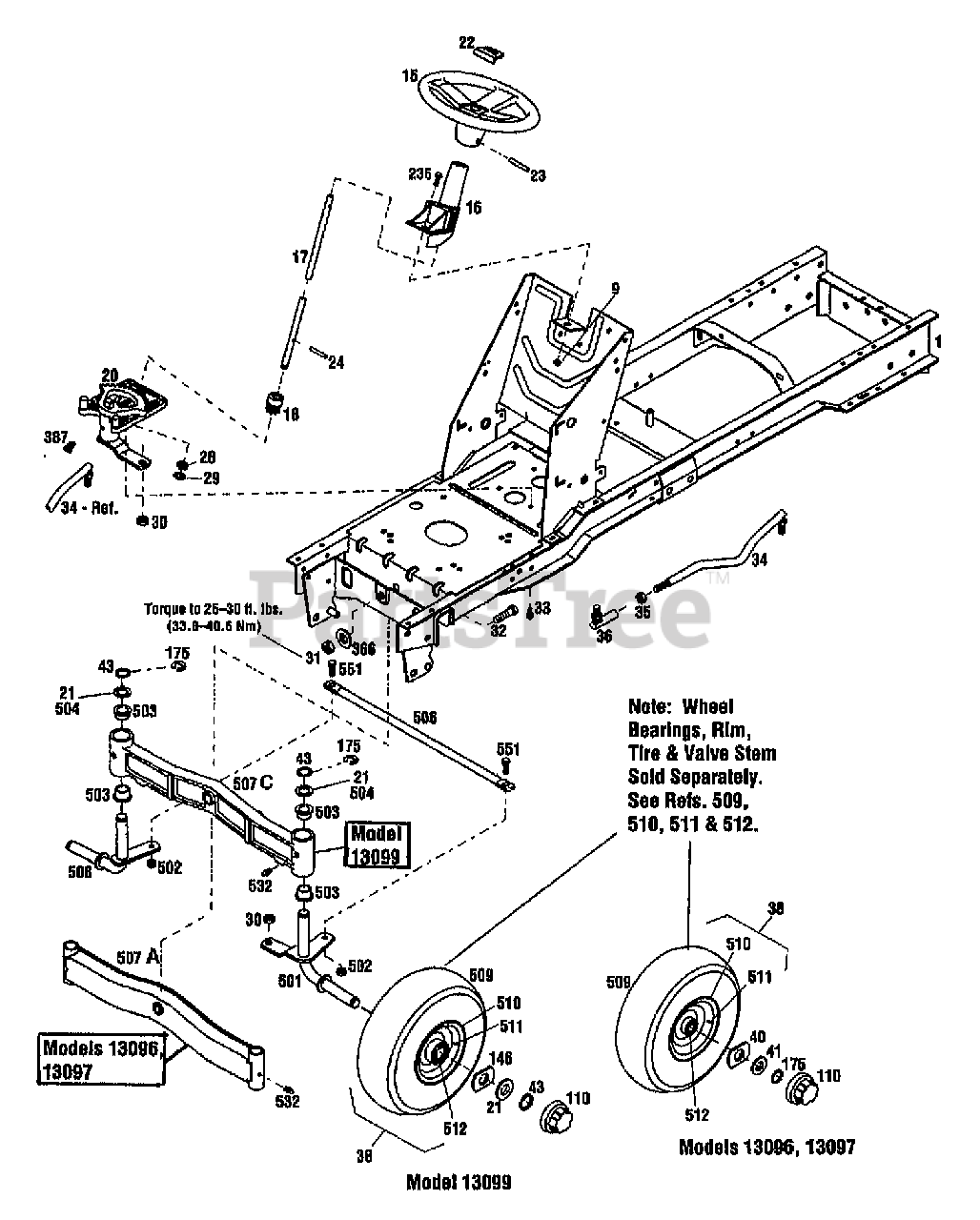

STEERING ASSEMBLY Parts Diagram

  • Title
1

Troy-Bilt 1771825001

ASSM-FRAME LTX {13096/097}
(Superseded to 1772924001)

$

$

Not available

1

Troy-Bilt 1771828001

ASSM-FRAME {13099}

$

$

Currently unavailable

9

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

15

MTD 1766027

WHEEL-STEERING

$

$

Not available

16

MTD 1765443

SUPPORT-STEERING SHAFT

$

$

Not available

17

MTD 1765010

SHAFT-STEERING

$

$

Not available

18

MTD 1771039

GEAR-PINION

$

$

Not available

20

MTD 1771320

ASSM-STEERING GEAR

$

$

Not available

21

Troy-Bilt 1703073

WASHER-THRUST {13096,13097}
(Superseded to 1915058)

$

$

Not available

21

Troy-Bilt 1703073

WASHER-THRUST {13099}
(Superseded to 1915058)

$

$

Not available

22

MTD 1766221

CAP-STEERING

$

$

Not available

23

Troy-Bilt 1185284

PIN-ROLL .25X2.25
(Superseded to 715-0121)

$6.99

$

In Stock, Qty 8

0

24

Troy-Bilt 1185348

PIN-ROLL 1/4 X 1-1/4
(Superseded to 915-0143)

$

$

Not available

28

Troy-Bilt 1705092

WASHER-1.0X.64X.09
(Superseded to 736-0156)

$4.49

$

In Stock, Qty 12

0

29

Troy-Bilt 1177567

RING-RETAINING
(Superseded to 716-0106)

$4.49

$

In Stock, Qty 12

0

30

Troy-Bilt 1768796

NUT-HEX/JAM 1/2-20
(Superseded to 712-3059)

$4.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 1758231

NUT-H/LK 5/8-11
(Superseded to 712-3016)

$6.99

$

In Stock, Qty 13

0

32

MTD 1767953

SCR-HH

$

$

Not available

33

Troy-Bilt 1766984

SCR-HFLK 5/16-18X.75

$3.99

$

Usually ships in 3-6 days

0

34

MTD 1765315

LINK-DRAG

$

$

Not available

35

Troy-Bilt 1186247

NUT-JAM
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

36

MTD 1716180

JOINT-BALL

$

$

Not available

38

MTD 1767277

ASSM-WHEEL & TIRE FRONT {13096,13097}

$

$

Not available

38

MTD 1768790

ASSM-WHEEL & TIRE FRONT {13099}

$

$

Not available

40

Troy-Bilt 1766241

WASHER-SPEC .75X2.50

$

$

Not available

41

Troy-Bilt 1185830

WASHER-1.38 X.765X .06 ZP
(Superseded to 736-0188)

$4.49

$

In Stock, Qty 20+

0

43

MTD 1185689

RING-HEAVY EXT HD 1.0 ID {13099}

$

$

Not available

110

MTD 1766215

CAP-HUB

$

$

Not available

146

Troy-Bilt 1766242

WASHER-SPECIAL .75X2.5

$

$

Not available

175

Troy-Bilt 1185388

RING-RET."E".577 ID
(Superseded to 916-0231)

$

$

Not available

236

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

366

Troy-Bilt 1100266

WASHER-1.75X.687X.134 ZP
(Superseded to 936-04088)

$4.49

$

In Stock, only 4 left!

0

387

Troy-Bilt 1731504

FITTING-GREASE 90 DEGREE
(Superseded to 737-3004)

$11.99

$

In Stock, Qty 6

0

501

MTD 1765263001

ASSM-SPINDLE LH {13096/097}

$

$

Not available

501

MTD 1765316001

SPINDLE-WHEEL LH {13099}

$

$

Not available

502

Troy-Bilt 1110150

NUT-LOCK
(Superseded to 912-0214)

$6.49

$

In Stock, only 2 left!

0

503

Troy-Bilt 1764140

BUSHING {13096/097}

$5.49

$

In Stock, Qty 11

0

503

MTD 1752556

BEARING-FLANGE {13099}

$

$

Not available

504

Troy-Bilt 1701447

WASHER-1.25X.765X.049

$4.49

$

In Stock, Qty 18

0

506

Troy-Bilt 1765009001

KIT-TIE ROD W/HDW
(Superseded to 1771907)

$

$

Not available

507

Troy-Bilt 1765169001

AXLE-FRONT {13096/097}

$

$

Currently unavailable

507

MTD 1772154001

AXLE-FRONT {13099}

$

$

Not available

508

Troy-Bilt 1765004001

ASSM-SPINDLE WHEEL RH {13096/097}

$

$

Currently unavailable

508

MTD 1765317001

SPINDLE-WHEEL RH {13099}

$

$

Not available

509

Troy-Bilt 1762254

TIRE 15X6.00-6RS {13096/097}
(Superseded to 734-0864-0901)

$136.99

$

Usually ships in 3-6 days

0

509

Troy-Bilt 1768792

TIRE-16X6.50-8 {13099}
(Superseded to 734-0275-0902)

$

$

Not available

510

Troy-Bilt 1767276

DISC WHEEL {13096/097}

$

$

Not available

510

MTD 1766073

RIM-WHEEL {13099}

$

$

Not available

511

Troy-Bilt 1718086

STEM-VALVE
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

512

Troy-Bilt 1767273

BEARINGS-WHEEL {13096/097}
(Superseded to IH-384881-R94)

$28.99

$

In Stock, Qty 9

0

512

Troy-Bilt 1756524

BEARING-BALL {13099}

$80.99

$

Usually ships in 3-6 days

0

532

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

?550

MTD 1747303

BEARING

$

$

Not available

551

MTD 1894062

SCR-SHOULDER

$

$

Not available
