13097 - Troy-Bilt Hydro LTX Lawn Tractor (SN: 130970100101 & Above) HYDRO (EATON 751) BREAKDOWN Parts Diagram

Hydro LTX Lawn Tractor

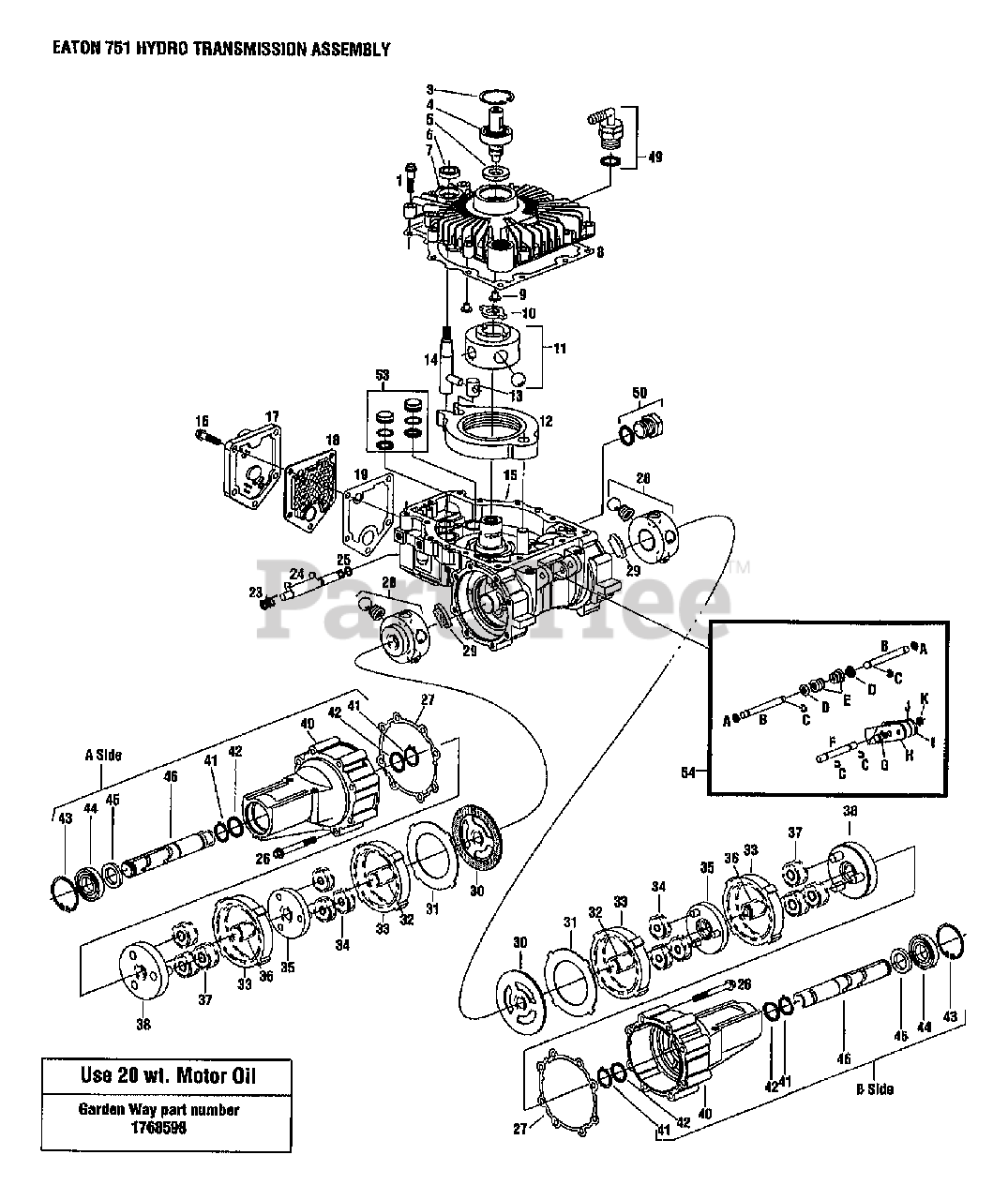

HYDRO (EATON 751) BREAKDOWN Parts Diagram

  • Title

Troy-Bilt 1768598

OIL-SAE 20 HYDROSTATIC

$

$

Currently unavailable

1

$

$

Not available

3

MTD 1769201

RING-RETAINING

$

$

Not available

4

MTD 1760892

SHAFT-INPUT

$

$

Not available

5

MTD 1760893

SEAL-OIL

$

$

Not available

6

MTD 1757374

SEAL-CONTROL SHAFT

$

$

Not available

7

MTD 1769202

COVER

$

$

Not available

8

MTD 1769203

COVER-GASKET

$

$

Not available

9

MTD 1769204

BUTTON

$

$

Not available

10

MTD 1769205

DRIVE

$

$

Not available

11

0

PUMP ROTOR/BALL/PIN

$

$

Not available

12

0

CAM RING

$

$

Not available

13

MTD 1769208

INSERT

$

$

Not available

14

MTD 1769209

SHAFT-CONTROL EXT THREAD

$

$

Not available

15

MTD 1769211

HOUSING

$

$

Not available

16

$

$

Not available

17

0

FILTER BASE "L"

$

$

Not available

18

0

FILTER

$

$

Not available

19

0

GASKET

$

$

Not available

23

MTD 1769217

VALVE-SPRING DUMP

$

$

Not available

24

MTD 1757376

BRACKET

$

$

Not available

25

MTD 1757377

RING-O

$

$

Not available

26

$

$

Not available

27

MTD 1769219

GASKET-AXLE HSG

$

$

Not available

28

MTD 1769220

15T MOTOR ROTOR/BALL

$

$

Not available

29

MTD 1769221

PAD-FRICTION

$

$

Not available

30

MTD 1769222

PLATE-REACTION

$

$

Not available

31

MTD 1769223

PLATE-BACKUP

$

$

Not available

32

MTD 1769224

15T SUN GEAR, FIRST

$

$

Not available

33

MTD 1769225

GEAR-RING 57T

$

$

Not available

34

MTD 1769226

GEAR-PLANET

$

$

Not available

35

MTD 1769227

PRIMARY CARRIER

$

$

Not available

36

0

15T, SUN GEAR

$

$

Not available

37

0

21T, PINT GEAR

$

$

Not available

38

MTD 1769230

SECOND CARRIER

$

$

Not available

40

MTD 1769231

AXLE-HOUSING

$

$

Not available

41

MTD 1769232

RING-RETAIN EXT

$

$

Not available

42

MTD 1769233

WASHER-THRUST

$

$

Not available

43

MTD 1769234

RING-RETAIN INT

$

$

Not available

44

MTD 1757700

BEARING

$

$

Not available

45

Troy-Bilt 1769235

SEAL-RADIAL LIP

$

$

Not available

46

MTD 1769236

AXLE-SHAFT

$

$

Not available

49

0

90 DEGREE FITTING/O-RING

$

$

Not available

50

0

PLUG/O-RING

$

$

Not available

53

MTD 1769242

PISTON

$

$

Not available

54

0

BRAKE LEVER PARTS

$

$

Not available

?54A

MTD 1769243

SEAL-QUAD

$

$

Not available

?54B

MTD 1769244

ROD-PUSH

$

$

Not available

?54C

Troy-Bilt 1769245

RING-RETAIN "E"
(Superseded to 916-0125)

$

$

Not available

?54D

MTD 1769246

BASE-SPRING

$

$

Not available

?54E

MTD 1769247

SPRING-CONICAL

$

$

Not available

?54F

MTD 1769248

BRAKE-SHAFT

$

$

Not available

?54G

MTD 1769249

SCR-HH

$

$

Not available

?54H

MTD 1769250

LEVER-BRAKE RH

$

$

Not available

?54I

MTD 1769251

LEVER-BRAKE LH

$

$

Not available

?54J

$

$

Not available

?54K

MTD 1769253

NUT-HEX LOCK

$

$

Not available
