13097 - Troy-Bilt Hydro LTX Lawn Tractor (SN: 130970100101 & Above) ELECTRICAL ASSEMBLY Parts Diagram

Hydro LTX Lawn Tractor

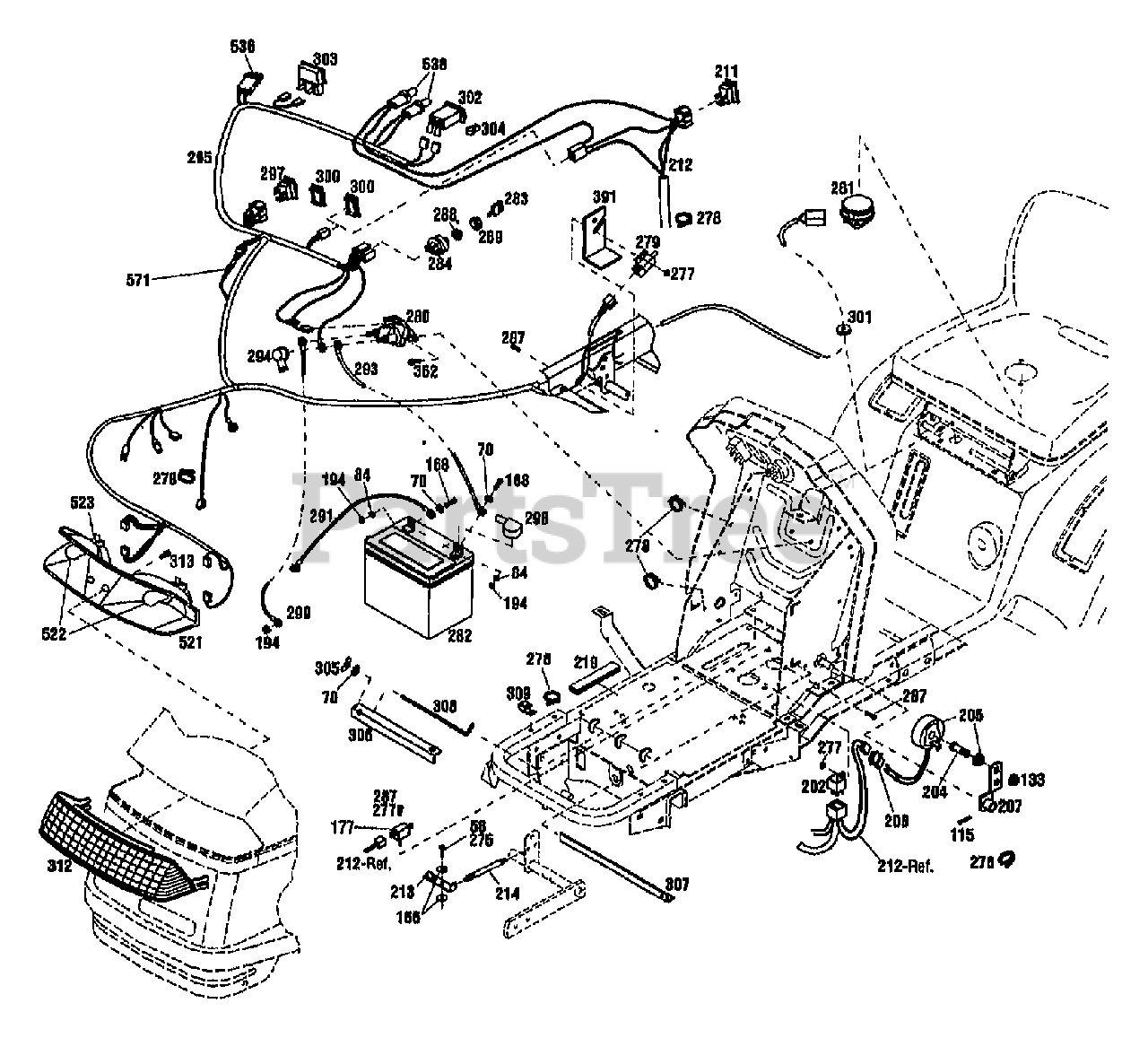

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

58

Troy-Bilt 1734398

NUT-HT LK 1/4-20 {13099}
(Superseded to 912-0291)

$

$

Not available

70

Troy-Bilt 1107381

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

84

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

115

MTD 1120210

PIN-ROLL .188X1.0 {13099}

$

$

Not available

133

MTD 1186396

NUT-WHIZ LOCK {13099}

$

$

Not available

166

Troy-Bilt 1720883

WASHER-FLAT 1.25X.28X.062 ZP {13099}

$

$

Not available

168

Troy-Bilt 1100805

SCR-HH 1/4-20X.75 G5 ZP
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

177

MTD 1748723

SWITCH {13099}

$

$

Not available

194

Troy-Bilt 1186229

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

202

MTD 1749907

RELAY-SPEED CONTROL {13099}

$

$

Not available

204

Troy-Bilt 1750736

SCR-SPECIAL {13099}

$29.99

$

Usually ships in 3-6 days

0

205

Troy-Bilt 1768971

ASSM-MAGNET {13099}

$173.99

$

Usually ships in 3-6 days

0

206

MTD 1767852

PIN-TERM HOUSING {13099}

$

$

Not available

207

MTD 1766290

ARM-CRUISE {13099}

$

$

Not available

211

Troy-Bilt 1766350

SWITCH-CRUISE {13099}

$

$

Not available

212

MTD 1766351

HARNESS-CRUISE {13099}

$

$

Not available

213

MTD 1767803

ARM-CRUISE {13099}

$

$

Not available

214

MTD 1767822

SPRING {13099}

$

$

Not available

219

MTD 1752694

TRIM

$

$

Not available

275

Troy-Bilt 1111599

SCR-HH 1/4-20X.625 G5 ZP
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

277

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$3.99

$

In Stock, only 1 left!

0

278

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

279

Troy-Bilt 1751328

SWITCH
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 9

0

280

Troy-Bilt 1752137

SOLENOID
(Superseded to 1752137P)

$70.99

$

Usually ships in 3-6 days

0

281

MTD 1768882

SWITCH-SEAT

$

$

Not available

282

MTD 1772127

BATTERY {13096/097}

$

$

Not available

282

MTD 1772131

BATTERY {13099}

$

$

Not available

283

MTD 1753986

KEY-IGNITION

$

$

Not available

284

Troy-Bilt 1754250

SWITCH-IGNITION
(Superseded to 1754250P)

$73.99

$

Usually ships in 3-6 days

0

287

Troy-Bilt 1758070

SCR-HHS 10-24X.625 ZP
(Superseded to 710-0425)

$4.99

$

Usually ships in 3-6 days

0

288

Troy-Bilt 1758146

NUT-SWITCH
(Superseded to 925-1346)

$

$

Not available

289

Troy-Bilt 1758147

CAP-SWITCH
(Superseded to 725-1347)

$4.99

$

In Stock, only 1 left!

0

290

Troy-Bilt 1764898

CABLE-STARTER
(Superseded to 629-0700)

$

$

Not available

291

MTD 1764886

CABLE-BATTERY (-)

$

$

Not available

293

MTD 1764888

CABLE-BATTERY

$

$

Not available

294

MTD 1764890

BOOT-SOLENOID

$

$

Not available

295

MTD 1771660

HARNESS-WIRING {13096/097}

$

$

Not available

295

MTD 1771661

HARNESS-WIRING {13099}

$

$

Not available

297

Troy-Bilt 1771865

SWITCH-PTO

$92.99

$

In Stock, only 2 left!

0

298

MTD 1764899

BOOT-TERMINAL

$

$

Not available

300

MTD 1766184

COVER-SWITCH {13096/097}

$

$

Not available

301

MTD 1766264

GROMMET

$

$

Not available

302

MTD 1771652

METER-HOUR

$

$

Not available

303

MTD 1764884

AMMETER {13099}

$

$

Not available

304

MTD 1766185

CLIP-TINNERMAN {13099}

$

$

Not available

305

MTD 1709652

NUT-WING

$

$

Not available

306

MTD 1765258001

CLAMP-BATTERY

$

$

Not available

307

MTD 1765444001

BRKT-BATTERY LOWER

$

$

Not available

308

Troy-Bilt 1766163

SCR-HOOK
(Superseded to 911-0222A)

$11.99

$

In Stock, only 1 left!

0

309

MTD 1747738

CLIP-J

$

$

Not available

312

MTD 1765400

LENSE-HEADLIGHT

$

$

Not available

313

MTD 1185712

SCR

$

$

Not available

362

MTD 1724492

SCR 1/4-20X.5 FL SELF TAP

$

$

Not available

391

MTD 1771758

BRACKET-SWITCH

$

$

Not available

521

Troy-Bilt 1768803

HEADLGT-REFL (PART OF 1772002)
(Superseded to 1772002)

$

$

Not available

522

Troy-Bilt 1772001

LIGHTBULB
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

523

MTD 1752875

SOCKET

$

$

Not available

536

Troy-Bilt 1768969

FUSE
(Superseded to 925-1381)

$6.49

$

In Stock, Qty 11

0

538

MTD 1764897

LIGHTBULB

$

$

Not available

571

MTD 1755616

ASSM-DIODE

$

$

Not available
