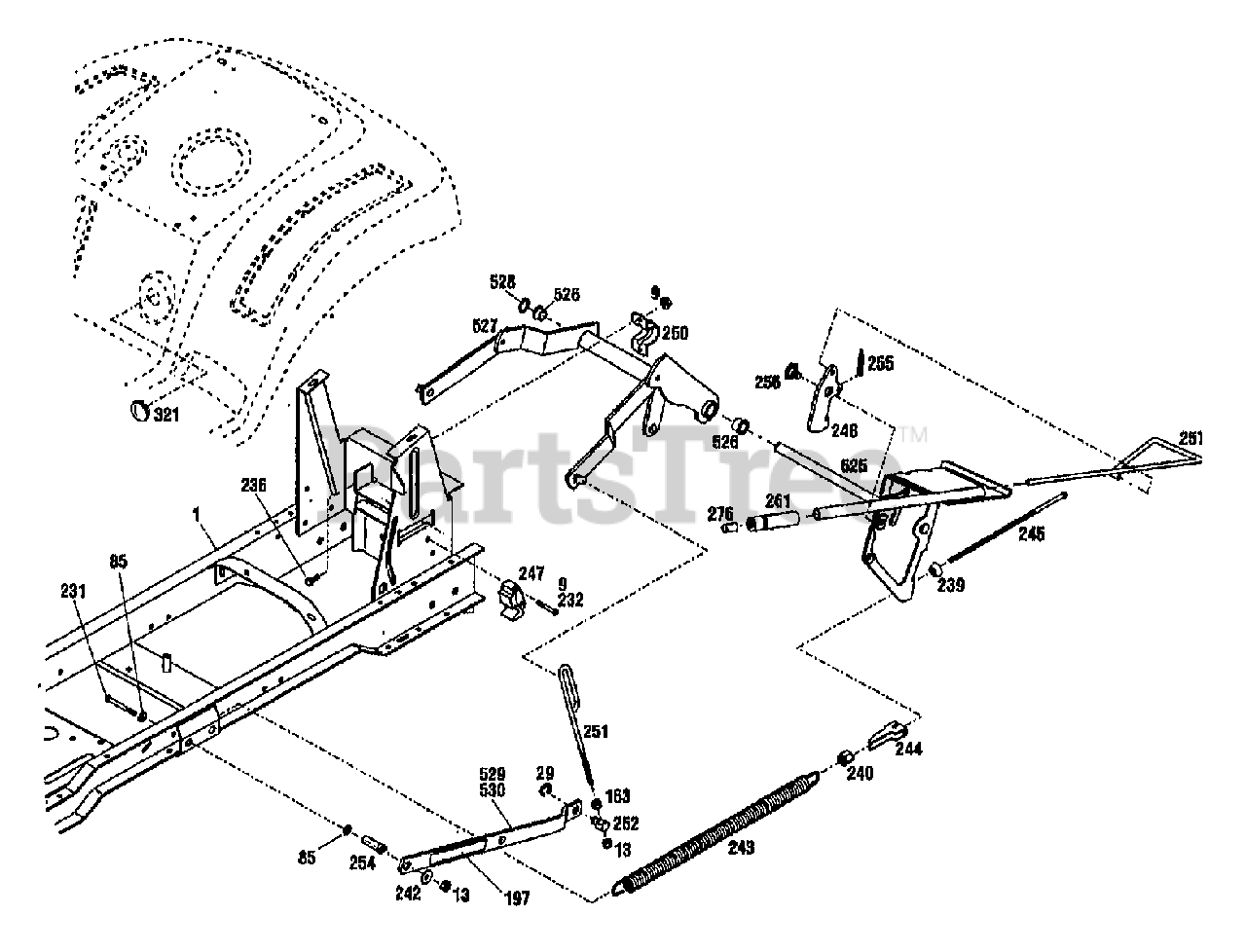

13095 - Troy-Bilt Gear Drive LTX Lawn Tractor (SN: 130950100101 & Above) LIFT ASSEMBLY Parts Diagram

Gear Drive LTX Lawn Tractor

LIFT ASSEMBLY Parts Diagram

  • Title
1

Troy-Bilt 1771825001

ASSM-FRAME LTX
(Superseded to 1772924001)

$

$

Not available

9

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

29

Troy-Bilt 1177567

RING-RETAINING
(Superseded to 716-0106)

$4.49

$

In Stock, only 2 left!

0

85

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

163

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

197

MTD 1767877

DECAL-WARNING

$

$

Not available

231

Troy-Bilt 1111614

SCR-HH 3/8-16X3.0 G5 ZP
(Superseded to 710-0521)

$5.49

$

In Stock, Qty 10

0

232

Troy-Bilt 1100799

SCR-HH 5/16-18X1.5 G5 ZP
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

236

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

239

MTD 1714521

BEARING-SPHERICAL

$

$

Not available

240

MTD 1717942

NUT-SPECIAL 5/16-18

$

$

Not available

242

Troy-Bilt 1763355

WASHER-1.5X.375X.18 ZP
(Superseded to 936-0227)

$

$

Not available

243

MTD 1765445

SPRING-LIFT ASSIST

$

$

Not available

244

MTD 1765457

BRKT-LIFT ASSIST

$

$

Not available

245

MTD 1765458

SCR-LIFT ASSIST

$

$

Not available

247

MTD 1766028

BLOCK-DETENT

$

$

Not available

248

$

$

Not available

250

MTD 1766057

CLAMP-LIFT

$

$

Not available

251

$

$

Currently unavailable

252

MTD 1772438

SWIVEL-REAR LIFT

$

$

Not available

254

MTD 1766080

SPACER

$

$

Not available

255

MTD 1766174

SPRING-EXTENSION

$

$

Not available

256

MTD 1766175

SCR-SHOULDER

$

$

Not available

257

$

$

Not available

261

MTD 1766340

GRIP-LIFT

$

$

Not available

276

Troy-Bilt 1767880

BUTTON-LIFT
(Superseded to 1772865)

$

$

Not available

321

MTD 1772165

PLUG-DOME

$

$

Not available

525

MTD 1766032001

HANDLE-LIFT

$

$

Not available

526

$5.49

$

In Stock, only 3 left!

0

527

$

$

Not available

528

Troy-Bilt 1185649

RING-RETAINING EXT .694 ID

$

$

Not available

529

MTD 1768718

LINK-LIFT W/DECAL

$

$

Not available

530

Troy-Bilt 1768717

LINK-LIFT W/DECAL

$

$

Not available
