130902-1164-01 - Briggs & Stratton Vertical Engine Cylinder,Mufflers,PistonGrp Parts Diagram

Vertical Engine

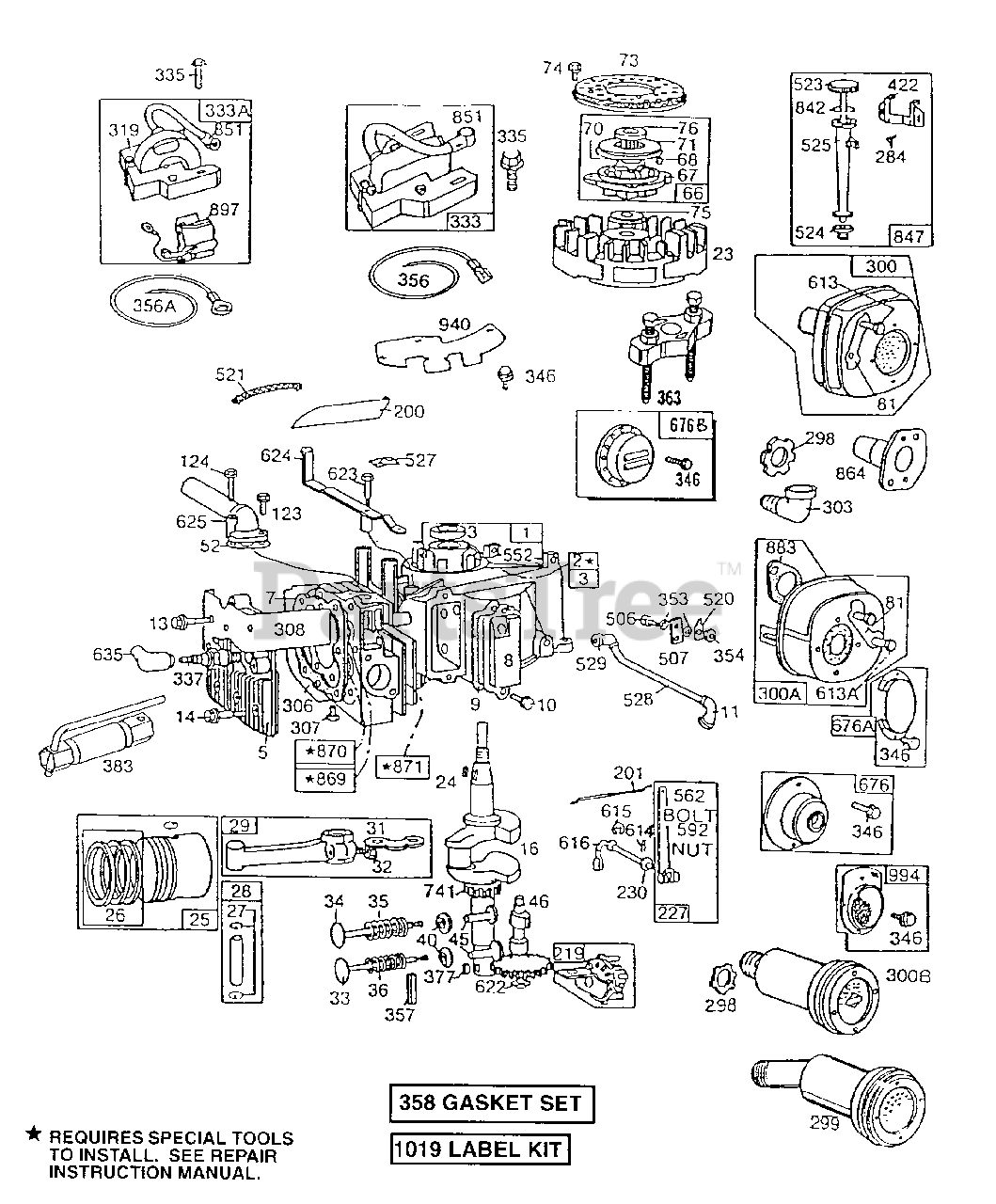

Cylinder,Mufflers,PistonGrp Parts Diagram

  • Title

1

Briggs & Stratton 396006

Cylinder Assembly

$160.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 297565

Bushing/Seal Kit

Note: Requires Special Tools For Installation.

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 299819

Seal, Oil (Plain Bearing Covers)
(Superseded to 299819S)

Note: Included in Gasket Set-Part No. 297616

$5.49

$

In Stock, Qty 13

0

5

Briggs & Stratton 213958

Head-Cylinder
(Superseded to 691716)

$

$

Not available

7

Briggs & Stratton 272157

Gasket-Cylinder Head
(Superseded to 272157S)

Note: Included in Gasket Set-Part No. 297616

$6.49

$

In Stock, Qty 5

0

8

Briggs & Stratton 297261

Breather-Valve Chamber
(Superseded to 495758)

$45.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549

Gasket, Valve Cover
(Superseded to 27549S)

Note: Included in Gasket Set-Part No. 297616

$3.99

$

In Stock, Qty 10

0

10

Briggs & Stratton 94621

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 67738

Tube-Breather

$9.49

$

In Stock, only 1 left!

0

13

Briggs & Stratton 93583

Stud, Cylinder Head
(Superseded to 691690)

$

$

Not available

13

Briggs & Stratton 94221

Screw, Sem Hex Wash (Cylinder Head) (2 1/8" Long)
(Superseded to 691640)

$3.49

$

In Stock, Qty 11

0

14

Briggs & Stratton 93369

Screw-Cylinder Head (2-15/32" Long)
(Superseded to 691659)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 93583

Stud, Cylinder Head
(Superseded to 691690)

$

$

Not available

16

Briggs & Stratton 493410

Crankshaft

Note: To Replace Crankshaft Gear Pin-Order Part No. 230978

$161.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 297229

Flywheel-Magneto

$

$

Not available

24

Briggs & Stratton 222698

Key, Flywheel
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 298904

Piston Assy-Std (Std.)
(Superseded to 793214)

$

$

Not available

25

Briggs & Stratton 298905

Piston Assy-010

$50.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 298906

Piston Assy-020

$

$

Not available

25

Briggs & Stratton 298907

Piston Assy-030

$

$

Not available

26

Briggs & Stratton 298982

Ring Set-Std (Std.)

$48.99

$

In Stock, Qty 8

0

26

Briggs & Stratton 298983

Ring Set-010

$

$

Not available

26

Briggs & Stratton 298984

Ring Set-020

$35.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 298985

Ring Set-030

$23.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 299742

Ring Set-Std Chr
(Superseded to 298982)

$48.99

$

In Stock, Qty 8

0

27

Briggs & Stratton 26026

Lock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298908

Pin-Piston 005 (.005" O.S.)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 298909

Pin-Piston

$8.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 299429

Rod-Connecting (Standard)

$27.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 390459

Rod-Connecting 020

$

$

Not available

31

Briggs & Stratton 221876

Lock-Screw Head

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92296

Screw-Connecting Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 211119

Valve-Exhaust
(Superseded to 211119S)

$

$

Not available

34

Briggs & Stratton 261044

Valve-Intake
(Superseded to 261044S)

$

$

Not available

35

Briggs & Stratton 260552

Spring, Valve
(Superseded to 690520)

$5.49

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26478

Spring, Valve (Exhaust)
(Superseded to 692180)

$6.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 230126

Pin-Valve Spring Set

$5.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 292259

Retainer-Valve (Exhaust)

$9.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 93312

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 692194)

$5.99

$

In Stock, Qty 9

0

45

Briggs & Stratton 260642

Tappet-Valve
(Superseded to 690509)

$

$

Not available

46

Briggs & Stratton 212733

Gear-Cam
(Superseded to 691164)

$59.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 270070

Gasket-Intake Elbow Mounting

Note: Included in Gasket Set-Part No. 297616

$5.99

$

In Stock, only 2 left!

0

66

Briggs & Stratton 399671

Clutch-Starter

Note: (Uses Rubber Coated Retainer Washer-Ref. 71)

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Housing-Starter Clutch

$36.99

$

In Stock, only 1 left!

0

68

Briggs & Stratton 63770

Ball-Clutch
(Superseded to 691604)

$

$

Not available

70

Briggs & Stratton 298799

Ratchet Assy
(Superseded to 691945)

Note: (For engine W/Ring Gear on FW equipped for Elec Start)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 394506

Seal/Retainer Assy (Rubber Coated)
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

73

Briggs & Stratton 221923

Screen-Starter Pulley

$

$

Not available

74

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

75

Briggs & Stratton 224061

Washer, Flat (5/8" Hole)
(Superseded to 690582)

$4.49

$

In Stock, only 3 left!

0

76

Briggs & Stratton 68238

Seal-Ratchet
(Superseded to 691359)

$9.99

$

In Stock, Qty 13

0

81

Briggs & Stratton 222263

Lock, Screw Head (3/8" Dia. Bolt Holes)
(Superseded to 691729)

$5.99

$

In Stock, only 3 left!

0

123

Briggs & Stratton 93512

Screw-Hex (53/64" Long)

$3.49

$

Usually ships in 2-12 days

0

124

Briggs & Stratton 93367

Screw-Hex (1-1/8" Long)

$3.49

$

Usually ships in 2-12 days

0

200

Briggs & Stratton 223886

Guide, Air (Rewind Start Engines)
(Superseded to 691745)

$11.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 260649

Link-Mechanical Governor

$9.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 297249

Oil Slinger Gear, Governor And Bracket
(Superseded to 496062)

$23.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 391967

Governor Control Le (For 1/4" Dia. Crank)

$8.49

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 222450

Washer, Steel Zinc
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

284

Briggs & Stratton 93410

Screw-Hex

$7.99

$

In Stock, only 1 left!

0

298

Briggs & Stratton 261409

Locknut, Muffler/El
(Superseded to 690453)

$4.49

$

In Stock, Qty 9

0

299

Briggs & Stratton 393368

Muffler, Angular As (20 Degrees Angular)
(Superseded to 496892)

$64.99

$

Usually ships in 2-12 days

0

300B

Briggs & Stratton 393010

Muffler Assy (Round Lo-tone)
(Superseded to 393010S)

$22.99

$

In Stock, only 4 left!

0

300A

Briggs & Stratton 222289

Washer, Steel Zinc
(Superseded to 692810)

$5.49

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 393615

Muffler Grp (Lo-Tone)
(Superseded to 494585)

$23.99

$

In Stock, only 1 left!

0

303

Briggs & Stratton 91464

Elbow, Exhaust (90 Degrees Street)
(Superseded to 94092)

$12.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 221484

Shield-Cylinder
(Superseded to 223804)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93042

Screw, Sem Hex Head
(Superseded to 691078)

Note: Used Before Code Date 87020900

$4.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

Note: Used After Code Date 87020800

$3.99

$

In Stock, Qty 8

0

308

Briggs & Stratton 221452

Cover-Cylinder Head

$12.99

$

Usually ships in 2-12 days

0

319

Briggs & Stratton 395490

Armature Assy. (Less Trigger Coil)
(Superseded to 397358)

$53.99

$

In Stock, Qty 20+

0

333A

Briggs & Stratton 397358

Armature-Mag

$53.99

$

In Stock, Qty 20+

0

333

Briggs & Stratton 397358

Armature-Mag

$53.99

$

In Stock, Qty 20+

0

335

Briggs & Stratton 93414

Screw, Sem Hex Head
(Superseded to 691621)

$7.49

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 293918

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 298809

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 492167

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 802592

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

353

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

356

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

$11.99

$

In Stock, only 1 left!

0

357

Briggs & Stratton 91540

Key, Pulley (1/4")
(Superseded to 691483)

$6.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 297616

Gasket Set
(Superseded to 496659)

$28.99

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19069

Puller-Flywheel (Optional Accessory)

$23.99

$

In Stock, only 1 left!

0

377

Briggs & Stratton 93065

Key, Woodruff (No. 6)
(Superseded to 692193)

$3.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

422

Briggs & Stratton 222576

Clamp-Oil Filler Tube

$15.99

$

Usually ships in 2-12 days

0

506

Briggs & Stratton 90200

Screw-Slotted (8-32 X 1/2")

$3.99

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 66895

Insulator-Terminal

$4.99

$

In Stock, only 2 left!

0

520

Briggs & Stratton 93722

Terminal, Spade
(Superseded to 691084)

$6.49

$

In Stock, only 1 left!

0

521

Briggs & Stratton 298529

Shielding-Ignition Cable

$33.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 391840

Cap/Dipstick Assy (Screw Cap)
(Superseded to 691387)

$16.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 68838

Seal-Oil Filler Tube To Sump
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 280133

Tube, O-Fill
(Superseded to 692963)

Note: (For Plastic Screw Cap Dipstick)

$

$

Not available

527

Briggs & Stratton 93376

Clip-Breather Pipe

$4.49

$

In Stock, only 1 left!

0

528

Briggs & Stratton 230717

Tube-Breather

$

$

Not available

529

Briggs & Stratton 67608

Grommet

Note: (Used with Pull Choke Carburetors)

$

$

Not available

552

Briggs & Stratton 231078

Bushing, Governor S (1/4" I.d.)
(Superseded to 692346)

$9.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Bolt-Gov Lever

$

$

Not available

592

Briggs & Stratton 231082

Nut (10-24)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

613A

Briggs & Stratton 93704

Screw-Muffler Mtg.

Note: Used Before Code Date 82091300

$15.99

$

Usually ships in 2-12 days

0

613A

Briggs & Stratton 94042

Screw, Shoulder Muf
(Superseded to 691632)

Note: Used After Code Date 82091400

$8.49

$

In Stock, only 1 left!

0

613

Briggs & Stratton 93935

Screw, Shoulder Muf
(Superseded to 691413)

$5.99

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 93306

Pin, Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-E Ring

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 231076

Crank-Governor (1/4" Dia. Shaft)
(Superseded to 495242)

$17.99

$

In Stock, only 1 left!

0

622

Briggs & Stratton 260676

Washer-Spring

$

$

Not available

623

Briggs & Stratton 231520

Screw, Shoulder Hex (#8-32 Thread)
(Superseded to 691776)

Note: Used After Code Date 87020500

$

$

Not available

623

Briggs & Stratton 93838

Screw, Shoulder Hex (#6-32 Thread)
(Superseded to 691630)

Note: Used Before Code Date 87020600

$10.99

$

In Stock, only 2 left!

0

624

Briggs & Stratton 297252

Lever-Linkage

$13.99

$

Usually ships in 2-12 days

0

625

Briggs & Stratton 297254

Manifold-Intake

$11.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 5

0

676A

Briggs & Stratton 393757

Deflector-Muff (Side Outlet)
(Superseded to 796956)

$10.99

$

In Stock, only 1 left!

0

676B

Briggs & Stratton 393758

Deflector-Muff (Louvered Outlet)

$26.99

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 395700

Deflector-Muff (Direct Outlet)

$15.99

$

In Stock, only 1 left!

0

741

Briggs & Stratton 261696

Gear-Timing (For Plain Bearing)

$52.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 270920

Seal, Oil Fill Tube
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 392066

Dipstick/Tube Assy

$

$

Not available

851

Briggs & Stratton 221798

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

864

Briggs & Stratton 394279

Adapter-Muffler

$29.99

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 211787

Seat, Intake Valve
(Superseded to 691705)

$9.99

$

In Stock, only 3 left!

0

870

Briggs & Stratton 211172

Seat-Valve (Intake)
(Superseded to 691701)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 262001

Bushing-Guide (Brass)

$13.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Guide (Brass)

$14.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 272309

Gasket-Muffler
(Superseded to 692237)

Note: Included in Gasket Set-Part No. 297616

$5.49

$

In Stock, only 2 left!

0

897

Briggs & Stratton 394970

Magnetron Ign Kit

$

$

Not available

940

Briggs & Stratton 223687

Guard-Flywheel

$8.49

$

Usually ships in 2-12 days

0

994

Briggs & Stratton 399541

Spark Arrester

$28.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 491101

Label Kit

$8.49

$

Usually ships in 2-12 days

0
