13085 - Troy-Bilt Lawn Tractor, Hydro Drive (SN: 130850100101 & Above) DRIVE & HYDRO ASSEMBLY Parts Diagram

Lawn Tractor, Hydro Drive

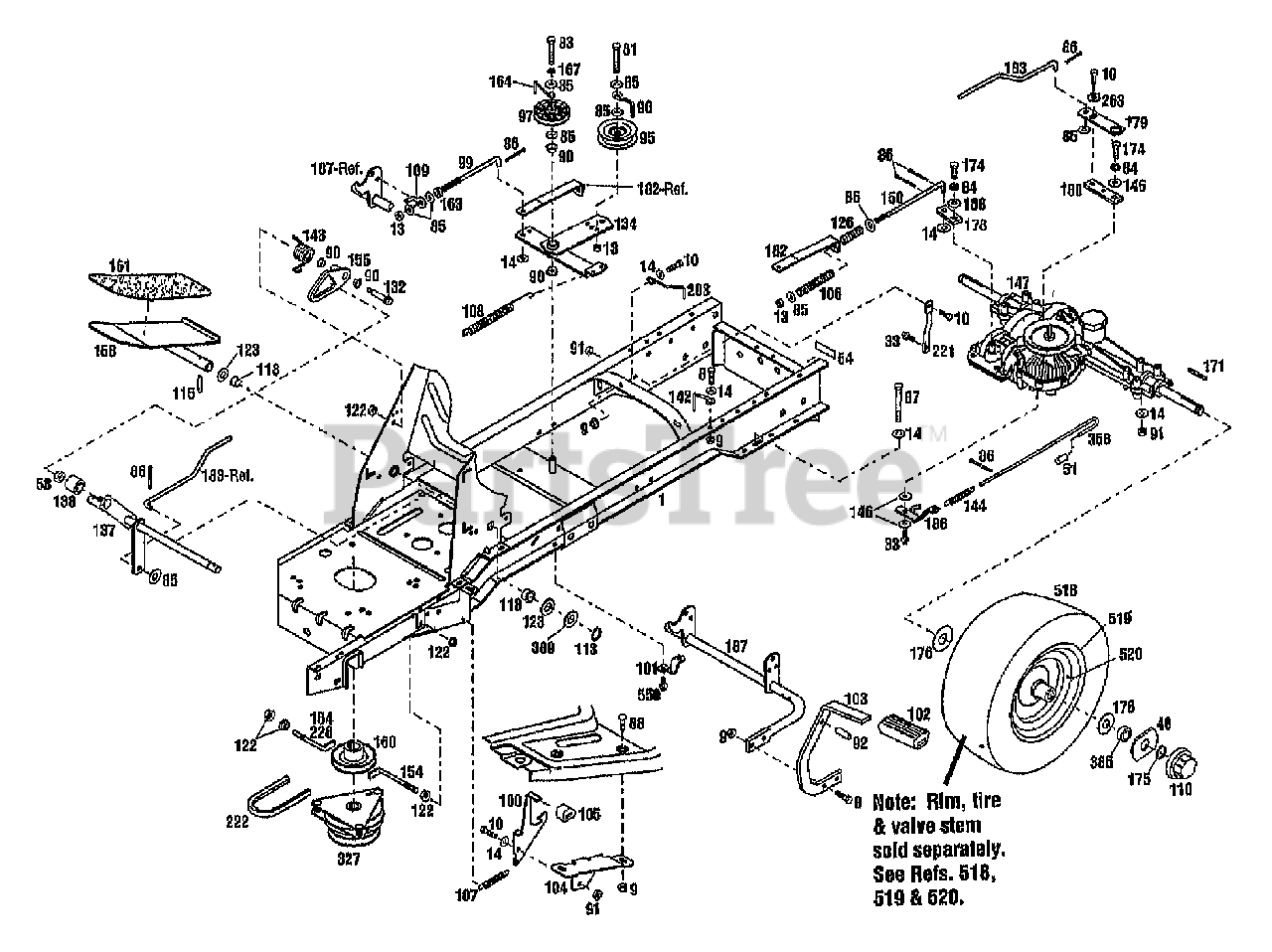

DRIVE & HYDRO ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1765435001

ASSM-FRAME LTX
(Superseded to 1772924001)

$

$

Not available

8

Troy-Bilt 1100045

SCR-HH 5/16-18X1.0 G5 ZP
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

14

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

33

Troy-Bilt 1766984

SCR-HFLK 5/16-18X.75

$3.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 1766241

WASHER-SPEC .75X2.50

$

$

Not available

51

MTD 1767984

GRIP-HANDLE

$

$

Not available

54

MTD 1767967

DECAL-TRANS RELEASE

$

$

Not available

58

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

81

Troy-Bilt 1100048

SCR-HH 3/8-16X2.0 G5 ZP
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

83

Troy-Bilt 1100086

SCR-HH 3/8-16X1.75 G5 ZP
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

84

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

85

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

86

Troy-Bilt 1100346

PIN-COTTER .09X.75 ZP
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

87

Troy-Bilt 1111609

SCR-HH 5/16-18X2.75 G5 ZP
(Superseded to 710-0176)

$4.49

$

In Stock, only 2 left!

0

88

Troy-Bilt 1186097

SCR-CARR 5/16-18X.62 G2 ZP
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

90

Troy-Bilt 1715538

BUSHING-.5X.5 NYLON FLNG

$

$

Not available

91

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

92

MTD 1770205

PIN-DRIVE .312X.75

$

$

Not available

95

Troy-Bilt 1756151

IDLER

$48.99

$

Usually ships in 3-6 days

0

96

Troy-Bilt 1760096

GUIDE-BELT

$

$

Not available

97

Troy-Bilt 1760097

PULLEY-IDLER

$

$

Not available

99

MTD 1765044

ROD-CLUTCH

$

$

Not available

100

MTD 1765096

LATCH-BRAKE CLUTCH USE1771514

$

$

Not available

101

MTD 1765156

CLIP-CLAMP .75 ID

$

$

Not available

102

MTD 1765167

PAD-FOOT PEDAL

$

$

Not available

103

MTD 1765252

PEDAL-BRAKE

$

$

Not available

104

MTD 1765257

BRKT-BRAKE LOCK

$

$

Not available

105

MTD 1765297

PAD-BRAKE

$

$

Not available

106

MTD 1765305

SPRING-COMPRESSION

$

$

Not available

107

MTD 1985140

SPRING-EXTENSION

$

$

Not available

108

Troy-Bilt 1765402

SPRING-EXTENSION

$33.99

$

Usually ships in 3-6 days

0

109

MTD 1765461

ROD-PIVOT

$

$

Not available

110

MTD 1766215

CAP-HUB

$

$

Not available

113

Troy-Bilt 1118808

RING-RETAIN .625 ID

$

$

Not available

115

MTD 1120210

PIN-ROLL .188X1.0

$

$

Not available

118

MTD 1185802

BEARING-FLANGE

$

$

Not available

122

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

123

Troy-Bilt 1715301

WASHER-1.115X.637X.06

$9.99

$

Usually ships in 3-6 days

0

126

MTD 1713075

SPRING

$

$

Not available

132

Troy-Bilt 1763219

SCR-SHLDR 3/8-16

$10.99

$

In Stock, only 2 left!

0

134

MTD 1765064

ARM-IDLER

$

$

Not available

137

MTD 1765079

SHAFT-HYDRO PIVOT

$

$

Not available

138

MTD 1767807

BEARING-BALL

$

$

Not available

142

MTD 1985919

GUIDE-BELT

$

$

Not available

143

MTD 1765306

SPRING-TORSION

$

$

Not available

144

MTD 1720928

SPRING

$

$

Not available

146

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

In Stock, Qty 20+

0

147

Troy-Bilt 1766166

TRANSAXLE-HYDRO
(Superseded to 1774107P)

$

$

Not available

150

MTD 1766162

ROD-BRAKE

$

$

Not available

154

MTD 1766025

RETAINER-CLUTCH (13085,13086)

$

$

Not available

155

MTD 1766015

ARM-RETURN NEUTRAL HYDRO

$

$

Not available

158

MTD 1766085001

ASSM-PEDAL HYDRO

$

$

Not available

160

Troy-Bilt 1766201

PULLEY-ENGINE

$

$

Currently unavailable

161

MTD 1766202

PAD-FOOT PEDAL

$

$

Not available

163

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

164

MTD 1767900

GUIDE-BELT

$

$

Not available

167

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

171

MTD 1983110

KEY-3/16X3/16X1 3/4

$

$

Not available

174

Troy-Bilt 1111683

SCR-HHC 1.4-28 X .50
(Superseded to 710-0230)

$

$

Not available

175

Troy-Bilt 1185388

RING-RET."E".577 ID
(Superseded to 916-0231)

$

$

Not available

176

MTD 1747998

WASHER-1.87X.765X.06 SPECIAL

$

$

Not available

178

MTD 1766132

BRAKE-ARM

$

$

Not available

179

MTD 1766157

ARM-CONTROL

$

$

Not available

180

MTD 1766159

ARM-HYDRO

$

$

Not available

182

MTD 1766164

BRACKET-BRAKE

$

$

Not available

183

MTD 1766165

ROD-HYDRO CTRL

$

$

Not available

186

MTD 1767904

BRACKET-DUMP VALVE

$

$

Not available

187

MTD 1765061

ASSM-BRAKE PEDAL

$

$

Not available

188

MTD 1768866

WASHER-FLAT .25 DIA

$

$

Not available

203

MTD 1767966

GUIDE-BELT

$

$

Not available

221

MTD 1766172

SUPT-TRANSAXLE

$

$

Not available

222

MTD 1765339

BELT-V

$

$

Not available

226

MTD 1766153

GUIDE-BELT (13085,13086)

$

$

Not available

263

MTD 1185714

WASHER-LK .312 PYRAMIDAL

$

$

Not available

327

Troy-Bilt 1755341

CLUTCH-ELECTRIC
(Superseded to 917-3497)

$668.99

$

Usually ships in 3-6 days

0

358

MTD 1767907

ROD-DUMP VALVE

$

$

Not available

385

MTD 1745489

SPACER-1.0X.766X.413

$

$

Not available

389

Troy-Bilt 1705093

WASHER-1.0X.64X.029
(Superseded to 736-0302)

$

$

Not available

518

MTD 1766275

TIRE-20X8.00-10

$

$

Not available

519

MTD 1765607

WHEEL-REAR

$

$

Not available

520

Troy-Bilt 1718086

STEM-VALVE
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

550

Troy-Bilt 1724491

SCR-HFLK 5/16-18X.75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

600

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0

601

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0
