13076 - Troy-Bilt Garden Tractor, Hydro Drive (SN: 130760100101 & Above) HYDRAULIC SYSTEM PARTS Parts Diagram

Garden Tractor, Hydro Drive

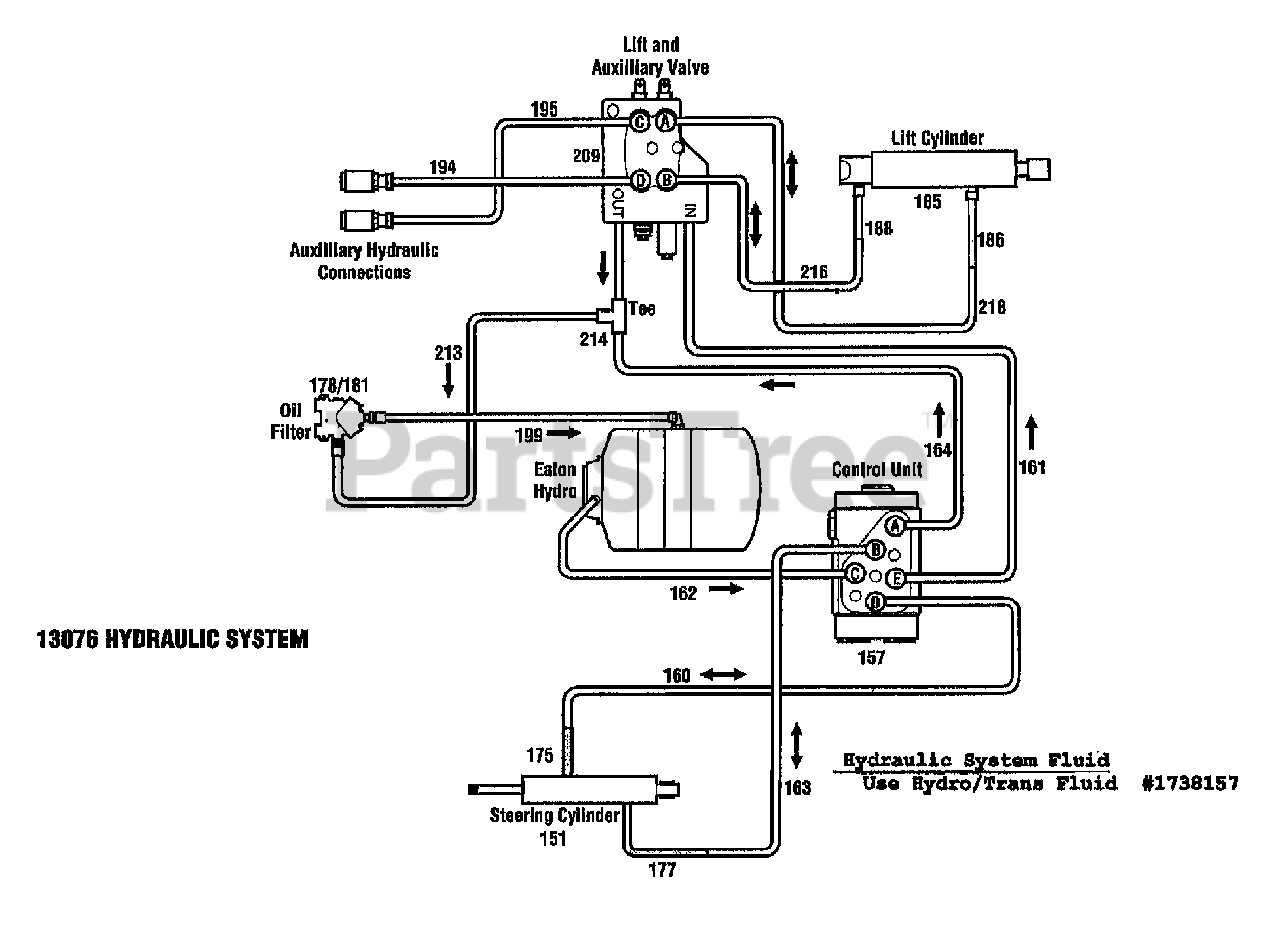

HYDRAULIC SYSTEM PARTS Parts Diagram

  • Title

MTD 1738157

FLUID-HYD 1 GAL

$

$

Not available

151

MTD 1751627001

CYLINDER-HYDRAULIC

$

$

Not available

157

Troy-Bilt 1767378

CONTROL UNIT

$

$

Currently unavailable

160

Troy-Bilt 1767742

TUBE-HYD RIGHT

$

$

Currently unavailable

161

MTD 1767741

TUBE-HYD PB VALVE

$

$

Not available

162

MTD 1767740

TUBE-HYDRO PRESSURE

$

$

Not available

163

Troy-Bilt 1767743

TUBE-HYD LEFT

$

$

Currently unavailable

164

MTD 1767536

TUBE-HYD S C U TANK

$

$

Not available

175

MTD 1752649

ASSM-HOSE

$

$

Not available

177

MTD 1754364

ASSM-HOSE

$

$

Not available

178

Troy-Bilt 1726450

FILTER-OIL

$

$

Not available

181

MTD 1769536

MANIFOLD-FILTER

$

$

Not available

185

MTD 1747509

ASSM-CYL HYDRAULIC

$

$

Not available

186

MTD 1752648

ASSM-HOSE

$

$

Not available

188

MTD 1755198

ASSM-HOSE

$

$

Not available

194

Troy-Bilt 1767748

TUBE-HYD AUX-OUT

$

$

Not available

195

MTD 1767749

TUBE-HYD AUX-IN

$

$

Not available

199

MTD 1755237

ASSM-RETURN TUBE

$

$

Not available

209

MTD 1767393

VALVE-HYDRAULIC

$

$

Not available

213

MTD 1767537

TUBE-HYD RETURN

$

$

Not available

214

MTD 1762308

TEE-SWIVEL

$

$

Not available

216

MTD 1767744

TUBE-HYD VALVE TO ROD

$

$

Not available

218

MTD 1767745

TUBE-HYD VALVE TO HEAD

$

$

Not available
