13074 - Troy-Bilt Garden Tractor, Hydro Drive (SN: 130740100101 & Above) HYDROSTATIC CONTROL & BRAKE LINKAGE Parts Diagram

Garden Tractor, Hydro Drive

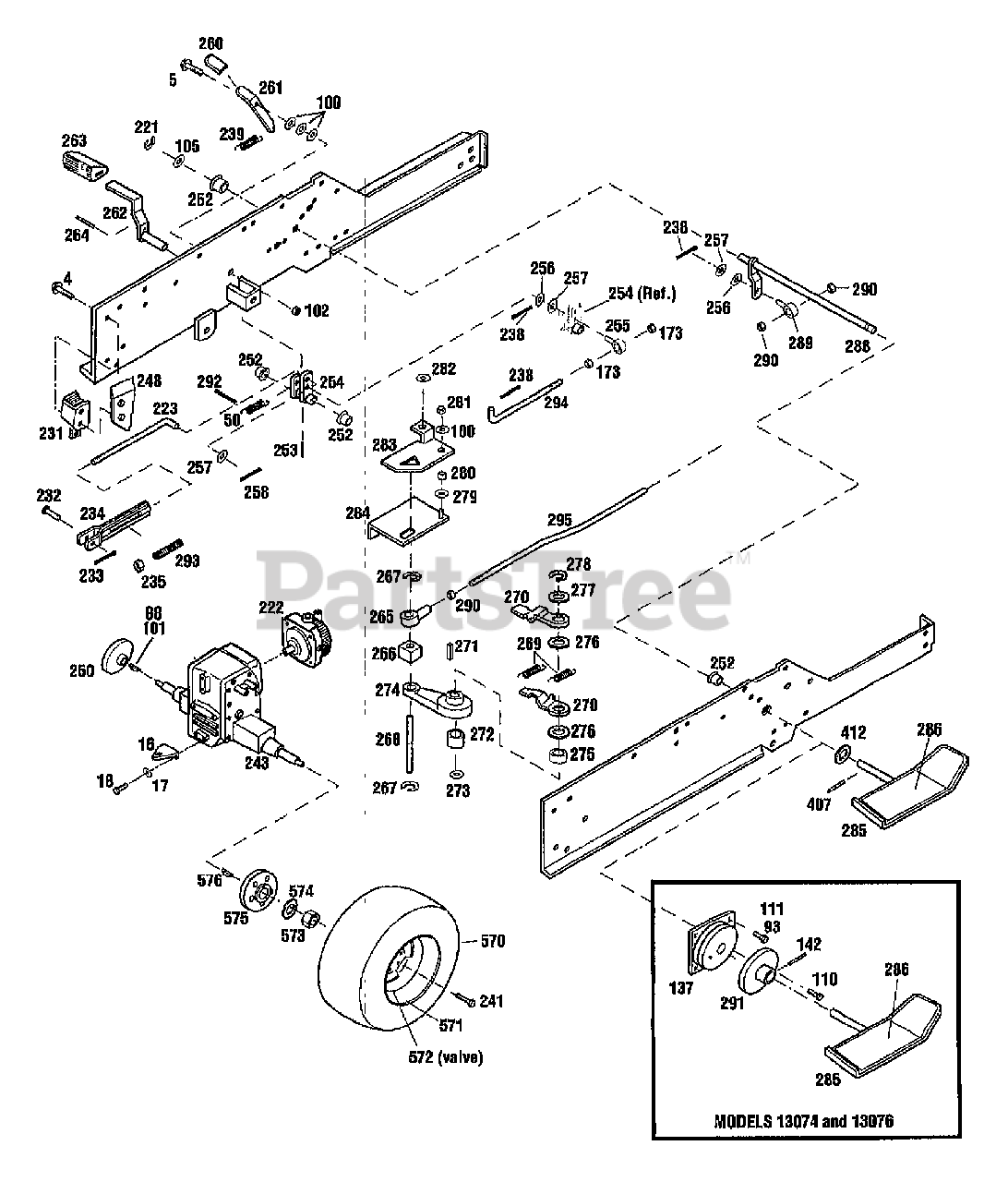

HYDROSTATIC CONTROL & BRAKE LINKAGE Parts Diagram

  • Title

4

MTD 1186345

SCR

$

$

Not available

5

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.99

$

In Stock, only 2 left!

0

16

MTD 1724698001

HITCH-DRAWBAR

$

$

Not available

17

Troy-Bilt 1100245

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

18

Troy-Bilt 1100055

SCR-HH 1/2-13X1.25 G5 ZP
(Superseded to 710-3032)

$6.49

$

Usually ships in 3-6 days

0

50

Troy-Bilt 1746769

SPRING

$16.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 1104436

KEY-WOODRUFF .188X.75
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

93

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$3.99

$

Usually ships in 3-6 days

0

100

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

101

MTD 1751775

KEY-WOODRUFF .25X.75

$

$

Not available

102

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

105

Troy-Bilt 1715301

WASHER-1.115X.637X.06

$9.99

$

Usually ships in 3-6 days

0

110

MTD 1738463

SCR

$

$

Not available

111

MTD 1185130

SCR-SEMS MACH

$

$

Not available

137

MTD 1738462

CLUTCH

$

$

Not available

142

Troy-Bilt 1185232

PIN-ROLL
(Superseded to 915-0246)

$6.99

$

In Stock, Qty 7

0

173

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

221

Troy-Bilt 1118808

RING-RETAIN .625 ID

$

$

Not available

222

Troy-Bilt 1764708

PUMP-HYDRO
(Superseded to 1774321P)

$

$

Not available

223

MTD 1757504

ROD-BRAKE

$

$

Not available

231

MTD 1758869

ASSY BRAKE-CYLINDER

$

$

Not available

232

MTD 1757599

PIN-CLEVIS .25X.62

$

$

Not available

233

MTD 1187385

PIN-COTTER

$

$

Not available

234

MTD 1768469

SPRING-YOKE ASSM

$

$

Not available

235

MTD 1757246

NUT-SPECIAL

$

$

Not available

238

Troy-Bilt 1100346

PIN-COTTER .09X.75 ZP
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

239

MTD 1726640

SPRING

$

$

Not available

241

MTD 0101085

BOLT-HUB

$

$

Not available

243

Troy-Bilt 1754102010

ASSM-TRANSAXLE

$

$

Currently unavailable

243

Troy-Bilt 1754174010

TRANSAXLE

$

$

Currently unavailable

248

Troy-Bilt 1757390001

BRKT-TRANS SUPPORT

$

$

Currently unavailable

250

Troy-Bilt 1756818

BRAKE-DISC

$

$

Currently unavailable

250

Troy-Bilt 1756816

DISC-BRAKE

$

$

Currently unavailable

252

MTD 1185802

BEARING-FLANGE

$

$

Not available

253

Troy-Bilt 1732147

PIN-DRIVE .187X1.0
(Superseded to 715-0120)

$10.99

$

In Stock, only 1 left!

0

254

MTD 1756812

ARM

$

$

Not available

255

MTD 1763814

SWIVEL

$

$

Not available

256

Troy-Bilt 1705108

WASHER-.632X.39X.0329
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

257

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

258

Troy-Bilt 1100349

PIN-COTTER .125 X .75 ZP
(Superseded to 914-0474)

$

$

Not available

260

MTD 1734553

GRIP

$

$

Not available

261

Troy-Bilt 1771386001

LOCK-BRAKE

$

$

Currently unavailable

262

MTD 1755510

PEDAL-BRAKE

$

$

Not available

263

MTD 1728694

FOOT REST

$

$

Not available

264

MTD 1120209

PIN-ROLL .188X.75

$

$

Not available

265

MTD 1721612

ROD-END

$

$

Not available

266

Troy-Bilt 1720699

BLOCK

$

$

Currently unavailable

267

MTD 1118802

RING-RET.EXT .437 ID

$

$

Not available

268

MTD 1734563

PIN-CONTROL

$

$

Not available

269

MTD 1720928

SPRING

$

$

Not available

270

MTD 1720523

ARM

$

$

Not available

271

MTD 1104435

KEY-WOODRUFF 1/8 X 5/8

$

$

Not available

272

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, only 2 left!

0

273

Troy-Bilt 1110110

NUT-H/LK 1/2-13
(Superseded to 912-0384)

$6.99

$

In Stock, only 3 left!

0

274

MTD 1722151

ARM-SPEED CONTROL

$

$

Not available

275

MTD 1720706

BEARING

$

$

Not available

276

MTD 1720361

WASHER-THRUST

$

$

Not available

277

Troy-Bilt 1720529

WASHER
(Superseded to 736-0246)

$

$

Not available

278

MTD 1185732

RING-RET

$

$

Not available

279

MTD 1703052

WASHER-1.75X.39X.059

$

$

Not available

280

MTD 1732369

SPACER-.625X.4X.2

$

$

Not available

281

Troy-Bilt 1185506

NUT-HEX/JAM 3/8-16 ZP
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

281

Troy-Bilt 1110108

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

282

Troy-Bilt 1100254

WASHER-.75X.312X.065 ZP
(Superseded to 936-0159)

$

$

Not available

283

MTD 1729213

PLATE-NEUTRAL

$

$

Not available

284

MTD 1729445

PLATE-NEUTRAL

$

$

Not available

285

MTD 1766085001

ASSM-PEDAL HYDRO

$

$

Not available

286

MTD 1766202

PAD-FOOT PEDAL

$

$

Not available

288

MTD 1770201

SHAFT-SPEED CONTROL

$

$

Not available

289

MTD 1751848

SWIVEL

$

$

Not available

290

Troy-Bilt 1186246

NUT-HEX/JAM 7/16-20

$

$

Not available

291

MTD 1738447

ASSM-CONTROL DISC

$

$

Not available

292

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

293

MTD 1757501

SPRING-COMPRESSION

$

$

Not available

293

Troy-Bilt 1773193

SPRING-COMPRESSION

$

$

Currently unavailable

294

MTD 1759491

ROD-BRAKE CONTROL

$

$

Not available

295

MTD 1747514

ROD-SPEED CONTROL

$

$

Not available

407

UNKNOWN

$

$

Not available

412

UNKNOWN

$

$

Not available

570

MTD 1768795

TIRE

$

$

Not available

571

MTD 1766131

RIM-WHEEL REAR

$

$

Not available

572

Troy-Bilt 1718086

STEM-VALVE
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

573

MTD 1120390

NUT-H/LK 3/4-10

$

$

Not available

574

MTD 1708599

SPACER-1.812X.765X.179

$

$

Not available

575

MTD 1726679

HUB-WHEEL

$

$

Not available

575

Troy-Bilt 1747088

HUB-WHEEL

$

$

Currently unavailable

576

MTD 1100281

KEY-WOODRUFF .312X1.12

$

$

Not available
