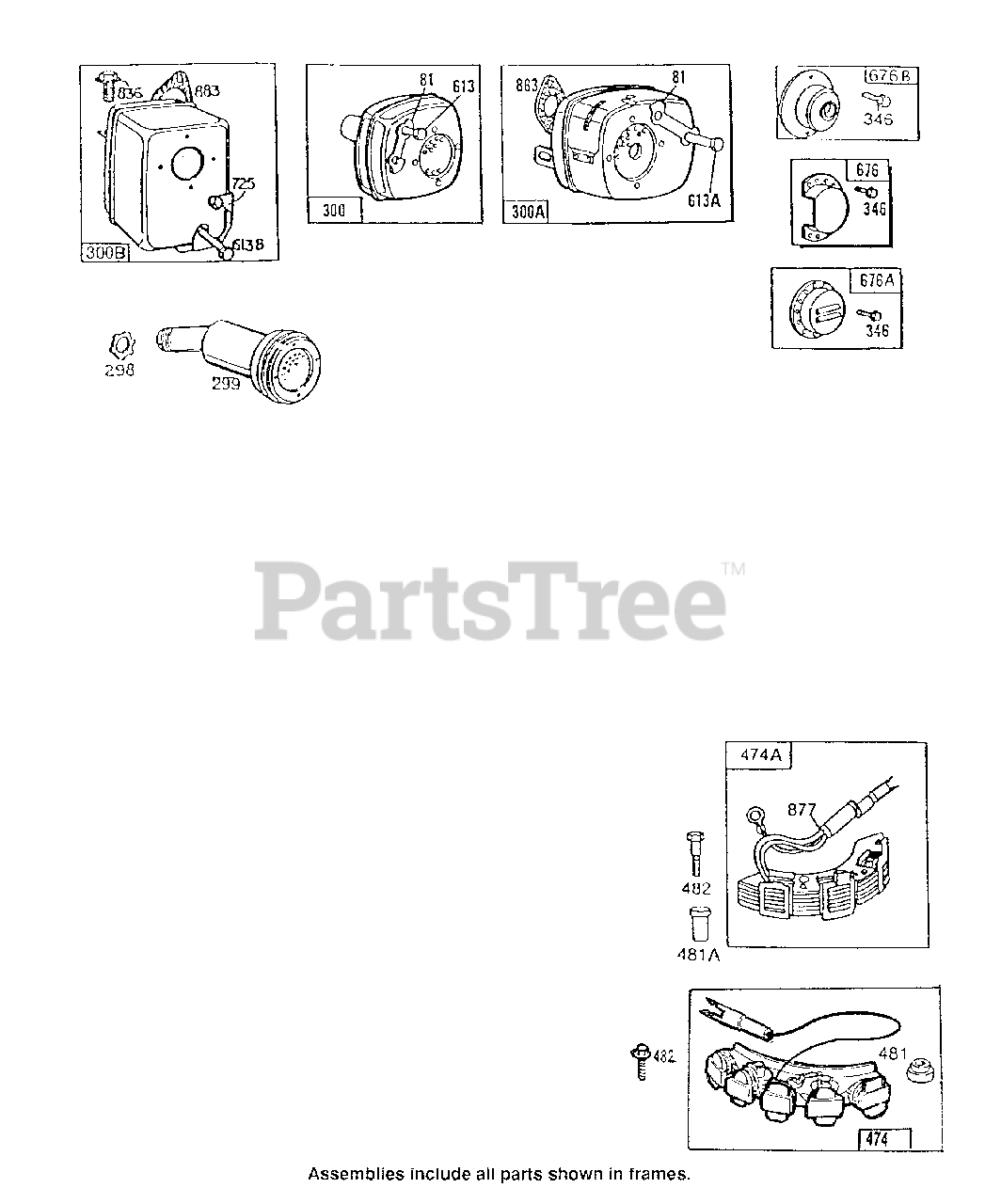

130702-7002-XX - Briggs & Stratton Vertical Engine Mufflers, Deflectors, Elect. Parts Diagram

Vertical Engine

Mufflers, Deflectors, Elect. Parts Diagram

  • Title

81

Briggs & Stratton 222263

Lock, Screw Head (3/8" Dia. Bolt Holes)
(Superseded to 691729)

$5.99

$

In Stock, only 3 left!

0

298

Briggs & Stratton 261409

Locknut, Muffler/El
(Superseded to 690453)

$4.49

$

In Stock, Qty 9

0

299

Briggs & Stratton 393368

Muffler, Angular As (20 Degrees Angular)
(Superseded to 496892)

$64.99

$

Usually ships in 2-12 days

0

300A

Briggs & Stratton 390918

Muffler/Shield Grp (Lo-Tone)
(Superseded to 390918S)

$65.99

$

Usually ships in 2-12 days

0

300B

Briggs & Stratton 396001

Muffler/Shield Grp (Lo-Tone)
(Superseded to 691969)

$111.99

$

In Stock, only 1 left!

0

300

Briggs & Stratton 393615

Muffler Grp (Lo-Tone)
(Superseded to 494585)

$23.99

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93705

Screw, Tapping Hex (8-32 X 3/8)
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

474A

Briggs & Stratton 494254

Stator-Assy.

Note: Used Before Code Date 91032500

$81.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 494254

Stator-Assy.

Note: Used After Code Date 91032400

$81.99

$

Usually ships in 2-12 days

0

481A

Briggs & Stratton 230970

Bushing-Stator

Note: Used Before Code Date 91032500

$6.49

$

Usually ships in 2-12 days

0

481

Briggs & Stratton 231767

Spacer-Alternator

Note: Used After Code Date 91032400

$7.49

$

Usually ships in 2-12 days

0

482

Briggs & Stratton 93639

Screw-Sem

$2.49

$

Usually ships in 2-12 days

0

613B

Briggs & Stratton 94054

Screw, Shoulder Muf
(Superseded to 691351)

$8.49

$

Usually ships in 2-12 days

0

613A

Briggs & Stratton 94042

Screw, Shoulder Muf
(Superseded to 691632)

$8.49

$

In Stock, only 2 left!

0

613

Briggs & Stratton 93935

Screw, Shoulder Muf
(Superseded to 691413)

$5.99

$

Usually ships in 2-12 days

0

676A

Briggs & Stratton 393758

Deflector-Muff (Louvered Outlet)

$26.99

$

Usually ships in 2-12 days

0

676B

Briggs & Stratton 395700

Deflector-Muff (Direct Outlet)

$15.99

$

In Stock, only 1 left!

0

676

Briggs & Stratton 393757

Deflector-Muff (Side Outlet)
(Superseded to 796956)

$10.99

$

In Stock, only 1 left!

0

725

Briggs & Stratton 223303

Shield-Muffler
(Superseded to 690466)

$35.99

$

Usually ships in 2-12 days

0

836

Briggs & Stratton 93559

Screw-Tank To Bracket
(Superseded to 690810)

$3.49

$

In Stock, only 2 left!

0

877

Briggs & Stratton 393854

Diode Assy.
(Superseded to 394251)

$30.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 272309

Gasket-Muffler
(Superseded to 692237)

Note: Included in Gasket Set-Part No. 297616

$5.49

$

In Stock, only 3 left!

0
