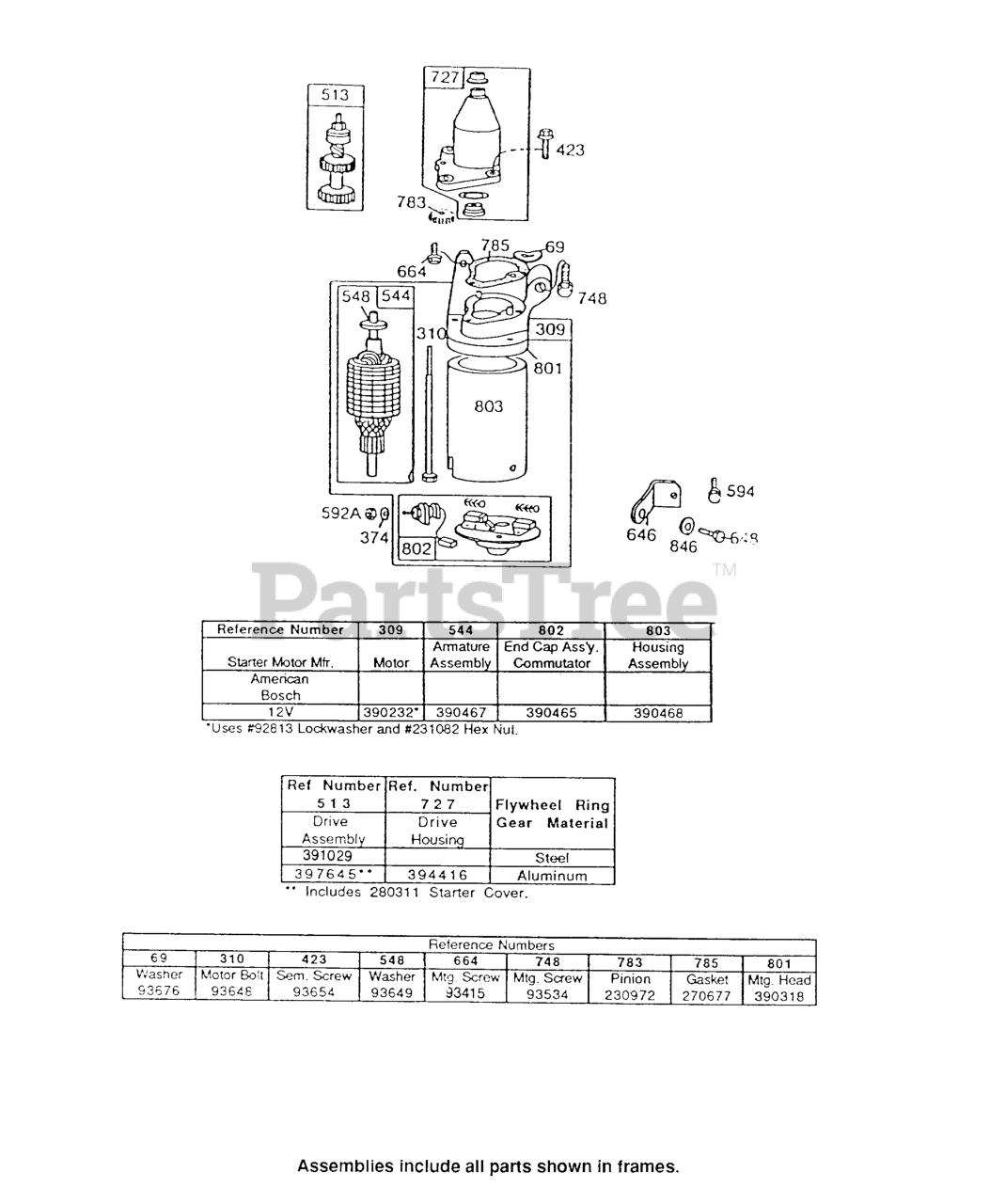

130702-0131-02 - Briggs & Stratton Vertical Engine Electric Starter Parts Diagram

Vertical Engine

Electric Starter Parts Diagram

  • Title

69

Briggs & Stratton 68938

Washer, Thrust
(Superseded to 691074)

Note: (13/16 ODx17/32 ID) Use on Aux Drive PTO.Cam

$

$

Not available

309

Briggs & Stratton 390232

Motor-Starter (American Bosch 12v)

Note: Uses #92813 Lockwasher and #231082 Hex Nut

$104.99

$

Usually ships in 2-12 days

0

310

Briggs & Stratton 93648

Screw-Hex

$

$

Not available

423

Briggs & Stratton 93654

Screw-Hex

$3.49

$

Usually ships in 2-12 days

0

513

Briggs & Stratton 391029

Drive-Starter (American Bosch 110v)

$34.99

$

Usually ships in 2-12 days

0

513

Briggs & Stratton 397645

Clutch-Drive Fw Ring Gear Material Aluminum
(Superseded to 696536)

Note: Includes 280311 Starter Cover

$192.99

$

Usually ships in 2-12 days

0

544

Briggs & Stratton 390467

Armature-Str (American Bosch 12v)

$50.99

$

Usually ships in 2-12 days

0

548

Briggs & Stratton 93649

Washer

$10.99

$

Usually ships in 2-12 days

0

594

Briggs & Stratton 93559

Screw-Tank To Bracket
(Superseded to 690810)

$3.49

$

In Stock, only 3 left!

0

664

Briggs & Stratton 93415

Screw-Hex (1/4-20 X 3/4)
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

727

Briggs & Stratton 394416

Cover-Str Drive Fw Ring Gear Material Aluminum

$8.99

$

Usually ships in 2-12 days

0

748

Briggs & Stratton 93534

Screw, Sem Hex Head
(Superseded to 691103)

$3.99

$

In Stock, only 4 left!

0

783

Briggs & Stratton 230972

Gear-Pinion

Note: Parts Common to the 12V and 110V Motors

$6.99

$

Usually ships in 2-12 days

0

785

Briggs & Stratton 270677

Gasket-Gear Cover

Note: Parts Common to the 12V and 110V Motors

$1.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 390318

Cap-Drive

Note: Parts Common to the 12V and 110V Motors

$34.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 390465

Cap-End (American Bosch 12v)

$

$

Not available

803

Briggs & Stratton 390468

Housing-Starter (American Bosch 12v)

$

$

Not available
