13065 - Troy-Bilt Hydro Suburban Lawn Tractor (SN: 130650100101 & Above) ENGINE ASSEMBLY Parts Diagram

Hydro Suburban Lawn Tractor

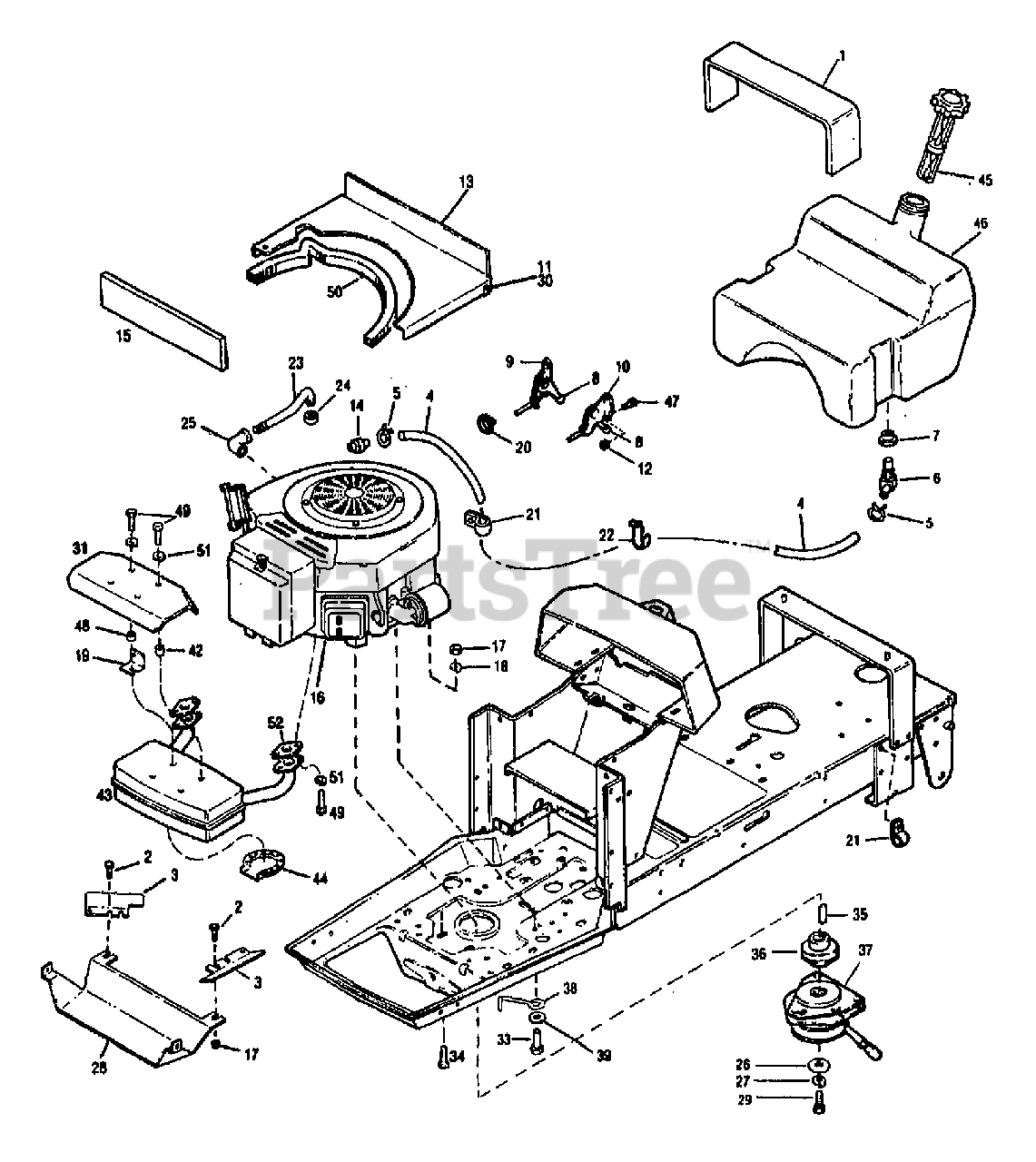

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1744390

PAD-FUEL TANK

$

$

Currently unavailable

2

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

3

MTD 1758459001

SHIELD-HEAT

$

$

Not available

4

MTD 1762101

FUEL LINE

$

$

Not available

5

Troy-Bilt 1750687

CLAMP-HOSE
(Superseded to 726-0205)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1751477

ELBOW-90 DEG (FUEL LINE)
(Superseded to 951-0171)

$20.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 1738433

BUSHING-RUBBER
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 1737118

KNOB
(Superseded to 731-0108)

$9.49

$

In Stock, only 2 left!

0

9

MTD 1758801

CONTROL-THROTTLE

$

$

Not available

10

Troy-Bilt 1758800

CONTROL-CHOKE
(Superseded to 1758800P)

$63.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 1115815

SCR-TRUSS #10-24 X 5/8
(Superseded to 710-0425)

$4.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$3.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 1758426001

SHIELD-HEAT

$

$

Currently unavailable

14

Troy-Bilt 1727491

FILTER-FUEL
(Superseded to BS-298090S)

$

$

Not available

15

Troy-Bilt 1764658

FOAM-LOWER

$

$

Currently unavailable

16

0

ENGINE, B&S 14HP MODEL 294777 {13065}

$

$

Not available

16

0

ENGINE, B&S 16HP MODEL 303777 {13066}

$

$

Not available

17

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

MTD 1758311001

BRKT-HEAT SHIELD

$

$

Not available

20

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

21

MTD 1747738

CLIP-J

$

$

Not available

22

MTD 1745366

HANGER-CABLE

$

$

Not available

23

MTD 1758458

TUBE-OIL DRAIN

$

$

Not available

24

MTD 1745688

CAP-DRAIN TUBE

$

$

Not available

25

MTD 1105029

ELBOW-90 DEG (OIL DRAIN)

$

$

Not available

26

MTD 1744455

WASHER-SPEC 1.42X.468X.25 ZP

$

$

Not available

27

Troy-Bilt 1100244

WASHER-LK .438 ZP
(Superseded to 936-0171)

$4.49

$

In Stock, Qty 5

0

28

MTD 1758464001

SHIELD-HEAT

$

$

Not available

29

Troy-Bilt 1767165

SCR-HH 7/16-20X3.00
(Superseded to 710-3157A)

$10.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 1185986

NUT-SPEED #10
(Superseded to 712-0147)

$6.99

$

Usually ships in 3-6 days

0

31

MTD 1763649001

SHIELD-HEAT

$

$

Not available

33

MTD 1111606

SCR-HH 5/16-18X2.00

$

$

Not available

34

Troy-Bilt 1100799

SCR-HH 5/16-18X1.5 G5 ZP
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

35

MTD 1748146

KEY-.25 SQ X 2.5

$

$

Not available

36

Troy-Bilt 1742535

SHEAVE

$

$

Currently unavailable

37

Troy-Bilt 1755341

CLUTCH-ELECTRIC
(Superseded to 917-3497)

$668.99

$

Usually ships in 3-6 days

0

38

MTD 1754787

CLUTCH-RETAINER

$

$

Not available

39

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 1758719

SPACER

$

$

Currently unavailable

43

Troy-Bilt 1763650

MUFFLER

$

$

Currently unavailable

44

Troy-Bilt 1758940

DEFLECTOR-MUFFLER
(Superseded to 751-0564B)

$13.99

$

In Stock, only 3 left!

0

45

Troy-Bilt 1748758

CAP-GAS
(Superseded to 751-0531B)

$83.99

$

In Stock, only 4 left!

0

46

Troy-Bilt 1756460

TANK-FUEL

$

$

Currently unavailable

47

MTD 1750962

SCR

$

$

Not available

48

MTD 1714721

SPACER-.5X.281X.375

$

$

Not available

49

Troy-Bilt 1100069

SCR-HH 1/4-20X1.0
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 13

0

50

MTD 1758768

STRIP-SEALING

$

$

Not available

51

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

52

0

GASKET

$

$

Not available
