13064 - Troy-Bilt Hydro Suburban Lawn Tractor (SN: 130640100101 & Above) HYDROSTATIC DIFFERENTIAL BREAKDOWN Parts Diagram

Hydro Suburban Lawn Tractor

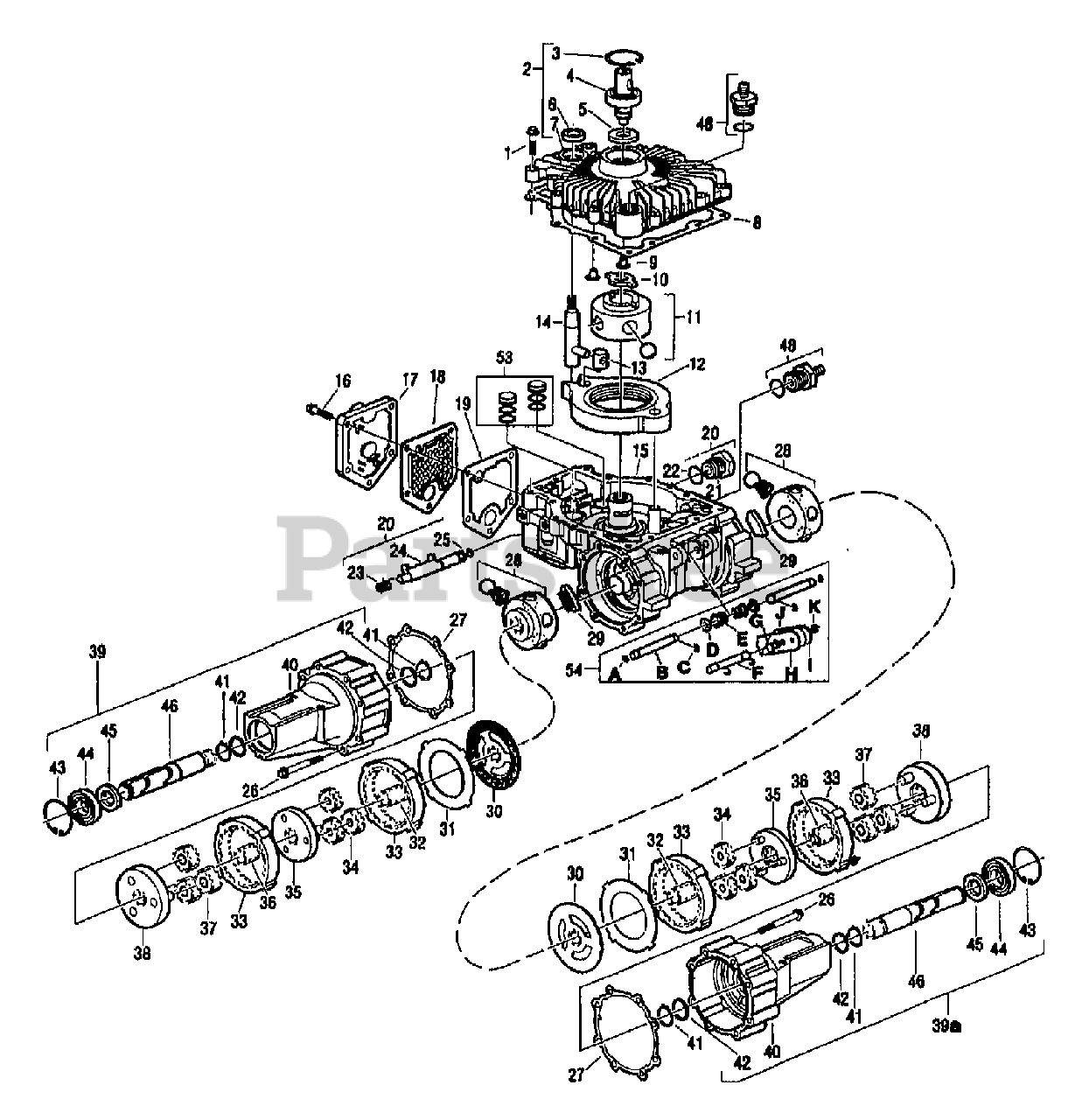

HYDROSTATIC DIFFERENTIAL BREAKDOWN Parts Diagram

  • Title

MTD 1762791

TRANS-HYDRO

$

$

Not available

4

MTD 1760892

SHAFT-INPUT

$

$

Not available

5

MTD 1760893

SEAL-OIL

$

$

Not available

6

MTD 1757374

SEAL-CONTROL SHAFT

$

$

Not available

18

MTD 1764020

FILTER-INTERNAL

$

$

Not available

19

Troy-Bilt 1764021

GASKET-VALVE COVER

$

$

Currently unavailable

24

MTD 1757376

BRACKET

$

$

Not available

25

MTD 1757377

RING-O

$

$

Not available

44

MTD 1757700

BEARING

$

$

Not available
