13064 - Troy-Bilt Hydro Suburban Lawn Tractor (SN: 130640100101 & Above) ENGINE ASSEMBLY Parts Diagram

Hydro Suburban Lawn Tractor

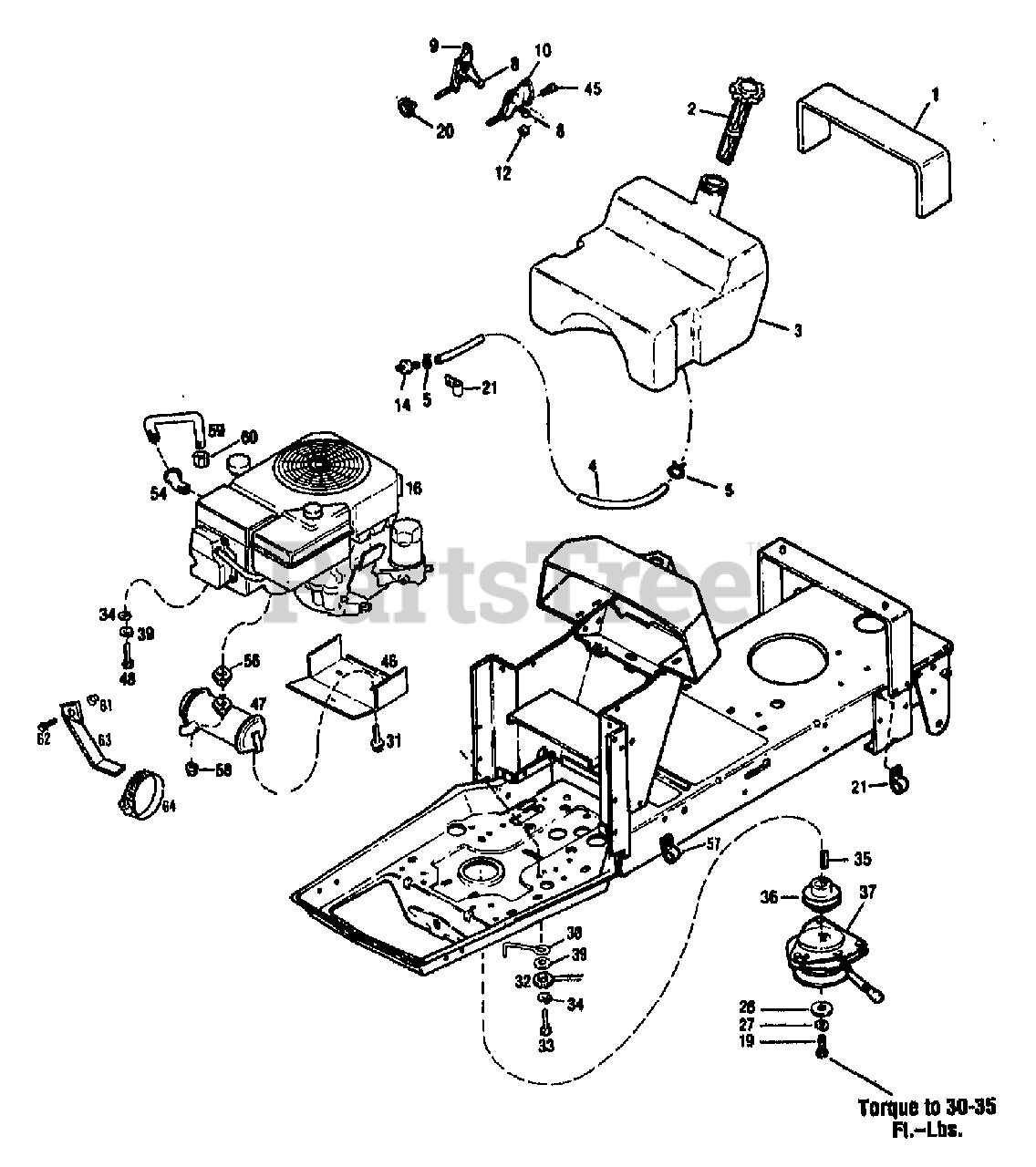

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1744390

PAD-FUEL TANK

$

$

Currently unavailable

2

Troy-Bilt 1748758

CAP-GAS
(Superseded to 751-0531B)

$83.99

$

In Stock, Qty 5

0

3

Troy-Bilt 1756460

TANK-FUEL

$

$

Currently unavailable

4

MTD 1752795

LINE-FUEL 52"

$

$

Not available

5

Troy-Bilt 1750687

CLAMP-HOSE
(Superseded to 726-0205)

$3.99

$

In Stock, Qty 18

0

8

Troy-Bilt 1737118

KNOB
(Superseded to 731-0108)

$9.49

$

In Stock, only 3 left!

0

9

Troy-Bilt 1755926

THROTTLE-CONTROL
(Superseded to 1755926P)

$

$

Not available

10

MTD 1755927

C-CONTROL

$

$

Not available

12

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$3.99

$

In Stock, only 1 left!

0

14

Troy-Bilt 1727491

FILTER-FUEL
(Superseded to BS-298090S)

$

$

Not available

16

0

ENGINE, KOHLER 12.5HP MODEL CV12.59(OHV)

$

$

Not available

19

Troy-Bilt 1763988

SCR-HH M10X1.5X80

$

$

Currently unavailable

20

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

21

MTD 1747738

CLIP-J

$

$

Not available

26

MTD 1744455

WASHER-SPEC 1.42X.468X.25 ZP

$

$

Not available

27

Troy-Bilt 1100244

WASHER-LK .438 ZP
(Superseded to 936-0171)

$4.49

$

In Stock, only 4 left!

0

31

Troy-Bilt 1763875

SCR-HFLK 1/4-20 X .375

$

$

Currently unavailable

32

MTD 1763862

HARNESS-WIRE ENGINE

$

$

Not available

33

MTD 1860219

SCR-HH M8-35

$

$

Not available

34

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

35

MTD 1748146

KEY-.25 SQ X 2.5

$

$

Not available

36

Troy-Bilt 1742535

SHEAVE

$

$

Currently unavailable

37

Troy-Bilt 1755341

CLUTCH-ELECTRIC
(Superseded to 917-3497)

$668.99

$

Usually ships in 3-6 days

0

38

MTD 1754787

CLUTCH-RETAINER

$

$

Not available

39

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

Usually ships in 3-6 days

0

45

MTD 1750962

SCR

$

$

Not available

46

MTD 1764845001

SHIELD-HEAT

$

$

Not available

47

Troy-Bilt 1763852

KIT-MUFFLER

$

$

Currently unavailable

48

Troy-Bilt 1860217

BOLT-M8X25
(Superseded to 710-3206A)

$3.99

$

In Stock, Qty 13

0

54

MTD 1743683

ELBOW-45 DEGREES

$

$

Not available

56

0

GASKET

$

$

Not available

57

MTD 1745366

HANGER-CABLE

$

$

Not available

58

0

NUT, M8X1.25

$

$

Not available

59

Troy-Bilt 1763866

TUBE-OIL DRAIN

$

$

Currently unavailable

60

MTD 1745688

CAP-DRAIN TUBE

$

$

Not available

61

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

62

Troy-Bilt 1186309

SCR-HH 1/4-20X.625

$

$

Not available

63

MTD 1764692001

BRKT-MUFFLER

$

$

Not available

64

Troy-Bilt 1740083

CLAMP-WORM
(Superseded to 726-0327)

$14.99

$

Usually ships in 3-6 days

0
