13062 - Troy-Bilt Garden Tractor, Hydro Drive (SN: 130620100101 & Above) ELECTRICAL ASSEMBLY Parts Diagram

Garden Tractor, Hydro Drive

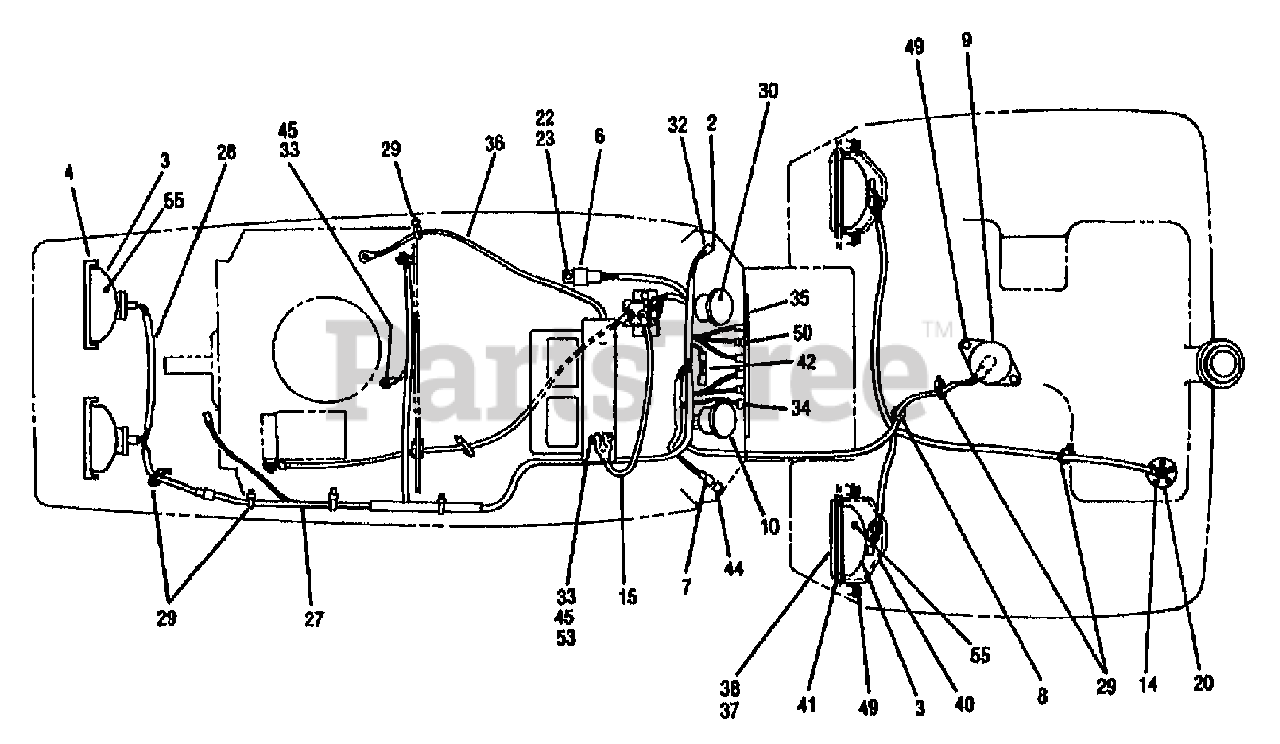

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

?1

MTD 1721252

CLIP-CLAMP .25 ID

$

$

Not available

2

MTD 1750963

SCR-FHP #6-32X.50 ZP

$

$

Not available

3

MTD 1752871

ASSM-LIGHT

$

$

Not available

3

MTD 1752875

SOCKET

$

$

Not available

4

MTD 1753788

RETAINER

$

$

Not available

?5

MTD 1767104

LENSE

$

$

Not available

6

MTD 1749907

RELAY-SPEED CONTROL

$

$

Not available

7

MTD 1754189

SWITCH-LIGHT

$

$

Not available

8

MTD 1734934

GROMMET-RUBBER

$

$

Not available

9

Troy-Bilt 1752506

SWITCH-SEAT

$67.99

$

Usually ships in 3-6 days

0

10

MTD 1757364

METER-HOUR

$

$

Not available

?11

MTD 1752840

BATTERY

$

$

Not available

?12

MTD 1752586

BOLT-HOOK

$

$

Not available

?13

Troy-Bilt 1107381

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

14

MTD 1745778

SCR

$

$

Not available

15

MTD 1752841

CABLE-BATTERY (+)

$

$

Not available

?16

Troy-Bilt 1754207

SWITCH-IGNITION
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

?17

MTD 1753986

KEY-IGNITION

$

$

Not available

?18

MTD 1752408

TUBING

$

$

Not available

?19

MTD 1756032

ASSM-LEAD

$

$

Not available

20

MTD 1765953

SENDER-FUEL

$

$

Not available

?21

MTD 1753539

SOLENOID

$

$

Not available

22

Troy-Bilt 1115815

SCR-TRUSS #10-24 X 5/8
(Superseded to 710-0425)

$4.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$3.99

$

In Stock, only 1 left!

0

?24

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

?25

MTD 1755802

BATTERY-HOLDDOWN

$

$

Not available

?26

Troy-Bilt 1732581

CABLE-STARTER

$

$

Currently unavailable

27

Troy-Bilt 1765954

HARNESS-WIRE

$

$

Currently unavailable

28

MTD 1752505

HARNESS-HEADLIGHT

$

$

Not available

29

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

30

MTD 1755647

GAUGE-FUEL {13062}

$

$

Not available

?31

MTD 1805365

WASHER-.44X.189X.05

$

$

Not available

32

Troy-Bilt 1754608

SWITCH-PTO

$66.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 1111599

SCR-HH 1/4-20X.625 G5 ZP
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

34

MTD 1751572

BULB (MFG NO. GE 73)
(Superseded to 1735285)

$

$

Not available

35

MTD 1757357

LENSE

$

$

Not available

36

MTD 1754220

CABLE (-)

$

$

Not available

37

MTD 1754241

LENSE-LH

$

$

Not available

38

MTD 1754242

LENSE-RH

$

$

Not available

?39

MTD 1738462

CLUTCH

$

$

Not available

40

MTD 1754259

SHIELD-STONE

$

$

Not available

41

MTD 1754191

GASKET

$

$

Not available

42

MTD 1752132

SENSOR-VOLTAGE

$

$

Not available

?43

MTD 1748723

SWITCH

$

$

Not available

44

MTD 1754607

SWITCH-SPEED CONTROL

$

$

Not available

45

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

?46

Troy-Bilt 1751328

SWITCH
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 9

0

?47

MTD 1724492

SCR 1/4-20X.5 FL SELF TAP

$

$

Not available

?48

MTD 1729587

BUSHING

$

$

Not available

49

MTD 1755349

SCR-PHP 1/4-20X.50 ZP

$

$

Not available

50

MTD 1186020

SCR-PHP M6-32X.38 ZP

$

$

Not available

?51

MTD 1754194

GASKET

$

$

Not available

?52

MTD 1731453

SCR-EXHAUST DEFLECTOR

$

$

Not available

53

Troy-Bilt 1186229

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

?54

MTD 1185130

SCR-SEMS MACH

$

$

Not available

55

Troy-Bilt 1752872

LIGHTBULB
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

?56

MTD 1757364

METER-HOUR

$

$

Not available

?57

Troy-Bilt 1743516

FUSE-30 AMP
(Superseded to 725-1543)

$4.49

$

Usually ships in 3-6 days

0
