13060 - Troy-Bilt Garden Tractor, Hydro Drive (SN: 130600100101 & Above) HYDROSTATIC CONTROL & BRAKE LINKAGE Parts Diagram

Garden Tractor, Hydro Drive

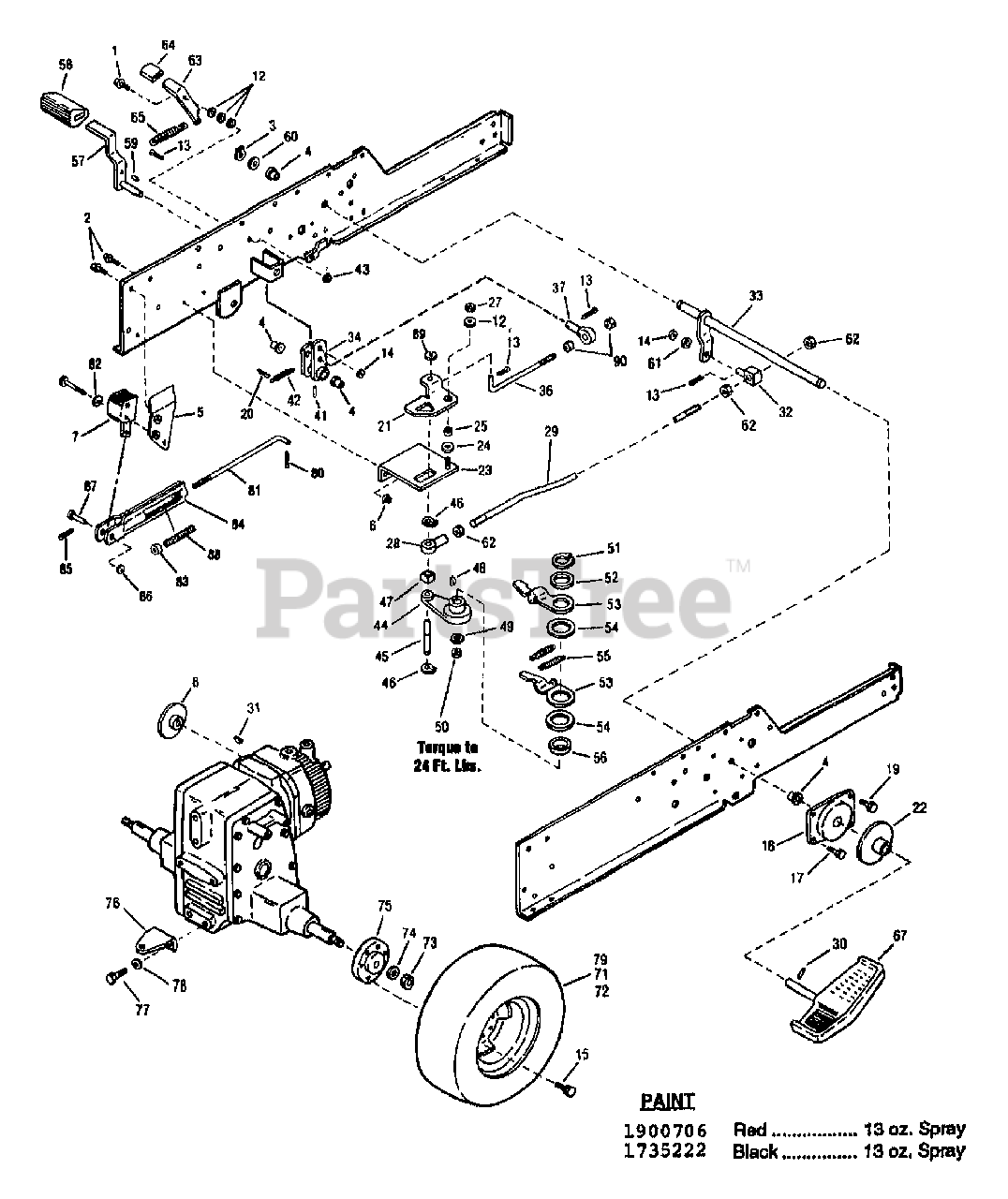

HYDROSTATIC CONTROL & BRAKE LINKAGE Parts Diagram

  • Title

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0

1

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.99

$

In Stock, only 2 left!

0

2

MTD 1186345

SCR

$

$

Not available

3

Troy-Bilt 1118808

RING-RETAIN .625 ID

$

$

Not available

4

MTD 1185802

BEARING-FLANGE

$

$

Not available

5

Troy-Bilt 1757390001

BRKT-TRANS SUPPORT

$

$

Currently unavailable

6

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

7

MTD 1763497

KIT-BRAKE

$

$

Not available

8

Troy-Bilt 1756816

DISC-BRAKE {13062}

$

$

Currently unavailable

8

Troy-Bilt 1758018

DISC-BRAKE {13060}

$

$

Currently unavailable

12

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

13

Troy-Bilt 1100346

PIN-COTTER .09X.75 ZP
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

14

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

15

MTD 0101085

BOLT-HUB

$

$

Not available

17

MTD 1738463

SCR

$

$

Not available

18

MTD 1738462

CLUTCH

$

$

Not available

19

MTD 1185130

SCR-SEMS MACH

$

$

Not available

20

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

21

MTD 1729213

PLATE-NEUTRAL

$

$

Not available

22

MTD 1738447

ASSM-CONTROL DISC

$

$

Not available

23

MTD 1729445

PLATE-NEUTRAL

$

$

Not available

24

MTD 1703052

WASHER-1.75X.39X.059

$

$

Not available

25

MTD 1732369

SPACER-.625X.4X.2

$

$

Not available

?26

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

27

Troy-Bilt 1110108

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

28

MTD 1721612

ROD-END

$

$

Not available

29

MTD 1747514

ROD-SPEED CONTROL

$

$

Not available

30

Troy-Bilt 1185232

PIN-ROLL
(Superseded to 915-0246)

$6.99

$

In Stock, Qty 7

0

31

Troy-Bilt 1104436

KEY-WOODRUFF .188X.75
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

32

MTD 1751848

SWIVEL

$

$

Not available

33

Troy-Bilt 1754085

SHAFT-SPEED CONTROL

$

$

Currently unavailable

34

MTD 1756812

ARM

$

$

Not available

36

MTD 1759491

ROD-BRAKE CONTROL

$

$

Not available

37

MTD 1747507

SWIVEL

$

$

Not available

41

Troy-Bilt 1732147

PIN-DRIVE .187X1.0
(Superseded to 715-0120)

$10.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 1746769

SPRING

$16.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

44

MTD 1722151

ARM-SPEED CONTROL

$

$

Not available

45

MTD 1734563

PIN-CONTROL

$

$

Not available

46

MTD 1118802

RING-RET.EXT .437 ID

$

$

Not available

47

Troy-Bilt 1720699

BLOCK

$

$

Currently unavailable

48

MTD 1104435

KEY-WOODRUFF 1/8 X 5/8

$

$

Not available

49

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, only 2 left!

0

50

Troy-Bilt 1110110

NUT-H/LK 1/2-13
(Superseded to 912-0384)

$6.99

$

In Stock, only 3 left!

0

51

MTD 1185732

RING-RET

$

$

Not available

52

Troy-Bilt 1720529

WASHER
(Superseded to 736-0246)

$

$

Not available

53

MTD 1720523

ARM

$

$

Not available

54

MTD 1720361

WASHER-THRUST

$

$

Not available

55

MTD 1720928

SPRING

$

$

Not available

56

MTD 1720706

BEARING

$

$

Not available

57

MTD 1755510

PEDAL-BRAKE

$

$

Not available

58

MTD 1728694

FOOT REST

$

$

Not available

59

MTD 1120209

PIN-ROLL .188X.75

$

$

Not available

60

Troy-Bilt 1715301

WASHER-1.115X.637X.06

$9.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 1705108

WASHER-.632X.39X.0329
(Superseded to 936-0117)

$7.49

$

In Stock, only 1 left!

0

62

Troy-Bilt 1186246

NUT-HEX/JAM 7/16-20

$

$

Not available

63

MTD 1729683001

LOCK-BRAKE

$

$

Not available

64

MTD 1754210

GRIP {13060}

$

$

Not available

64

MTD 1734553

GRIP {13062}

$

$

Not available

65

MTD 1726640

SPRING

$

$

Not available

67

MTD 1754597001

PEDAL-FOOT

$

$

Not available

71

MTD 1764747

TIRE-23X10.5X12

$

$

Not available

72

Troy-Bilt 1718086

STEM-VALVE
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

73

MTD 1120390

NUT-H/LK 3/4-10

$

$

Not available

74

MTD 1708599

SPACER-1.812X.765X.179

$

$

Not available

75

MTD 1726679

HUB-WHEEL {13060}

$

$

Not available

75

Troy-Bilt 1747088

HUB-WHEEL {13062}

$

$

Currently unavailable

76

MTD 1724698001

HITCH-DRAWBAR

$

$

Not available

77

Troy-Bilt 1100055

SCR-HH 1/2-13X1.25 G5 ZP
(Superseded to 710-3032)

$6.49

$

Usually ships in 3-6 days

0

78

Troy-Bilt 1100245

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, only 2 left!

0

79

MTD 1766131

RIM-WHEEL REAR

$

$

Not available

80

Troy-Bilt 1100349

PIN-COTTER .125 X .75 ZP
(Superseded to 914-0474)

$

$

Not available

81

MTD 1757504

ROD-BRAKE

$

$

Not available

82

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

83

MTD 1757246

NUT-SPECIAL

$

$

Not available

84

MTD 1757503

SPRING-YOKE ASSM

$

$

Not available

85

MTD 1187385

PIN-COTTER

$

$

Not available

86

Troy-Bilt 1107381

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

87

MTD 1757599

PIN-CLEVIS .25X.62

$

$

Not available

88

MTD 1757501

SPRING-COMPRESSION

$

$

Not available

?89

Troy-Bilt 1100254

WASHER-.75X.312X.065 ZP
(Superseded to 936-0159)

$

$

Not available

90

Troy-Bilt 1186258

NUT-HEX JAM 5/16-18
(Superseded to 712-3007)

$6.99

$

In Stock, only 2 left!

0
