13060 - Troy-Bilt Garden Tractor, Hydro Drive (SN: 130600100101 & Above) HYDRAULIC SYSTEM PARTS Parts Diagram

Garden Tractor, Hydro Drive

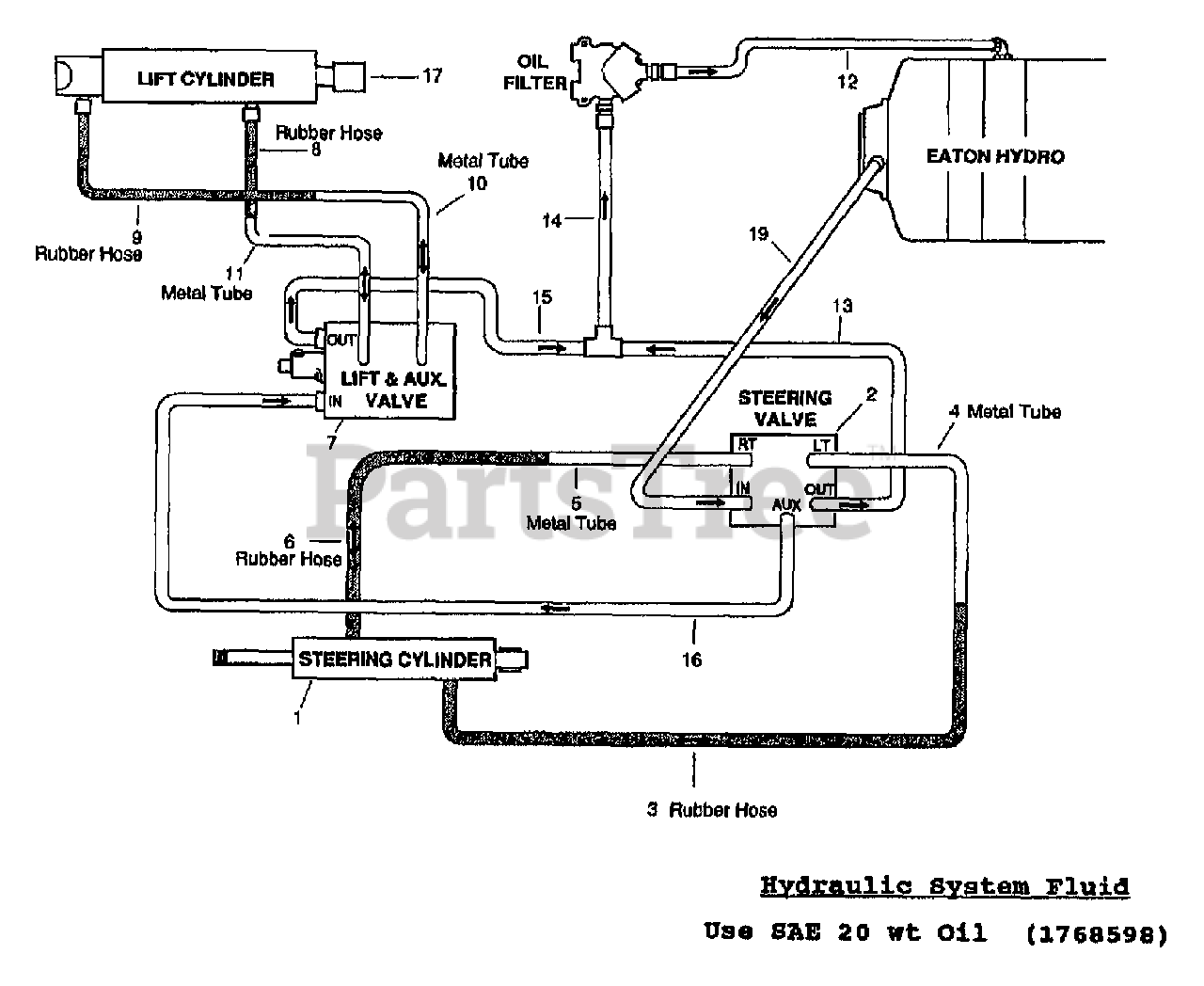

HYDRAULIC SYSTEM PARTS Parts Diagram

  • Title
1

MTD 1751627001

CYLINDER-HYDRAULIC

$

$

Not available

2

Troy-Bilt 1760233

KIT-STEERING VALVE

$

$

Currently unavailable

3

MTD 1754364

ASSM-HOSE

$

$

Not available

4

MTD 1760351

ASSM-TUBE

$

$

Not available

5

Troy-Bilt 1760352

ASSM-TUBE

$

$

Currently unavailable

6

MTD 1752649

ASSM-HOSE

$

$

Not available

7

MTD 1760231

VALVE-LIFT & AUX.

$

$

Not available

8

MTD 1752648

ASSM-HOSE

$

$

Not available

9

MTD 1755198

ASSM-HOSE

$

$

Not available

10

MTD 1755233

ASSM-TUBE

$

$

Not available

11

MTD 1755232

ASSM-TUBE

$

$

Not available

12

MTD 1755237

ASSM-RETURN TUBE

$

$

Not available

13

MTD 1760354

ASSM-TUBE

$

$

Not available

14

MTD 1752662

ASSM-TUBE

$

$

Not available

15

MTD 1752664

ASSM-TUBE

$

$

Not available

16

MTD 1760353

ASSM-TUBE

$

$

Not available

17

MTD 1747509010

ASSM-CYL HYDRAULIC

$

$

Not available

19

MTD 1760355

ASSM-TUBE

$

$

Not available

?20

Troy-Bilt 1726450

FILTER-OIL

$

$

Not available

Troy-Bilt 1768598

OIL-SAE 20 HYDROSTATIC

$

$

Currently unavailable
