13060 - Troy-Bilt Garden Tractor, Hydro Drive (SN: 130600100101 & Above) FRAME & STEERING Parts Diagram

Garden Tractor, Hydro Drive

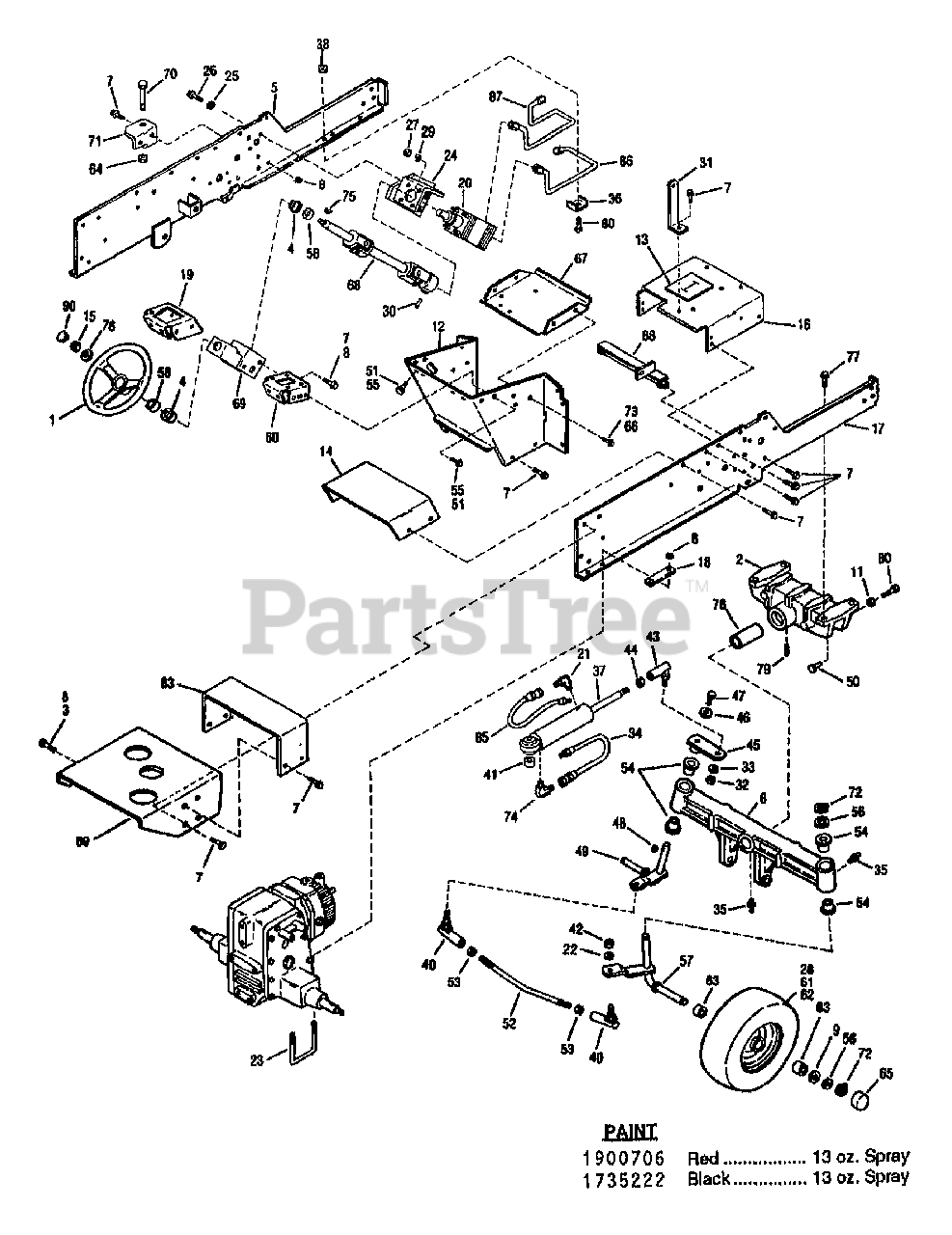

FRAME & STEERING Parts Diagram

  • Title

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0

1

MTD 1754240

WHEEL-STEERING

$

$

Not available

2

MTD 1754321001

BOLSTER-FRONT AXLE

$

$

Not available

3

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.99

$

In Stock, only 2 left!

0

4

MTD 1185632

BEARING-FLANGED NYLON

$

$

Not available

5

Troy-Bilt 1755513010

ASSM-FRAME

$

$

Currently unavailable

6

MTD 1757627001

AXLE-FRONT

$

$

Not available

7

MTD 1186345

SCR

$

$

Not available

8

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

9

MTD 1715491

SPACER-1.75X1.015X.179

$

$

Not available

11

Troy-Bilt 1186258

NUT-HEX JAM 5/16-18
(Superseded to 712-3007)

$6.99

$

In Stock, only 3 left!

0

12

MTD 1755514010

SUPPORT

$

$

Not available

13

MTD 1755231

SEAL

$

$

Not available

14

Troy-Bilt 1752732010

TUNNEL W/DECAL

$

$

Currently unavailable

15

Troy-Bilt 1110108

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

16

MTD 1755241001

SUPT-BATTERY/FUEL TANK

$

$

Not available

17

Troy-Bilt 1752634010

ASSM-FRAME

$

$

Currently unavailable

18

MTD 1730692001

DOUBLER-FRAME REAR

$

$

Not available

19

Troy-Bilt 17554610

STEERING BRACKET

$

$

Currently unavailable

20

Troy-Bilt 1760233

KIT-STEERING VALVE

$

$

Currently unavailable

21

MTD 1756142

ELBOW

$

$

Not available

22

Troy-Bilt 1100245

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

23

MTD 1727898

BOLT-U

$

$

Not available

24

Troy-Bilt 1752763001

SUPT-STEERING PUMP

$

$

Currently unavailable

25

Troy-Bilt 1100244

WASHER-LK .438 ZP
(Superseded to 936-0171)

$4.49

$

In Stock, only 4 left!

0

26

Troy-Bilt 1747656

SCR-HH 1/2-14X1.00
(Superseded to 1765196)

$3.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 1186211

NUT-HEX 5/16-24
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

28

Troy-Bilt 1718086

STEM-VALVE
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 1185348

PIN-ROLL 1/4 X 1-1/4
(Superseded to 915-0143)

$

$

Not available

31

MTD 1756150001

BRACE-STEERING

$

$

Not available

32

MTD 1186216

NUT-HEX 5/8-18

$

$

Not available

33

MTD 1100247

WASHER-LK 1.072X.634X.156

$

$

Not available

34

MTD 1754364

ASSM-HOSE

$

$

Not available

35

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

36

MTD 1722667

CLAMP

$

$

Not available

37

MTD 1751627001

CYLINDER-HYDRAULIC

$

$

Not available

38

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 1713361

JOINT-BALL
(Superseded to 923-0179)

$42.99

$

In Stock, only 2 left!

0

41

MTD 1759293

SLEEVE-CYLINDER

$

$

Not available

42

Troy-Bilt 1110152

NUT-H/LK 1/2-20 ZP
(Superseded to 912-0239)

$

$

Not available

43

MTD 1719003

JOINT-BALL

$

$

Not available

44

Troy-Bilt 1186249

NUT-HEX/JAM 5/8-18 ZP
(Superseded to 712-3056)

$4.99

$

In Stock, Qty 13

0

45

MTD 1752797001

ARM-STEERING

$

$

Not available

46

MTD 1186033

WASHER-1.75X.328X.1345

$

$

Not available

47

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

48

MTD 1186034

KEY-WOODRUFF .25X.875

$

$

Not available

49

Troy-Bilt 1752518

SPINDLE-WHEEL LEFT

$

$

Not available

50

MTD 1751219

PIN-WELD

$

$

Not available

51

MTD 1185872

SCR-TRUSS HD 5/16-18X.62

$

$

Not available

52

MTD 1746138

ROD-TIE

$

$

Not available

53

Troy-Bilt 1186247

NUT-JAM
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

54

MTD 1752556

BEARING-FLANGE

$

$

Not available

55

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

56

Troy-Bilt 1703073

WASHER-THRUST
(Superseded to 1915058)

$

$

Not available

57

MTD 1752520

SPINDLE-WHEEL RH

$

$

Not available

58

MTD 1800417

COLLAR

$

$

Not available

60

MTD 1753777001

BRKT-STEERING

$

$

Not available

61

MTD 1767101

WHEEL

$

$

Not available

62

MTD 1764745

TIRE-16X6.50-8

$

$

Not available

63

Troy-Bilt 1756524

BEARING-BALL

$80.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 1110112

NUT-LOCK
(Superseded to 912-0261)

$

$

Not available

65

Troy-Bilt 1744396

CAP-DUST

$

$

Currently unavailable

66

Troy-Bilt 1186308

SCR-HFLK 1/4-20X.50 ZP
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

67

MTD 1762049001

CARRIER-BATTERY

$

$

Not available

68

MTD 1752222

ASSM-STEERING SHAFT

$

$

Not available

69

MTD 1753773

ASSM-SUPPORT

$

$

Not available

70

MTD 1107073

SCR-HH 5/8-11X3.0 G5

$

$

Not available

71

MTD 1751629001

BRKT-CYLINDER

$

$

Not available

72

MTD 1185689

RING-HEAVY EXT HD 1.0 ID

$

$

Not available

73

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

74

MTD 1185739

ELBOW

$

$

Not available

75

Troy-Bilt 1104436

KEY-WOODRUFF .188X.75
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

76

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

77

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.99

$

In Stock, only 2 left!

0

?78

MTD 1744374

TUBE-PIVOT AXLE

$

$

Not available

79

MTD 1733103

PIN-.312X.75

$

$

Not available

80

Troy-Bilt 1100045

SCR-HH 5/16-18X1.0 G5 ZP
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 5

0

83

MTD 1756513001

SUPPORT-FENDER

$

$

Not available

85

MTD 1752649

ASSM-HOSE

$

$

Not available

86

Troy-Bilt 1760352

ASSM-TUBE

$

$

Currently unavailable

87

MTD 1760351

ASSM-TUBE

$

$

Not available

88

MTD 1755200001

SUPPORT-FRAME

$

$

Not available

?89

MTD 1756512001

SUPPORT-FUEL TANK

$

$

Not available

90

MTD 1758243

CAP

$

$

Not available
