13060 - Troy-Bilt Garden Tractor, Hydro Drive (SN: 130600100101 & Above) ENGINE ASSEMBLY Parts Diagram

Garden Tractor, Hydro Drive

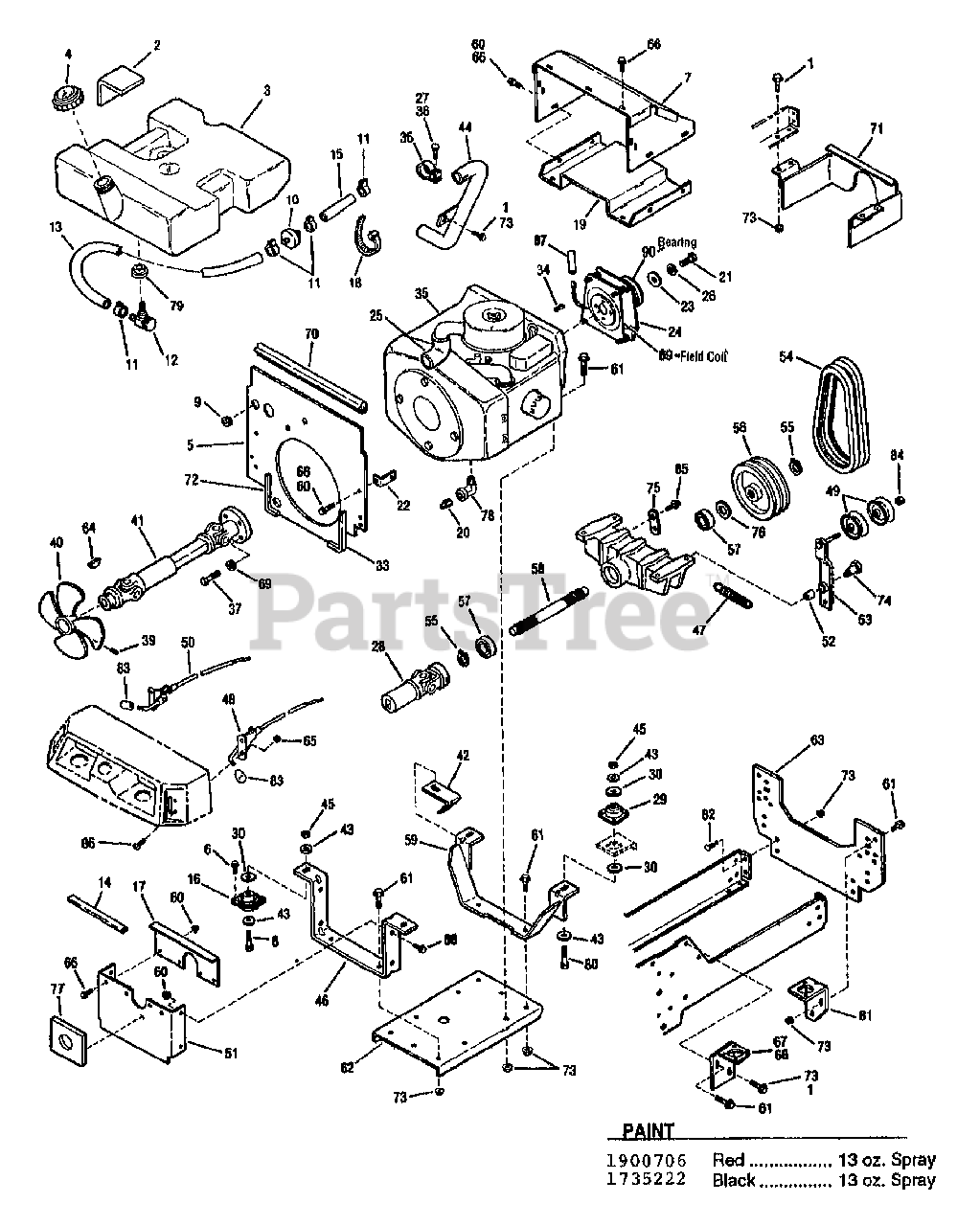

ENGINE ASSEMBLY Parts Diagram

  • Title

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1753222

SUPT-EL SWITCH

$

$

Currently unavailable

1

MTD 1186345

SCR

$

$

Not available

2

MTD 1749079

PAD-FUEL TANK

$

$

Not available

3

MTD 1755888

ASSM-FUEL TANK

$

$

Not available

4

MTD 1755726

CAP-FUEL

$

$

Not available

5

Troy-Bilt 1752713001

SHIELD-HEAT

$

$

Currently unavailable

6

MTD 1185712

SCR

$

$

Not available

7

MTD 1753985001

ASSM-HEAT SHIELD

$

$

Not available

8

Troy-Bilt 1100049

SCR-HH 3/8-16X2.25 G5 ZP
(Superseded to 710-3011)

$6.99

$

In Stock, Qty 20+

0

9

MTD 1729587

BUSHING

$

$

Not available

10

Troy-Bilt 1727491

FILTER-FUEL
(Superseded to BS-298090S)

$

$

Not available

11

Troy-Bilt 1750687

CLAMP-HOSE
(Superseded to 726-0205)

$3.99

$

In Stock, Qty 18

0

12

Troy-Bilt 1747184

VALVE-SHUT OFF
(Superseded to 951-0171)

$20.99

$

In Stock, only 1 left!

0

13

MTD 1735561

FUEL LINE

$

$

Not available

14

MTD 1755536

GASKET-HEAT SHIELD

$

$

Not available

15

Troy-Bilt 1734941

LINE-FUEL

$

$

Currently unavailable

16

Troy-Bilt 1725856

MOUNT

$77.99

$

Usually ships in 3-6 days

0

17

MTD 1752725001

SHIELD-GRASS UPPER

$

$

Not available

18

Troy-Bilt 1735531

TIE-CABLE NYLON BLACK
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

19

MTD 1753913001

SHIELD-HEAT

$

$

Not available

20

MTD 1105678

PLUG-PIPE

$

$

Not available

21

Troy-Bilt 1736485

SCR-HH 7/16-20X1.25 G5ZP
(Superseded to 710-3029)

$4.49

$

In Stock, Qty 12

0

22

MTD 1752714001

BRKT-HEAT SHIELD

$

$

Not available

23

Troy-Bilt 1741801

WASHER-1.7X.453X.25

$

$

Currently unavailable

24

MTD 1747059

CLUTCH {13062}

$

$

Not available

24

MTD 1744401

ELEC-CLUTCH/BRAKE {13060}

$

$

Not available

25

MTD 1752468

HOSE-AIR CLEANER

$

$

Not available

26

Troy-Bilt 1100244

WASHER-LK .438 ZP
(Superseded to 936-0171)

$4.49

$

In Stock, only 4 left!

0

27

Troy-Bilt 1110107

NUT-H/LK 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

28

MTD 1760049001

JOINT-UNIVERSAL

$

$

Not available

28

MTD 1714208

KIT-CROSS REPAIR

$

$

Not available

29

MTD 1738010

MOUNT

$

$

Not available

30

MTD 1186047

WASHER

$

$

Not available

33

MTD 1755535

SEAL-RH

$

$

Not available

34

MTD 1708034

KEY

$

$

Not available

35

0

KOHLER ENGINE 20HP {KT200S 49540}{13062} {M20QS 49565}

$

$

Not available

35

0

KOHLER ENGINE 18HP {M18QS 24999}{13060}

$

$

Not available

36

MTD 1752790

CLAMP

$

$

Not available

37

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

38

MTD 1186102

SCR-CARR 5/16-18X1.25 G2ZP

$

$

Not available

39

MTD 1737419

SCR-SQ HD SET 5/16X3/4

$

$

Not available

40

Troy-Bilt 1746503

FAN
(Superseded to 1770934)

$

$

Not available

41

MTD 1750338

SHAFT-DRIVE

$

$

Not available

42

MTD 1753915001

BRKT-EXHAUST PIPE

$

$

Not available

43

Troy-Bilt 1701055

WASHER-FLAT 1.25X.406X.179

$6.49

$

Usually ships in 3-6 days

0

44

Troy-Bilt 1753914001

PIPE-EXHAUST

$

$

Currently unavailable

45

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

46

Troy-Bilt 1750828001

SUPPORT-REAR MOUNT

$

$

Currently unavailable

47

Troy-Bilt 1724822

SPRING
(Superseded to 1746769)

$16.99

$

Usually ships in 3-6 days

0

48

Troy-Bilt 1755720

THROTTLE-CONTROL

$

$

Currently unavailable

49

Troy-Bilt 1756757

PULLEY-IDLER

$54.99

$

Usually ships in 3-6 days

0

50

MTD 1755721

CHOKE-CONTROL

$

$

Not available

51

MTD 1752726001

SHIELD-GRASS LOWER

$

$

Not available

52

MTD 1892945

BUSHING

$

$

Not available

53

MTD 1756788001

ARM-IDLER

$

$

Not available

54

MTD 1742628

BELT SET

$

$

Not available

55

MTD 1185689

RING-HEAVY EXT HD 1.0 ID

$

$

Not available

56

Troy-Bilt 1744379

SHEAVE-PTO

$

$

Currently unavailable

57

Troy-Bilt 1725087

BEARING-BALL

$40.99

$

Usually ships in 3-6 days

0

58

MTD 1755219

SHAFT-PTO

$

$

Not available

59

MTD 1756541001

SUPPORT-FRONT MOUNT

$

$

Not available

60

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

61

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.99

$

In Stock, only 2 left!

0

62

Troy-Bilt 1744408001

MOUNT-ENGINE

$

$

Currently unavailable

63

MTD 1752665001

PLATE-FRONT

$

$

Not available

64

MTD 1185885

KEY-WOODRUFF

$

$

Not available

65

Troy-Bilt 1185985

NUT W/LKWASHER 10-24 ZP
(Superseded to 712-0272)

$3.99

$

In Stock, only 1 left!

0

66

Troy-Bilt 1186308

SCR-HFLK 1/4-20X.50 ZP
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

67

MTD 1750835001

ASSM-HANGER RH

$

$

Not available

68

MTD 1750834001

ASSM-HANGER LH

$

$

Not available

69

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

70

Troy-Bilt 1752791

GASKET

$

$

Currently unavailable

71

MTD 1756157001

GUARD-PTO

$

$

Not available

72

MTD 1755534

SEAL-LH

$

$

Not available

73

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

74

MTD 1754322

BOLT

$

$

Not available

75

MTD 1744451001

ANCHOR-SPRING

$

$

Not available

76

Troy-Bilt 1703073

WASHER-THRUST
(Superseded to 1915058)

$

$

Not available

77

MTD 1754644

SEAL

$

$

Not available

78

MTD 1743683

ELBOW-45 DEGREES

$

$

Not available

79

Troy-Bilt 1738433

BUSHING-RUBBER
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

80

Troy-Bilt 1110644

SCR-HHC 3/8-16X3.25
(Superseded to 1911403)

$

$

Not available

81

MTD 1752746001

SUPPORT-ENGINE

$

$

Not available

82

MTD 1739656

SCR-CARR 3/8-16X.75 G5 ZP

$

$

Not available

83

Troy-Bilt 1755412

KNOB
(Superseded to 720-04001)

$

$

Not available

84

Troy-Bilt 1185506

NUT-HEX/JAM 3/8-16 ZP
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

85

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

?86

MTD 1750962

SCR

$

$

Not available

87

Troy-Bilt 1759382

INSULATOR

$

$

Currently unavailable

?88

Troy-Bilt 1186309

SCR-HH 1/4-20X.625

$

$

Not available

?89

MTD 1754151

COIL-CLUTCH FIELD

$

$

Not available

90

MTD 1754152

BEARING

$

$

Not available
