13053 - Troy-Bilt Garden Tractor, Gear Drive (SN: 130530100101 & Above) DRIVE ASSEMBLY Parts Diagram

Garden Tractor, Gear Drive

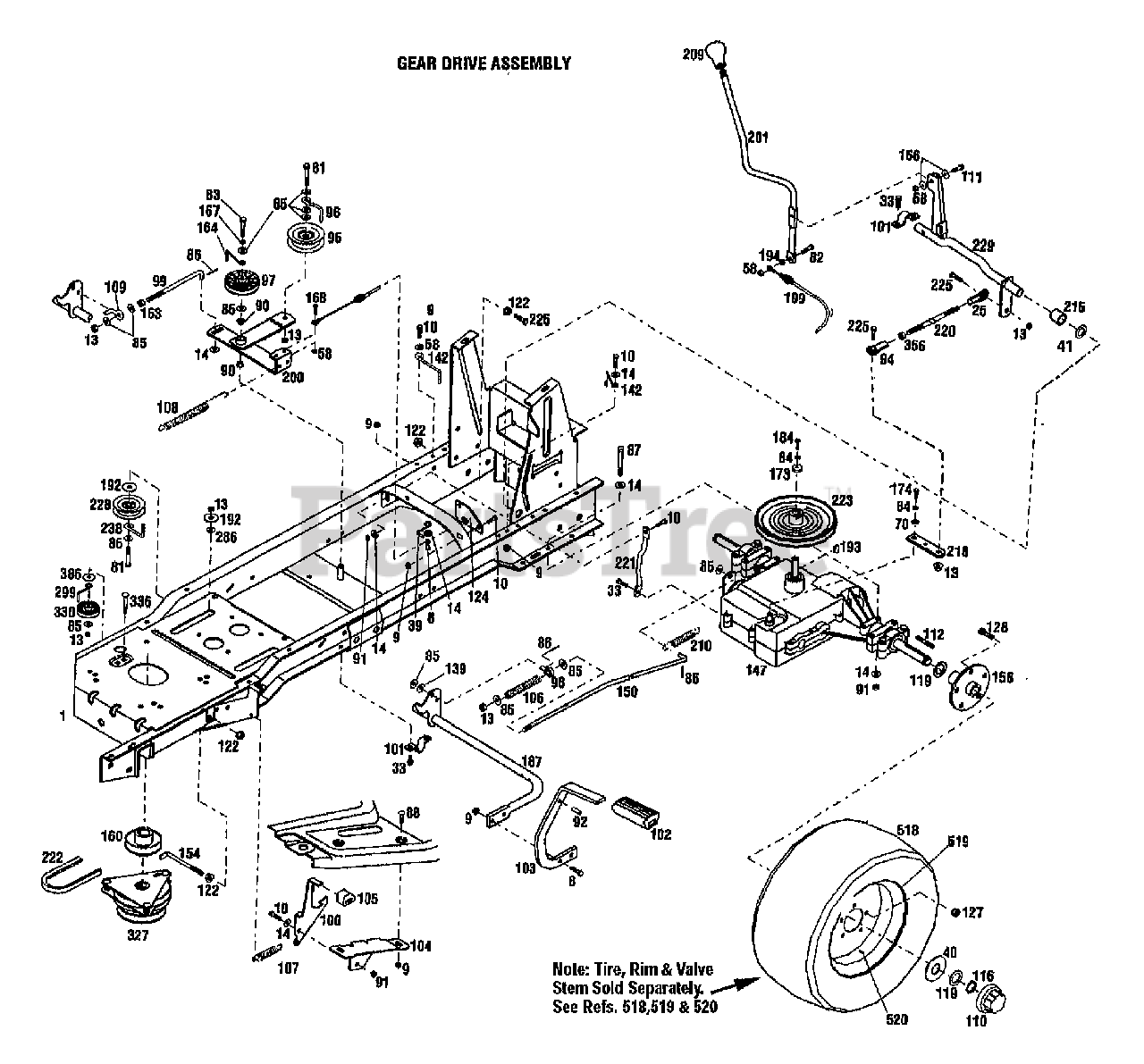

DRIVE ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1765440001

ASSM-FRAME

$

$

Currently unavailable

8

Troy-Bilt 1100045

SCR-HH 5/16-18X1.0 G5 ZP
(Superseded to 710-0376)

$3.99

$

In Stock, only 4 left!

0

9

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

14

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

25

MTD 1767987

JOINT-BALL

$

$

Not available

33

Troy-Bilt 1766984

SCR-HFLK 5/16-18X.75

$3.99

$

Usually ships in 3-6 days

0

39

MTD 1767821

GUIDE-BELT

$

$

Not available

40

Troy-Bilt 1766241

WASHER-SPEC .75X2.50

$

$

Not available

41

Troy-Bilt 1703073

WASHER-THRUST
(Superseded to 1915058)

$

$

Not available

58

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

70

Troy-Bilt 1107381

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

81

Troy-Bilt 1100048

SCR-HH 3/8-16X2.0 G5 ZP
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 7

0

82

Troy-Bilt 1100069

SCR-HH 1/4-20X1.0
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 14

0

83

Troy-Bilt 1100086

SCR-HH 3/8-16X1.75 G5 ZP
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

84

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

85

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

86

Troy-Bilt 1100346

PIN-COTTER .09X.75 ZP
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

87

Troy-Bilt 1111609

SCR-HH 5/16-18X2.75 G5 ZP
(Superseded to 710-0176)

$4.49

$

In Stock, only 2 left!

0

88

Troy-Bilt 1186097

SCR-CARR 5/16-18X.62 G2 ZP
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

90

Troy-Bilt 1715538

BUSHING-.5X.5 NYLON FLNG

$

$

Not available

91

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

92

MTD 1733103

PIN-.312X.75

$

$

Not available

94

Troy-Bilt 1767837

JOINT-BALL

$

$

Not available

95

Troy-Bilt 1756151

IDLER

$48.99

$

Usually ships in 3-6 days

0

96

Troy-Bilt 1760096

GUIDE-BELT

$

$

Not available

97

Troy-Bilt 1760097

PULLEY-IDLER

$

$

Not available

98

MTD 1751848

SWIVEL

$

$

Not available

99

MTD 1765044

ROD-CLUTCH

$

$

Not available

100

MTD 1765096

LATCH-BRAKE CLUTCH USE1771514

$

$

Not available

101

MTD 1765156

CLIP-CLAMP .75 ID

$

$

Not available

102

MTD 1765167

PAD-FOOT PEDAL

$

$

Not available

103

MTD 1765252

PEDAL-BRAKE

$

$

Not available

104

MTD 1765257

BRKT-BRAKE LOCK

$

$

Not available

105

MTD 1765297

PAD-BRAKE

$

$

Not available

106

MTD 1765305

SPRING-COMPRESSION

$

$

Not available

107

MTD 1985140

SPRING-EXTENSION

$

$

Not available

108

Troy-Bilt 1765402

SPRING-EXTENSION

$33.99

$

Usually ships in 3-6 days

0

109

MTD 1765461

ROD-PIVOT

$

$

Not available

110

MTD 1766215

CAP-HUB

$

$

Not available

111

MTD 1186312

SCR-HFLK 1/4-20X1.00

$

$

Not available

112

Troy-Bilt 1104338

KEY-.25 SQ X 2.0
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

116

Troy-Bilt 1118554

RING-RETAINING
(Superseded to 916-0102)

$5.49

$

In Stock, Qty 20+

0

119

Troy-Bilt 1185816

WASHER-SPEC

$3.99

$

Usually ships in 3-6 days

0

122

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

124

Troy-Bilt 1767889

SUPPORT-CABLE

$

$

Currently unavailable

127

MTD 1753025

NUT-LUG 7/16-20

$

$

Not available

128

Troy-Bilt 1753026

BOLT-WHEEL
(Superseded to 1770283)

$

$

Not available

139

MTD 1760323

WASHER-.376 DIA

$

$

Not available

142

MTD 1767808

GUIDE-BELT

$

$

Not available

147

0

TRANSAXLE

$

$

Not available

150

MTD 1765361

ROD-BRAKE

$

$

Not available

154

MTD 1765482

RETAINER-CLUTCH

$

$

Not available

156

MTD 1766019

HUB-WHEEL

$

$

Not available

160

MTD 1766200

PULLEY-ENGINE

$

$

Not available

163

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

164

MTD 1767900

GUIDE-BELT

$

$

Not available

166

Troy-Bilt 1720883

WASHER-FLAT 1.25X.28X.062 ZP

$

$

Not available

167

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

168

Troy-Bilt 1100805

SCR-HH 1/4-20X.75 G5 ZP
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

173

MTD 1761608

WASHER-.865X.281X.1793

$

$

Not available

174

Troy-Bilt 1111683

SCR-HHC 1.4-28 X .50
(Superseded to 710-0230)

$

$

Not available

184

Troy-Bilt 1100806

SCR-HH 1/4-20X1.25
(Superseded to 710-0106)

$3.99

$

In Stock, only 2 left!

0

187

MTD 1765031

ASSM-BRAKE PEDAL

$

$

Not available

192

Troy-Bilt 1891733

WASHER-1.12X.378X.125
(Superseded to 936-0206)

$4.49

$

In Stock, only 3 left!

0

193

Troy-Bilt 1104436

KEY-WOODRUFF .188X.75
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

194

Troy-Bilt 1186229

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

199

MTD 1765043

CABLE-SHIFT

$

$

Not available

200

MTD 1765048

PLATE-IDLER

$

$

Not available

201

MTD 1765052

ARM-SHIFT

$

$

Not available

209

MTD 1766115

KNOB

$

$

Not available

210

MTD 1767884

SPRING-EXTENSION

$

$

Not available

215

MTD 1766345

SPACER

$

$

Not available

218

MTD 1766186

ARM-TRANSMISSION

$

$

Not available

220

MTD 1767985

ROD-ADJUSTING

$

$

Not available

221

MTD 1765365

SUPPORT-TRANSMISSION

$

$

Not available

222

Troy-Bilt 1767127

BELT-V
(Superseded to 1754702)

$138.99

$

In Stock, only 1 left!

0

223

MTD 1765463

PULLEY-TRANSMISSION

$

$

Not available

225

Troy-Bilt 1100043

SCR-HH 3/8-16X1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 10

0

228

Troy-Bilt 1713803

IDLER-SHEAVE 3" X 1"
(Superseded to 956-3054)

$52.99

$

In Stock, only 2 left!

0

229

MTD 1766212

SHAFT-PIVOT

$

$

Not available

238

MTD 1767892

GUIDE-BELT

$

$

Not available

286

Troy-Bilt 1768818

WASHER-.75X.406X.092
(Superseded to 736-0262)

$3.99

$

Usually ships in 3-6 days

0

299

MTD 1729780

GUIDE-BELT

$

$

Not available

327

Troy-Bilt 1755341

CLUTCH-ELECTRIC
(Superseded to 917-3497)

$668.99

$

Usually ships in 3-6 days

0

330

MTD 1756164

PULLEY-IDLER

$

$

Not available

336

Troy-Bilt 1186132

BOLT-CARR
(Superseded to 710-0560)

$6.99

$

In Stock, Qty 12

0

356

Troy-Bilt 1186245

NUT-HEX/JAM 3/8-24 ZP
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 18

0

386

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0

518

MTD 1768795

TIRE

$

$

Not available

519

MTD 1766131

RIM-WHEEL REAR

$

$

Not available

520

Troy-Bilt 1718086

STEM-VALVE
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0
