13053 - Troy-Bilt Garden Tractor, Gear Drive (SN: 130530100101 & Above) BODYWORK & TRIM ASSEMBLY Parts Diagram

Garden Tractor, Gear Drive

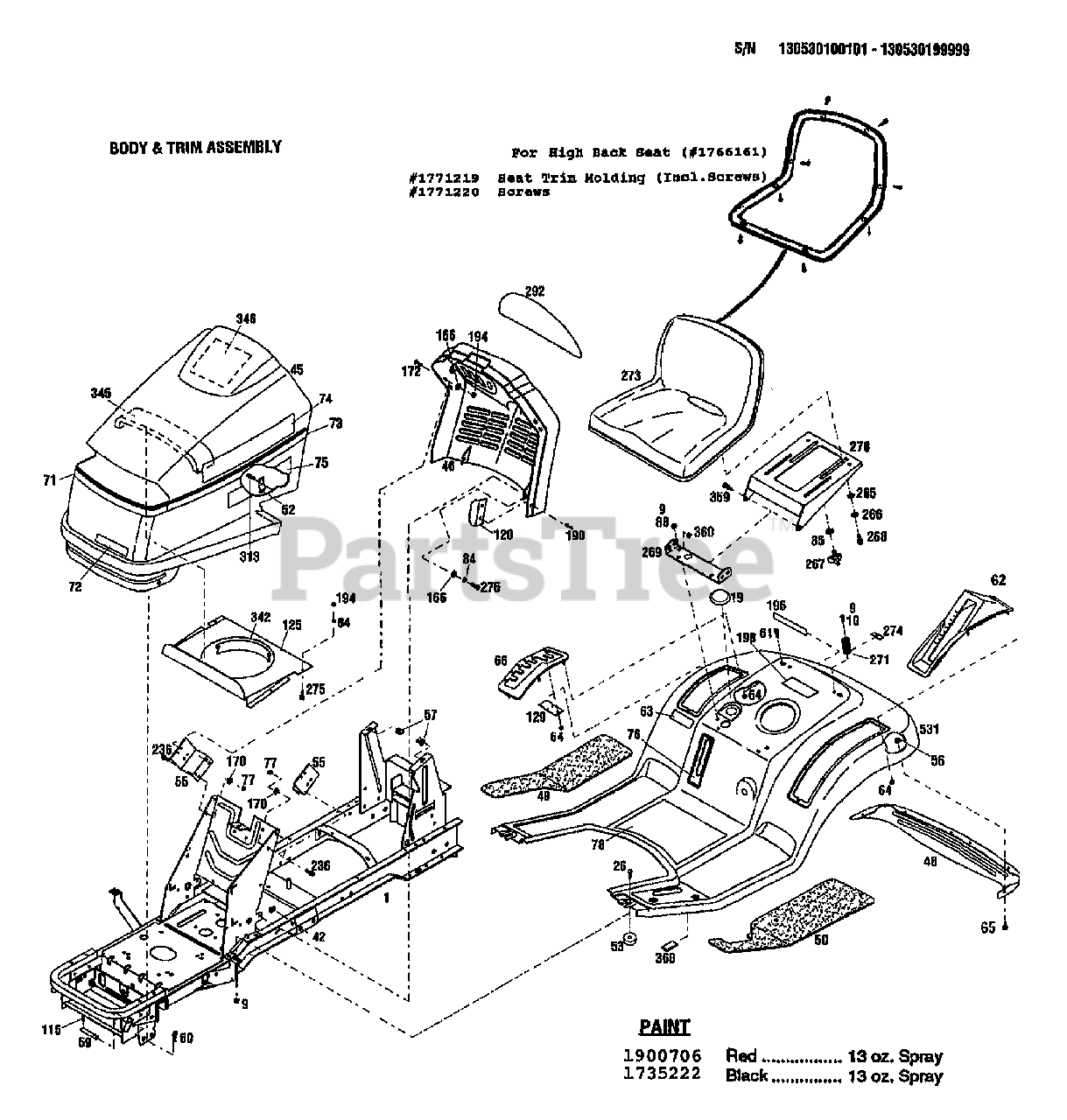

BODYWORK & TRIM ASSEMBLY Parts Diagram

  • Title

MTD 1766161

KIT-SEAT (TRACTOR)

$

$

Not available

Troy-Bilt 1771219

KIT-SEAT TRIM

$

$

Currently unavailable

Troy-Bilt 1771220

SCR-SEAT RING

$

$

Currently unavailable

1

Troy-Bilt 1765440001

ASSM-FRAME

$

$

Currently unavailable

9

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

19

MTD 1768787

PLUG 2.50

$

$

Not available

26

Troy-Bilt 1186100

SCR-CARR 5/16-18X1.0 G2 ZP

$

$

Not available

42

Troy-Bilt 1185893

NUT-SPEED

$

$

Not available

45

MTD 1765382

HOOD-TRACTOR

$

$

Not available

46

MTD 1765376

CONSOLE

$

$

Not available

48

MTD 1765331010

TRIM-FENDER REAR

$

$

Not available

49

MTD 1765370

PAD-FOOT RH

$

$

Not available

50

Troy-Bilt 1765371

PAD-FOOT LH
(Superseded to 1772845)

$

$

Not available

52

MTD 1765384

LATCH

$

$

Not available

53

MTD 1730681

SPACER-TUBULAR

$

$

Not available

55

MTD 1768775001

BRKT-MOUNTING

$

$

Not available

56

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

?57

Troy-Bilt 1761680

NUT-SELF RETAIN 5/16-18
(Superseded to 926-0211)

$4.49

$

In Stock, only 1 left!

0

59

MTD 1765497

PIN-PIVOT HOOD

$

$

Not available

60

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

61

Troy-Bilt 1186330

SCR-LOCK
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

62

MTD 1766139

COVER-LIFT HANDLE

$

$

Not available

63

MTD 1901900

DECAL-AMERICAN LEGEND-LRG

$

$

Not available

64

MTD 1767998

NUT-SELF THRD 1/4

$

$

Not available

65

Troy-Bilt 1186309

SCR-HH 1/4-20X.625

$

$

Not available

66

MTD 1765310

QUADRANT-SHIFT

$

$

Not available

71

MTD 1766383

DECAL-STRIPE HOOD FRONT

$

$

Not available

72

MTD 1759101

DECAL-LOGO

$

$

Not available

?73

MTD 1766382

DECAL-STRIPE SIDE

$

$

Not available

74

MTD 1767886

DECAL-LOGO TROY-BILT

$

$

Not available

75

Troy-Bilt 1767815

DECAL-MODEL 13053

$

$

Currently unavailable

76

MTD 1766140

DECAL-FUEL LEVEL

$

$

Not available

77

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

78

MTD 1766142

DECAL-OPER INST

$

$

Not available

84

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

85

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

88

Troy-Bilt 1186097

SCR-CARR 5/16-18X.62 G2 ZP
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

115

MTD 1120210

PIN-ROLL .188X1.0

$

$

Not available

120

MTD 1768828001

BRKT-HOOD ALIGN

$

$

Not available

125

MTD 1767873001

SHIELD-HEAT UPPER

$

$

Not available

129

MTD 1767878

SUPPORT-SHIFT ARM

$

$

Not available

166

Troy-Bilt 1720883

WASHER-FLAT 1.25X.28X.062 ZP

$

$

Not available

170

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

172

MTD 1816081

SCR

$

$

Not available

190

MTD 1739918

RIVET-POP

$

$

Not available

194

Troy-Bilt 1186229

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

196

MTD 1759102

DECAL-LOGO FENDER

$

$

Not available

198

MTD 1767876

DECAL-FUEL

$

$

Not available

236

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

265

MTD 1705793

WASHER-1.06X.51X.09 NYLON

$

$

Not available

266

Troy-Bilt 1706782

WASHER-BOW .74X.52X.01

$2.49

$

In Stock, only 1 left!

0

267

MTD 1734269

KNOB

$

$

Not available

268

Troy-Bilt 1754125

SCR-SHLDR 3/8-16X.25 G5ZP

$

$

Not available

269

MTD 1766075001

BRKT-SUPPORT SEAT

$

$

Not available

270

MTD 1766074001

SUPPORT-SEAT

$

$

Not available

271

Troy-Bilt 1766077

SPRING-COMPRESSION

$12.99

$

Usually ships in 3-6 days

0

273

MTD 1766161

KIT-SEAT (TRACTOR)

$

$

Not available

274

Troy-Bilt 1766347

BRKT-SPRING HOLD DOWN

$

$

Not available

275

Troy-Bilt 1111599

SCR-HH 1/4-20X.625 G5 ZP
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

292

MTD 1766349

LENS-INSTRMTS WARN LIGHTS

$

$

Not available

313

MTD 1185712

SCR

$

$

Not available

342

MTD 1767897

GASKET-HEAT SHIELD

$

$

Not available

345

MTD 1767898

STRIP-SEALING

$

$

Not available

346

MTD 1765397

DECAL-SERVICE

$

$

Not available

359

Troy-Bilt 1100913

SCR-HH 3/8-16X.88 G5 ZP
(Superseded to 710-3001)

$7.49

$

In Stock, Qty 9

0

360

Troy-Bilt 1110108

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

368

MTD 1767995

PAD

$

$

Not available

531

MTD 1768716

FENDER-RED W/DECALS

$

$

Not available

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0

276

UNKNOWN

$

$

Not available

67

UNKNOWN

$

$

Not available

79

UNKNOWN

$

$

Not available
