13052x10A - Murray Edger (2000) Engine Mount Parts Diagram

Edger

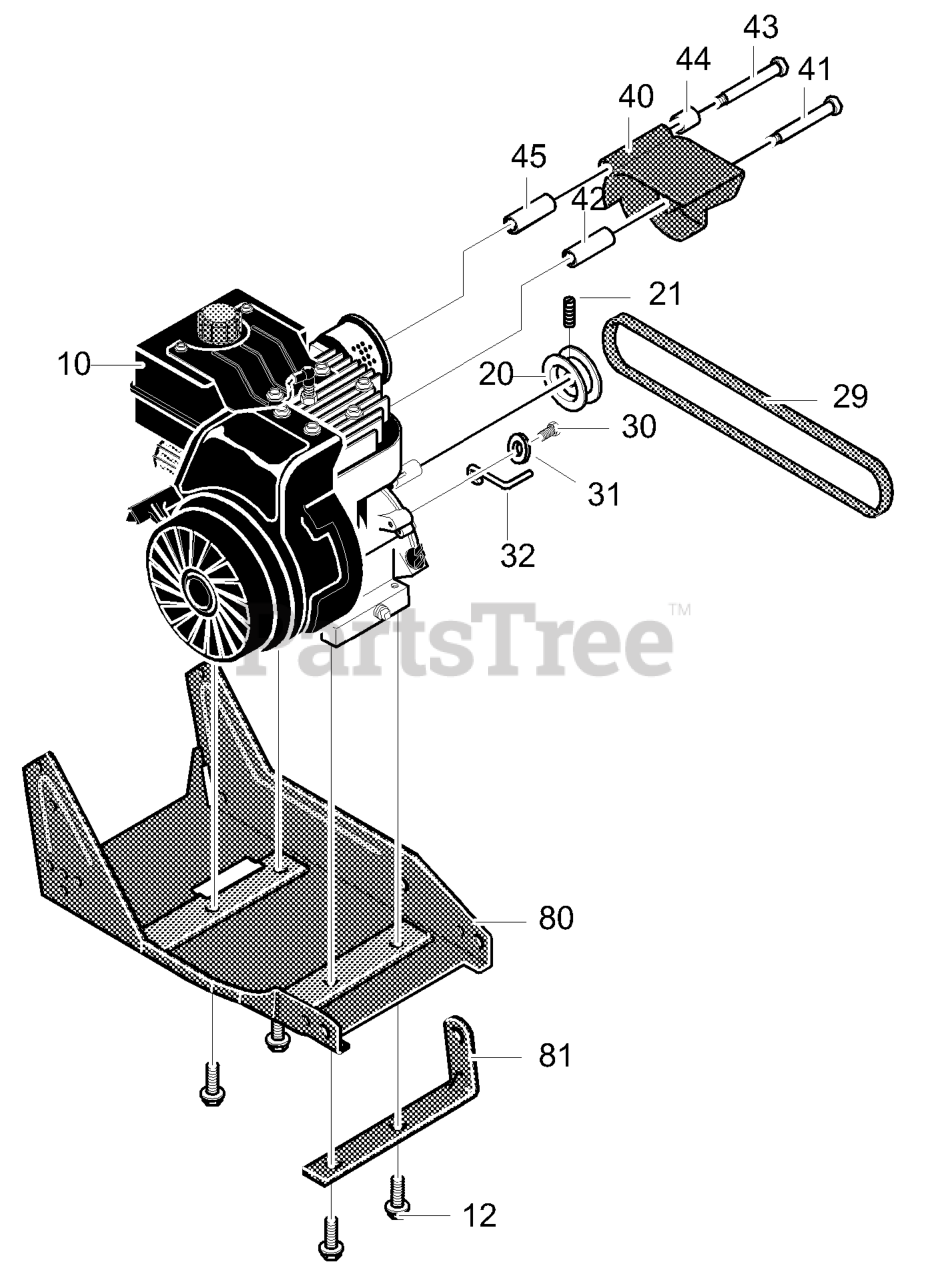

Engine Mount Parts Diagram

  • Title

10

Engine 3.5HP

$

$

Not available

12

Murray 47792MA

Screw, 3/8-16 x 1.00

$3.99

$

Usually ships in 2-12 days

0

20

Murray 1701004MA

Pulley

$51.99

$

Usually ships in 2-12 days

0

21

Murray 102580

Screw, 5/16-18 x 0.25

$1.99

$

Usually ships in 2-12 days

0

29

Murray 32668MA

Belt, V4L 32.60LG

$19.99

$

In Stock, only 3 left!

0

30

Murray 578733MA

Screw 5/16-24x1.00

$3.99

$

Usually ships in 2-12 days

0

31

Murray 45602MA

Flat washer

$3.99

$

Usually ships in 2-12 days

0

32

Murray 51600MA

Guide, Belt

$10.99

$

Usually ships in 2-12 days

0

40

Murray 331281-860

Cover, Engine Pulley

$

$

Currently unavailable

41

Murray 181624MA

Screw, 5/16-24 x 3.00

$4.49

$

Usually ships in 2-12 days

0

42

Murray 315095MA

Spacer, Sleeve

$2.49

$

Usually ships in 2-12 days

0

43

Murray 173030

Screw, 5/16-24 x 3.75

$

$

Not available

44

Murray 308237MA

Spacer

$4.49

$

Usually ships in 2-12 days

0

45

Murray 315095MA

Spacer, Sleeve

$2.49

$

Usually ships in 2-12 days

0

80

Murray 323534-860

Frame, Assy. Edger

$

$

Currently unavailable

81

Murray 308154-860

Strap

$

$

Currently unavailable

--

Murray F-001105M

Instruction Manual

$

$

Currently unavailable
