13051x37NA - Husqvarna Edger (2003) Engine Mount Assembly Parts Diagram

Edger

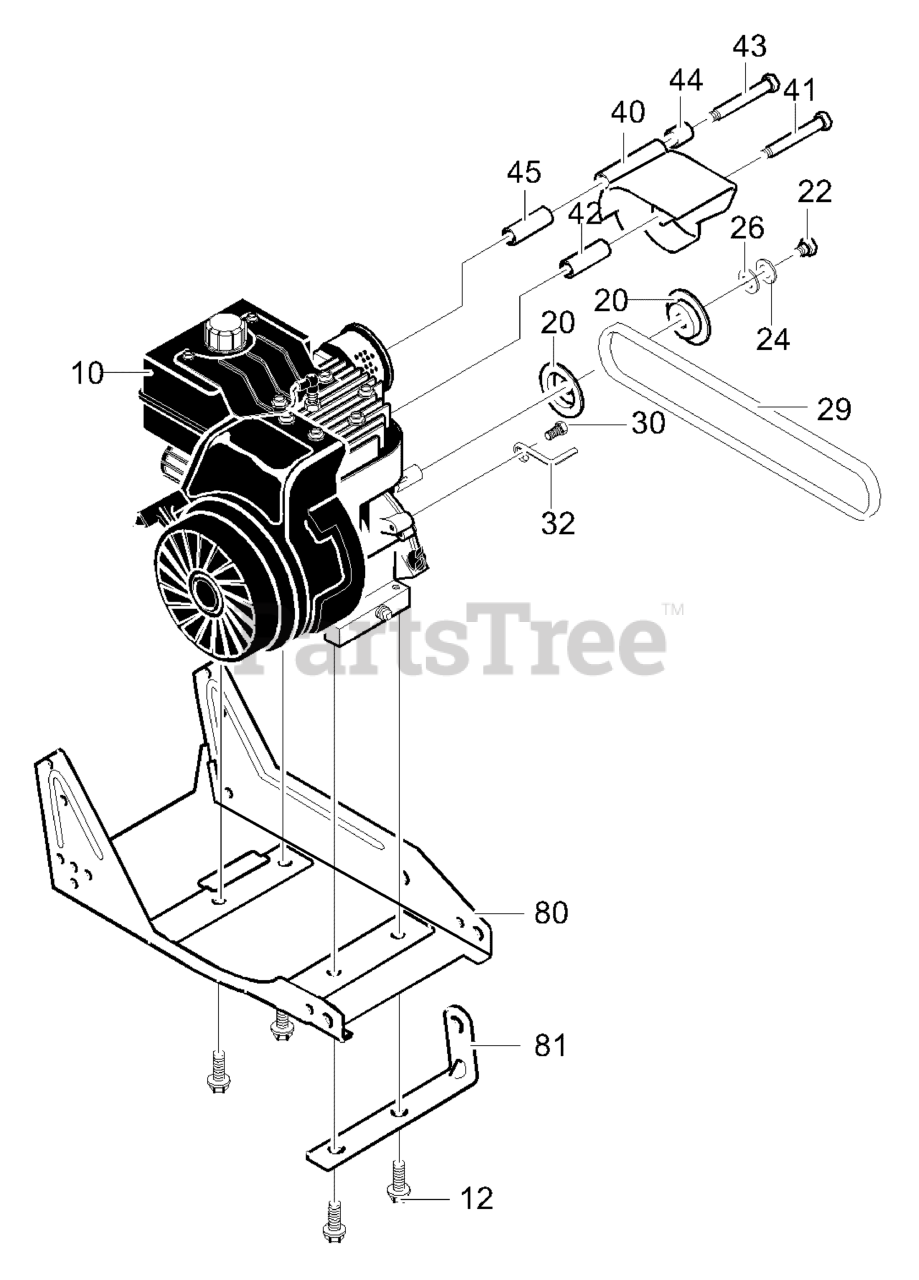

Engine Mount Assembly Parts Diagram

  • Title
10

Engine

$

$

Not available

12

Murray 601 00 08 35

Screw, 3/8-16 x 1.00

$

$

Currently unavailable

20

Murray 601 00 22 03

Pulley, Half

$

$

Currently unavailable

22

Murray 601 00 13 27

Screw, 5/16-24 x 1.00

$

$

Currently unavailable

$

$

Currently unavailable

26

Murray 601 00 05 47

Flatwasher

$

$

Currently unavailable

29

Murray 601 00 05 09

Belt, V4L 32.60LG

$

$

Currently unavailable

30

Murray 601 00 14 33

Screw and Washer Assy

$

$

Currently unavailable

32

Murray 601 00 05 80

Guide, Belt

$

$

Currently unavailable

40

Murray 601 00 22 04

Cover, Engine Pulley

$

$

Currently unavailable

41

Murray 601 00 00 80

Screw, 5/16-24 x 3.00

$

$

Currently unavailable

42

Murray 601 00 22 05

Spacer, Sleeve

$

$

Currently unavailable

43

Murray 601 00 22 06

Screw, 5/16-24 x 3.75

$

$

Currently unavailable

$

$

Currently unavailable

45

Murray 601 00 22 05

Spacer, Sleeve

$

$

Currently unavailable

80

Murray 601 00 22 08

Frame, Assy. Edger

$

$

Currently unavailable

$

$

Currently unavailable

--

Murray 601 00 24 69

Instruction Manual

$

$

Currently unavailable
