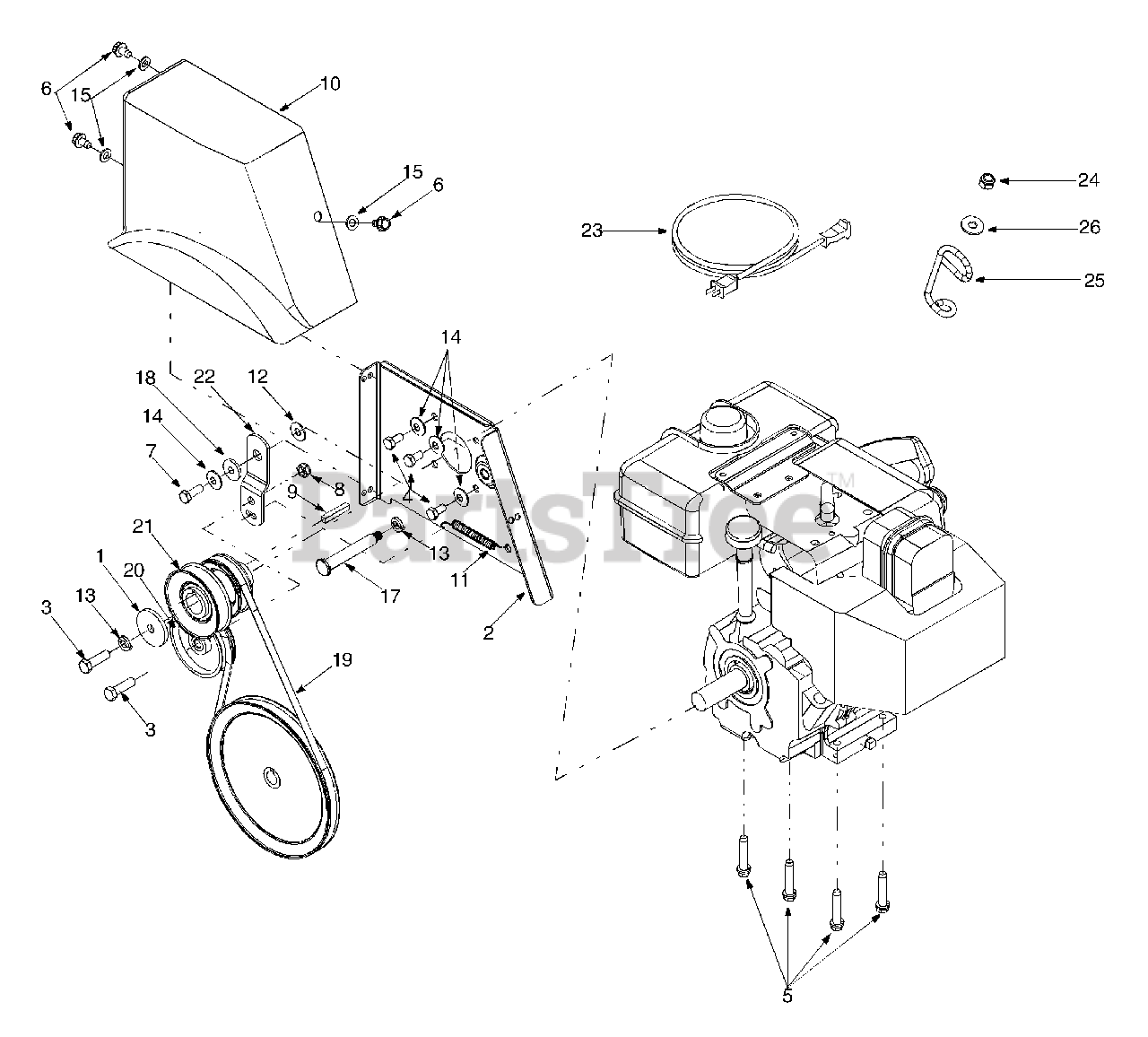

13045 (31AH9Q77766) - Troy-Bilt Polar Blast 45" Snow Thrower (2005) Engine Drive Parts Diagram

Polar Blast 45" Snow Thrower

Engine Drive Parts Diagram

  • Title
1

$

$

Not available

2

Troy-Bilt 684-0123A

Belt Cover Bracket Assembly
(Superseded to 684-0123A-0637)

Variations

Troy-Bilt 684-0123A-0637

BRACKET-BELT COVER - POWDER BLACK (0637)

$

$

Not available

$

$

3

Troy-Bilt 710-0191

Hex Screw 3/8-24 x 1.25"

$4.99

$

In Stock, Qty 9

0

4

Troy-Bilt 710-0237

Hex Screw 5/16-24 x .625"

$4.49

$

In Stock, only 1 left!

0

5

Troy-Bilt 710-0502A

Self-tapping Sems Screw

$6.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 710-0607

TT Screw 5/16-18 x 0.5"

$6.99

$

In Stock, Qty 9

0

7

Troy-Bilt 710-1245B

Hex Lock Screw 5/16-24 x 1.25"

$8.49

$

In Stock, only 4 left!

0

8

$4.99

$

In Stock, Qty 6

0

$6.99

$

In Stock, only 4 left!

0

10

Troy-Bilt 731-2531

Belt Cover
(Superseded to 931-2531)

$51.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 732-0303

Extension Spring
(Superseded to 932-0303)

$10.99

$

In Stock, Qty 11

0

12

Troy-Bilt 736-0159

5/16 Washer

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 736-0217

Lock Washer

$4.49

$

In Stock, Qty 6

0

14

Troy-Bilt 736-0242

Belleville Washer

$4.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 736-0264

Flat Washer

$6.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 738-0215A

Shoulder Screw

$9.49

$

Usually ships in 3-6 days

0

18

Troy-Bilt 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 754-0131

V-Belt
(Superseded to 954-0131)

$28.99

$

In Stock, Qty 7

0

20

Troy-Bilt 756-0240

Flat Idler

$

$

Not available

21

Troy-Bilt 756-0241B

Double Pulley

$99.99

$

In Stock, only 4 left!

0

22

Troy-Bilt 784-5726

Idler Bracket

$39.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 629-0071

Extension Cord, 110V, 3-prong
(Superseded to 929-0071B)

$21.99

$

In Stock, Qty 12

0

24

Troy-Bilt 712-0324

Hex Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

25

Troy-Bilt 732-0705

Cable Control Wire

$11.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 736-0173

Flat Washer

$4.49

$

In Stock, Qty 20+

0
