13045 (31AH9Q77766) - Troy-Bilt Polar Blast 45" Snow Thrower (2005) Drive Parts Diagram

Polar Blast 45" Snow Thrower

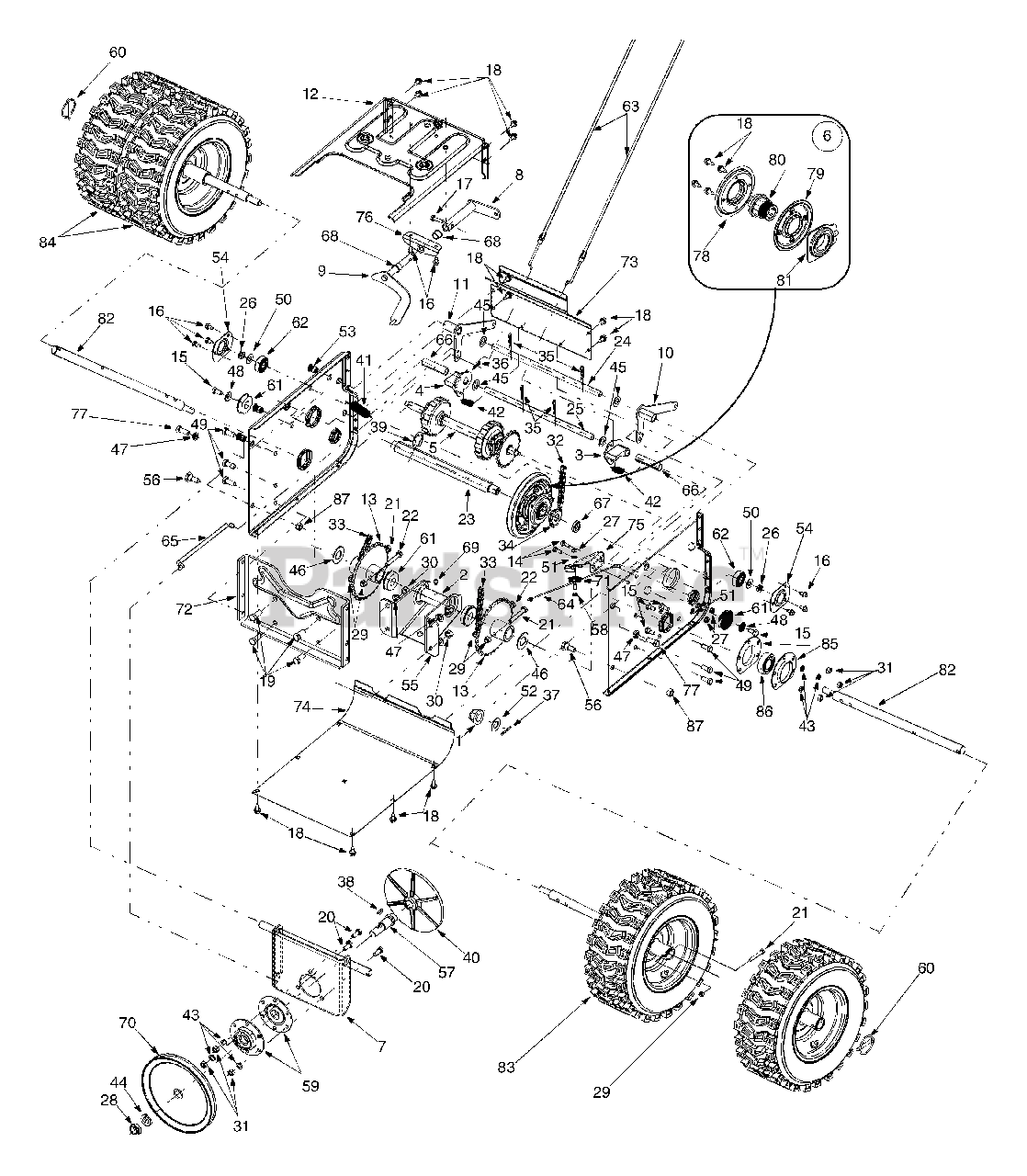

Drive Parts Diagram

  • Title

1

Troy-Bilt 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 19

0

2

Troy-Bilt 750-1302A

Spacer,.6725 x 1.125 x 2.485
(Superseded to 750-1302B)

$47.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 618-0279

Dogg Assembly LH
(Superseded to 918-0279A)

$42.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 618-0280

Dogg Assembly RH
(Superseded to 918-0280A)

$42.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 618-0282D

Drive Shaft Assembly
(Superseded to 918-0282E)

$559.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 618-04178

Friction Wheel Assembly
(Superseded to 918-07239)

$165.99

$

In Stock, Qty 6

0

7

MTD 684-0162

Support Bracket Assembly

Variations

MTD 684-0162-0637

Drive Pivot Plate - POWDER BLACK (0637)

$

$

Not available

$

$

8

Troy-Bilt 684-0161

Shift Arm Assembly
(Superseded to 684-0161-0637)

Variations

Troy-Bilt 684-0161-0637

ARM ASM-SHIFT - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

$70.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 684-04103

Shift Rod Assembly
(Superseded to 984-04103)

$74.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 684-0118

Auger Actuator Bracket Assy.
(Superseded to 684-0118B-0637)

$

$

Not available

11

Troy-Bilt 684-0119

Drive Actuator Bracket Assy.
(Superseded to 684-0119B-0637)

Variations

Troy-Bilt 684-0119-0637

BRACKET AUGER ACTUATOR - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 790-00016

Frame Assembly

Variations

Troy-Bilt 790-00016-0638

FRAME ASSEMBLY - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

13

Troy-Bilt 684-0122

Sprocket Assembly

$238.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 710-0195

Hex Screw, 1/4-28 x.625"
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 710-0538

Hex Screw, 5/16-18 x.625"

$4.49

$

In Stock, Qty 7

0

16

Troy-Bilt 710-0599

Self-tapping Screw, 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 710-0788

Self-tapping Screw, 1/4-20 x 1"

$7.49

$

In Stock, only 2 left!

0

18

Troy-Bilt 710-0896

Self-tapping Screw, 1/4-14 x.625"

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 710-3001

Hex Screw 3/8-16 x .880"

$7.49

$

In Stock, Qty 9

0

20

Troy-Bilt 710-3008

Hex Screw 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 710-3103

Hex Screw 5/16-18 x 2"

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 710-3180

Hex Screw 5/16-18 x 1.75"

$5.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 711-04279

Hex Drive Shaft
(Superseded to 911-04279)

$

$

Not available

24

Troy-Bilt 711-1193

Actuator Shaft

$

$

Not available

25

Troy-Bilt 711-1194

Actuator Drive Shaft

$

$

Not available

26

Troy-Bilt 712-0116

Lock Nut

$4.99

$

In Stock, Qty 6

0

27

Troy-Bilt 712-0138

Hex Nut 1/4-28

$6.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 712-0221

Jam Lock Nut

$

$

Not available

29

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 6

0

31

Troy-Bilt 712-3010

Hex Nut 5/16-18

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 713-0284

Chain

$24.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 713-0286

Chain

$66.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 713-04015

Sprocket, 10T
(Superseded to 913-04015)

$12.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 714-0101

Hairpin Clip

$4.99

$

In Stock, only 1 left!

0

36

Troy-Bilt 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 714-0115

Cotter Pin

$3.99

$

In Stock, only 2 left!

0

38

Troy-Bilt 714-0388

Key
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 716-0136

Retainer Ring

$8.99

$

In Stock, Qty 18

0

40

Troy-Bilt 717-0302

Drive Plate
(Superseded to 917-0302)

$82.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 732-0121

Extension Spring
(Superseded to 932-0121)

$14.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 732-0209

Extension Spring
(Superseded to 932-0209)

$7.99

$

In Stock, only 2 left!

0

43

Troy-Bilt 736-0119

Lock Washer 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 736-0158

Lock Washer 5/8

$4.49

$

In Stock, Qty 11

0

45

Troy-Bilt 736-0160

Flat Washer

$4.49

$

In Stock, only 2 left!

0

46

Troy-Bilt 736-0163

Flat Washer

$4.49

$

In Stock, Qty 20+

0

47

Troy-Bilt 736-0217

Lock Washer

$4.49

$

In Stock, Qty 6

0

48

Troy-Bilt 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

49

Troy-Bilt 710-0726

Self-tapping Screw, 5/16-12 x.750

$4.49

$

In Stock, Qty 20+

0

50

Troy-Bilt 736-0300

Flat Washer

$4.49

$

In Stock, Qty 20+

0

51

Troy-Bilt 736-0329

Lock Washer
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

52

Troy-Bilt 736-0623

Flat Washer
(Superseded to 736-0187)

$4.49

$

In Stock, Qty 20+

0

53

Troy-Bilt 712-0717

Nut Insert, 3/8-16

$8.99

$

Usually ships in 3-6 days

0

54

Troy-Bilt 784-0404

Bearing Retainer Bracket

$8.49

$

In Stock, only 2 left!

0

55

Troy-Bilt 784-0407

Axle Bearing Support Bracket
(Superseded to 784-0407-0637)

Variations

Troy-Bilt 784-0407-0637

BRACKET-SUPPORT AXLE - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 738-0143

Shoulder Screw

$4.49

$

In Stock, Qty 20+

0

57

Troy-Bilt 738-0279

Drive Plate Spindle

$57.99

$

Usually ships in 3-6 days

0

58

Troy-Bilt 738-0924

Shoulder Screw 1/4-28 x .375"
(Superseded to 738-0924A)

$6.99

$

In Stock, Qty 5

0

59

Troy-Bilt 741-0163A

Bearing Housing Assembly

$48.99

$

Usually ships in 3-6 days

0

60

Troy-Bilt 714-0151A

Click Pin

$41.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 741-0563

Ball Bearing
(Superseded to 941-0563)

$36.99

$

In Stock, Qty 7

0

62

Troy-Bilt 741-0747

Ball Bearing

$18.99

$

In Stock, only 2 left!

0

63

Troy-Bilt 746-0949A

Steer Cable

$52.99

$

Usually ships in 3-6 days

0

64

Troy-Bilt 746-0951

Auger Idler Cable
(Superseded to 946-0951A)

$45.99

$

In Stock, only 3 left!

0

65

Troy-Bilt 747-0973

Drive Clutch Rod

$48.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 750-0903

Split Spacer
(Superseded to 750-0903B)

$10.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 750-0997

Spacer
(Superseded to 950-0997)

$6.99

$

In Stock, only 4 left!

0

68

Troy-Bilt 741-0748

Flange Bearing

$11.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 737-3000

Lube Fitting, 3/16
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

70

Troy-Bilt 756-0344

Drive Pulley

$81.99

$

Usually ships in 3-6 days

0

71

Troy-Bilt 756-0625

Roller Cable

$9.49

$

In Stock, Qty 14

0

72

Troy-Bilt 784-0406

Frame Support Bracket
(Superseded to 784-0406A-0637)

Variations

Troy-Bilt 784-0406-0637

BRACKET-SUPPORT FRAME - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

73

Troy-Bilt 784-0379

Upper Frame Cover

Variations

Troy-Bilt 784-0379-0498

UPPER FRAME COVER - OLD CUB YELLOW (0498)

$15.99

$

Usually ships in 3-6 days

0

Troy-Bilt 784-0379-0638

COVER:UPPER FRAME: - MTD/TROY-BILT RED (0638)

$12.99

$

Usually ships in 3-6 days

0

Troy-Bilt 784-0379-0716

UPPER FRAME COVER - CUB YELLOW-99 (0716)

$15.99

$

Usually ships in 3-6 days

0

Troy-Bilt 784-0379-0650

COVER:UPPER FRAME: - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 784-0379-0662

UPPER FRAME COVER - OYSTER GRAY (0662)

$

$

Not available

Troy-Bilt 784-0379-0665

UPPER FRAME COVER - YARDMAN GREEN (0665)

$

$

Not available

$13.99

$

Usually ships in 3-6 days

0

74

Troy-Bilt 784-0380

Lower Frame Cover

Variations

Troy-Bilt 784-0380-0498

LOWER FRAME COVER - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 784-0380-0637

COVER-LOWER FRAME - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 784-0380-0638

COVER-LOWER FRAME - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 784-0380-0650

COVER-LOWER FRAME - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 784-0380-0662

COVER-LOWER FRAME - OYSTER GRAY (0662)

$

$

Not available

Troy-Bilt 784-0380-0665

COVER-LOWER FRAME - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 784-0380-0716

LOWER FRAME COVER - CUB YELLOW-99 (0716)

$

$

Not available

$

$

75

Troy-Bilt 784-0384

Auger Cable Bracket
(Superseded to 784-0384-0637)

Variations

Troy-Bilt 784-0384-0637

GUIDE-AUGER CABLE - POWDER BLACK (0637)

$

$

Not available

$

$

76

Troy-Bilt 784-0403

Shift Bracket
(Superseded to 784-0403-0637)

Variations

Troy-Bilt 784-0403-0637

Shift Bracket - POWDER BLACK (0637)

$

$

Not available

$

$

77

Troy-Bilt 710-1879

Hex Screw 3/8-16 x.880

$6.99

$

Usually ships in 3-6 days

0

78

MTD 718-04034

Bonded Friction Wheel

$

$

Not available

79

Troy-Bilt 790-00011

Friction Wheel Plate

$13.99

$

Usually ships in 3-6 days

0

80

Troy-Bilt 718-04070

Friction Wheel Hub

$

$

Currently unavailable

81

Troy-Bilt 618-04169

Friction Wheel Bearing Assembly

$

$

Currently unavailable

82

Troy-Bilt 738-1166A

Wheel Axle

$160.99

$

Usually ships in 3-6 days

0

83

Troy-Bilt 634-0225

Wheel Assembly, LH
(Superseded to 634-0225A)

$254.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-2031

X-Trac Tire Only

$166.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-1124

Rim Only
(Superseded to 734-1124A)

Variations

Troy-Bilt 734-1124-0499

RIM-WHEEL 8" - CUB BEIGE (0499)

$132.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-1124-0662

RIM ASM-WHEEL 8 X - OYSTER GRAY (0662)

$132.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-1124-0674

RIM ASM-WHEEL 8 X - YARDMAN YELLOW (0674)

$115.99

$

Usually ships in 3-6 days

0

$115.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-0255

Air Valve Only
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 741-0246A

Bearing

$14.99

$

Usually ships in 3-6 days

0

84

Troy-Bilt 634-0226

Wheel Assembly, RH
(Superseded to 634-0226A)

Variations

Troy-Bilt 634-0226-0911

WHEEL ASM-COMPLETE - Carlisle Gray (0911)

$308.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0226-0931

WHEEL ASM-COMPLETE - Carlisle Beige (0931)

$233.99

$

Usually ships in 3-6 days

0

$250.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-2031

X-Trac Tire Only

$166.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-1124

Rim Only
(Superseded to 734-1124A)

Variations

Troy-Bilt 734-1124-0499

RIM-WHEEL 8" - CUB BEIGE (0499)

$132.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-1124-0662

RIM ASM-WHEEL 8 X - OYSTER GRAY (0662)

$132.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-1124-0674

RIM ASM-WHEEL 8 X - YARDMAN YELLOW (0674)

$115.99

$

Usually ships in 3-6 days

0

$115.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-0255

Air Valve Only
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 741-0246A

Bearing

$14.99

$

Usually ships in 3-6 days

0

85

Troy-Bilt 05244A

Bearing Housing
(Superseded to 05244B)

$23.99

$

Usually ships in 3-6 days

0

86

Troy-Bilt 741-04025

Self Aligning Bearing
(Superseded to 941-04025)

$36.99

$

Usually ships in 3-6 days

0

87

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0
