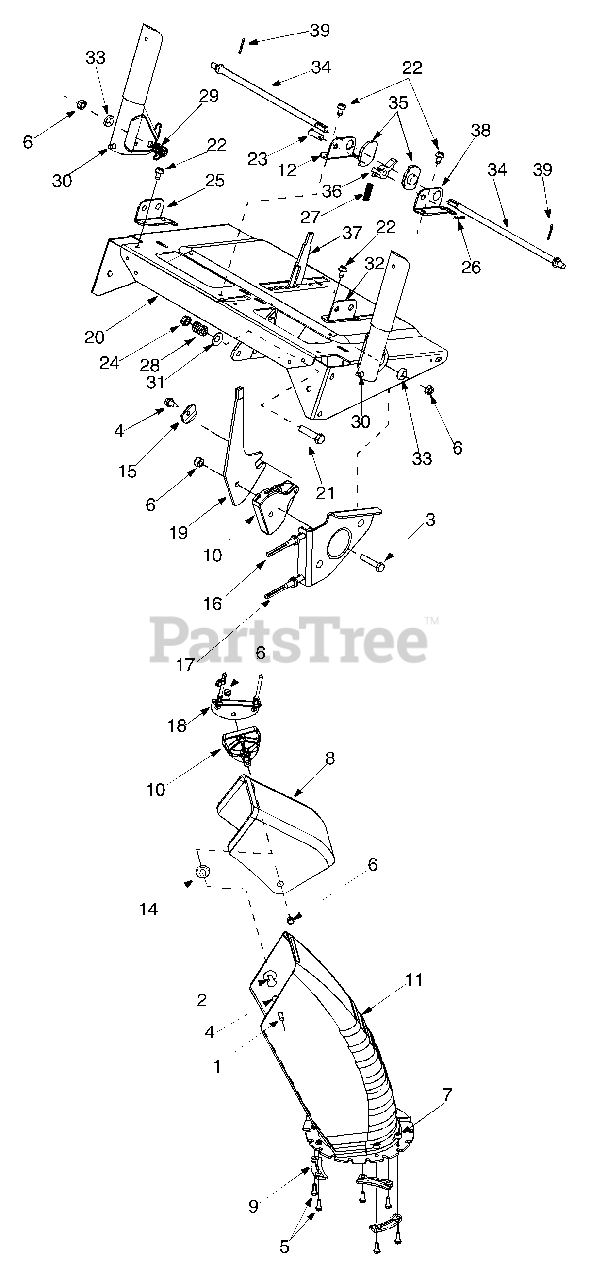

13045 (31AH9Q77766) - Troy-Bilt Polar Blast 45" Snow Thrower (2005) Chute Parts Diagram

Polar Blast 45" Snow Thrower

Chute Parts Diagram

  • Title
1

Troy-Bilt 710-0276

Carriage Screw

$3.99

$

In Stock, Qty 12

0

2

Troy-Bilt 710-0458

Carriage Bolt 5/16-18 x 1.75"

$4.49

$

In Stock, only 4 left!

0

3

Troy-Bilt 710-0805

Hex Bolt 5/16-18 x 1.5"
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

4

Troy-Bilt 710-0895

Hex Screw 1/4-15 x.750"

$6.49

$

In Stock, Qty 5

0

5

Troy-Bilt 710-0597

Hex Screw 1/4-20 x 1.00"

$3.99

$

In Stock, Qty 14

0

6

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 731-0846C

Upper Chute

$52.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 731-0851A

Chute Flange Keeper

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 731-1313C

Chute Tilt Cable Guide

$11.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 731-0903D

Lower Chute
(Superseded to 731-0903E)

$43.99

$

In Stock, Qty 8

0

12

Troy-Bilt 784-5680

Handle Suppt. Bracket 5/8 RH
(Superseded to 784-5680-0637)

Variations

Troy-Bilt 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 736-0231

Flat Washer

$4.99

$

In Stock, Qty 11

0

15

Troy-Bilt 736-0506A

Special Washer

$

$

Not available

16

Troy-Bilt 746-0902

Chute Control Cable
(Superseded to 946-0902)

$49.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 746-0903

Chute Cable w/Clip
(Superseded to 946-0903)

$53.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 784-5594

Cable Bracket

Variations

Troy-Bilt 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 1 left!

0

Troy-Bilt 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 1 left!

0

Troy-Bilt 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 1 left!

0

$10.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 784-5604

Chute Tilt Handle
(Superseded to 784-5604A-0637)

Variations

Troy-Bilt 784-5604-0637

Chute Handle Bracket - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

20

Troy-Bilt 684-0102

Handle Panel Assembly w/ Tilt
(Superseded to 684-0102A)

Variations

Troy-Bilt 684-0102-0638

PANEL ASM:HANDLE - MTD/TROY-BILT RED (0638)

$143.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102-0650

PANEL ASM:HANDLE - RED METALLIC (0650)

$124.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102-0662

PANEL ASM:HANDLE - OYSTER GRAY (0662)

$143.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102-0665

PANEL ASM:HANDLE - YARDMAN GREEN (0665)

$143.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102-0689

PANEL ASM:HANDLE - POLO GREEN (0689)

$124.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102-0716

HANDLE PANEL ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$153.99

$

Usually ships in 3-6 days

0

Troy-Bilt 684-0102-0721

PANEL ASM:HANDLE - SEARS RED (0721)

$133.99

$

Usually ships in 3-6 days

0

$133.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 710-0459A

Hex Bolt 3/8-24 x 1.5"

$6.99

$

In Stock, Qty 8

0

22

Troy-Bilt 710-0599

TT Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

24

$4.99

$

In Stock, Qty 6

0

25

Troy-Bilt 784-5682

Handle Suppt. Bracket 3/8 RH
(Superseded to 784-5682-0637)

Variations

Troy-Bilt 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

26

Troy-Bilt 714-0104

Cotter Pin

$4.49

$

In Stock, Qty 20+

0

27

$4.49

$

Usually ships in 3-6 days

0

28

$4.99

$

In Stock, Qty 6

0

29

Troy-Bilt 732-0746

Torsion Spring

$4.49

$

In Stock, Qty 13

0

30

Troy-Bilt 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 4 left!

0

31

Troy-Bilt 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 784-5681

Handle Suppt. Bracket 3/8 LH

Variations

Troy-Bilt 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

33

Troy-Bilt 736-0509

Special Washer

$6.99

$

In Stock, only 1 left!

0

34

$22.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 748-0362

Cam Handle Lock

$7.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 748-0363

Handle Lock Pawl
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 784-5619A

Shift Handle
(Superseded to 753-05395)

Variations

Troy-Bilt 784-5619A-0637

KIT-SHIFT HANDLE:S - POWDER BLACK (0637)

$

$

Not available

$

$

38

Troy-Bilt 784-5679

Handle Suppt. Bracket 5/8 LH
(Superseded to 784-5679-0637)

Variations

Troy-Bilt 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 714-0507

Cotter Pin

$4.49

$

In Stock, only 2 left!

0
