130432-0102-01 - Briggs & Stratton Horizontal Engine Cylinder,Crankcase,PistonGrp Parts Diagram

Horizontal Engine

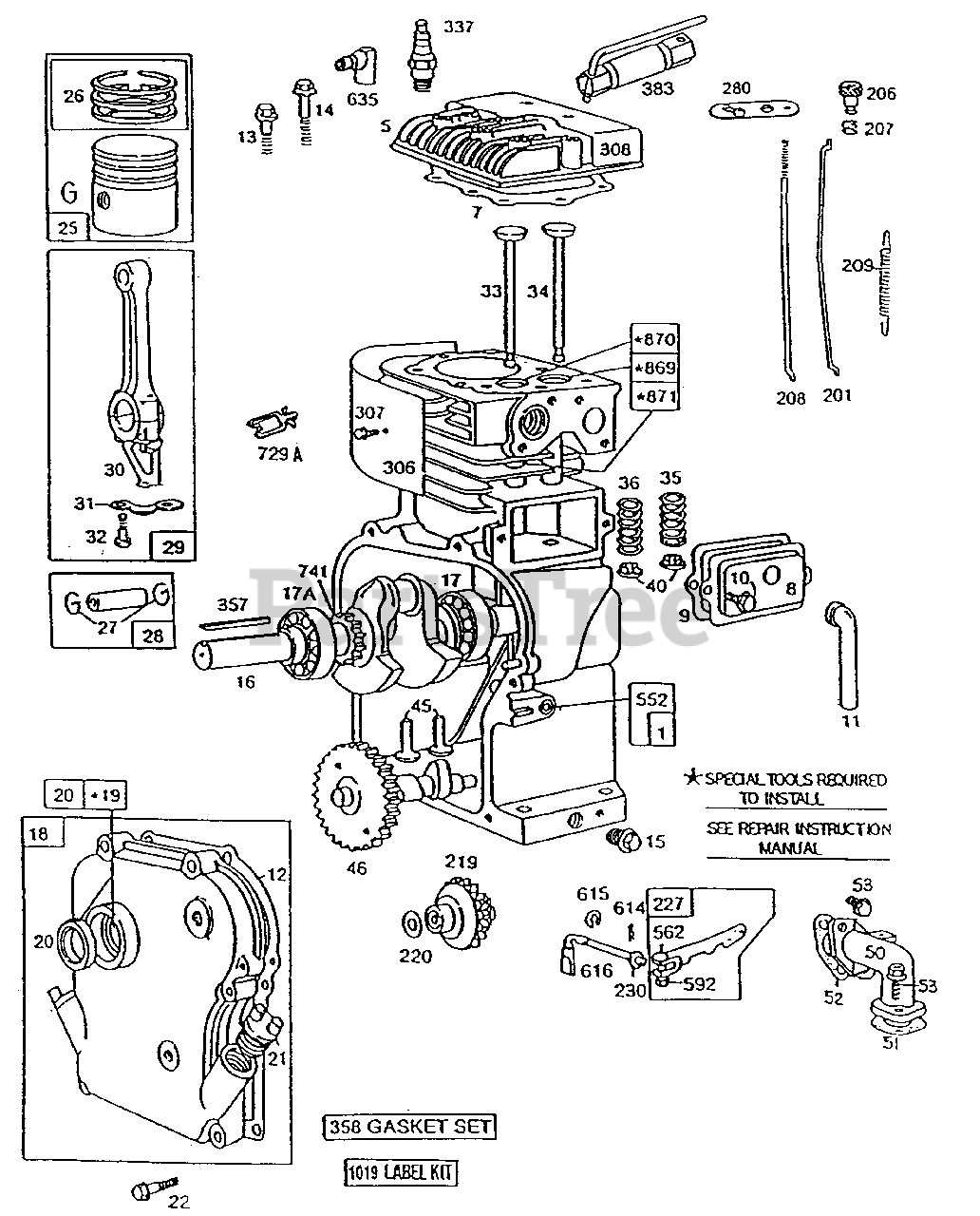

Cylinder,Crankcase,PistonGrp Parts Diagram

  • Title

1

Briggs & Stratton 395990

Cylinder Assembly
(Superseded to 497144)

$537.99

$

Usually ships in 2-12 days

0

1

Briggs & Stratton 494955

Cylinder Assy.

Note: Used After Code Date 91063000

$188.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 211127

Head-Cylinder (High Compression)

$40.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272157

Gasket-Cylinder Head
(Superseded to 272157S)

Note: Included in Gasket Set-Part No. 397145

$6.49

$

In Stock, Qty 7

0

8

Briggs & Stratton 294178

Cover-Breather
(Superseded to 791779)

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549

Gasket, Valve Cover
(Superseded to 27549S)

Note: Included in Gasket Set-Part No. 397145

$3.99

$

In Stock, Qty 13

0

10

Briggs & Stratton 94621

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 271489

Tube-Breather

Note: (Rubber Hang Down Tube See Ref. 8 Note)

$8.99

$

In Stock, only 4 left!

0

12

Briggs & Stratton 270080

Gasket, Crankcase (.015")
(Superseded to 692213)

Note: Included in Gasket Set-Part No. 397145

$3.99

$

In Stock, only 4 left!

0

12

Briggs & Stratton 270125

Gasket-Crkcse (.005" Thick)

Note: Included in Gasket Set-Part No. 397145

$9.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 270126

Gasket-Crkcse (.009" Thick)

Note: Included in Gasket Set-Part No. 397145

$8.49

$

In Stock, only 2 left!

0

13

Briggs & Stratton 93368

Screw-Cylinder Head (2-3/32" Long)
(Superseded to 691640)

$3.49

$

In Stock, Qty 12

0

14

Briggs & Stratton 93369

Screw-Cylinder Head (2-15/32" Long)
(Superseded to 691659)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 91249

Plug, Pipe (Standar (1/4" Square)
(Superseded to 691686)

$5.49

$

In Stock, only 2 left!

0

15

Briggs & Stratton 93448

Plug, Pipe (Flush) (1/4-18 Nptf)
(Superseded to 691682)

$5.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 94174

Plug, Pipe Magnetic
(Superseded to 691663)

Note: Used on Engines Equipped for Oil Gard

$10.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 493290

Crankshaft

Note: To Replace Crankshaft Gear Pin, Order Part No. 230978

$

$

Not available

17A

Briggs & Stratton 99158

Ball Bearing (P.t.o. Side)

$20.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 99157

Ball Bearing (Magneto Side)

$27.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 298204

Cover, Crankcase Ki (Ball Bearing)
(Superseded to 493610)

$96.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 297603

Bushing-Crkcse. Cover

Note: Bushings Require Special Tools For Installation.

$

$

Not available

20

Briggs & Stratton 393812

Seal-Oil

Note: Included in Gasket Set-Part No. 397145

$5.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 66768

Plug, Oil Fill
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93032

Screw-Tank Mounting
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 298904

Piston Assy-Std (Std.)
(Superseded to 793214)

$

$

Not available

25

Briggs & Stratton 298905

Piston Assy-010

$50.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 298906

Piston Assy-020

$

$

Not available

25

Briggs & Stratton 298907

Piston Assy-030

$

$

Not available

26

Briggs & Stratton 298982

Ring Set-Std (Std.)

$48.99

$

In Stock, Qty 8

0

26

Briggs & Stratton 298983

Ring Set-010

$

$

Not available

26

Briggs & Stratton 298984

Ring Set-020

$35.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 298985

Ring Set-030

$23.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Lock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298908

Pin-Piston 005 (.005" O.S.)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 298909

Pin-Piston

$8.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 299430

Rod-Connecting (Standard)

Note: For Connecting Rod With .020" Undersize Crankpin Bore-Order No. 390459

$40.99

$

In Stock, only 1 left!

0

30

Briggs & Stratton 221890

Dipper-Connecting Rod
(Superseded to 691759)

$8.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 221876

Lock-Screw Head

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92296

Screw-Connecting Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 211119

Valve-Exhaust
(Superseded to 211119S)

$

$

Not available

34

Briggs & Stratton 261044

Valve-Intake
(Superseded to 261044S)

$

$

Not available

35

Briggs & Stratton 260552

Spring, Valve
(Superseded to 690520)

$5.49

$

In Stock, only 3 left!

0

36

Briggs & Stratton 26478

Spring, Valve (Exhaust)
(Superseded to 692180)

$6.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 93312

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 260642

Tappet-Valve
(Superseded to 690509)

$

$

Not available

46

Briggs & Stratton 212733

Gear-Cam
(Superseded to 691164)

$59.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 212358

Elbow-Intake

$

$

Not available

51

Briggs & Stratton 68987

Gasket-Intake

Note: Included in Gasket Set-Part No. 397145

$5.99

$

In Stock, only 2 left!

0

52

Briggs & Stratton 27355

Gasket, Intake Elbo (2)
(Superseded to 27355S)

Note: Included in Gasket Set-Part No. 397145

$3.99

$

In Stock, Qty 20+

0

53

Briggs & Stratton 93357

Screw-Sem, Phillips Hex. Hd.
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 261589

Link-Governor

$3.49

$

Usually ships in 2-12 days

0

206

Briggs & Stratton 231266

Nut, Hex (#6-32 Thread)
(Superseded to 691771)

$37.99

$

Usually ships in 2-12 days

0

207

Briggs & Stratton 26855

Spring-Governor Control Rod
(Superseded to 692522)

$

$

Not available

208

Briggs & Stratton 261985

Rod-Gov Control (#6-32 Thd.)

$12.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 261126

Spring-Governor
(Superseded to 796261)

$6.49

$

In Stock, only 4 left!

0

219

Briggs & Stratton 391737

Gear-Governor

Note: Used Before Code Date 91061000

$38.99

$

In Stock, only 2 left!

0

219

Briggs & Stratton 494845

Gear-Governor

Note: Used After Code Date 91060900

$

$

Not available

220

Briggs & Stratton 221551

Washer, Steel
(Superseded to 691724)

$5.49

$

In Stock, only 2 left!

0

227

Briggs & Stratton 393920

Lever-Governor
(Superseded to 692357)

$14.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 222450

Washer, Steel Zinc
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

280

Briggs & Stratton 223236

Strap-Control Rod

$6.49

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 221511

Shield-Cylinder
(Superseded to 694514)

$28.99

$

In Stock, only 1 left!

0

307

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

308

Briggs & Stratton 224738

Cover-Cylinder Head
(Superseded to 694514)

$28.99

$

In Stock, only 1 left!

0

337

Briggs & Stratton 293918

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 298809

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 802592

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

357

Briggs & Stratton 91539

Key, Pulley (3/16" Square)
(Superseded to 692191)

$

$

Not available

358

Briggs & Stratton 397145

Gasket Set
(Superseded to 495603)

$32.99

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

552

Briggs & Stratton 231079

Bushing, Governor S (1/4" I.d.)
(Superseded to 690508)

$9.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Bolt-Gov Lever

$

$

Not available

592

Briggs & Stratton 231082

Nut (10-24)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

614

Briggs & Stratton 93306

Pin, Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-E Ring

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 231077

Crank, Governor (1/4" Dia.)
(Superseded to 692016)

$

$

Not available

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 11

0

729A

Briggs & Stratton 280590

Retainer-Wire
(Superseded to 690588)

$4.49

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 261696

Gear-Timing (For Plain Bearing)

$52.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 262060

Gear-Timing (For Ball Bearing)

$14.99

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 211787

Seat, Intake Valve
(Superseded to 691705)

$9.99

$

In Stock, only 3 left!

0

870

Briggs & Stratton 211172

Seat-Valve (Intake)
(Superseded to 691701)

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 231348

Bushing-Guide (Exhaust Valve)

$31.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Guide (Brass)

$14.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 491100

Label Kit

$34.99

$

Usually ships in 2-12 days

0
