13040 - Troy-Bilt Garden Tractor, Hydro Drive (SN: 130400100101 & Above) DRIVE & HYDRO ASSEMBLY Parts Diagram

Garden Tractor, Hydro Drive

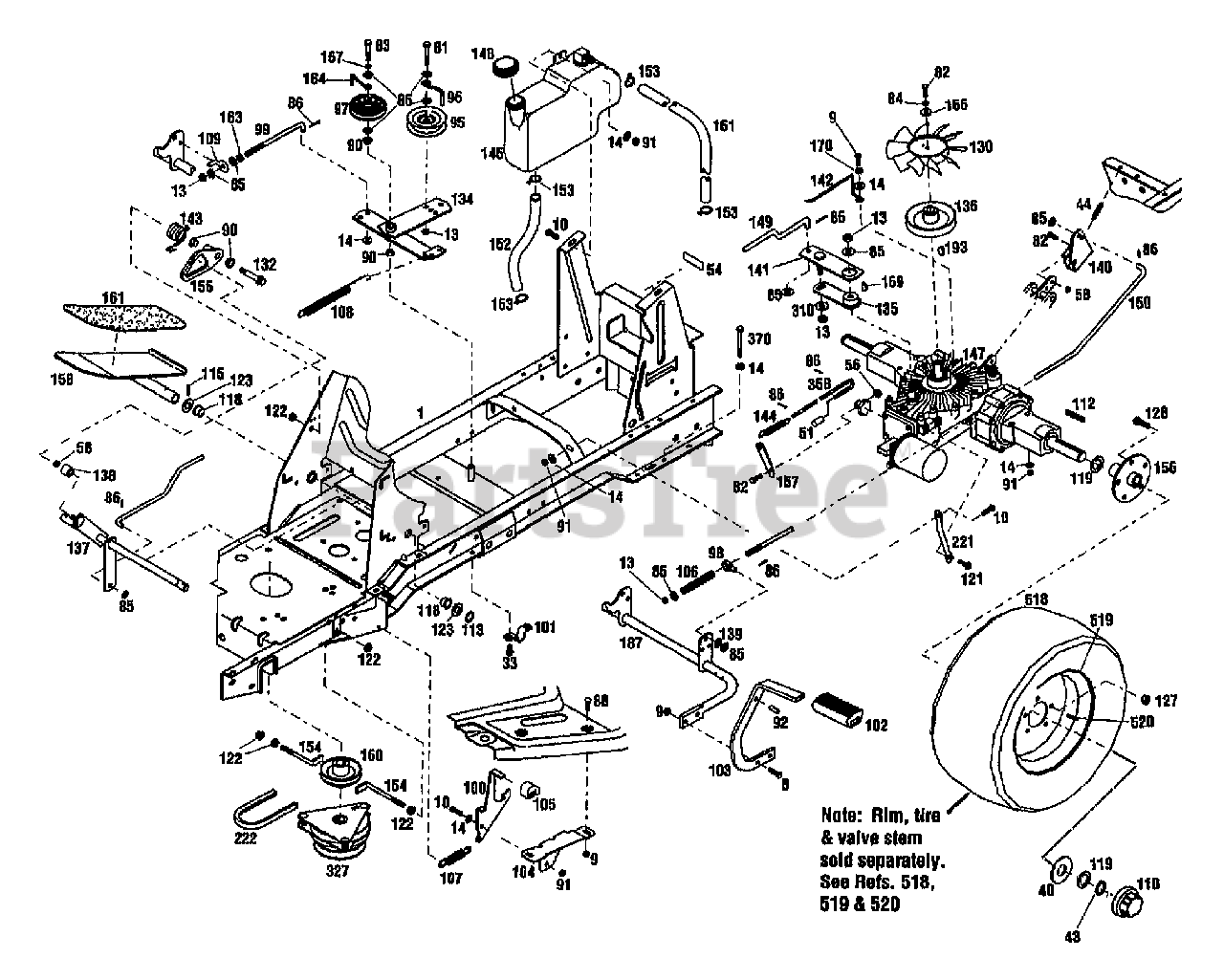

DRIVE & HYDRO ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1765440001

ASSM-FRAME

$

$

Currently unavailable

8

Troy-Bilt 1100045

SCR-HH 5/16-18X1.0 G5 ZP
(Superseded to 710-0376)

$3.99

$

In Stock, only 4 left!

0

9

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

14

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

33

Troy-Bilt 1766984

SCR-HFLK 5/16-18X.75

$3.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 1766242

WASHER-SPECIAL .75X2.5

$

$

Not available

43

MTD 1185689

RING-HEAVY EXT HD 1.0 ID

$

$

Not available

44

MTD 1765307

SPRING-EXTENSION

$

$

Not available

51

MTD 1767984

GRIP-HANDLE

$

$

Not available

54

MTD 1767967

DECAL-TRANS RELEASE

$

$

Not available

56

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

58

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

81

Troy-Bilt 1100048

SCR-HH 3/8-16X2.0 G5 ZP
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 7

0

82

Troy-Bilt 1100069

SCR-HH 1/4-20X1.0
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 14

0

?83

Troy-Bilt 1100086

SCR-HH 3/8-16X1.75 G5 ZP
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

84

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

85

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

86

Troy-Bilt 1100346

PIN-COTTER .09X.75 ZP
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

88

Troy-Bilt 1186097

SCR-CARR 5/16-18X.62 G2 ZP
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

90

Troy-Bilt 1715538

BUSHING-.5X.5 NYLON FLNG

$

$

Not available

91

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

92

MTD 1733103

PIN-.312X.75

$

$

Not available

?95

Troy-Bilt 1756151

IDLER

$48.99

$

Usually ships in 3-6 days

0

96

Troy-Bilt 1760096

GUIDE-BELT

$

$

Not available

?97

Troy-Bilt 1760097

PULLEY-IDLER

$

$

Not available

98

MTD 1751848

SWIVEL

$

$

Not available

99

MTD 1765044

ROD-CLUTCH

$

$

Not available

100

MTD 1765096

LATCH-BRAKE CLUTCH USE1771514

$

$

Not available

101

MTD 1765156

CLIP-CLAMP .75 ID

$

$

Not available

102

MTD 1765167

PAD-FOOT PEDAL

$

$

Not available

103

MTD 1765252

PEDAL-BRAKE

$

$

Not available

104

MTD 1765257

BRKT-BRAKE LOCK

$

$

Not available

105

MTD 1765297

PAD-BRAKE

$

$

Not available

106

MTD 1765305

SPRING-COMPRESSION

$

$

Not available

107

MTD 1985140

SPRING-EXTENSION

$

$

Not available

?108

Troy-Bilt 1765402

SPRING-EXTENSION

$33.99

$

Usually ships in 3-6 days

0

109

MTD 1765461

ROD-PIVOT

$

$

Not available

110

MTD 1766215

CAP-HUB

$

$

Not available

112

Troy-Bilt 1104338

KEY-.25 SQ X 2.0
(Superseded to 914-0114)

$4.49

$

In Stock, only 1 left!

0

113

Troy-Bilt 1118808

RING-RETAIN .625 ID

$

$

Not available

115

MTD 1120210

PIN-ROLL .188X1.0

$

$

Not available

118

MTD 1185802

BEARING-FLANGE

$

$

Not available

119

Troy-Bilt 1185816

WASHER-SPEC

$3.99

$

Usually ships in 3-6 days

0

121

MTD 1186327

SCR-HFLK 5/16-18X.50 ZP

$

$

Not available

122

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

123

Troy-Bilt 1715301

WASHER-1.115X.637X.06

$9.99

$

Usually ships in 3-6 days

0

127

MTD 1753025

NUT-LUG 7/16-20

$

$

Not available

128

Troy-Bilt 1753026

BOLT-WHEEL
(Superseded to 1770283)

$

$

Not available

130

MTD 1760370

FAN-HYDRO TRANSMISSION

$

$

Not available

132

Troy-Bilt 1763219

SCR-SHLDR 3/8-16

$10.99

$

In Stock, only 2 left!

0

134

MTD 1765064

ARM-IDLER

$

$

Not available

135

Troy-Bilt 1765067

ARM-HYDRO

$

$

Currently unavailable

136

Troy-Bilt 1765072

PULLEY-HYDRO

$

$

Currently unavailable

137

MTD 1765079

SHAFT-HYDRO PIVOT

$

$

Not available

138

MTD 1767807

BEARING-BALL

$

$

Not available

139

MTD 1760323

WASHER-.376 DIA

$

$

Not available

140

Troy-Bilt 1765253

BRKT-BRAKE HYDRO

$

$

Currently unavailable

141

MTD 1765289

ARM-CONTROL HYDRO

$

$

Not available

142

MTD 1765304

GUIDE-BELT

$

$

Not available

143

MTD 1765306

SPRING-TORSION

$

$

Not available

144

MTD 1720928

SPRING

$

$

Not available

145

Troy-Bilt 1765348

RESERVOIR-OIL

$

$

Currently unavailable

147

Troy-Bilt 1765350

TRANSAXLE-HYDROSTATIC
(Superseded to 1770634)

$

$

Not available

148

MTD 1765352

CAP-TANK

$

$

Not available

149

MTD 1765353

ROD-CONTROL HYDRO

$

$

Not available

150

MTD 1765354

ROD-BRAKE

$

$

Not available

151

Troy-Bilt 1765476

HOSE

$

$

Currently unavailable

152

MTD 1765477

HOSE-HYDRAULIC 5/8

$

$

Not available

153

MTD 1765478

CLAMP-HOSE 5/8

$

$

Not available

154

MTD 1765482

RETAINER-CLUTCH

$

$

Not available

155

MTD 1766015

ARM-RETURN NEUTRAL HYDRO

$

$

Not available

156

MTD 1766019

HUB-WHEEL

$

$

Not available

157

MTD 1767909

VALVE-DUMP

$

$

Not available

158

MTD 1766085001

ASSM-PEDAL HYDRO

$

$

Not available

160

Troy-Bilt 1766201

PULLEY-ENGINE

$

$

Currently unavailable

161

MTD 1766202

PAD-FOOT PEDAL

$

$

Not available

163

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

164

MTD 1767900

GUIDE-BELT

$

$

Not available

166

Troy-Bilt 1720883

WASHER-FLAT 1.25X.28X.062 ZP

$

$

Not available

?167

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

169

MTD 1100905

KEY-WOODRUFF .125X.5

$

$

Not available

170

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

187

MTD 1765061

ASSM-BRAKE PEDAL

$

$

Not available

193

MTD 1185885

KEY-WOODRUFF

$

$

Not available

221

MTD 1765165

SUPPORT-TRANSMISSION

$

$

Not available

222

Troy-Bilt 1765349

BELT-V

$50.99

$

Usually ships in 3-6 days

0

310

Troy-Bilt 1185715

WASHER-LK .375 PYRAMIDAL

$

$

Not available

327

Troy-Bilt 1755341

CLUTCH-ELECTRIC
(Superseded to 917-3497)

$668.99

$

Usually ships in 3-6 days

0

?358

MTD 1767907

ROD-DUMP VALVE

$

$

Not available

370

Troy-Bilt 1111610

SCR-HH 5/16-18X3.0
(Superseded to 710-0189)

$6.49

$

In Stock, Qty 5

0

518

MTD 1768795

TIRE

$

$

Not available

519

MTD 1766131

RIM-WHEEL REAR

$

$

Not available

520

Troy-Bilt 1718086

STEM-VALVE
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

87

UNKNOWN

$

$

Not available

89

UNKNOWN

$

$

Not available
