13036 - Troy-Bilt Lawn Tractor, Gear Drive (SN: 130360100101 & Above) HYDRO TRANSMISSION (650) PARTS Parts Diagram

Lawn Tractor, Gear Drive

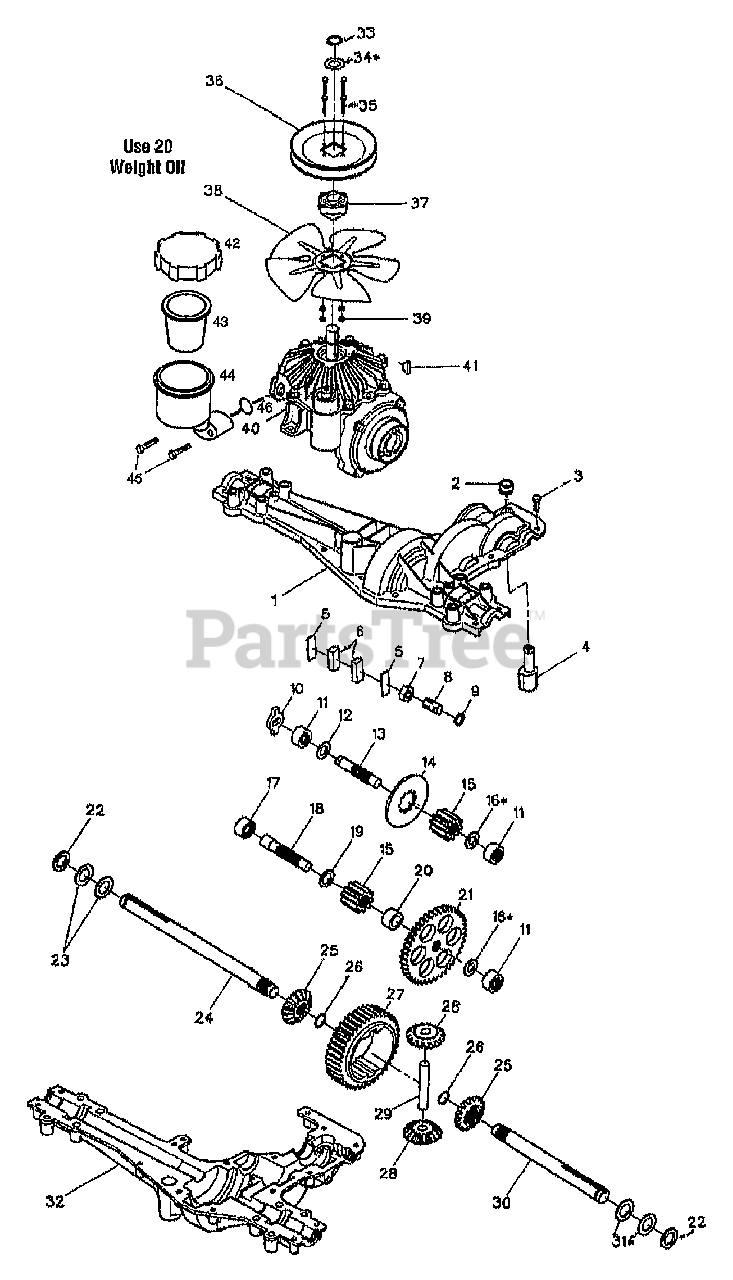

HYDRO TRANSMISSION (650) PARTS Parts Diagram

  • Title
1

MTD 1769260

HOUSING-UPPER

$

$

Not available

2

MTD 1769261

RING-V

$

$

Not available

3

MTD 1769262

SCR-SELF TAP 1/4-20X.734

$

$

Not available

4

MTD 1769263

ASSM-SHAFT & CAM

$

$

Not available

5

MTD 1769264

SPACER

$

$

Not available

6

MTD 1769265

BLOCK FRICTION

$

$

Not available

7

MTD 1769266

NUT-HEX/JAM

$

$

Not available

8

MTD 1769267

ADJUSTMENT-STUD

$

$

Not available

9

MTD 1769268

RING-O

$

$

Not available

10

MTD 1769269

KEY-DRIVE

$

$

Not available

11

Troy-Bilt 1769270

ASSM-BEARING

$

$

Currently unavailable

12

MTD 1769271

WASHER-.505 X .942 X .040

$

$

Not available

13

MTD 1769272

SHAFT-INPUT

$

$

Not available

14

MTD 1769273

BRAKE-DISC

$

$

Not available

15

MTD 1769274

SPUR-GEAR 10T

$

$

Not available

16

Troy-Bilt 1769275

KIT-SHIM (.500 SHAFT)

$

$

Currently unavailable

17

MTD 1769276

ASSM-BEARING

$

$

Not available

18

MTD 1769277

SHAFT-IDLER

$

$

Not available

19

MTD 1769278

WASHER-.632 X 1.0 X .041

$

$

Not available

20

MTD 1769279

SPACER .630 X 1.00 X .549

$

$

Not available

21

MTD 1769280

SPUR-GEAR 41T

$

$

Not available

22

MTD 1769281

WASHER-NEOPRENE

$

$

Not available

23

MTD 1769282

WASHER-.758X1.25X.031

$

$

Not available

24

MTD 1769283

AXLE-TRANSMISSION LH

$

$

Not available

25

MTD 1769284

MITER-GEAR 15T

$

$

Not available

26

Troy-Bilt 1769285

RING-RETAINING

$

$

Not available

27

MTD 1769286

SPUR-GEAR 41T

$

$

Not available

28

MTD 1769287

MITER-GEAR 15T

$

$

Not available

29

MTD 1769288

SHAFT-CROSS

$

$

Not available

30

MTD 1769289

AXLE-TRANSMISSION RH

$

$

Not available

?31

MTD 1769290

KIT-SHIM (.750 SHAFT)

$

$

Not available

32

MTD 1769291

HSG-TRANSMISSION LOWER

$

$

Not available

33

MTD 1769292

RING-RETAINING

$

$

Not available

34

Troy-Bilt 1769293

KIT-SHIM (.670 SHAFT)

$

$

Not available

35

Troy-Bilt 1769294

SCR-HHC #6-32X.88

$

$

Not available

36

MTD 1769295

PULLEY-4.50" DIA

$

$

Not available

$

$

Not available

38

MTD 1769297

KIT-FAN

$

$

Not available

39

Troy-Bilt 1769298

NUT-H/LK #6-32

$

$

Not available

40

MTD 1769299

ASSM-HYDROSTATIC

$

$

Not available

41

Troy-Bilt 1769300

KEY-WOODRUFF

$

$

Not available

$

$

Currently unavailable

43

Troy-Bilt 1770922

DIAPHRAGM

$

$

Not available

44

MTD 1770924

RESERVOIR

$

$

Not available

45

MTD 1186312

SCR-HFLK 1/4-20X1.00

$

$

Not available

46

$

$

Currently unavailable
