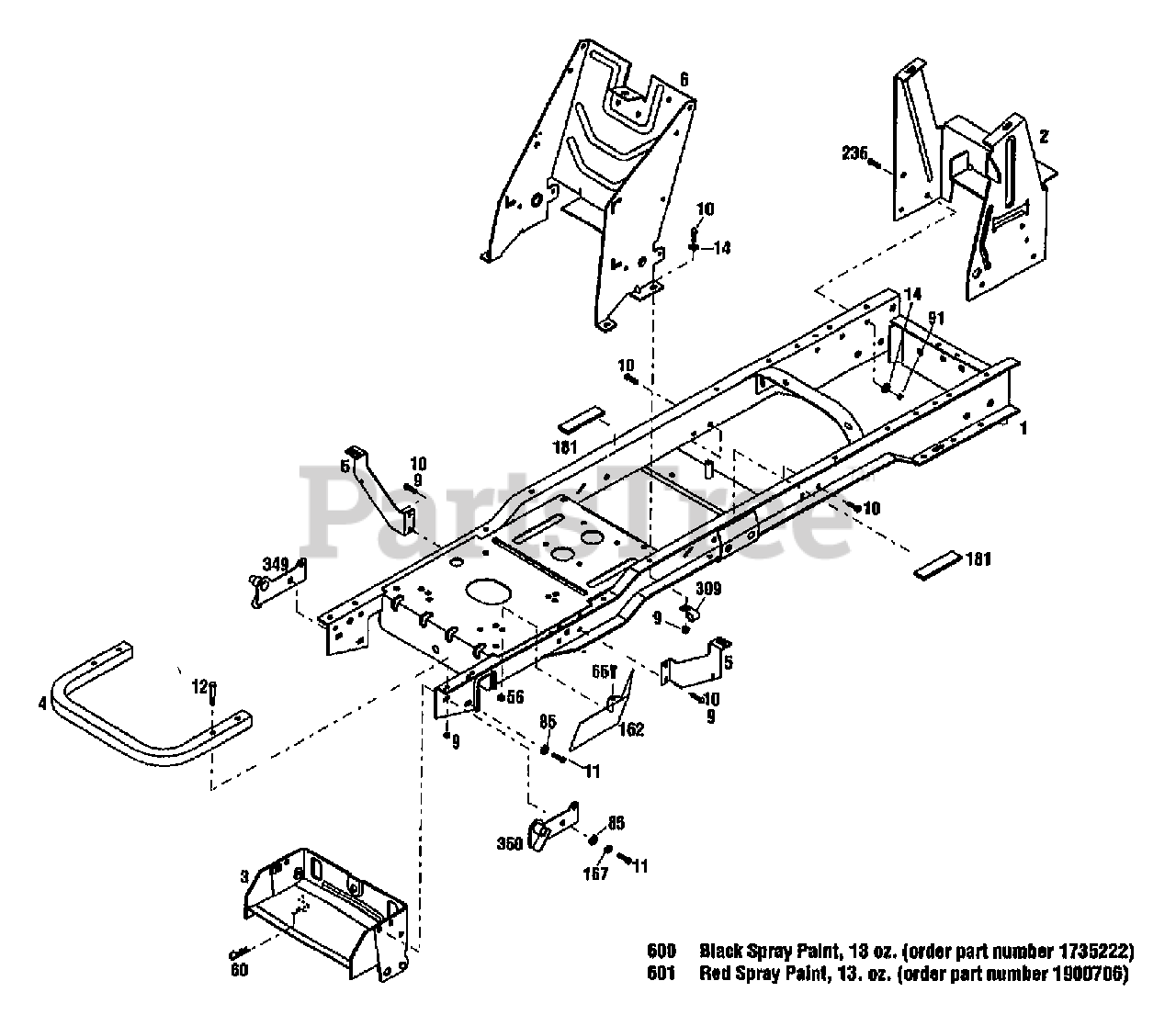

13034 - Troy-Bilt Lawn Tractor, Gear Drive (SN: 130340100101 & Above) FRAME ASSEMBLY Parts Diagram

Lawn Tractor, Gear Drive

FRAME ASSEMBLY Parts Diagram

  • Title
1

Troy-Bilt 1765435001

ASSM-FRAME LTX
(Superseded to 1772924001)

$

$

Not available

2

MTD 1766050001

SUPPORT-REAR TANK

$

$

Not available

3

MTD 1766082001

ASSM-BRKT ATTACHMENT

$

$

Not available

?4

MTD 1766336001

BUMPER-FRONT

$

$

Not available

5

MTD 1765431001

SUPPORT-FENDER

$

$

Not available

6

MTD 1765446001

SUPPORT-CONSOLE

$

$

Not available

9

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 1100779

SCR-HH 5/16-18X1.75
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

56

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

60

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

65

Troy-Bilt 1186309

SCR-HH 1/4-20X.625

$

$

Not available

85

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

91

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

162

Troy-Bilt 1767874001

SHIELD-HEAT UPPER

$

$

Currently unavailable

167

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

181

$

$

Not available

236

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

309

MTD 1747738

CLIP-J

$

$

Not available

349

MTD 1767867001

PLATE-PIVOT RH

$

$

Not available

?350

MTD 1767868001

PLATE-PIVOT LH

$

$

Not available

?600

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0

?601

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0

358

UNKNOWN

$

$

Not available
