13027 - Troy-Bilt Hydro Suburban Lawn Tractor (SN: 120900100101 - 130270300100) HYDROSTATIC & BRAKE ASSEMBLY Parts Diagram

Hydro Suburban Lawn Tractor

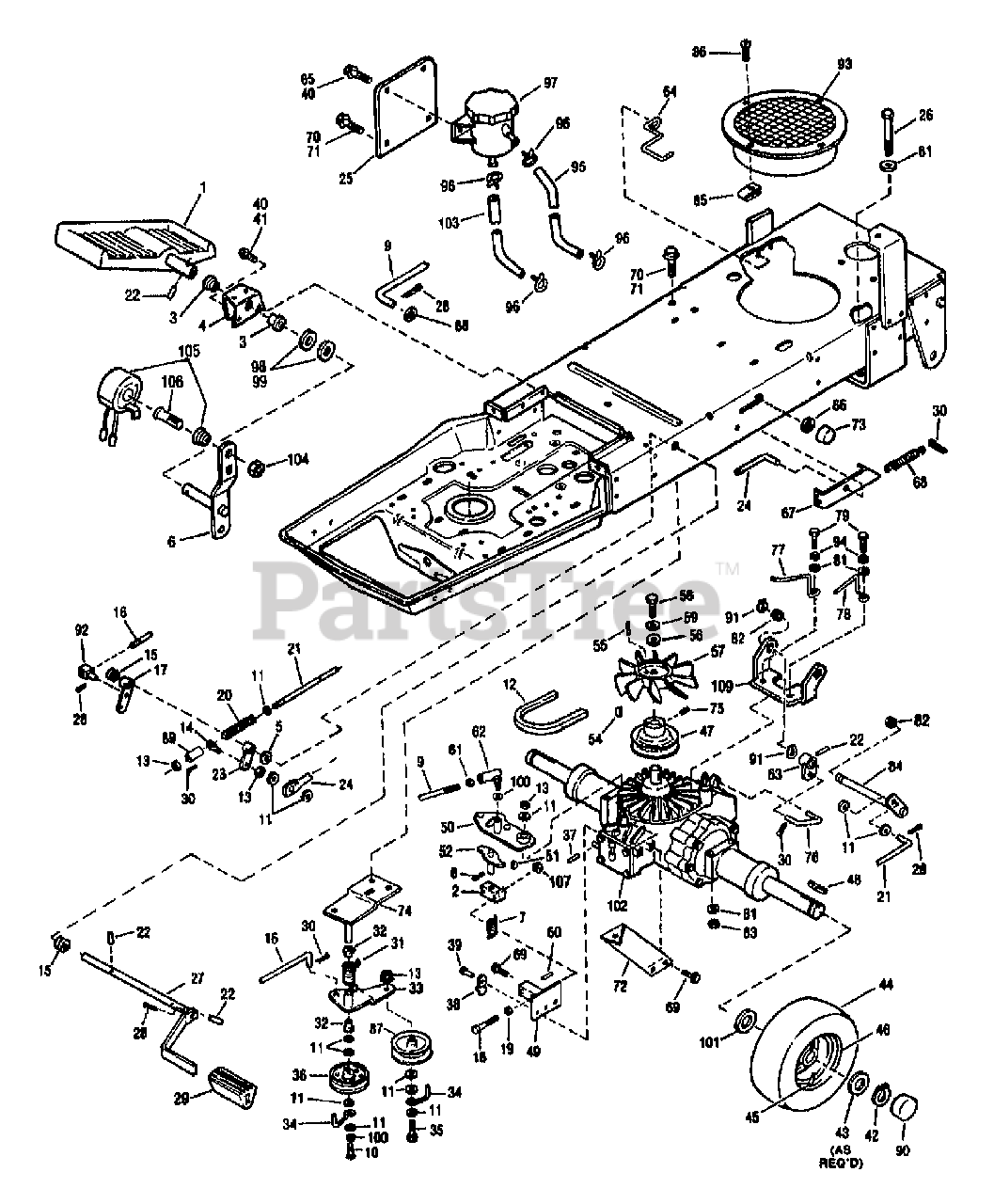

HYDROSTATIC & BRAKE ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1755883001

ASSM-PEDAL

$

$

Currently unavailable

2

MTD 1753188

BLOCK-PIVOT

$

$

Not available

3

MTD 1185802

BEARING-FLANGE

$

$

Not available

4

MTD 1756687001

SUPT-HYD PEDAL

$

$

Not available

5

Troy-Bilt 1107386

WASHER-1.305X.649X.098 ZP
(Superseded to 736-0237)

$4.49

$

In Stock, Qty 20+

0

6

MTD 1756166

ASSM-CONT

$

$

Not available

7

MTD 1753190

SPRING-TORSION

$

$

Not available

?8

Troy-Bilt 1120290

ROLL PIN

$

$

Currently unavailable

9

Troy-Bilt 1155878

CONTROL SHAFT ASSY

$

$

Currently unavailable

10

Troy-Bilt 1100049

SCR-HH 3/8-16X2.25 G5 ZP
(Superseded to 710-3011)

$6.99

$

In Stock, Qty 19

0

11

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

12

Troy-Bilt 1751597

BELT

$83.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

14

Troy-Bilt 1749904

BOLT-EYE

$

$

Currently unavailable

15

MTD 1714233

BUSHING-.68X.62X.15 FLNG

$

$

Not available

16

MTD 1746942

ROD-CLUTCH

$

$

Not available

17

MTD 1751879

ASSM-ARM

$

$

Not available

18

MTD 1760321

SCR-ADJ

$

$

Not available

19

Troy-Bilt 1186247

NUT-JAM
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

20

MTD 1751022

SPRING-COMP.

$

$

Not available

21

MTD 1764131

LINK-BRAKE

$

$

Not available

22

MTD 1120210

PIN-ROLL .188X1.0

$

$

Not available

23

MTD 1751880

ASSM-ARM

$

$

Not available

24

MTD 1751063

ROD-BRAKE LOCK

$

$

Not available

25

Troy-Bilt 1755787001

SUPPORT-TANK

$

$

Currently unavailable

26

Troy-Bilt 1111610

SCR-HH 5/16-18X3.0
(Superseded to 710-0189)

$6.49

$

In Stock, Qty 5

0

27

MTD 1756049

ASSM-BRAKE PEDAL

$

$

Not available

28

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

29

MTD 1728694

FOOT REST

$

$

Not available

30

MTD 1100359

PIN-COTTER .125X.50

$

$

Not available

?31

MTD 1751809

SPRING-TORSION

$

$

Not available

32

Troy-Bilt 1715538

BUSHING-.5X.5 NYLON FLNG

$

$

Not available

33

MTD 1746941001

ASSM-IDLER ARM

$

$

Not available

34

Troy-Bilt 1760096

GUIDE-BELT

$

$

Not available

35

Troy-Bilt 1100086

SCR-HH 3/8-16X1.75 G5 ZP
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

36

Troy-Bilt 1756151

IDLER

$48.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 1185759

PIN-DRIVE .25X3.0 ZP

$

$

Not available

38

MTD 1756144

LATCH

$

$

Not available

39

Troy-Bilt 1185879

RIVET-POP
(Superseded to 728-04021)

$3.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 1186309

SCR-HH 1/4-20X.625

$

$

Not available

41

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

42

MTD 1185689

RING-HEAVY EXT HD 1.0 ID

$

$

Not available

43

MTD 1747872

WASHER-1.88X1.015X.06 ZP

$

$

Not available

44

Troy-Bilt 1762250

TIRE-20X8.00-8RS
(Superseded to 734-04364)

$87.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 1718086

STEM-VALVE
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

46

Troy-Bilt 1763689

WHEEL-DISC

$

$

Currently unavailable

47

MTD 1760193

SHEAVE-HYDRO

$

$

Not available

?48

Troy-Bilt 1104337

KEY-.25 SQ X 1.5
(Superseded to 714-0118)

$6.99

$

In Stock, only 4 left!

0

49

MTD 1753186

ASSM-ADJUSTOR BLOCK

$

$

Not available

50

MTD 1753199

ASSM-SPEED CONT ARM

$

$

Not available

51

MTD 1100905

KEY-WOODRUFF .125X.5

$

$

Not available

52

MTD 1753193

ASSM-PIVOT SHAFT

$

$

Not available

54

MTD 1185885

KEY-WOODRUFF

$

$

Not available

55

MTD 1120209

PIN-ROLL .188X.75

$

$

Not available

56

MTD 1761608

WASHER-.865X.281X.1793

$

$

Not available

57

MTD 1760370

FAN-HYDRO TRANSMISSION

$

$

Not available

58

Troy-Bilt 1100069

SCR-HH 1/4-20X1.0
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 13

0

59

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

60

MTD 1753189

PIN-DOWEL .375 X 2.51

$

$

Not available

61

Troy-Bilt 1186245

NUT-HEX/JAM 3/8-24 ZP
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

62

Troy-Bilt 1756175

JOINT-BALL

$

$

Currently unavailable

63

MTD 1762704

ASSM-BRAKE ARM

$

$

Not available

64

MTD 1756627

GUIDE

$

$

Not available

65

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

66

Troy-Bilt 1893445

WASHER-FLAT
(Superseded to 936-0133)

$

$

Not available

67

Troy-Bilt 1755584001

BRACKET-INTERLOCK

$

$

Currently unavailable

67

MTD 1756181001

BRKT-INTERLOCK

$

$

Not available

68

MTD 1729482

SPRING

$

$

Not available

69

MTD 1186327

SCR-HFLK 5/16-18X.50 ZP

$

$

Not available

70

Troy-Bilt 1186330

SCR-LOCK
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

71

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

72

MTD 1754946001

BRACE-TRANSAXLE

$

$

Not available

73

MTD 1747186

CAP-PUSH ON

$

$

Not available

74

Troy-Bilt 1751808

ASSM-LEVER SUPP

$

$

Currently unavailable

75

Troy-Bilt 1747166

SCR-SET 1/4-28X.38 HXSKT

$4.49

$

Usually ships in 3-6 days

0

76

MTD 1763170

LINK-BRAKE

$

$

Not available

77

MTD 1755929

GUIDE-BELT

$

$

Not available

78

MTD 1755930

GUIDE-BELT

$

$

Not available

79

Troy-Bilt 1100045

SCR-HH 5/16-18X1.0 G5 ZP
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

81

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

In Stock, Qty 20+

0

82

MTD 1755928

BEARING-FLANGED

$

$

Not available

83

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

84

MTD 1755939

ASSM-JACKSHAFT

$

$

Not available

?85

MTD 1739919

NUT-SPEED

$

$

Not available

?86

Troy-Bilt 1115815

SCR-TRUSS #10-24 X 5/8
(Superseded to 710-0425)

$4.99

$

Usually ships in 3-6 days

0

?87

Troy-Bilt 1760097

PULLEY-IDLER

$

$

Not available

?88

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, only 2 left!

0

89

MTD 1713783

SPACER-.62X.406X.56 ZP

$

$

Not available

90

MTD 1747873

CAP-WHEEL

$

$

Not available

91

Troy-Bilt 1177567

RING-RETAINING
(Superseded to 716-0106)

$4.49

$

In Stock, Qty 12

0

92

MTD 1748491

PIVOT

$

$

Not available

93

Troy-Bilt 1754948

SHROUD-FAN

$

$

Currently unavailable

94

Troy-Bilt 1100242

WASHER-LK .312 ZP
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

95

Troy-Bilt 1755822

HOSE-FUEL 18"

$

$

Currently unavailable

96

MTD 1756626

CLAMP-HOSE

$

$

Not available

97

Troy-Bilt 1755088

ASSM-OIL RESERVOIR

$

$

Currently unavailable

98

Troy-Bilt 1705093

WASHER-1.0X.64X.029
(Superseded to 736-0302)

$

$

Not available

99

Troy-Bilt 1705092

WASHER-1.0X.64X.09
(Superseded to 736-0156)

$4.49

$

In Stock, Qty 12

0

100

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

101

Troy-Bilt 1701449

SHIM-1.25X1.01X.06

$

$

Currently unavailable

102

MTD 1762791

TRANS-HYDRO, EATON 751-047

$

$

Not available

103

MTD 1755823

HOSE

$

$

Not available

104

MTD 1186396

NUT-WHIZ LOCK

$

$

Not available

105

Troy-Bilt 1754675

ASSM-MAGNET
(Superseded to 1768971)

$173.99

$

Usually ships in 3-6 days

0

106

Troy-Bilt 1750736

SCR-SPECIAL

$29.99

$

Usually ships in 3-6 days

0

107

MTD 1761191

NUT-HEX/JAM 3/8-24

$

$

Not available

109

MTD 1762599

SUPPORT-SHAFT

$

$

Not available
