13027 - Troy-Bilt Hydro Suburban Lawn Tractor (SN: 120900100101 - 130270300100) FRAME, LIFT & STEERING ASSEMBLY Parts Diagram

Hydro Suburban Lawn Tractor

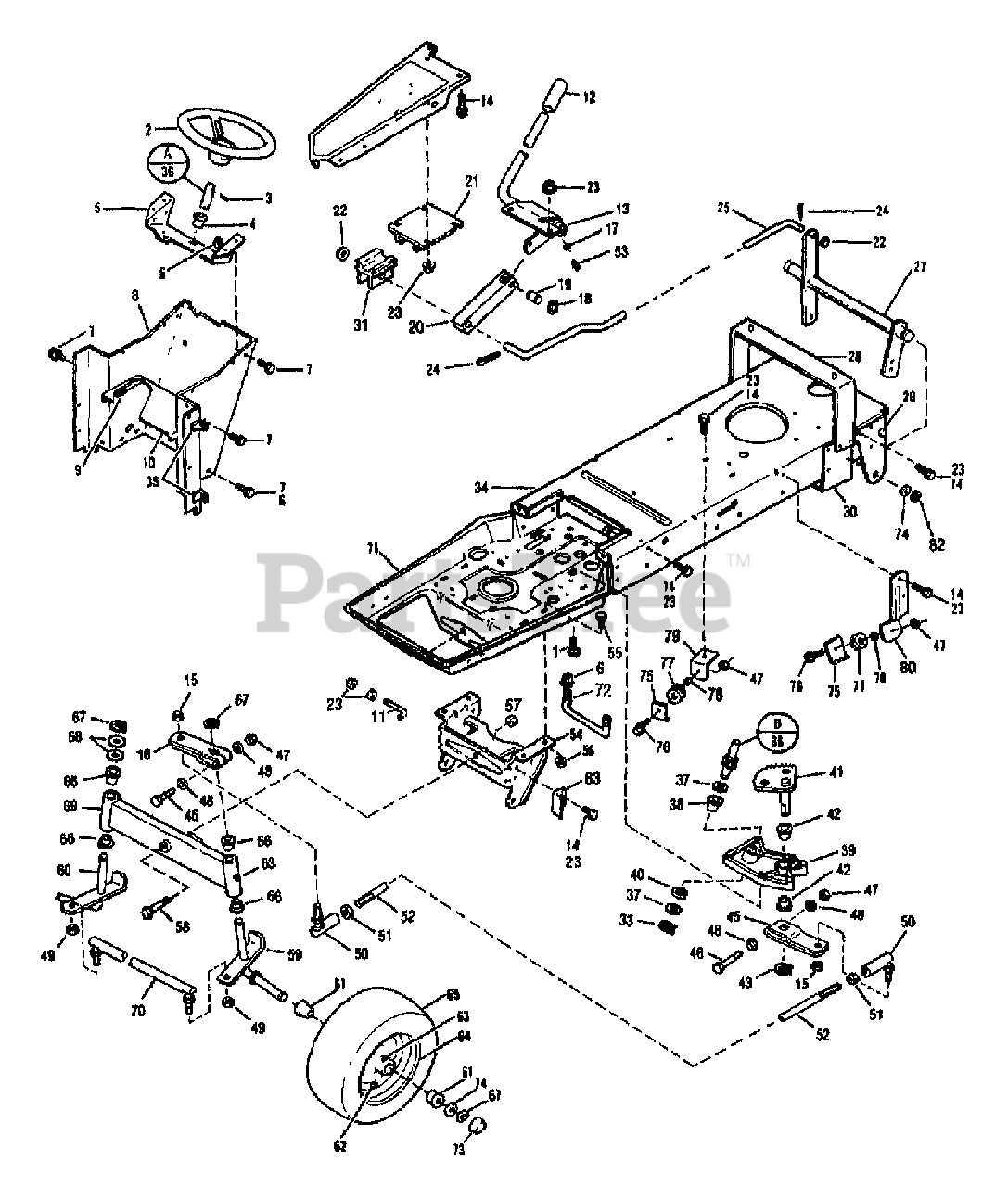

FRAME, LIFT & STEERING ASSEMBLY Parts Diagram

  • Title

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0

?1

Troy-Bilt 1724491

SCR-HFLK 5/16-18X.75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

2

MTD 1727284

WHEEL-STEERING

$

$

Not available

2

MTD 1747804

WHEEL-STEERING

$

$

Not available

3

Troy-Bilt 1185279

PIN-ROLL .25X2.25

$

$

Not available

4

MTD 1185632

BEARING-FLANGED NYLON

$

$

Not available

5

MTD 1752363

SUPPORT-STEERING SHAFT

$

$

Not available

6

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

7

Troy-Bilt 1186309

SCR-HH 1/4-20X.625

$

$

Not available

8

MTD 1758724010

SUPT-INSTRUMENT PANEL

$

$

Not available

8

MTD 1758797010

SUPT-INSTRUMENT PANEL

$

$

Not available

9

MTD 1185456

NUT-SPEED

$

$

Not available

10

MTD 1756073001

SUPPORT-BATTERY

$

$

Not available

11

Troy-Bilt 1757291

GUIDE-BELT

$

$

Not available

12

Troy-Bilt 1703539

GRIP-FLEX
(Superseded to 720-0274)

$11.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 1759450001

ASSM-LIFT LEVER

$

$

Currently unavailable

14

Troy-Bilt 1186330

SCR-LOCK
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

15

MTD 1750957

NUT-HEX/JAM 1/2-20 ZP

$

$

Not available

16

MTD 1750581

ASSM-ARM SPINDLE

$

$

Not available

17

MTD 1805368

WASHER

$

$

Not available

18

MTD 1185427

RING-RETAINING

$

$

Not available

19

MTD 1747189

PIN

$

$

Not available

20

Troy-Bilt 1754179

LINK-PUSH

$

$

Not available

21

Troy-Bilt 1757661

GUIDE-STAT

$

$

Currently unavailable

22

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0

23

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

25

MTD 1751070

ROD-LIFT

$

$

Not available

27

Troy-Bilt 1754950001

ASSM-LIFT SHAFT

$

$

Currently unavailable

28

MTD 1754944001

ASSM-FENDER SUPPORT

$

$

Not available

29

MTD 1758842001

ASSM-PANEL REAR

$

$

Not available

30

Troy-Bilt 1740984001

AXLE-SUPPORT

$

$

Currently unavailable

31

MTD 1757659

GUIDE-SLIDE

$

$

Not available

33

Troy-Bilt 1177567

RING-RETAINING
(Superseded to 716-0106)

$4.49

$

In Stock, only 2 left!

0

34

Troy-Bilt 1755847001

FRAME-REAR

$

$

Currently unavailable

35

MTD 1742934

NUT-SPEED

$

$

Not available

36

Troy-Bilt 1751284

SHIFT-STEER

$

$

Currently unavailable

37

MTD 1730375

WASHER-SHIM

$

$

Not available

38

MTD 1747303

BEARING

$

$

Not available

39

MTD 1750594

ASSM-STEER SUPT

$

$

Not available

40

Troy-Bilt 1715301

WASHER-1.115X.637X.06

$9.99

$

Usually ships in 3-6 days

0

41

MTD 1750501

ASSM-SECTOR GEAR

$

$

Not available

42

Troy-Bilt 1185386

BEARING-FLANGE

$

$

Not available

43

Troy-Bilt 1113527

RING-RETAIN EXT .707 ID
(Superseded to 916-0101)

$3.99

$

In Stock, Qty 20+

0

45

MTD 1750581

ASSM-ARM SPINDLE

$

$

Not available

46

Troy-Bilt 1100049

SCR-HH 3/8-16X2.25 G5 ZP
(Superseded to 710-3011)

$6.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

48

MTD 1708755

WASHER-.875X.390X.134

$

$

Not available

49

Troy-Bilt 1110150

NUT-LOCK
(Superseded to 912-0214)

$6.49

$

In Stock, only 3 left!

0

50

MTD 1716180

JOINT-BALL

$

$

Not available

51

Troy-Bilt 1186247

NUT-JAM
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

52

Troy-Bilt 1750499

ROD-STEERING

$

$

Currently unavailable

53

Troy-Bilt 1185803

FITTING-GREASE

$

$

Currently unavailable

54

Troy-Bilt 1763859001

BRKT-ATTACHMENT

$

$

Currently unavailable

55

MTD 1186345

SCR

$

$

Not available

56

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

57

Troy-Bilt 1758231

NUT-H/LK 5/8-11
(Superseded to 712-3016)

$6.99

$

In Stock, Qty 13

0

58

MTD 1758232

SCR-HH 5/8-11X2.25 G5 ZP

$

$

Not available

59

Troy-Bilt 1750486001

ASSM-SPINDLE LH

$

$

Currently unavailable

60

MTD 1750490001

ASSM-SPINDLE RH

$

$

Not available

61

Troy-Bilt 1750341

BUSHING
(Superseded to 1750341099)

$

$

Not available

62

Troy-Bilt 1718086

STEM-VALVE
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

63

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

64

MTD 1757981

WHEEL-RED

$

$

Not available

65

Troy-Bilt 1762254

TIRE 15X6.00-6RS
(Superseded to 734-0864-0901)

$136.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 1742133

BUSHING
(Superseded to 1764140)

$5.49

$

In Stock, only 3 left!

0

67

Troy-Bilt 1185388

RING-RET."E".577 ID
(Superseded to 916-0231)

$

$

Not available

68

Troy-Bilt 1701447

WASHER-1.25X.765X.049

$4.49

$

In Stock, Qty 8

0

69

MTD 1750494001

ASSM-FRONT AXLE

$

$

Not available

70

MTD 1750841001

ROD-TIE

$

$

Not available

71

MTD 1742343001

FRAME-FRONT

$

$

Not available

72

Troy-Bilt 1744320

GUIDE-BELT

$

$

Currently unavailable

73

MTD 1764776

CAP-DUST

$

$

Not available

74

Troy-Bilt 1185830

WASHER-1.38 X.765X .06 ZP
(Superseded to 736-0188)

$4.49

$

In Stock, Qty 20+

0

75

MTD 1747320

GUIDE-CABLE

$

$

Not available

76

Troy-Bilt 1100043

SCR-HH 3/8-16X1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 10

0

77

MTD 1756177

PULLEY-CABLE

$

$

Not available

?78

Troy-Bilt 1747322

SPACER-.75X.40X.51 P/M

$

$

Currently unavailable

79

MTD 1747316001

BRACKET

$

$

Not available

80

MTD 1747315001

BRACKET

$

$

Not available

82

Troy-Bilt 1185388

RING-RET."E".577 ID
(Superseded to 916-0231)

$

$

Not available

83

MTD 1751715001

BRACKET

$

$

Not available
