13026 - Troy-Bilt Lawn Tractor, Gear Drive (SN: 130260100101 & Above) PEERLESS TRANSAXLE ASSEMBLY Parts Diagram

Lawn Tractor, Gear Drive

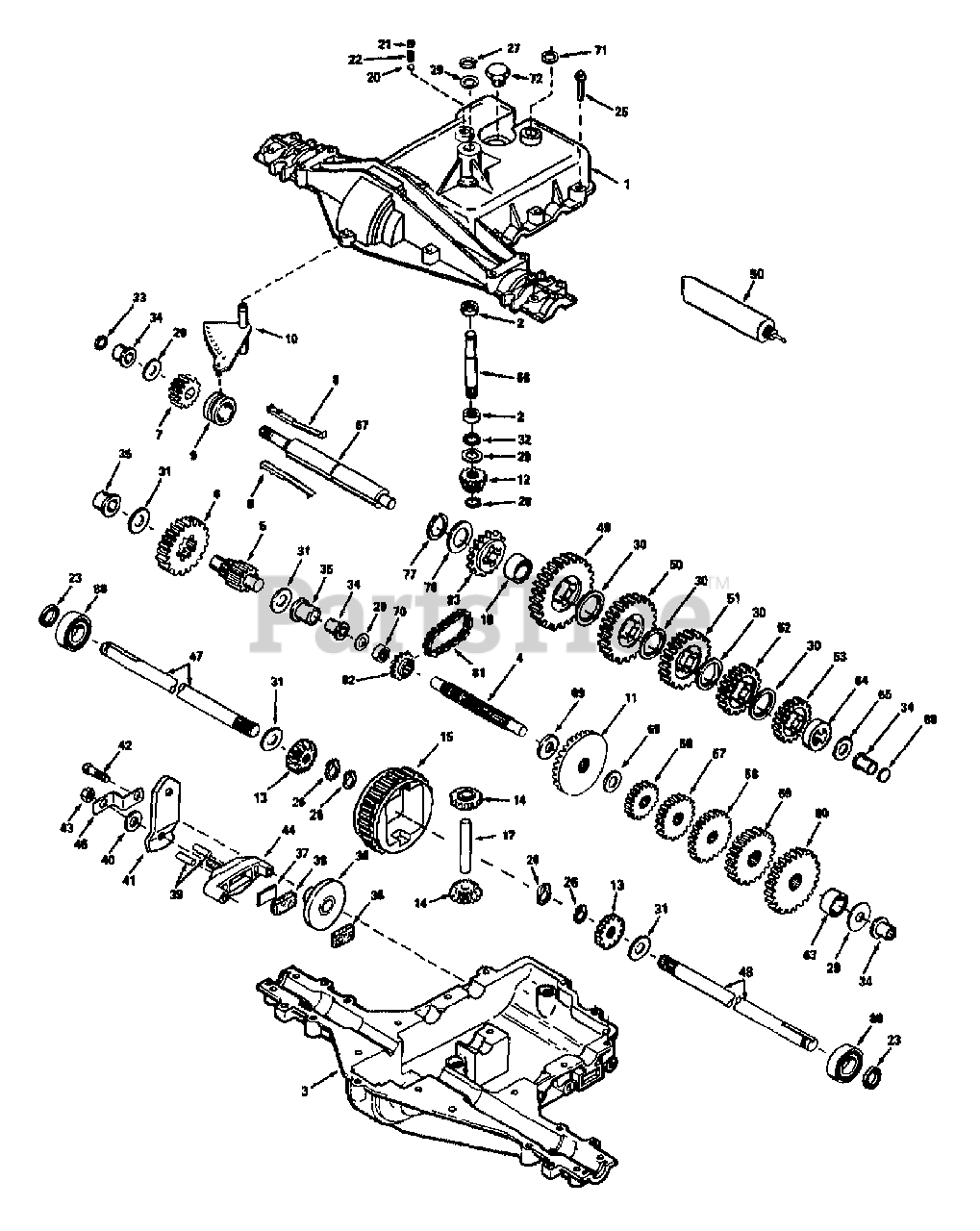

PEERLESS TRANSAXLE ASSEMBLY Parts Diagram

  • Title
1

Troy-Bilt 772108A

COVER, TRANSAXLE

$

$

Currently unavailable

2

Troy-Bilt 780086

NEEDLE BEARING

$

$

Currently unavailable

$

$

Currently unavailable

4

Troy-Bilt 776260

COUNTERSHAFT

$

$

Currently unavailable

5

Troy-Bilt 776219

SHAFT & GEAR

$

$

Currently unavailable

6

Troy-Bilt 778139

OUTPUT GEAR

$

$

Currently unavailable

7

Troy-Bilt 778136

SPUR GEAR

$

$

Currently unavailable

8

Troy-Bilt 792136

SHIFT KEY

$

$

Currently unavailable

9

$

$

Currently unavailable

10

$

$

Currently unavailable

11

Troy-Bilt 778229

BEVEL GEAR

$

$

Currently unavailable

12

Troy-Bilt 778113A

INPUT PINION
(Superseded to TC-778113A)

$34.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 778221

BEVEL GEAR

$

$

Currently unavailable

14

Troy-Bilt 778068

BEVEL GEAR

$

$

Currently unavailable

15

Troy-Bilt 778260

RING GEAR

$

$

Currently unavailable

17

Troy-Bilt 786139

DRIVE PIN

$

$

Currently unavailable

18

$

$

Currently unavailable

$

$

Currently unavailable

21

$

$

Currently unavailable

22

Troy-Bilt 792079

SPRING
(Superseded to TC-792079)

$4.49

$

In Stock, only 1 left!

0

23

Troy-Bilt 788061

SEAL
(Superseded to TC-788061)

$4.49

$

In Stock, Qty 6

0

25

$

$

Currently unavailable

26

Troy-Bilt 792125

RET RING

$

$

Currently unavailable

27

Troy-Bilt 792035

RET RING
(Superseded to TC-792035)

$4.49

$

In Stock, Qty 13

0

28

Troy-Bilt 788040

RET RING

$

$

Currently unavailable

29

Troy-Bilt 780072

WASHER
(Superseded to TC-780072)

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 780108

WASHER
(Superseded to TC-780108)

$4.49

$

In Stock, Qty 9

0

31

$

$

Currently unavailable

32

Troy-Bilt 792001

O RING
(Superseded to TC-792001)

$4.49

$

In Stock, Qty 11

0

33

Troy-Bilt 788051

SQUARE CUT RING

$

$

Currently unavailable

34

Troy-Bilt 780105A

BUSHING
(Superseded to TC-780105A)

$8.49

$

In Stock, Qty 10

0

35

$

$

Currently unavailable

36

MTD 790003

BRAKE DISK
(Superseded to TC-790003)

$20.99

$

Usually ships in 3-12 days

0

37

Troy-Bilt 790007

BRAKE PAD PLATE
(Superseded to TC-790007)

$5.99

$

Usually ships in 3-12 days

0

38

Troy-Bilt 790006

BRAKE PAD
(Superseded to TC-799021)

$10.99

$

In Stock, only 1 left!

0

39

Troy-Bilt 786026

DOWEL PIN
(Superseded to TC-786026)

$4.49

$

Usually ships in 3-12 days

0

40

$

$

Currently unavailable

41

Troy-Bilt 790031

BRAKE LEVER

$

$

Currently unavailable

42

$

$

Currently unavailable

$

$

Currently unavailable

44

$

$

Currently unavailable

46

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

49

Troy-Bilt 778191

SPUR GEAR

$

$

Currently unavailable

50

Troy-Bilt 778124A

SPUR GEAR
(Superseded to TC-778124A)

$34.99

$

In Stock, only 3 left!

0

51

Troy-Bilt 778123A

SPUR GEAR
(Superseded to TC-778123A)

$48.99

$

Usually ships in 3-12 days

0

52

Troy-Bilt 778122A

SPUR GEAR

$

$

Currently unavailable

53

Troy-Bilt 778209

SPUR GEAR

$

$

Currently unavailable

56

Troy-Bilt 778230

SPUR GEAR

$

$

Currently unavailable

57

Troy-Bilt 778126A

SPUR GEAR

$

$

Currently unavailable

58

Troy-Bilt 778127A

SPUR GEAR

$

$

Currently unavailable

59

Troy-Bilt 778128A

SPUR GEAR

$

$

Currently unavailable

60

Troy-Bilt 778163

SPUR GEAR

$

$

Currently unavailable

63

$

$

Currently unavailable

64

$

$

Currently unavailable

65

$

$

Currently unavailable

?66

Troy-Bilt 776226

INPUT SHAFT

$

$

Currently unavailable

67

Troy-Bilt 776322

BRAKE SHAFT

$

$

Currently unavailable

$

$

Currently unavailable

69

$

$

Currently unavailable

70

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

?76

$

$

Currently unavailable

77

Troy-Bilt 788075

RET RING

$

$

Currently unavailable

81

Troy-Bilt 786062A

ROLLER CHAIN

$

$

Currently unavailable

82

Troy-Bilt 786061

SPROCKET

$

$

Currently unavailable

83

Troy-Bilt 786124

SPROCKET

$

$

Currently unavailable

?88

Troy-Bilt 780119

BALL BEARING

$

$

Currently unavailable

90

$

$

Currently unavailable
