13025 - Troy-Bilt Lawn Tractor, Gear Drive (SN: 120900100101 - 130250200100) BRAKE & CLUTCH ASSEMBLY Parts Diagram

Lawn Tractor, Gear Drive

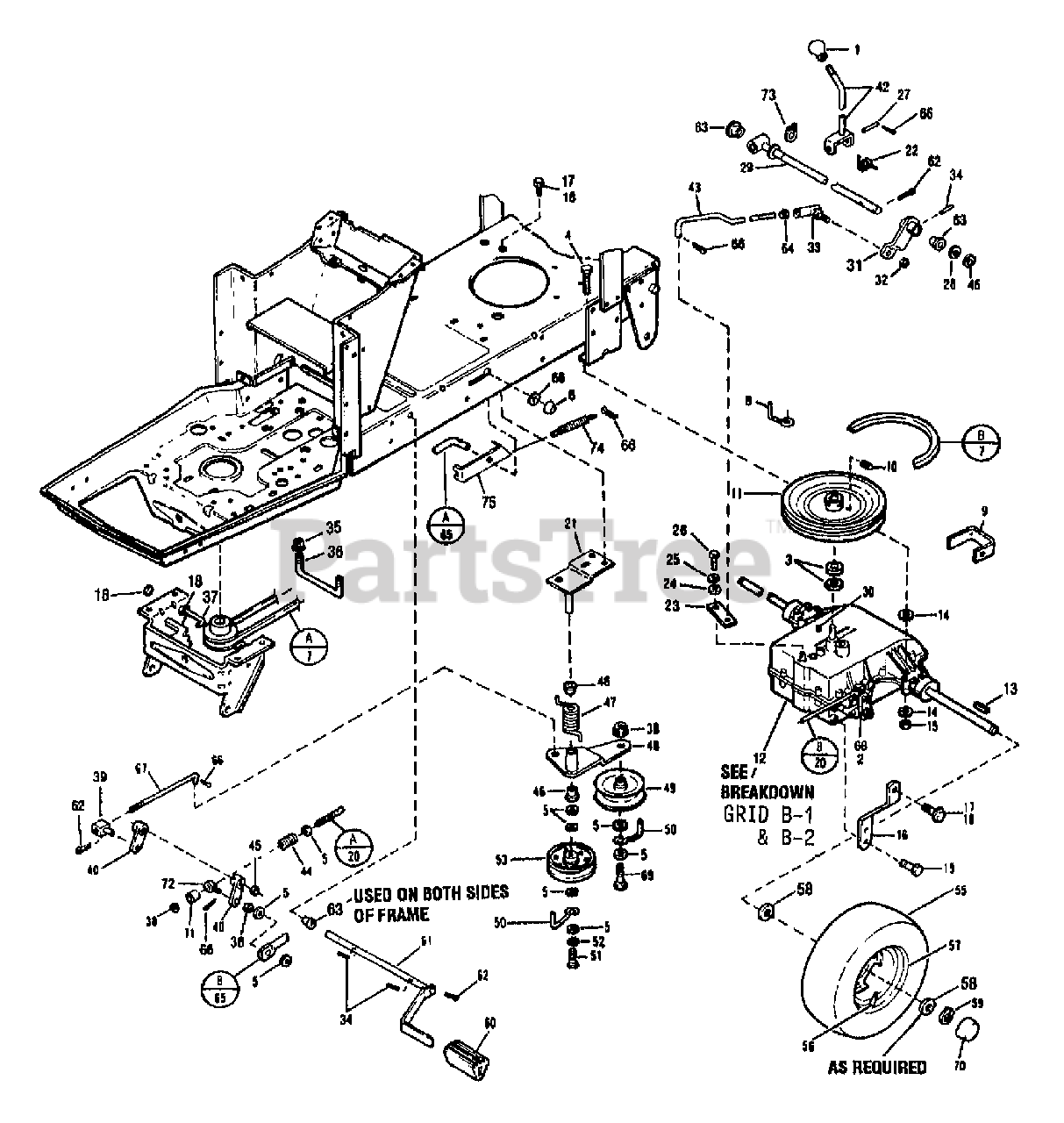

BRAKE & CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1724231

KNOB

$

$

Currently unavailable

2

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

3

Troy-Bilt 1705092

WASHER-1.0X.64X.09
(Superseded to 736-0156)

$4.49

$

In Stock, Qty 12

0

4

Troy-Bilt 1111609

SCR-HH 5/16-18X2.75 G5 ZP
(Superseded to 710-0176)

$4.49

$

In Stock, only 2 left!

0

5

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

6

MTD 1747186

CAP-PUSH ON

$

$

Not available

7

Troy-Bilt 1747188

BELT-V

$63.99

$

Usually ships in 3-6 days

0

8

MTD 1752798

ROD-BELT GUIDE

$

$

Not available

9

MTD 1750297

GUIDE-BELT

$

$

Not available

10

MTD 1185596

SCR-SET 5/16-18 X 5/16

$

$

Not available

11

MTD 1743640

SHEAVE-TRANSMISSION

$

$

Not available

12

0

5-SPEED TRANSMISSION 930-023

$

$

Not available

13

Troy-Bilt 1104335

KEY-.188 SQ X 2.0
(Superseded to 714-0139)

$9.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

16

MTD 1742103001

TRANS-SUPPORT

$

$

Not available

17

Troy-Bilt 1186330

SCR-LOCK
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

18

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 1724491

SCR-HFLK 5/16-18X.75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

20

MTD 1746943

ROD-BRAKE

$

$

Not available

21

Troy-Bilt 1751808001

ASSM-LEVER SUPP

$

$

Currently unavailable

22

MTD 1750526

SPRING-TORSION

$

$

Not available

23

MTD 1754661

ARM-TRANSMISSION

$

$

Not available

24

Troy-Bilt 1107381

WASHER-FLAT 1/4 SAE
(Superseded to 936-3020)

$

$

Not available

25

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

26

Troy-Bilt 1111683

SCR-HHC 1.4-28 X .50
(Superseded to 710-0230)

$

$

Not available

27

MTD 1750946

PIN-.375 X 2.42 ZP

$

$

Not available

28

Troy-Bilt 1705093

WASHER-1.0X.64X.029
(Superseded to 736-0302)

$

$

Not available

29

MTD 1750539

ASSM-SHAFT

$

$

Not available

30

Troy-Bilt 1104436

KEY-WOODRUFF .188X.75
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

31

Troy-Bilt 1754663

ASSM-ARM SHIFT

$

$

Currently unavailable

32

Troy-Bilt 1186244

NUT-HEX

$

$

Currently unavailable

33

MTD 1752524

JOINT-BALL

$

$

Not available

34

MTD 1120210

PIN-ROLL .188X1.0

$

$

Not available

35

Troy-Bilt 1186389

NUT-HF/LK 1/4-20 ZP

$3.49

$

Usually ships in 3-6 days

0

36

Troy-Bilt 1744320

GUIDE-BELT

$

$

Currently unavailable

37

Troy-Bilt 1757291

GUIDE-BELT

$

$

Not available

38

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

39

MTD 1748491

PIVOT

$

$

Not available

40

MTD 1751880

ASSM-ARM

$

$

Not available

42

MTD 1756047

ASSM-SHIFT LEVER

$

$

Not available

43

MTD 1754660

ROD-SHIFT

$

$

Not available

44

MTD 1728908

SPRING

$

$

Not available

45

Troy-Bilt 1107386

WASHER-1.305X.649X.098 ZP
(Superseded to 736-0237)

$4.49

$

In Stock, Qty 20+

0

46

Troy-Bilt 1715538

BUSHING-.5X.5 NYLON FLNG

$

$

Not available

47

MTD 1751809

SPRING-TORSION

$

$

Not available

?48

MTD 1746941001

ASSM-IDLER ARM

$

$

Not available

49

Troy-Bilt 1760097

PULLEY-IDLER

$

$

Not available

50

Troy-Bilt 1760096

GUIDE-BELT

$

$

Not available

51

Troy-Bilt 1100049

SCR-HH 3/8-16X2.25 G5 ZP
(Superseded to 710-3011)

$6.99

$

In Stock, Qty 20+

0

52

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

53

Troy-Bilt 1756151

IDLER

$48.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 1762250

TIRE-20X8.00-8RS
(Superseded to 734-04364)

$87.99

$

Usually ships in 3-6 days

0

56

Troy-Bilt 1718086

STEM-VALVE
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

57

Troy-Bilt 1763688

DISC-WHEEL

$

$

Currently unavailable

58

MTD 1747998

WASHER-1.87X.765X.06 SPECIAL

$

$

Not available

59

Troy-Bilt 1185388

RING-RET."E".577 ID
(Superseded to 916-0231)

$

$

Not available

60

MTD 1728694

FOOT REST

$

$

Not available

61

MTD 1756049

ASSM-BRAKE PEDAL

$

$

Not available

62

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

63

MTD 1714233

BUSHING-.68X.62X.15 FLNG

$

$

Not available

64

MTD 1110149

NUT-LOCK

$

$

Not available

65

MTD 1751063

ROD-BRAKE LOCK

$

$

Not available

66

MTD 1100359

PIN-COTTER .125X.50

$

$

Not available

67

MTD 1746942

ROD-CLUTCH

$

$

Not available

68

Troy-Bilt 1893445

WASHER-FLAT
(Superseded to 936-0133)

$

$

Not available

69

Troy-Bilt 1100086

SCR-HH 3/8-16X1.75 G5 ZP
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

70

MTD 1747873

CAP-WHEEL

$

$

Not available

71

MTD 1713783

SPACER-.62X.406X.56 ZP

$

$

Not available

72

Troy-Bilt 1749904

BOLT-EYE

$

$

Currently unavailable

73

Troy-Bilt 1177567

RING-RETAINING
(Superseded to 716-0106)

$4.49

$

In Stock, only 2 left!

0

74

MTD 1729482

SPRING

$

$

Not available

75

Troy-Bilt 1755584001

BRACKET-INTERLOCK

$

$

Currently unavailable
