130202-1890-01 - Briggs & Stratton Horizontal Engine Cylinder,GearCase,Piston Grp Parts Diagram

Horizontal Engine

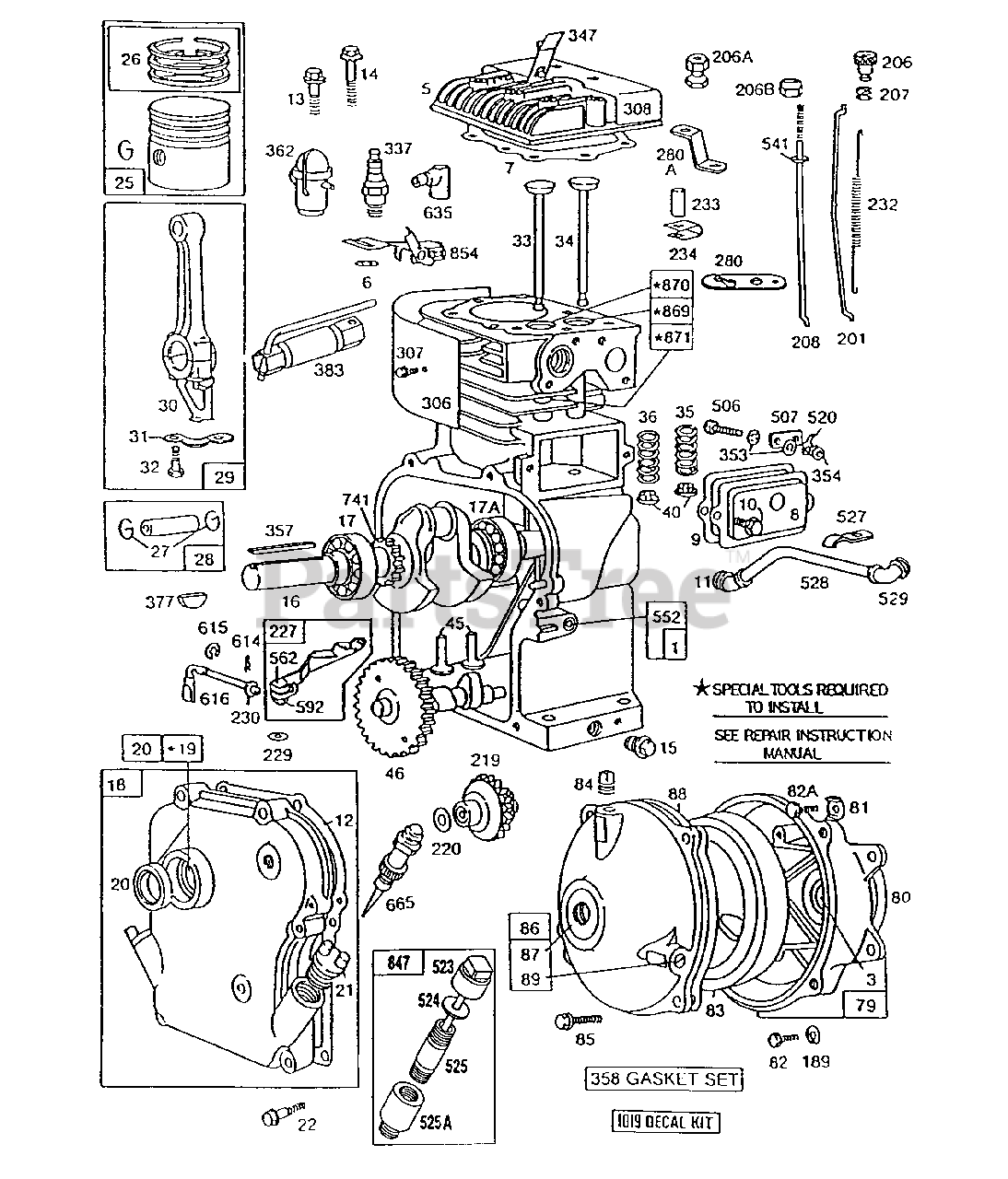

Cylinder,GearCase,Piston Grp Parts Diagram

  • Title

1

Briggs & Stratton 395994

Cylinder Assy.

Note: Used Before Code Date 91070100

$

$

Not available

3

Briggs & Stratton 299819

Seal, Oil (Plain Bearing Covers)
(Superseded to 299819S)

$5.49

$

In Stock, Qty 16

0

5

Briggs & Stratton 211542

Head-Cylinder
(Superseded to 691716)

$

$

Not available

6

Briggs & Stratton 22963

Washer, Flat
(Superseded to 691261)

$3.99

$

In Stock, only 3 left!

0

7

Briggs & Stratton 272157

Gasket-Cylinder Head
(Superseded to 272157S)

Note: Included in Gasket Set-Part No. 397145

$6.49

$

In Stock, Qty 5

0

8

Briggs & Stratton 294178

Cover-Breather
(Superseded to 791779)

$15.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 27549

Gasket, Valve Cover
(Superseded to 27549S)

Note: Included in Gasket Set-Part No. 397145

$3.99

$

In Stock, Qty 11

0

10

Briggs & Stratton 94621

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 66578

Tube-Breather
(Superseded to 692187)

$4.49

$

In Stock, Qty 16

0

12

Briggs & Stratton 270080

Gasket, Crankcase (.015")
(Superseded to 692213)

Note: Included in Gasket Set-Part No. 397145

$3.99

$

In Stock, only 4 left!

0

12

Briggs & Stratton 270125

Gasket-Crkcse (.005" Thick)

Note: Included in Gasket Set-Part No. 397145

$9.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 270126

Gasket-Crkcse (.009" Thick)

Note: Included in Gasket Set-Part No. 397145

$8.49

$

In Stock, only 2 left!

0

13

Briggs & Stratton 93583

Stud, Cylinder Head
(Superseded to 691690)

$

$

Not available

13

Briggs & Stratton 94221

Screw, Sem Hex Wash (Cylinder Head) (2 1/8" Long)
(Superseded to 691640)

$3.49

$

In Stock, Qty 11

0

14

Briggs & Stratton 93369

Screw-Cylinder Head (2-15/32" Long)
(Superseded to 691659)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 93583

Stud, Cylinder Head
(Superseded to 691690)

$

$

Not available

15

Briggs & Stratton 91249

Plug, Pipe (Standar (1/4" Square)
(Superseded to 691686)

$5.49

$

In Stock, only 2 left!

0

15

Briggs & Stratton 93448

Plug, Pipe (Flush) (1/4-18 Nptf)
(Superseded to 691682)

$5.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 94105

Screw-Speed Control Housing Mounting Sem

$5.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 94174

Plug, Pipe Magnetic
(Superseded to 691663)

$10.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 397096

Crankshaft
(Superseded to 494071)

Note: To Replace Crankshaft Gear Pin, Order Part No. 230978. Used Only on Crankshaft With Loose Gear.

$106.99

$

Usually ships in 2-12 days

0

17A

Briggs & Stratton 99157

Ball Bearing (Magneto Side)

$27.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 99158

Ball Bearing (P.t.o. Side)

$20.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 297602

Cover Assy.-Crkcse.
(Superseded to 694350)

Note: Except as Listed Under Note

$149.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 398078

Cover Assy.-Crankcase
(Superseded to 694350)

$149.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 297603

Bushing-Crkcse. Cover

Note: Requires Special Tools For Installation.

$

$

Not available

20

Briggs & Stratton 294606

Seal, Oil
(Superseded to 294606S)

$9.49

$

In Stock, Qty 11

0

21

Briggs & Stratton 66768

Plug, Oil Fill
(Superseded to 281658S)

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 93032

Screw-Tank Mounting
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

22

Briggs & Stratton 93656

Stud
(Superseded to 691120)

$12.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 94067

Stud

$5.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 298904

Piston Assy-Std (Std.)
(Superseded to 793214)

$

$

Not available

25

Briggs & Stratton 298905

Piston Assy-010

$50.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 298906

Piston Assy-020

$

$

Not available

25

Briggs & Stratton 298907

Piston Assy-030

$

$

Not available

26

Briggs & Stratton 298982

Ring Set-Std (Std.)

$48.99

$

In Stock, Qty 8

0

26

Briggs & Stratton 298983

Ring Set-010

$

$

Not available

26

Briggs & Stratton 298984

Ring Set-020

$35.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 298985

Ring Set-030

$23.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 299742

Ring Set-Std Chr
(Superseded to 298982)

$48.99

$

In Stock, Qty 8

0

27

Briggs & Stratton 26026

Lock-Piston Pin
(Superseded to 691588)

$4.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 298908

Pin-Piston 005 (.005" O.S.)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 298909

Pin-Piston

$8.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 299430

Rod-Connecting (Standard)

Note: For Connecting Rod With .020" Undersize Crankpin Bore-Order No. 390459

$40.99

$

In Stock, only 1 left!

0

30

Briggs & Stratton 221890

Dipper-Connecting Rod
(Superseded to 691759)

$8.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 221876

Lock-Screw Head

$4.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 92296

Screw-Connecting Rod
(Superseded to 691664)

$4.49

$

In Stock, only 1 left!

0

33

Briggs & Stratton 211119

Valve-Exhaust
(Superseded to 211119S)

$

$

Not available

33

Briggs & Stratton 262464

Valve-Exhaust
(Superseded to 691827)

Note: Used After Code Date 90051400

$53.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 261044

Valve-Intake
(Superseded to 261044S)

$

$

Not available

35

Briggs & Stratton 260552

Spring, Valve
(Superseded to 690520)

$5.49

$

In Stock, only 1 left!

0

36

Briggs & Stratton 262750

Spring, Valve (Exhaust)
(Superseded to 691838)

Note: Used After Code Date 90051400

$8.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26478

Spring, Valve (Exhaust)
(Superseded to 692180)

$6.49

$

In Stock, only 1 left!

0

40

Briggs & Stratton 230126

Pin-Valve Spring Set

$5.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 292259

Retainer-Valve (Exhaust)

$9.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 491442

Rotocoil Assy (Exhaust)
(Superseded to 691367)

Note: Used After Code Date 90051400

$10.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 93312

Retainer, Spring (Used With Valves With Groove In Stem)
(Superseded to 692194)

$5.99

$

In Stock, Qty 11

0

45

Briggs & Stratton 260642

Tappet-Valve
(Superseded to 690509)

$

$

Not available

46

Briggs & Stratton 212733

Gear-Cam
(Superseded to 691164)

$59.99

$

Usually ships in 2-12 days

0

79

Briggs & Stratton 290779

Case-Reduction Gear
(Superseded to 690605)

$136.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 27667

Gasket-Gear Case
(Superseded to 691602)

$5.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 220234

Lock-Screw Head
(Superseded to 691168)

$5.49

$

Usually ships in 2-12 days

0

82A

Briggs & Stratton 92279

Screw, Hex Head Cap (5/16-24 X 1/2")
(Superseded to 699164)

$3.99

$

Usually ships in 2-12 days

0

82

Briggs & Stratton 91541

Screw, Hex Head Cap (5/16-24 X 7/8")
(Superseded to 690369)

$5.99

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 211293

Shaft-Auxiliary Drive
(Superseded to 690374)

$242.99

$

Usually ships in 2-12 days

0

84

Briggs & Stratton 92617

Screw-Gear Case Mounting Sem
(Superseded to 691121)

$5.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 92747

Screw, Sem Hex Hd M
(Superseded to 691117)

Note: (Used on Two Top Holes to Mount Cover)

$4.49

$

In Stock, only 1 left!

0

86

Briggs & Stratton 291730

Cover-Gear Case
(Superseded to 690608)

$73.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 19011

Seal-Oil
(Superseded to 691582)

$12.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 27313

Gasket-Gear Case Cover
(Superseded to 691600)

$11.99

$

Usually ships in 2-12 days

0

89

Briggs & Stratton 93448

Plug, Pipe (Flush) (1/4-18 Nptf)
(Superseded to 691682)

$5.49

$

Usually ships in 2-12 days

0

189

Briggs & Stratton 90366

Lockwasher, Zinc Pl
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 261558

Link-Mechanical Governor

$26.99

$

Usually ships in 2-12 days

0

206A

Briggs & Stratton 280012

Nut-Speed Adjusting

$4.99

$

Usually ships in 2-12 days

0

206B

Briggs & Stratton 94081

Locknut, Hex
(Superseded to 690325)

Note: Used After Code Date 84042900

$3.49

$

Usually ships in 2-12 days

0

206B

Briggs & Stratton 93422

Locknut, Hex
(Superseded to 691079)

Note: Used Before Code Date 84043000

$

$

Not available

206

Briggs & Stratton 230149

Nut-Gov Adjusting (#5-44 Thread)

Note: Used Before Code Date 84043000

$35.99

$

Usually ships in 2-12 days

0

206

Briggs & Stratton 231266

Nut, Hex (#6-32 Thread)
(Superseded to 691771)

Note: Used After Code Date 84042900

$37.99

$

Usually ships in 2-12 days

0

207

Briggs & Stratton 26855

Spring-Governor Control Rod
(Superseded to 692522)

$

$

Not available

208

Briggs & Stratton 230737

Rod-Gov Control (#5-44 Thd.) (9-1/8" Long)

Note: Used Before Code Date 84043000

$

$

Not available

208

Briggs & Stratton 230946

Rod-Gov Control (9-1/8" Long)

Note: Used After Code Date 84042900

$22.99

$

Usually ships in 2-12 days

0

208

Briggs & Stratton 261985

Rod-Gov Control (#6-32 Thd.)

Note: Used After Code Date 84042900

$12.99

$

Usually ships in 2-12 days

0

219

Briggs & Stratton 391737

Gear-Governor

Note: Used Before Code Date 91061000

$38.99

$

In Stock, only 2 left!

0

219

Briggs & Stratton 494845

Gear-Governor

Note: Used After Code Date 91060900

$

$

Not available

220

Briggs & Stratton 221551

Washer, Steel
(Superseded to 691724)

$5.49

$

In Stock, only 2 left!

0

227

Briggs & Stratton 393920

Lever-Governor
(Superseded to 692357)

$14.99

$

Usually ships in 2-12 days

0

229

Briggs & Stratton 220680

Washer, Steel
(Superseded to 690390)

$3.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 222450

Washer, Steel Zinc
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

232

Briggs & Stratton 260478

Spring, Link Used On Mechanical Governor
(Superseded to 690545)

$

$

Not available

233

Briggs & Stratton 230253

Stop-Rod (7/8" Long)

$3.99

$

Usually ships in 2-12 days

0

234

Briggs & Stratton 220730

Clip-Rod

$7.49

$

Usually ships in 2-12 days

0

280A

Briggs & Stratton 221384

Strap-Control Rod

$

$

Not available

280

Briggs & Stratton 223236

Strap-Control Rod

$6.49

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 223110

Shield-Cyl.

$15.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93042

Screw, Sem Hex Head
(Superseded to 691078)

Note: Used Before Code Date 87020900

$4.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 93490

Screw-Hex
(Superseded to 691660)

Note: Used After Code Date 87020800

$3.99

$

In Stock, Qty 8

0

308

Briggs & Stratton 221512

Cover-Cylinder Head
(Superseded to 694514)

$28.99

$

In Stock, only 1 left!

0

337

Briggs & Stratton 293918

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 29693

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 298809

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 392588

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 394539

Spark Plug (Resistor)
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 492167

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

337

Briggs & Stratton 802592

Spark Plug,resistor
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

347

Briggs & Stratton 220884

Switch-Stop

$11.99

$

In Stock, Qty 6

0

347

Briggs & Stratton 221828

Sparkplug Stop Sw

$5.99

$

Usually ships in 2-12 days

0

353

Briggs & Stratton 92791

Lockwasher, Interna
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut, Hex (8-32)
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

357

Briggs & Stratton 91539

Key, Pulley (3/16" Square)
(Superseded to 692191)

$

$

Not available

358

Briggs & Stratton 397145

Gasket Set
(Superseded to 495603)

$32.99

$

In Stock, Qty 20+

0

362

Briggs & Stratton 291630

Shield, Spark Plug (With Stop Switch)
(Superseded to 793351)

$14.99

$

In Stock, only 1 left!

0

377

Briggs & Stratton 93065

Key, Woodruff (No. 6)
(Superseded to 692193)

$3.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

Wrench-Spark Plugs
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

506

Briggs & Stratton 90200

Screw-Slotted (8-32 X 1/2")

$3.99

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 66895

Insulator-Terminal

$4.99

$

In Stock, only 2 left!

0

520

Briggs & Stratton 93722

Terminal, Spade
(Superseded to 691084)

$6.49

$

In Stock, only 2 left!

0

523

Briggs & Stratton 297357

Cap/Dipstick Assy

$

$

Not available

524

Briggs & Stratton 65304

Gasket-Oil Filler Cap
(Superseded to 690270)

$3.99

$

In Stock, only 1 left!

0

525A

Briggs & Stratton 394884

Adaptor-Oil Filler With Nipple
(Superseded to 691257)

$24.99

$

In Stock, only 3 left!

0

525

Briggs & Stratton 91258

Dipstick Tube (2-1/2" Long)
(Superseded to 691257)

$24.99

$

In Stock, only 3 left!

0

527

Briggs & Stratton 221514

Tube Clamp (Used With Rotary Choke Carburetors)

$1.49

$

Usually ships in 2-12 days

0

528

Briggs & Stratton 230722

Tube-Breather

Note: Used With Pull Choke Carburetors-Ref. 90A.

$

$

Not available

528

Briggs & Stratton 231328

Tube-Breather
(Superseded to 690517)

Note: Used With Rotary Choke Carburetors-Ref. 90

$6.99

$

Usually ships in 2-12 days

0

528

Briggs & Stratton 231386

Tube-Breather

Note: Used With Heat Shield-Ref. 725A.

$5.49

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 67838

Grommet, Cover
(Superseded to 692189)

$4.49

$

In Stock, Qty 10

0

541

Briggs & Stratton 22398

Washer, Steel Zinc
(Superseded to 5022398)

$3.49

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 231079

Bushing, Governor S (1/4" I.d.)
(Superseded to 690508)

$9.49

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Bolt-Gov Lever

$

$

Not available

592

Briggs & Stratton 231082

Nut (10-24)
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

614

Briggs & Stratton 93306

Pin, Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-E Ring

$5.99

$

In Stock, only 3 left!

0

616

Briggs & Stratton 231077

Crank, Governor (1/4" Dia.)
(Superseded to 692016)

$

$

Not available

635

Briggs & Stratton 66538

Elbow-Spark Plug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 7

0

665

Briggs & Stratton 298858

Oil Minder
(Superseded to 592239)

$35.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 261696

Gear-Timing (For Plain Bearing)

$52.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 262060

Gear-Timing (For Ball Bearing)

$14.99

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 493955

Tube/Dipstick Assembly

$19.99

$

Usually ships in 2-12 days

0

854

Briggs & Stratton 392884

Stop-Switch

$7.49

$

Usually ships in 2-12 days

0

869

Briggs & Stratton 211787

Seat, Intake Valve
(Superseded to 691705)

$9.99

$

In Stock, only 3 left!

0

870

Briggs & Stratton 211172

Seat-Valve (Intake)
(Superseded to 691701)

Note: For Options see Repair Manual.

$8.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 262001

Bushing-Guide (Brass)

$13.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Guide (Brass)

Note: See Repair Instruction Manual.

$14.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 491100

Label Kit

$34.99

$

Usually ships in 2-12 days

0
