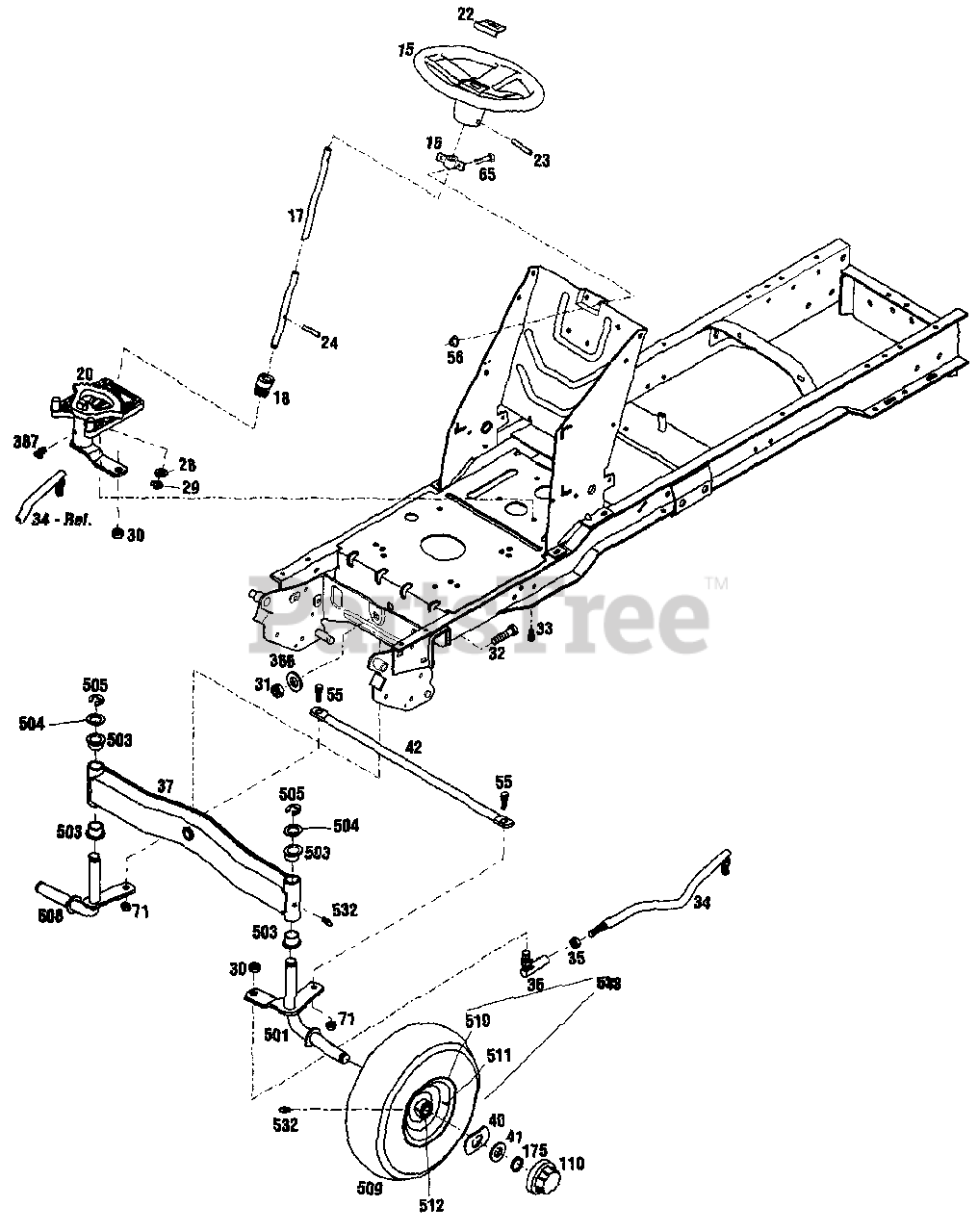

1300 (13A-130F100) - Cub Cadet Garden Tractor Steering Assembly Parts Diagram

Garden Tractor

Steering Assembly Parts Diagram

  • Title

15

Cub Cadet 1766027

Premium Steering Wheel

$

$

Not available

16

Cub Cadet 1772929

Bearing

$

$

Not available

17

Cub Cadet 1765010

Steering Shaft

$

$

Not available

18

Cub Cadet 1771039

Pinion Gear

$

$

Not available

20

Cub Cadet 1771320

Steering Gear Assembly

$

$

Not available

22

Cub Cadet 731-3256

Steering Wheel Cap

$

$

Not available

23

Cub Cadet 1185284

Roll Pin, 1/4 x 2
(Superseded to 715-0121)

$6.99

$

In Stock, Qty 8

0

24

Cub Cadet 1185348

Drive Pin, 1/4 x 1-1/4
(Superseded to 915-0143)

$

$

Not available

28

Cub Cadet 1705092

Special Washer, 5/8 x 1
(Superseded to 736-0156)

$4.49

$

In Stock, Qty 12

0

29

Cub Cadet 1177567

Retaining Ring, 5/8
(Superseded to 716-0106)

$4.49

$

In Stock, Qty 12

0

30

Cub Cadet 1768796

Locking Jam Nut, 1/2-20
(Superseded to 712-3059)

$4.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 1758231

Top Locknut, 5/8-11
(Superseded to 712-3016)

$6.99

$

In Stock, Qty 13

0

32

Cub Cadet 1767953

Hex Head Screw, 5/8-11 x 2 3/4

$

$

Not available

33

Cub Cadet 1766984

Flange Lock Screw, 5/16-18 x 3/4

$3.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 1765315

Drag Link

$

$

Not available

35

Cub Cadet 1186247

Hex Jam Nut, 1/4-20
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

36

Cub Cadet 1716180

Ball Joint

$

$

Not available

37

Cub Cadet 1765169072

Front Axle

$

$

Not available

40

Cub Cadet 1766241

Special Washer, 3/4 x 2-1/2

$

$

Not available

41

Cub Cadet 1185830

Special Washer, 3/4 x 1-3/8
(Superseded to 736-0188)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 1768883072

Tie Rod
(Superseded to 1768883001)

$237.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 1894062

Shoulder Bolt, 3/8-24

$

$

Not available

56

Cub Cadet 1186389

Flange Nut, 1/4-20

$3.49

$

Usually ships in 3-6 days

0

65

Cub Cadet 1186309

Flange Screw 1/4-20 x 5/8

$

$

Not available

71

Cub Cadet 1110150

Self-Locking Nut, 3/8-24
(Superseded to 912-0214)

$6.49

$

In Stock, only 2 left!

0

110

Cub Cadet 1766215

Hub Cap

$

$

Not available

175

Cub Cadet 1185388

Retaining Ring
(Superseded to 916-0231)

$

$

Not available

366

Cub Cadet 1100266

Flat Washer, 5/8
(Superseded to 936-04088)

$4.49

$

In Stock, only 4 left!

0

387

Cub Cadet 1731504

Grease Fitting, 90°.
(Superseded to 737-3004)

$11.99

$

In Stock, Qty 6

0

501

Cub Cadet 1765263072

Left Spindle Assembly

$

$

Not available

503

Cub Cadet 1764140

Axle Bushing

$5.49

$

In Stock, Qty 11

0

504

Cub Cadet 1701447

Special Washer, 3/4

$4.49

$

In Stock, Qty 18

0

505

Cub Cadet 1185689

Retaining Ring, External

$

$

Not available

508

Cub Cadet 1765004072

Right Spindle Assembly

$

$

Not available

509

Cub Cadet 1762254

Tire, 15 x 6.00, 6 RS
(Superseded to 734-0864-0901)

$136.99

$

Usually ships in 3-6 days

0

510

Cub Cadet 734-3196

Rim Assembly, 6.0 x 3.25

$

$

Currently unavailable

511

Cub Cadet 1718086

Valve Stem
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

512

Cub Cadet 1185616

Wheel Bearing
(Superseded to IH-384881-R94)

$28.99

$

In Stock, Qty 9

0

532

Cub Cadet 1185976

Grease Fitting
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

533

Cub Cadet 634-3034

Wheel Assembly Complete

Note: (Includes Ref. 509-512 and 532)

$

$

Not available
