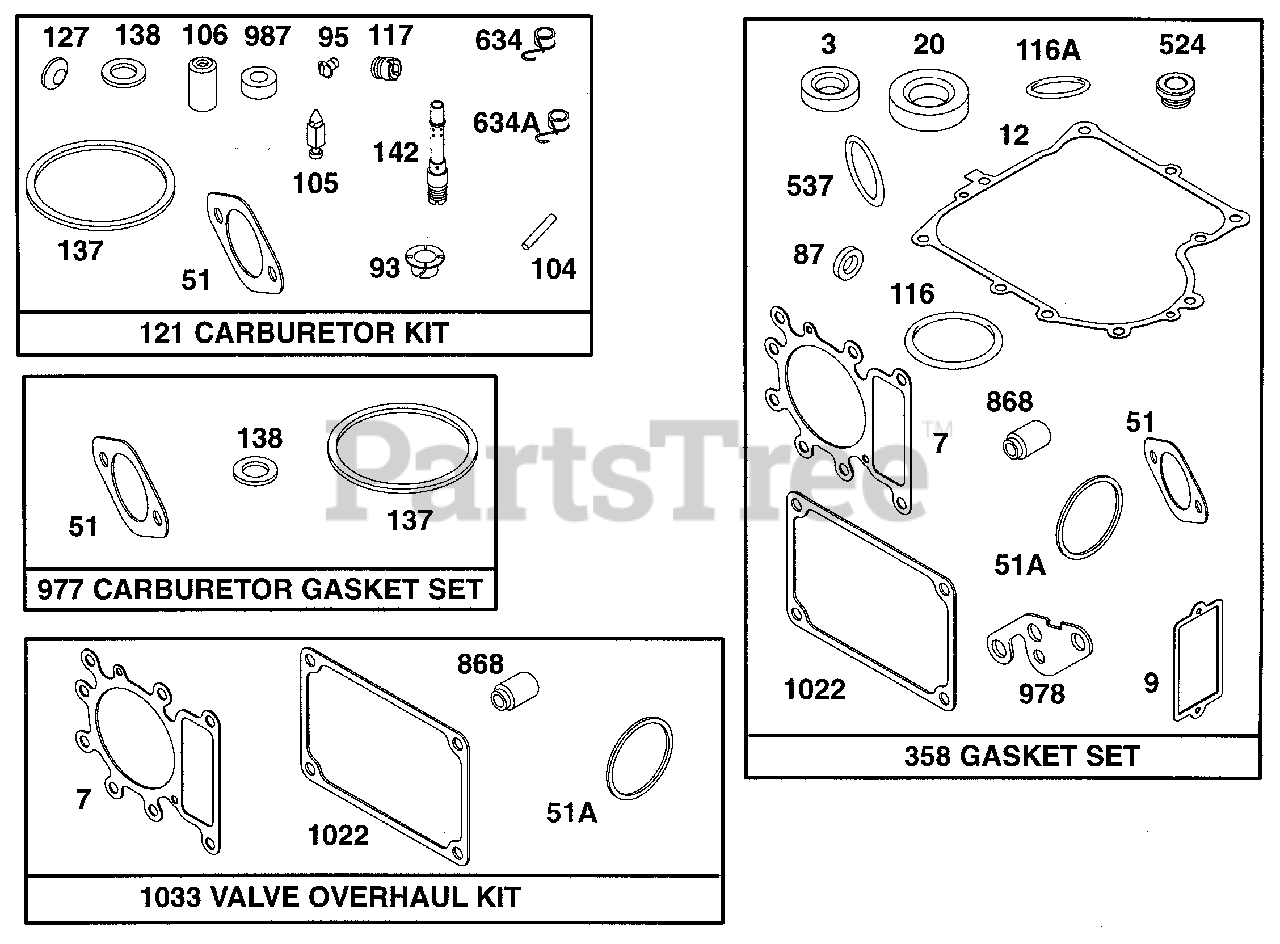

1300 (13A-130F100) - Cub Cadet Garden Tractor Gasket Sets Parts Diagram

Garden Tractor

Gasket Sets Parts Diagram

  • Title

3

Cub Cadet BS-391086

Oil Seal
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

7

Cub Cadet BS-273280

Cylinder Head Gasket
(Superseded to BS-273280S)

$10.99

$

In Stock, Qty 20+

0

9

Cub Cadet BS-27803

Breather Gasket
(Superseded to BS-27803S)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet BS-271916

Crankcase Gasket
(Superseded to BS-692226)

$6.99

$

In Stock, only 2 left!

0

Cub Cadet BS-271997

Crankcase Gasket (.005")
(Superseded to BS-692406)

$9.49

$

Usually ships in 2-12 days

0

Cub Cadet BS-271996

Crankcase Gasket (.009")
(Superseded to BS-692405)

$6.49

$

In Stock, only 1 left!

0

20

Cub Cadet BS-291675

Oil Seal
(Superseded to BS-291675S)

$6.99

$

In Stock, Qty 20+

0

51

Cub Cadet BS-273650

Intake Gasket
(Superseded to BS-692137)

$3.49

$

In Stock, Qty 20+

0

51A

Cub Cadet BS-281735

Seal-O-Ring

$

$

Currently unavailable

87

Cub Cadet BS-491232

Governor Shaft Seal

$

$

Currently unavailable

93

Cub Cadet BS-281346

Throttle Shaft Bushing

$

$

Not available

95

Cub Cadet BS-94098

Choke Throttle Screw
(Superseded to BS-691636)

$3.99

$

In Stock, only 2 left!

0

104

Cub Cadet BS-231789

Float Hinge Pin
(Superseded to BS-690525)

$4.99

$

In Stock, only 1 left!

0

105

Cub Cadet BS-231855

Valve Float Needle
(Superseded to BS-231855S)

$6.99

$

Usually ships in 2-12 days

0

106

Cub Cadet BS-231854

Inlet Seat
(Superseded to BS-690577)

$7.99

$

In Stock, only 3 left!

0

116

Cub Cadet BS-241402

Seal-O-Ring

$

$

Currently unavailable

116A

Cub Cadet BS-270920

Seal-O-Ring
(Superseded to BS-691870)

$4.49

$

Usually ships in 2-12 days

0

117

Cub Cadet BS-232118

Main Jet
(Superseded to BS-692408)

$17.99

$

Usually ships in 2-12 days

0

121

Cub Cadet BS-690191

Carburetor Jet

$69.99

$

Usually ships in 2-12 days

0

127

Welch Plug

Note: (Sold in Kit Only)

$

$

Not available

137

Cub Cadet BS-281165

Float Bowl Gasket
(Superseded to BS-281165S)

$4.99

$

Usually ships in 2-12 days

0

138

Cub Cadet BS-281164

Seal Washer
(Superseded to BS-692255)

$5.49

$

In Stock, Qty 20+

0

142

Cub Cadet BS-232117

Carburetor Nozzle
(Superseded to BS-692412)

$30.99

$

In Stock, only 3 left!

0

358

Cub Cadet BS-691580

Gasket Set

$86.99

$

In Stock, only 1 left!

0

524

Cub Cadet BS-281370

Fill Tube Seal
(Superseded to BS-281370S)

$8.49

$

In Stock, Qty 20+

0

537

Cub Cadet BS-281106

Air Cleaner Gasket
(Superseded to BS-691917)

$4.49

$

In Stock, Qty 20+

0

634

Cub Cadet BS-494453

Spring Assembly Seal

$

$

Not available

634A

Cub Cadet BS-494455

Spring Assembly Seal
(Superseded to BS-690802)

$9.49

$

Usually ships in 2-12 days

0

868

Cub Cadet BS-499236

Valve Seal

$

$

Not available

977

Cub Cadet BS-690192

Carburetor Gasket Set
(Superseded to BS-697241)

$43.99

$

In Stock, only 1 left!

0

978

Cub Cadet BS-272888

Oil Adapter Gasket

$

$

Currently unavailable

987

Cub Cadet BS-281166

Throttle Shaft Seal
(Superseded to BS-691326)

$5.49

$

Usually ships in 2-12 days

0

1022

Cub Cadet BS-272475

Rocker Cover Gasket
(Superseded to BS-272475S)

$6.49

$

In Stock, Qty 20+

0

1033

Cub Cadet BS-691581

Valve Overhaul Kit

$64.99

$

Usually ships in 2-12 days

0
