1300 (13A-130F100) - Cub Cadet Garden Tractor Control Bracket Parts Diagram

Garden Tractor

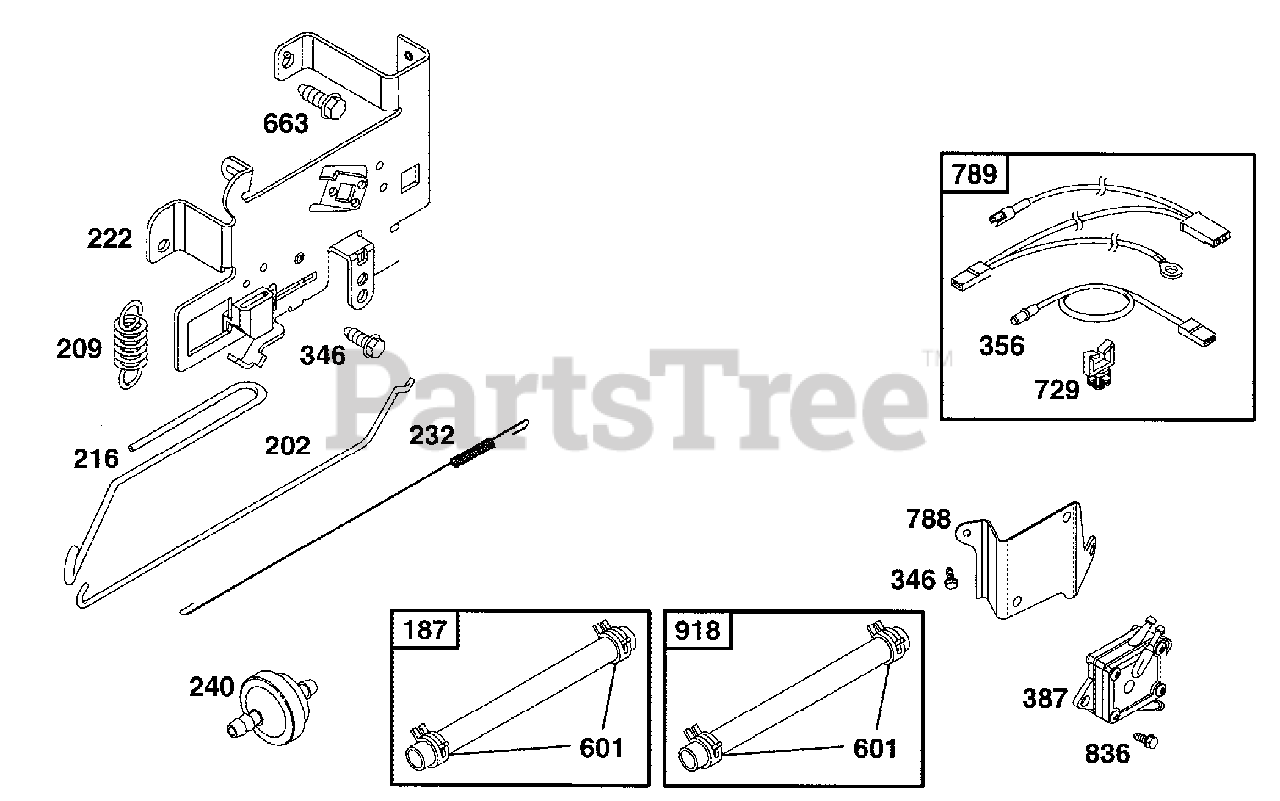

Control Bracket Parts Diagram

  • Title

187

Cub Cadet BS-298049

Fuel Line
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

202

Cub Cadet BS-262767

Mech. Governor Link
(Superseded to BS-691841)

$9.49

$

In Stock, Qty 17

0

209

Cub Cadet BS-260871

Governor Spring
(Superseded to BS-792602)

$3.49

$

In Stock, only 2 left!

0

216

Cub Cadet BS-262766

Choke Link
(Superseded to BS-691840)

$8.99

$

In Stock, Qty 20+

0

222

Cub Cadet BS-495611

Control Bracket
(Superseded to BS-694042)

$38.99

$

In Stock, Qty 20+

0

232

Cub Cadet BS-262785

Link Spring
(Superseded to BS-691842)

$11.99

$

In Stock, Qty 20+

0

240

Cub Cadet BS-298090

Fuel Filter
(Superseded to BS-298090S)

$

$

Not available

346

Cub Cadet BS-94896

Hex Screw
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 8

0

356

Cub Cadet BS-494705

Stop Wire

$

$

Not available

387

Cub Cadet BS-491922

Fuel Pump
(Superseded to BS-808656)

$27.99

$

In Stock, Qty 20+

0

601

Cub Cadet BS-95162

Hose Clamp
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

663

Cub Cadet BS-94929

Hex Screw
(Superseded to BS-691693)

$3.99

$

In Stock, Qty 9

0

729

Cub Cadet BS-281390

Wire Clip

$

$

Not available

788

Cub Cadet BS-225563

Pump Bracket

$

$

Currently unavailable

789

Cub Cadet BS-497708

Wiring Harness
(Superseded to BS-692037)

$35.99

$

In Stock, only 1 left!

0

836

Cub Cadet BS-690960

Hex Screw
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

918

Cub Cadet BS-393815

Vacuum Hose

$11.99

$

Usually ships in 2-12 days

0
