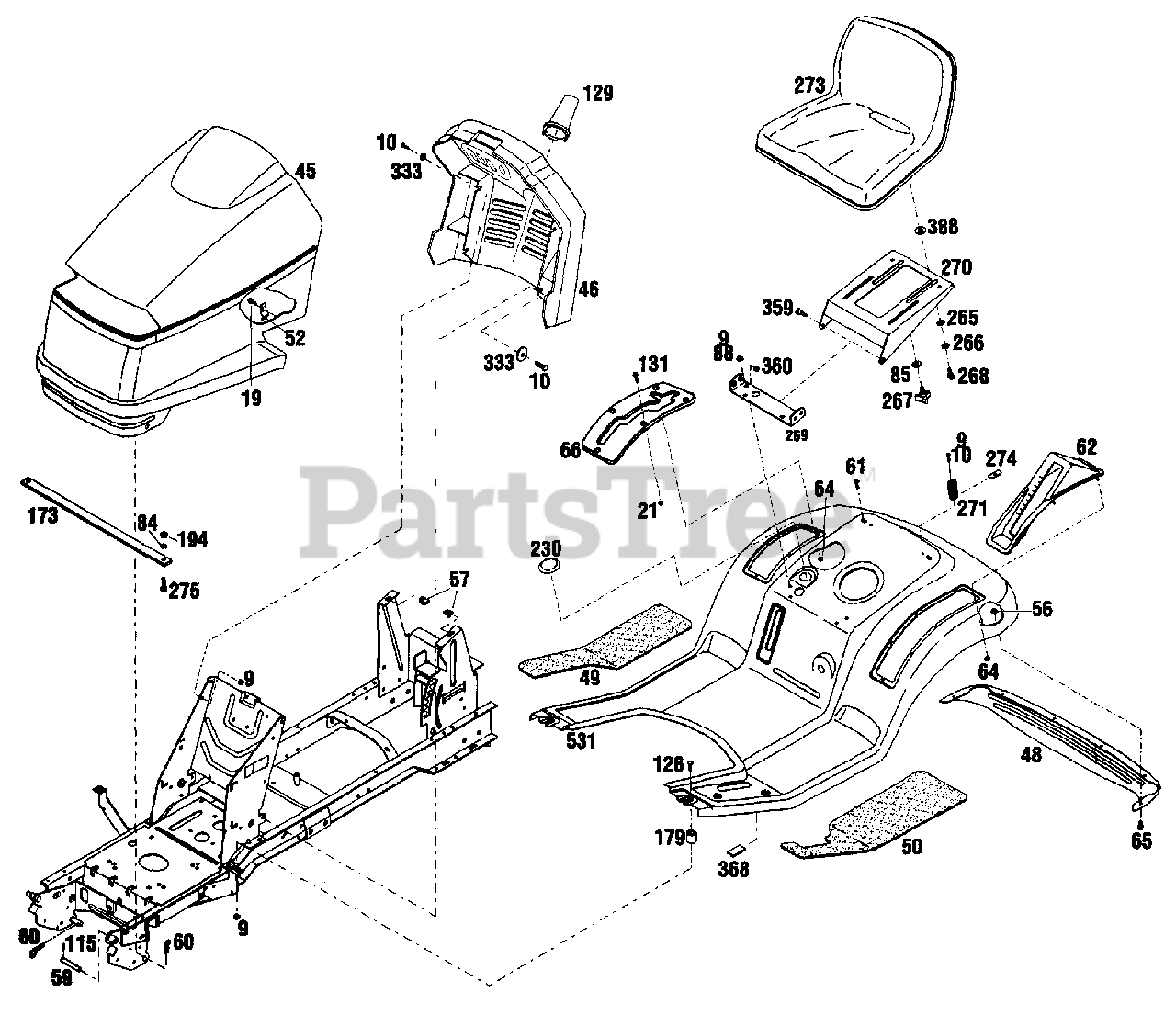

1300 (13A-130F100) - Cub Cadet Garden Tractor Body & Trim Assembly Parts Diagram

Garden Tractor

Body & Trim Assembly Parts Diagram

  • Title

9

Cub Cadet 1186391

Flange Nut, 5/16-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 1100044

Hex Head Capscrew, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 1772878

Self Threading Screw, #10

$

$

Not available

21

Cub Cadet 1817146

Nylon Locknut 1/4-20
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

45

Cub Cadet 731-3267

Hood

$

$

Not available

46

Cub Cadet 1772896

Console

$

$

Not available

48

Cub Cadet 1765331072

Rear Fender Trim

$

$

Not available

49

Cub Cadet 1772846

Right Foot Pad

$

$

Not available

50

Cub Cadet 1772845

Left Foot Pad

$

$

Not available

52

Cub Cadet 1773591

Latch

$

$

Not available

56

Cub Cadet 1186389

Flange Nut, 1/4-20

$3.49

$

Usually ships in 3-6 days

0

57

Cub Cadet 1761680

Self-Retaining Nut, 5/16-18
(Superseded to 926-0211)

$4.49

$

In Stock, only 1 left!

0

59

Cub Cadet 1773226

Hood Pivot Pin

$

$

Not available

60

Cub Cadet 1723478

Cotter Spring, 1/8

$

$

Not available

61

Cub Cadet 1186330

Screw, 5/16-18 x 7/8
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

62

Cub Cadet 1772979

Lift Handle Cover

$

$

Not available

64

Cub Cadet 1750532

Self-Threading Nut, 1/4
(Superseded to 712-0415)

$5.49

$

In Stock, only 3 left!

0

65

Cub Cadet 1186309

Flange Screw, 1/4-20 x 1/2

$

$

Not available

66

Cub Cadet 1772881

Quadrant

$

$

Not available

84

Cub Cadet 1100241

Lock Washer, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

85

Cub Cadet 1107383

Flat Washer, 3/8
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

88

Cub Cadet 1186097

Carriage Bolt, 5/16-18 x 5/8
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

115

Cub Cadet 1120210

Drive Pin, 3/16 x 1

$

$

Not available

126

Cub Cadet 1186469

Carriage Bolt, 5/16-18 x 3/4
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

129

Cub Cadet 1773236

Steering Cover

$

$

Not available

131

Cub Cadet 1772882

Screw, 1/4-20 x 5/8
(Superseded to 710-0946)

$3.99

$

Usually ships in 3-6 days

0

173

Cub Cadet 1773623072

Hood Strap

$

$

Not available

179

Cub Cadet 1730681

Spacer

$

$

Not available

194

Cub Cadet 1186229

Nut, 1/4-20
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

230

Cub Cadet 1768787

Plug

$

$

Not available

265

Cub Cadet 1705793

Nylon Washer, 3/8

$

$

Not available

266

Cub Cadet 1706782

Bowed Washer, 3/8

$2.49

$

In Stock, only 1 left!

0

267

Cub Cadet 1734269

Adjusting Knob

$

$

Not available

268

Cub Cadet 1754125

Shoulder Bolt, 3/8-16

$

$

Not available

269

Cub Cadet 1766075001

Seat Bracket

$

$

Not available

270

Cub Cadet 1766074001

Seat Support

$

$

Not available

271

Cub Cadet 1766077

Compression Spring

$12.99

$

Usually ships in 3-6 days

0

273

Cub Cadet 757-3011

Seat

$

$

Not available

274

Cub Cadet 1766347

Spring Hold-Down Bracket

$

$

Not available

275

Cub Cadet 1111599

Screw, 1/4-20 x 5/8
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

333

Cub Cadet 1723384

Flat Washer 5/16 x 1-1/2
(Superseded to 736-3089)

$

$

Not available

359

Cub Cadet 1100913

Hex Head Cap screw, 3/8-16 x 7/8
(Superseded to 710-3001)

$7.49

$

In Stock, Qty 9

0

360

Cub Cadet 1110108

Locknut, 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

368

Cub Cadet 1767995

Pad

$

$

Not available

388

Cub Cadet 1893445

Flat Washer
(Superseded to 936-0133)

$

$

Not available

531

Cub Cadet 1773202072

Rear Fender

$

$
