1300 (13A-130F100) - Cub Cadet Garden Tractor Blower Housing Assembly Parts Diagram

Garden Tractor

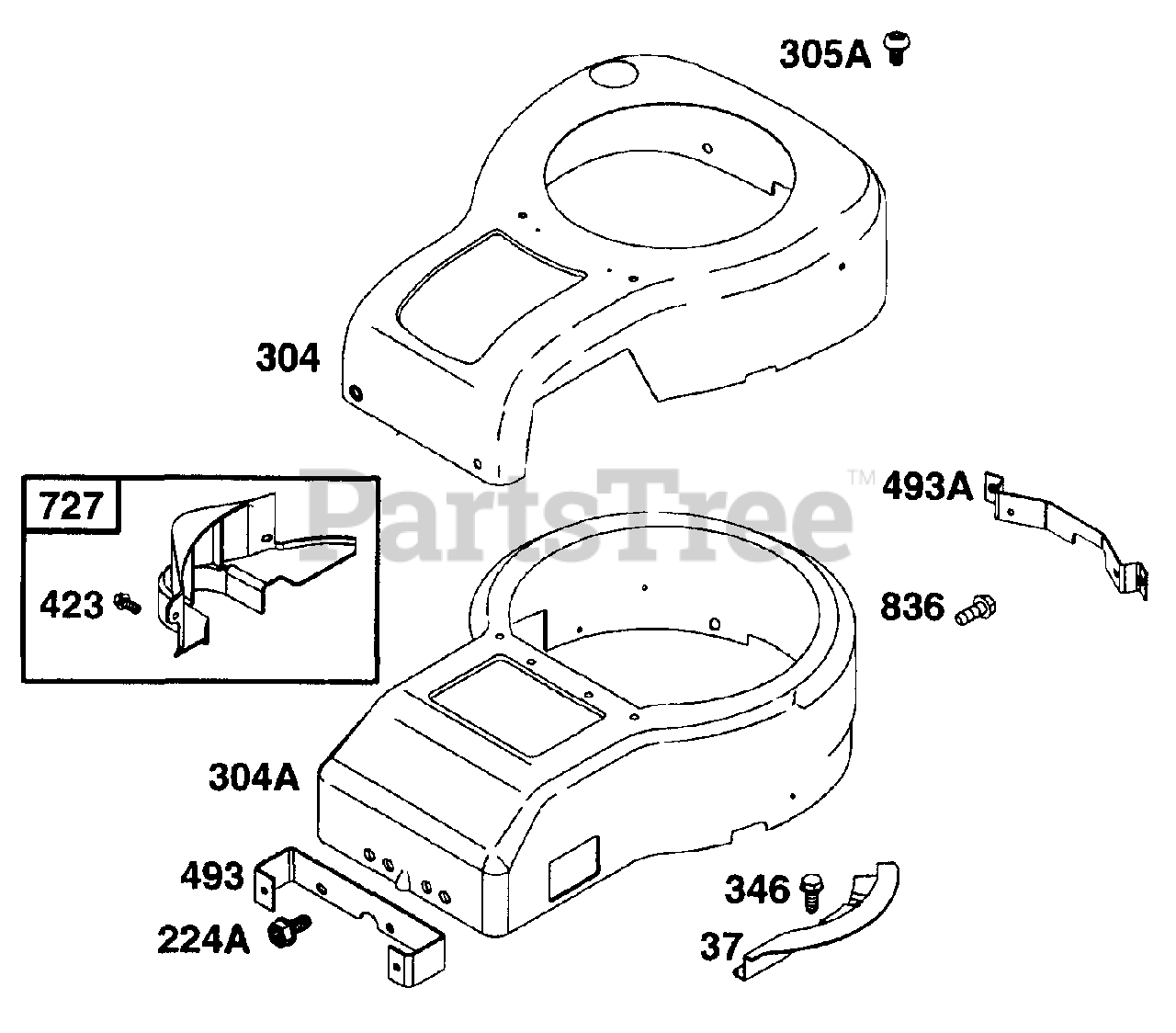

Blower Housing Assembly Parts Diagram

  • Title
37

Cub Cadet BS-224502

Flywheel Guard

$

$

Not available

224A

Cub Cadet BS-94729

Torx Hex Screw

$

$

Not available

304

Cub Cadet BS-692679

Blower Housing Cover

Note: (Black Outer)

$83.99

$

Usually ships in 2-12 days

0

304A

Cub Cadet BS-225017

Blower Housing Cover

Note: (Black Inner)

$

$

Not available

305A

Cub Cadet BS-94822

Torx Screw

$

$

Not available

346

Cub Cadet BS-94896

Hex Screw
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 8

0

423

Cub Cadet BS-94903

Shoulder Screw
(Superseded to BS-691002)

$8.49

$

In Stock, only 2 left!

0

493

Cub Cadet BS-224968

Mounting Bracket

Note: (Front)

$

$

Not available

493A

Cub Cadet BS-224969

Mounting Bracket

Note: (Rear)

$

$

Not available

727

Cub Cadet BS-490324

Starter Drive Cover

$26.99

$

In Stock, only 1 left!

0

836

Cub Cadet BS-690960

Hex Screw
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0
