130 L - Husqvarna String Trimmer CYLINDER Parts Diagram

String Trimmer

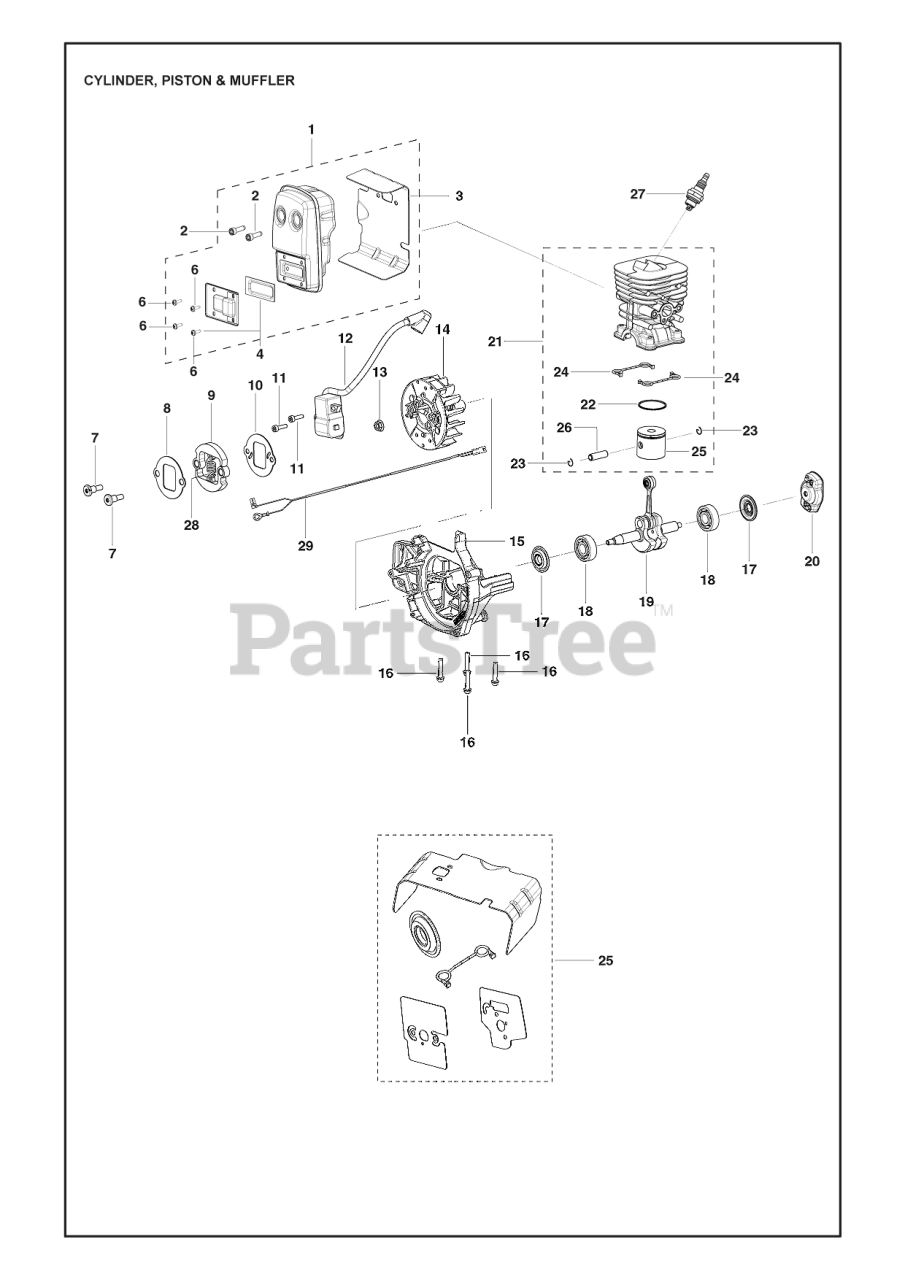

CYLINDER Parts Diagram

  • Title

11

Husqvarna 530016456

SCREW M4 X .70 TT 16MM

$6.49

$

In Stock, only 2 left!

0

24

Husqvarna 545083301

SEAL CYLINDER

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 530030218

SPARK PLUG

Note: Champion RCJ8Y

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 525613001

WASHER CLUTCH UPPER

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 530039227

ASSY MODULE LEAD WIRE

$8.99

$

In Stock, only 3 left!

0

28

Husqvarna 587037001

SPRING CLUTCH

$

$

Currently unavailable

23

Husqvarna 530015162

WRIST PIN RET.

$6.49

$

In Stock, only 2 left!

0

25

Husqvarna 530012546

PISTON
(Superseded to 529469901)

$10.99

$

Usually ships in 3-10 days

0

14

Husqvarna 510088202

FLYWHEEL

$28.99

$

In Stock, only 1 left!

0

17

Husqvarna 545004301

CRANKSHAFT SEAL

$3.99

$

In Stock, only 4 left!

0

12

Husqvarna 599503501

IGNITION MODULE

$

$

Not available

22

Husqvarna 575227901

RING PISTON

$7.49

$

In Stock, Qty 5

0

3

Husqvarna 529437401

GASKET

$34.99

$

Usually ships in 3-10 days

0

2

Husqvarna 530058982

BOLT MUFFLER

$4.99

$

In Stock, Qty 8

0

26

Husqvarna 530032159

PISTON PIN

$4.99

$

In Stock, only 1 left!

0

7

Husqvarna 525615401

SCREW CLUTCH

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 585415405

CRANKSHAFT

$24.99

$

In Stock, only 1 left!

0

18

Husqvarna 545013401

BEARING RADIAL BALL (6201)

$10.99

$

Usually ships in 3-10 days

0

4

Husqvarna 545030501

KIT SPARK ARRESTOR SCREEN

Note: SPARK ARRESTOR

$8.99

$

Usually ships in 3-10 days

0

10

Husqvarna 525612901

WASHER CLUTCH LOWER

$4.99

$

Usually ships in 3-10 days

0

6

Husqvarna 530015241

SCREW-6-19X5/16PLAST PA
(Superseded to 545227101)

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 731711651

FLANGE NUT

$7.49

$

In Stock, only 2 left!

0

21

Husqvarna 545008082

KIT PISTON & CYLINDER

$45.99

$

In Stock, only 1 left!

0

15

Husqvarna 577929502

CRANKCASE CAST 128

$39.99

$

Usually ships in 3-10 days

0

9

Husqvarna 575762203

CLUTCH ASSY

$28.99

$

Usually ships in 3-10 days

0

20

Husqvarna 525845601

ASSY STARTER PAWL
(Superseded to 503873305)

$26.99

$

Usually ships in 3-10 days

0

1

Husqvarna 531127912

MUFFLER KIT

$34.99

$

Usually ships in 3-10 days

0

16

Husqvarna 530015897

SCREW-M5-0.8 X 25MM(TAP)

$6.49

$

In Stock, Qty 19

0
