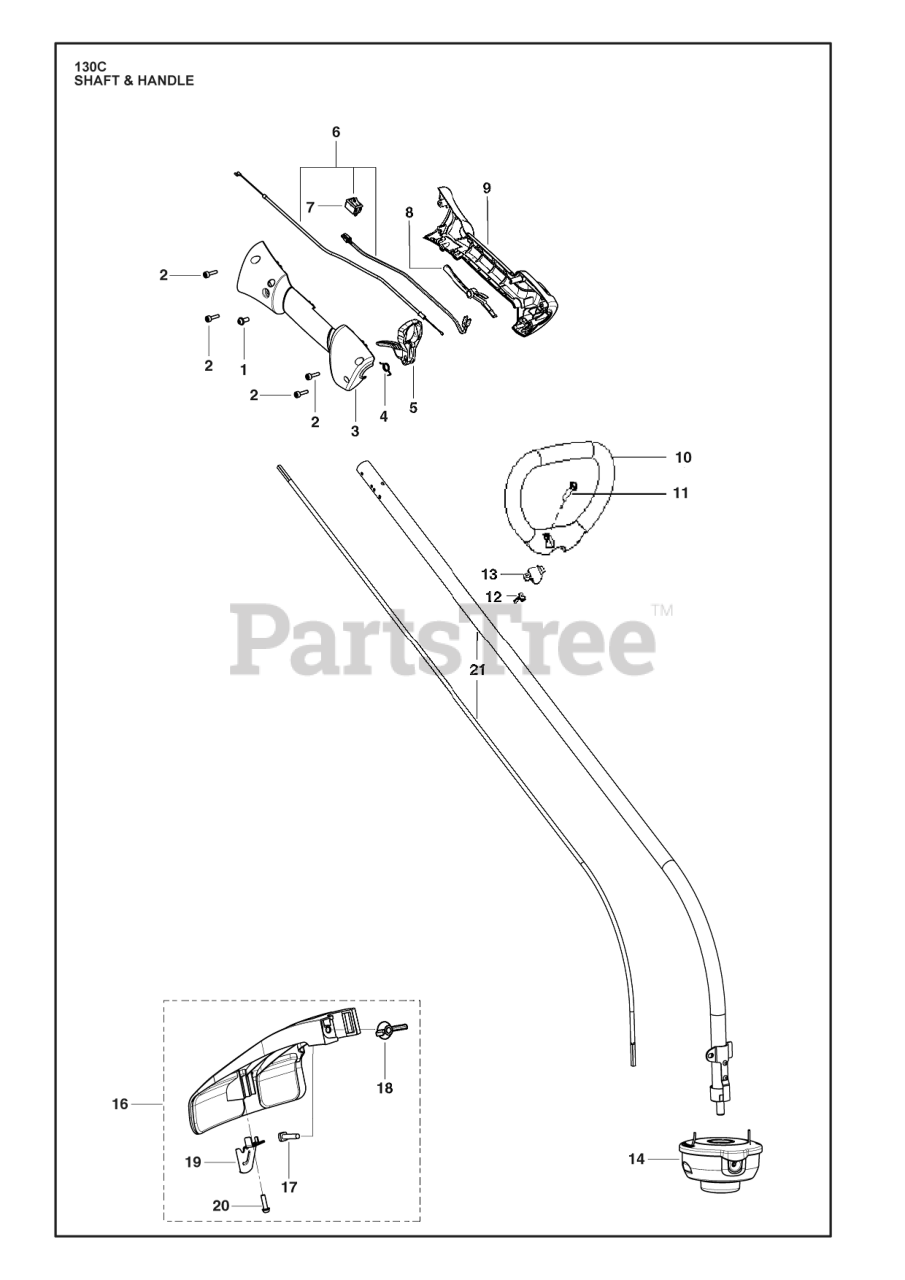

130 C - Husqvarna String Trimmer SHAFT & HANDLE Parts Diagram

String Trimmer

SHAFT & HANDLE Parts Diagram

  • Title

19

Husqvarna 530052287

CUTTER

Note: 130C

$4.99

$

In Stock, only 2 left!

0

1

Husqvarna 584294001

SCREW

Note: 130C

$4.99

$

In Stock, Qty 20+

0

6

Husqvarna 576139401

ASSY CABLE / WIRE HARNESS

Note: 130C

$22.99

$

In Stock, Qty 12

0

13

Husqvarna 530038599

CLAMP

Note: 130C

$2.49

$

In Stock, Qty 11

0

7

Husqvarna 545049309

SWITCH
(Superseded to 545049311)

Note: 130C

$6.99

$

Usually ships in 3-10 days

0

20

Husqvarna 530015814

SCREW

Note: 130C

$6.49

$

In Stock, Qty 16

0

14

Husqvarna 537338312

Trimmer Heads

Note: 130C

$26.99

$

Usually ships in 3-10 days

0

11

Husqvarna 503219835

SCREW

Note: 130C

$6.49

$

In Stock, only 1 left!

0

8

Husqvarna 574355401

THROTTLE LOCKOUT HVA ORANGE

Note: 130C

$5.99

$

In Stock, only 1 left!

0

12

Husqvarna 503222601

WING NUT

Note: 130C

$7.49

$

In Stock, only 1 left!

0

18

Husqvarna 530016152

WINGNUT, TYPE 2
(Superseded to 530401992)

Note: 130C

$2.49

$

In Stock, Qty 14

0

17

Husqvarna 530015820

BOLT, TYPE 2

Note: 130C

$4.99

$

In Stock, Qty 11

0

10

Husqvarna 537076801

HANDLE, LOOP

Note: 130C

$14.99

$

In Stock, Qty 7

0

4

Husqvarna 530016454

SPRING TRIGGER

Note: 130C

$6.49

$

In Stock, Qty 20+

0

3

Husqvarna 599949702

HOUSING THROTTLE

Note: 130C

$3.99

$

In Stock, Qty 14

0

16

Husqvarna 531127913

SERVICE KIT 130C TRIMMER GUAR

Note: 130C

$6.99

$

Usually ships in 3-10 days

0

9

Husqvarna 599949602

HOUSING THROTTLE

Note: 130C

$

$

Not available

2

Husqvarna 574444001

SCREW

Note: 130C

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 574355301

TRIGGER THROTTLE HVA ORANGE

Note: 130C

$5.99

$

In Stock, Qty 20+

0

21

Husqvarna 593247802

TUBE

Note: 130C

$43.99

$

In Stock, only 1 left!

0
