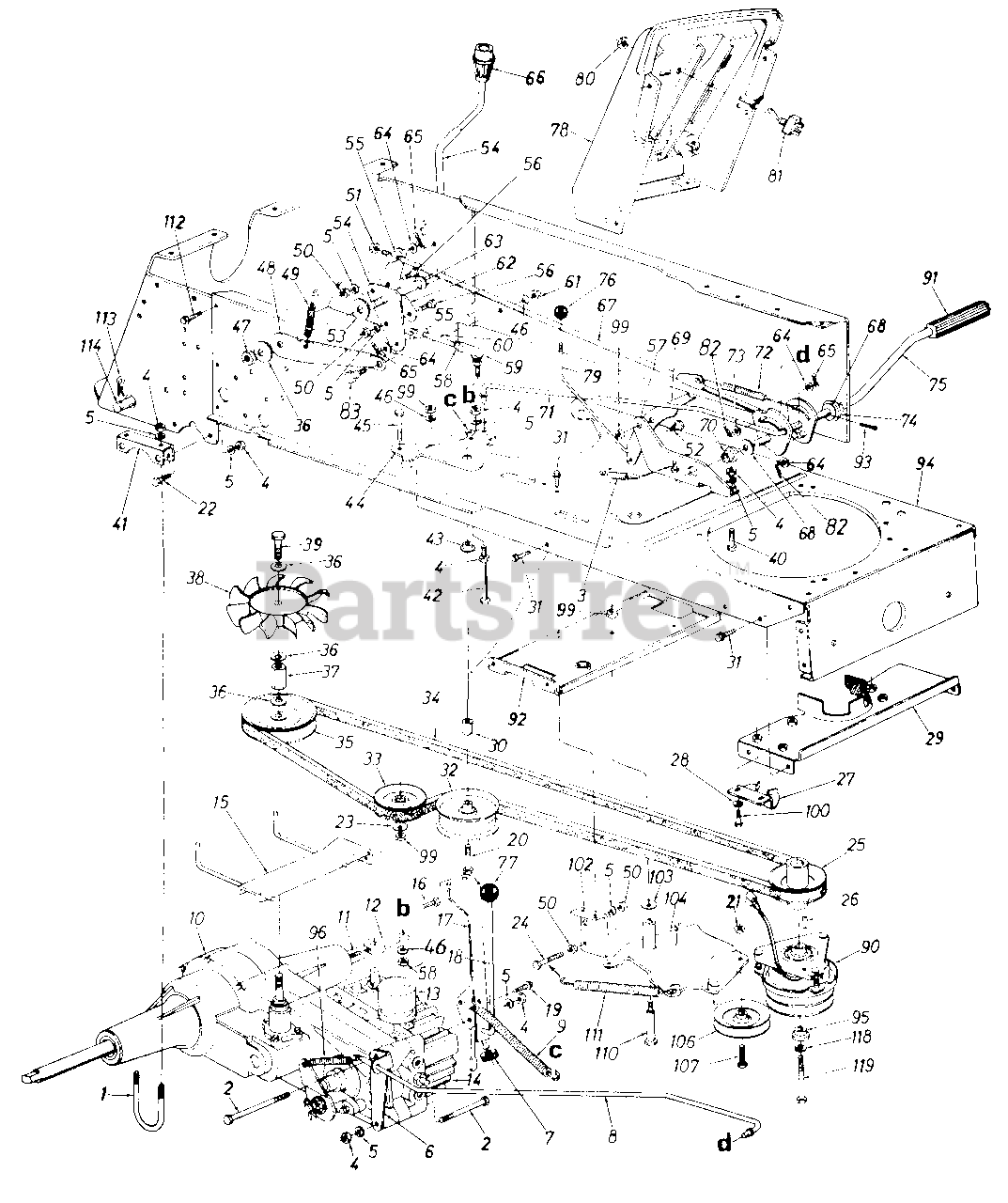

130-824H - MTD Lawn Tractor (1990) Lawn Parts Diagram

Lawn Tractor

Lawn Parts Diagram

  • Title

1

MTD 711-0827

U-Bolt 5/16-18 x 3.25" Lg.

$

$

Not available

2

MTD 710-3196

Hex Patch Bolt 5/16-18 x 4.5" Lg. (Grade 5)

$

$

Not available

3

MTD 732-0445

Ext. Spring .5" O.D. x 1.55"

$8.99

$

In Stock, only 2 left!

0

4

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

5

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

6

MTD 17355

Brake Rod Guide Brkt.

$

$

Not available

7

MTD 735-0126

Rubber Wash. .33" I.D. x .87"
(Superseded to 735-0126A)

$

$

Not available

8

MTD 747-0731

Brake Rod

$

$

Not available

9

MTD 732-0384

Ext. Spring .62" O.D. x 6.12" Lg.
(Superseded to 932-0384)

$14.99

$

In Stock, only 4 left!

0

10

MTD 717-0950

Transaxle

$

$

Not available

11

MTD 710-0985

Set Screw 5/16-24 x .38" Lg.

$

$

Currently unavailable

12

MTD 748-0328

Pintle Shift Lever

$

$

Not available

13

MTD 717-3049

Reservoir
(Superseded to 917-3049)

$125.99

$

Usually ships in 3-6 days

0

14

MTD 717-0940

Hydrostatic Pump

$

$

Not available

15

MTD 16929

Belt Guard Ass'y.

$

$

Not available

16

MTD 710-3195

Hex Bolt 5/16-18 x 4.5" Lg. (Grade 5)

$7.49

$

Usually ships in 3-6 days

0

17

MTD 16807

Transaxle Torque Bracket

$

$

Currently unavailable

18

MTD 747-0570

Transaxle Control Rod

$

$

Not available

19

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/1 6-1 8

$4.99

$

Usually ships in 3-6 days

0

20

MTD 710-3066

Hex Bolt 3/8-16 x 2.75" Lg.

$5.49

$

In Stock, Qty 7

0

21

MTD 712-0214

Hex Cent. Lock Nut 3/8-16 Thd.

$6.49

$

In Stock, only 4 left!

0

22

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

23

MTD 736-0300

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-0409

Hex Bolt 5/16-24 x 1.75" Lg.

$4.99

$

Usually ships in 3-6 days

0

25

MTD 756-0575

Engine Pulley

$

$

Not available

26

MTD 714-0118

Sq. Key 1/4 x 1.5" Lg.

$6.99

$

In Stock, only 4 left!

0

27

MTD 17418

Torque Bracket

Variations

MTD 17418-0637

No Longer Available BRACKET-TO - POWDER BLACK (0637)

$

$

Not available

$

$

28

MTD 736-0242

Bell-Wash. .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

29

MTD 17357

Belt Keeper Brkt. Ass'y.
(Superseded to 17358D-0637)

$

$

Not available

30

MTD 711-0396

Spacer .375" I.D. x .75" Lg.

$11.99

$

Usually ships in 3-6 days

0

31

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

32

MTD 756-0515

Fl-Idler Pulley 3.25" Dia.

$

$

Not available

33

MTD 756-0116

V-Belt Idler
(Superseded to 756-04209)

$22.99

$

In Stock, Qty 20+

0

34

MTD 754-0365

V-Belt
(Superseded to 954-0365)

$77.99

$

Usually ships in 3-6 days

0

35

MTD 756-0539

Transmission Pulley 4.25" O.D.

$

$

Not available

36

MTD 736-0112

Bell-Wash. .56" I.D. x 1.5"

$9.99

$

Usually ships in 3-6 days

0

37

MTD 712-0356

Fan Adapter Nut 9/16-18 Thd.

$

$

Not available

38

MTD 731-0974

Fan

$

$

Not available

39

MTD 710-1043

Hex Bolt 9/16-18 x .5" Lg.

$

$

Not available

40

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

41

MTD 16925

Transaxle Mtg. Bracket

$

$

Not available

42

MTD 710-0176

Hex Bolt 5/16-18 x 2.75" Lg.

$4.49

$

In Stock, only 2 left!

0

43

MTD 738-0347

Shld. Spacer .625" I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

44

MTD 16926A

Clutch Idler Bracket

$

$

Currently unavailable

45

MTD 710-0344

Hex Bolt 3/8-16 x 1.5" Lg.

$5.99

$

In Stock, only 1 left!

0

46

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

47

MTD 712-0922

Hex Jam Nut 1/2-20 Thd.
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

48

MTD 16931

Speed Control Rod Torque Brkt.

$

$

Not available

49

MTD 732-0609

Ext. Spring 2.5" Lg.

$

$

Currently unavailable

50

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

51

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

52

MTD 738-0147

Shld. Bolt .50" Dia. x .170"

$

$

Not available

53

MTD 736-0428

Fiber Washer .54" I.D. x 1.75"

$

$

Not available

54

MTD 16930

Speed Control Handle Ass'y.

$

$

Not available

55

MTD 711-0198

Ferrule 3/8-24 Thd.
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

56

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

57

MTD 17348

Foot Pedal Mtg. Brkt.

$

$

Currently unavailable

58

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

59

MTD 723-0351

Ball Joint Ass'y.
(Superseded to 923-0351)

$44.99

$

Usually ships in 3-6 days

0

60

MTD 747-0508

Control Rod 3/8-24 x 3.75" Lg.

$

$

Currently unavailable

61

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

62

MTD 16940

Speed Selector Handle Brkt.

$

$

Not available

63

MTD 736-0257

Fl-Wash. .531" I.D. x 1.25" O.D.
(Superseded to 936-0179)

$4.99

$

In Stock, only 2 left!

0

64

MTD 736-0140

Fl-Wash. .385" I.D. x .62" O.D.

$7.49

$

In Stock, Qty 7

0

65

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

66

MTD 720-0218

Shift Knob

$19.99

$

In Stock, only 1 left!

0

67

MTD 17416

Neutral Return Rod

$

$

Currently unavailable

68

MTD 736-0187

Fl-Wash. .64" I.D. x 1.24" O.D.

$4.49

$

In Stock, Qty 20+

0

69

MTD 17351

Parking Brake Lock Brkt.

$

$

Currently unavailable

70

MTD 741-0225

Hex Flange Brg. .634" Dia.
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

71

MTD 747-0728

Clutch Idler Rod

$

$

Currently unavailable

72

MTD 732-0608

Extension Spring 8" Lg.

$

$

Not available

73

MTD 736-0264

Fl-Wash. .344" I.D. x .62" O.D.

$6.99

$

In Stock, only 1 left!

0

74

MTD 748-0209

Flange Bearing w/Flats
(Superseded to 948-0209)

$22.99

$

Usually ships in 3-6 days

0

75

MTD 17350

Foot Pedal Ass'y.

$

$

Currently unavailable

76

MTD 720-0166

Ball Knob Brake

$

$

Not available

77

MTD 720-0187

Ball Knob 1/4-20 Thd.

$10.99

$

Usually ships in 3-6 days

0

78

MTD 731-0958

Dash Panel Ass'y.

$

$

Not available

79

MTD 747-0722

Parking Brake Link

$

$

Not available

80

MTD 712-3014

Hex Nut 1/2-27 Thd.

$

$

Not available

81

MTD 725-0893

Toggle Switch
(Superseded to 925-0893)

$82.99

$

In Stock, only 1 left!

0

82

MTD 714-0111

Cotter Pin 3/32" Dia. x 1.0" Lg.

$4.99

$

In Stock, Qty 13

0

83

MTD 738-0183

Shld. Bolt .5" Dia. x .212"
(Superseded to 938-0183)

$

$

Not available

90

MTD 717-0949

Electric Clutch
(Superseded to 917-1434)

$634.99

$

Usually ships in 3-6 days

0

91

MTD 735-0196

Foot Pad
(Superseded to 735-0239A)

$12.99

$

In Stock, only 1 left!

0

92

MTD 16888

Deck Idler Support Brkt.
(Superseded to 16888A-0637)

$56.99

$

Usually ships in 3-6 days

0

93

MTD 714-0115

Cotter Pin 1/8" Dia.

$3.99

$

Usually ships in 3-6 days

0

94

MTD 17359A

Lower Frame

$

$

Not available

95

MTD 738-0785

Shoulder Spacer
(Superseded to 938-0785)

$25.99

$

In Stock, only 1 left!

0

96

MTD 732-0607

Ext. Spring 3.675" Lg.

$

$

Not available

99

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

100

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. (Grade 5)

$4.49

$

In Stock, Qty 20+

0

102

MTD 13833

Parking Brake Mtg. Brkt.

$

$

Not available

103

MTD 736-0105

Bell-Wash. .380" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

104

MTD 14076A

Idler Brkt. Deck Ass'y.
(Superseded to 94076A-0637)

$

$

Not available

106

MTD 756-0293A

V-Belt Idler
(Superseded to 756-0487)

$48.99

$

In Stock, only 1 left!

0

107

MTD 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

110

MTD 738-0129

Shld. Bolt .498" Dia. x 2.05"

$11.99

$

In Stock, only 1 left!

0

111

MTD 732-0180

Ext. Spring 4.0" Lg.
(Superseded to 932-0180)

$12.99

$

In Stock, only 2 left!

0

112

MTD 710-0726

Hex Wash. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

113

MTD 714-0147

Hitch Pin Clip

$4.99

$

In Stock, Qty 7

0

114

MTD 738-0482

Hitch Rod

$

$

Not available

118

MTD 736-0171

L-Wash. 7/16" I.D.

$4.49

$

In Stock, Qty 5

0

119

MTD 710-1049

Hex Bolt 7/16-20 x 3.75" Lg.

$10.99

$

Usually ships in 3-6 days

0
