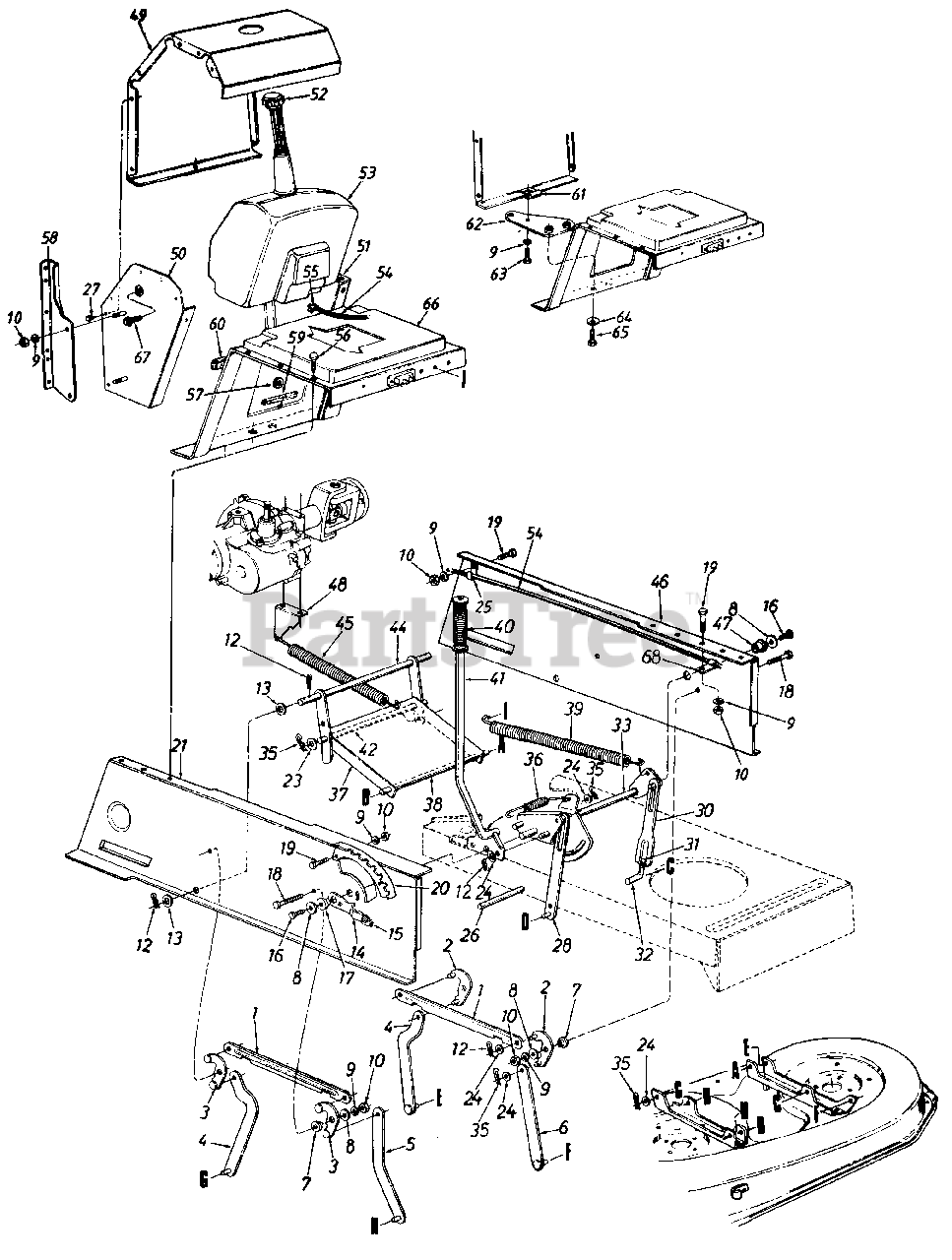

130-784G - MTD Lawn Tractor (1990) Lawn Parts Diagram

Lawn Tractor

Lawn Parts Diagram

  • Title

1

MTD 09735A

Connecting Rod

$

$

Not available

2

MTD 17640

Pivot Link Ass'y. L.H.
(Superseded to 983-0029A-0637)

$13.99

$

In Stock, only 3 left!

0

3

MTD 17641

Pivot Link Ass'y. R.H.

$

$

Not available

4

MTD 17710

Deck Hanger Link Ass'y.

Variations

MTD 17710-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

5

MTD 14800A

Deck Hanger Link Ass'y.
(Superseded to 14800A-0637)

Variations

MTD 14800A-0637

HANGER-DECK LINK - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 14804A

Deck Hanger Link Ass'y.

$

$

Not available

7

MTD 748-0331

Shld. Spacer .3/8" I.D.
(Superseded to 948-0331)

$

$

Not available

8

MTD 736-0231

Fl-Wash. .344" I.D. x 1.125"

$4.99

$

In Stock, Qty 20+

0

9

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

10

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

12

MTD 714-0115

Cotter Pin 1/8" Dia.

$3.99

$

In Stock, only 2 left!

0

13

MTD 736-0256

Fl-Wash. .635" I.D. x 1.0" O.D.
(Superseded to 936-0256)

$7.49

$

Usually ships in 3-6 days

0

14

MTD 732-0412A

Deck Lift Down Stop
(Superseded to 983-0003)

Note: (Incl. Ref. 15)

$

$

Not available

15

MTD 08540

Knob

$

$

Not available

16

MTD 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

17

MTD 748-0176

Flange Brg. .63" I.D.

$9.99

$

In Stock, only 1 left!

0

18

MTD 710-0650

Hex Wash. TT-Tap Scr. 5/16-18 x.875" Lg.

$3.99

$

In Stock, Qty 20+

0

19

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

20

MTD 17728

Index Brkt.

$

$

Not available

21

MTD 17830

Upper Frame R.H.

$

$

Currently unavailable

23

MTD 736-0267

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

24

MTD 736-0160

Fl-Wash. .531" I.D. x .98" O.D.

$4.49

$

In Stock, only 2 left!

0

25

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

26

MTD 738-0526

Running Board Rod

$

$

Not available

27

MTD 710-0351

Truss Mach. Scr. #10 x 5" Lg.

$4.49

$

Usually ships in 3-6 days

0

28

MTD 14802A

Link Deck Lift Ass'y.
(Superseded to 14802A-0637)

Variations

MTD 14802A-0637

Deck Lift Link, Powder Black - POWDER BLACK (0637)

$

$

Not available

$

$

30

MTD 17712

Adj. Deck Lift Link
(Superseded to 17712-0637)

Variations

MTD 17712-0637

Deck Adjust Link - POWDER BLACK (0637)

$25.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

31

MTD 712-3066

Hex Jam Nut 1/2-20 Thd. (Grade 5)
(Superseded to 912-3066)

$6.99

$

In Stock, only 1 left!

0

32

MTD 711-0841

Lift Link Adjuster
(Superseded to 911-0841)

$

$

Not available

33

MTD 17825

Lift Shaft Ass'y.

$

$

Not available

35

MTD 714-0145

Inter. Cotter Pin 3/8" Dia.

$4.99

$

In Stock, Qty 20+

0

36

MTD 732-0648

Extension Spring

$

$

Not available

37

MTD 17636A

Stabilizer Bracket
(Superseded to 17636D-0637)

$

$

Not available

38

MTD 738-0670

Shaft 1/2" Dia. x 10.28" Lg.
(Superseded to 738-0670A)

$

$

Not available

39

MTD 732-0638

Extension Spring

$

$

Not available

40

MTD 720-0233

Grip
(Superseded to 920-0233)

Note: (Lift Handle)

$

$

Not available

41

MTD 17675

Deck Lift Handle Ass'y.

$

$

Not available

42

MTD 738-0669

Shaft 3/8" Dia. x 9.34" Lg.

$

$

Not available

44

MTD 17624

Stabilizer Shaft Ass'y.
(Superseded to 97624-0637)

$

$

Not available

45

MTD 732-0556

Extension Spring 7.58" Lg.
(Superseded to 932-0556)

$21.99

$

Usually ships in 3-6 days

0

46

MTD 17831

Upper Frame L.H.

$

$

Currently unavailable

47

MTD 741-0313

Flange Brg. .632" I.D.
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

48

MTD 17128

Spring Retainer Brkt.
(Superseded to 17128A-0637)

$16.99

$

Usually ships in 3-6 days

0

49

MTD 16238

Gas Tank Housing

$

$

Not available

50

MTD 17082

Side Panel Ass'y. R.H.

$

$

Not available

51

MTD 17083

Side Panel Ass'y. L.H.

Variations

MTD 17083-0637

No Longer Available PANEL-SIDE - POWDER BLACK (0637)

$

$

Not available

$

$

52

MTD 751-0226A

Gas Gauge
(Superseded to 951-0226A)

$57.99

$

In Stock, Qty 10

0

53

MTD 751-0530A

Gas Tank

$

$

Not available

54

MTD 751-0535-68

Fuel Line
(Superseded to 751-10349-72)

$60.99

$

Usually ships in 3-6 days

0

55

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

56

MTD 710-0726

Hex Wash. AB-Tap 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

57

MTD 735-0112

Rubber Grommet

$

$

Not available

58

MTD 17078A

Mtg. Brkt. R.H.

Note: (Use w/Optional Grass Catcher)

$

$

Not available

MTD 17077A

Mtg. Brkt. L.H.

Note: (Use w/Optional Grass Catcher)

$

$

Currently unavailable

59

MTD 731-0511-5

Trim Strip

$13.99

$

Usually ships in 3-6 days

0

60

MTD 722-0157

Foam Strip

$4.49

$

Usually ships in 3-6 days

0

61

MTD 728-0211

Speed Nut

$

$

Currently unavailable

62

MTD 17166

Hitch Bar Ass'y.

$

$

Not available

63

MTD 710-0376

Hex Bolt 5/16-18 x 1.0" Lg. (Grade 5)

$3.99

$

In Stock, Qty 5

0

64

MTD 736-0105

Bell-Wash. .38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

65

MTD 710-0623

Hex Wash. Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

66

MTD 17226A

Hitch Plate

$

$

Not available

67

MTD 710-0653

Hex Wash. Hd. Tap Scr. 1/4-20 x.38" Lg.

$4.49

$

In Stock, Qty 8

0

68

MTD 726-3008

Clamp

$4.99

$

Usually ships in 3-6 days

0
