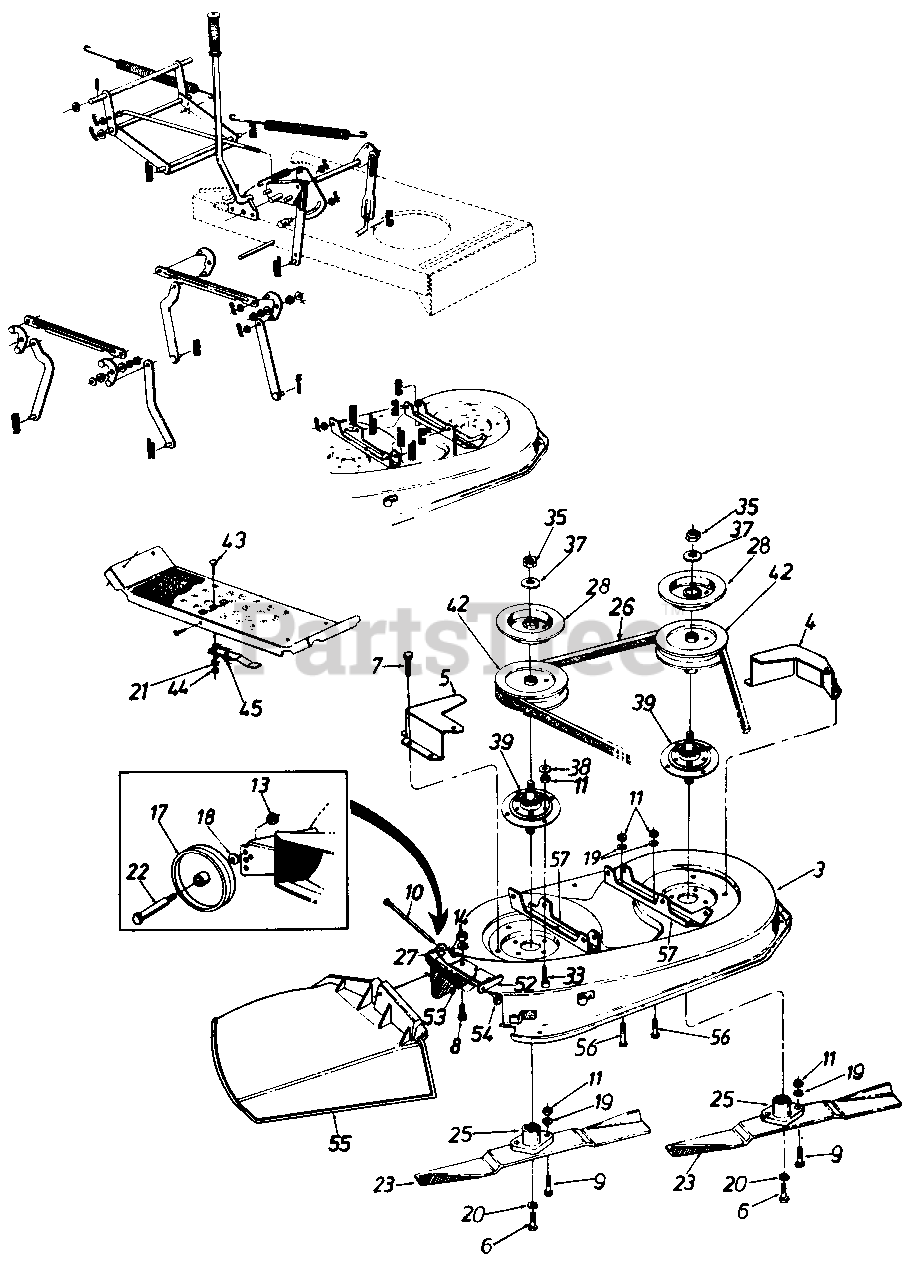

130-784G - MTD Lawn Tractor (1990) 42" Parts Diagram

Lawn Tractor

42" Parts Diagram

  • Title

3

MTD 17600

42" Deck Ass'y.

$

$

Currently unavailable

MTD 813-06119

42" Deck Ass'y. Comp.
(Superseded to 753-0698)

Note: (For Service Only)

Variations

MTD 813-06119-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 813-06119-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 813-06119-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 813-06119-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 813-06119-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 813-06119-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 813-06119-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 813-06119-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 813-06119-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

4

MTD 17664

Belt Guard Deck L.H.
(Superseded to 17664-0637)

Variations

MTD 17664-0480

Belt Guard, LH Black - BRILLIANT GREEN (0480)

$32.99

$

In Stock, only 4 left!

0

MTD 17664-0483

Belt Guard, LH Black - CHARCOAL GRAY (0483)

$32.99

$

In Stock, only 4 left!

0

MTD 17664-0629

Belt Guard, LH Black - SILVER FLAKE (0629)

$32.99

$

In Stock, only 4 left!

0

MTD 17664-0637

Belt Guard, LH Black - POWDER BLACK (0637)

$32.99

$

In Stock, only 4 left!

0

MTD 17664-0638

Belt Guard, LH Black - MTD/TROY-BILT RED (0638)

$32.99

$

In Stock, only 4 left!

0

MTD 17664-0648

Belt Guard, LH Black - TECH GRAY (0648)

$32.99

$

In Stock, only 4 left!

0

MTD 17664-0650

Belt Guard, LH Black - RED METALLIC (0650)

$32.99

$

In Stock, only 4 left!

0

MTD 17664-0662

Belt Guard, LH Black - OYSTER GRAY (0662)

$32.99

$

In Stock, only 4 left!

0

MTD 17664-0665

Belt Guard, LH Black - YARDMAN GREEN (0665)

$32.99

$

In Stock, only 4 left!

0

MTD 17664-0667

Belt Guard, LH Black - MIDNIGHT BLUE (0667)

$32.99

$

In Stock, only 4 left!

0

MTD 17664-0668

Belt Guard, LH Black - MOSS GREEN (0668)

$32.99

$

In Stock, only 4 left!

0

$32.99

$

In Stock, only 4 left!

0

5

MTD 17665

Bdt Guard Deck R.H.
(Superseded to 17665-0637)

Variations

MTD 17665-0480

Belt Guard, Black - BRILLIANT GREEN (0480)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0483

Belt Guard, Black - CHARCOAL GRAY (0483)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0498

Belt Guard, Black - OLD CUB YELLOW (0498)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0637

Belt Guard, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0638

Belt Guard, Black - MTD/TROY-BILT RED (0638)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0648

Belt Guard, Black - TECH GRAY (0648)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0650

Belt Guard, Black - RED METALLIC (0650)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0662

Belt Guard, Black - OYSTER GRAY (0662)

$48.99

$

In Stock, only 2 left!

0

MTD 17665-0665

Belt Guard, Black - YARDMAN GREEN (0665)

$48.99

$

In Stock, only 2 left!

0

$48.99

$

In Stock, only 2 left!

0

6

MTD 710-0152

Hex Bolt 3/8-24 x l.O" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0255

Truss Mach. Scr. 1/4-20 x .75"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0888

Hex Bolt Special 5/16-24 x 1.0"

$4.49

$

In Stock, Qty 20+

0

10

MTD 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

In Stock, only 1 left!

0

11

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

13

MTD 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

14

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

17

MTD 734-0973

DeckWheel 5"

$12.99

$

In Stock, Qty 20+

0

18

MTD 736-0105

Bell-Wash. .40" I.D. x .8 O.D.

$4.49

$

In Stock, Qty 20+

0

19

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

MTD 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

In Stock, Qty 8

0

21

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

22

MTD 738-0373

Shld. Bolt .498" Dia. x 1.53"
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

23

MTD 742-0499

High-Lift Blade
(Superseded to 942-0499A)

$34.99

$

In Stock, only 3 left!

0

25

MTD 748-0300

Blade Adapter

$13.99

$

In Stock, only 4 left!

0

26

MTD 754-0371

V-Ben
(Superseded to 954-0371A)

$103.99

$

In Stock, only 2 left!

0

27

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

28

MTD 09322

Brake Disc

$

$

Not available

33

MTD 710-0157

H0x Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

35

MTD 712-0318

Hex Jarn Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 12

0

37

MTD 736-0158

L-Wash. 5/8" I.D.

$4.49

$

In Stock, Qty 11

0

38

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

MTD 717-0906

Blado Spindle Ass'y. Comp.
(Superseded to 753-05319)

$128.99

$

In Stock, Qty 10

0

42

MTD 756-0556

5.5" Dia. Pulley

$56.99

$

In Stock, only 4 left!

0

43

MTD 710-0134

Carr. Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

44

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

45

MTD 761-0168

Blade Brake Ass'y.
(Superseded to 961-0168D)

$31.99

$

In Stock, only 1 left!

0

52

MTD 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$23.99

$

In Stock, only 4 left!

0

53

MTD 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, Qty 5

0

54

MTD 726-0106

Push Nut

$3.99

$

Usually ships in 3-6 days

0

55

MTD 731-1032

Chute Ass'y. Comp.
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

56

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 18

0

57

MTD 17493A

Deck Hanger Channel
(Superseded to 17493B-0637)

Variations

MTD 17493A-0637

CHANNEL-DECK HANGE - POWDER BLACK (0637)

$

$

Not available

$

$
