130-704F - MTD Lawn Tractor (1990) Transaxle Parts Diagram

Lawn Tractor

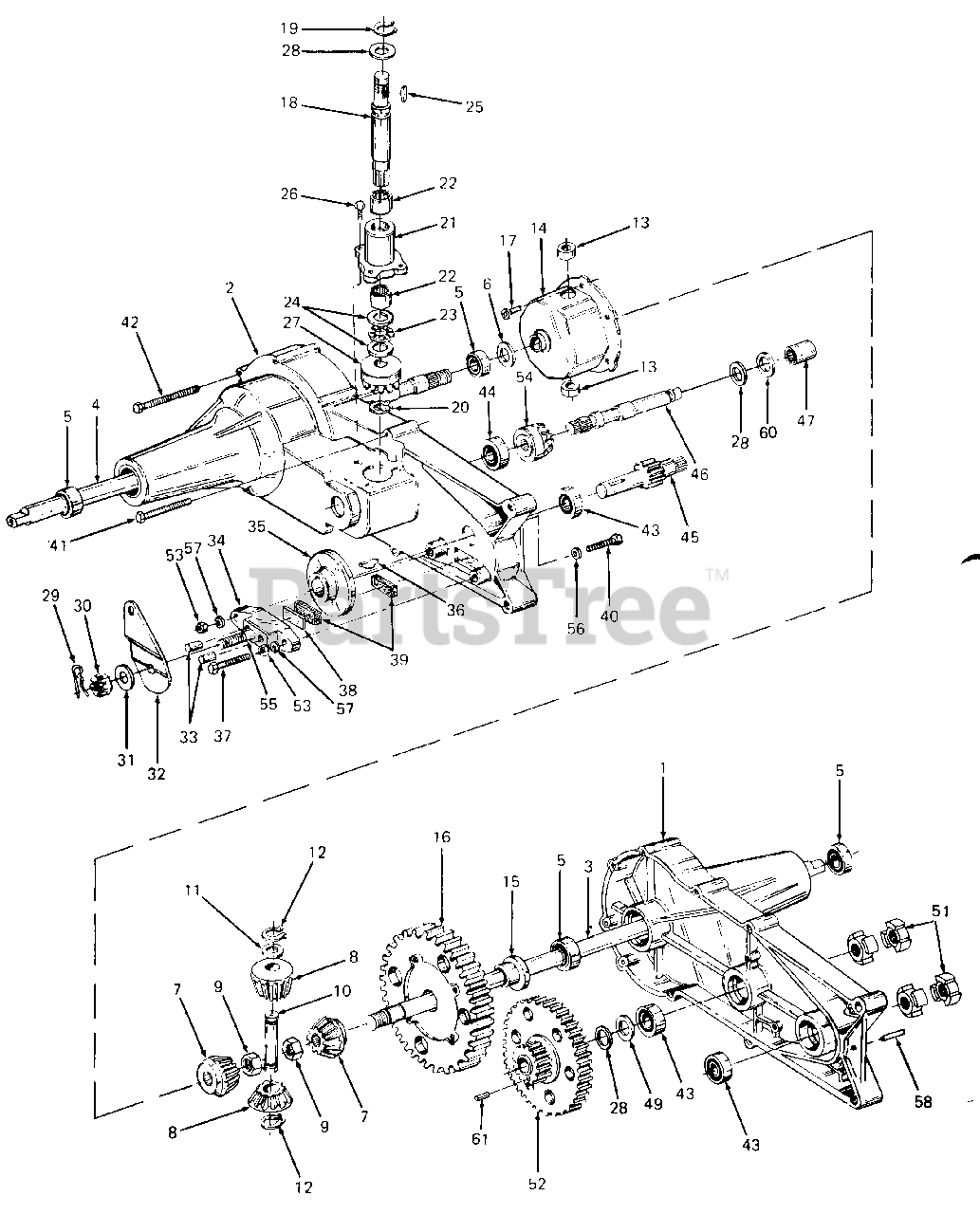

Transaxle Parts Diagram

  • Title

1

MTD AF-44077

Housing Half, L.H.
(Superseded to HG-62587)

$

$

Not available

2

MTD AF-44076

Housing Half, R.H.
(Superseded to HG-62586P)

$

$

Not available

3

MTD AF-44393

Axle, L.H.

$

$

Not available

4

MTD AF-44392

Axle R.H.

$

$

Not available

5

MTD AF-44121

Bearing, Ball
(Superseded to HG-44121P)

$56.99

$

In Stock, only 2 left!

0

6

MTD AF-44008

Washer, Flat, .76 x 1-1/8" x .306 Thk. Hdn.
(Superseded to HG-44008)

$4.49

$

Usually ships in 3-6 days

0

7

MTD 717-1019

Gear, Miter
(Superseded to 917-1019)

$29.99

$

Usually ships in 3-6 days

0

8

MTD 717-1020

Gear, Miter

$

$

Not available

9

MTD 712-0200

Nut, Hex Jam Patch Lock, 1/2-20
(Superseded to 712-0200A)

$4.49

$

In Stock, only 1 left!

0

10

MTD 717-0673

Shaft, Cross
(Superseded to 753-0527)

$

$

Not available

11

MTD 736-0369

Washer, Flat, .505 I.D. x 1.0

$4.49

$

In Stock, Qty 20+

0

12

MTD 716-0142

Ring, Snap
(Superseded to 753-0527)

$

$

Not available

13

MTD 717-0690

Bearing, Thrust
(Superseded to 753-0527)

$

$

Not available

14

MTD 717-0777

Housing Ass'y. Differential
(Superseded to 753-0546)

$62.99

$

Usually ships in 3-6 days

0

15

MTD 741-0376

Bearing, Flange, .75 I.D. x .587
(Superseded to 941-0376)

$8.99

$

In Stock, Qty 7

0

16

MTD 717-0759

Gear, Differential, 72 Tooth
(Superseded to 917-0767)

$

$

Not available

17

MTD 710-0862

Screw, Pan Hd. Patch Lock 1/4-20 x .50 Lg.
(Superseded to 710-0862A)

$4.99

$

Usually ships in 3-6 days

0

18

MTD AF-44270

Shaft, Input
(Superseded to HG-62636)

$

$

Not available

19

MTD 716-0115

Ring, Snap
(Superseded to 916-0115)

$

$

Not available

20

MTD 716-0108

Ring, Retaining, Ext. 7/16 Dia.

$5.49

$

Usually ships in 3-6 days

0

21

MTD AF-44081

Bearing, Input Housing

$

$

Currently unavailable

22

MTD 741-0335

Bearing, Needle, 5/8 I.D. x .50 Lg.
(Superseded to 941-0335)

$18.99

$

In Stock, only 4 left!

0

23

MTD AF-44139

Bearing, Thrust
(Superseded to HG-44139P)

$

$

Not available

24

MTD AF-44109

Washer, Flat, 5/8 I.D. x 1.12 O.D. x .030 Thk.
(Superseded to HG-44109)

$10.99

$

Usually ships in 3-6 days

0

25

MTD 714-0129

Key #4 Hi-Pro, 3/32 x 5/8 Dia. (Hdn .)
(Superseded to 914-0129)

$

$

Not available

26

MTD AF-44122

Screw, Hex Patch Lock, 1/4-20 x 3/4 Lg.

$

$

Not available

27

MTD AF-44078

Gear, Input Pinion, 17 Tooth

$

$

Currently unavailable

28

MTD 736-0336

Washer, Flat, .62 I.D. x 1.0 O.D. x .030 Thk.
(Superseded to 936-0336)

$4.49

$

In Stock, Qty 7

0

MTD 736-0349

Washer, Flat, .62 I.D. x 1.0 O.D. x .020 Thk.

$4.49

$

In Stock, Qty 20+

0

MTD 736-0337

Washer, Flat, .62 I.D. x 1.0 O.D. x .040 Thk.

$4.49

$

In Stock, Qty 9

0

29

MTD 714-0507

Pin, Cotter

$4.49

$

In Stock, Qty 12

0

30

MTD 712-0335

Nut, Castle, 5/16-24
(Superseded to 912-0273)

$4.99

$

Usually ships in 3-6 days

0

31

MTD 736-0371

Washer, Flat, .343 x .88 x .062 Thk.

$4.49

$

In Stock, only 3 left!

0

32

MTD AF-44094

Arm, Brake Actuator

$

$

Not available

33

MTD 741-0343

Pin, Actuating, 5/16 Dia.

$10.99

$

In Stock, Qty 7

0

34

MTD 717-0679

Yoke, Brake

$

$

Not available

35

MTD 717-0677

Disc, Brake

$

$

Not available

36

MTD 714-0161

Key, Hi-Pro, 3/16 x 5/8 Dia.
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

37

MTD AF-44276

Screw, Hex Patch Lock, 1/4-20 x 1.5 Lg.

$

$

Not available

38

MTD 717-0682

Plate, Puck
(Superseded to 917-0682)

$9.99

$

In Stock, Qty 7

0

39

MTD 717-0678

Puck, Brake
(Superseded to 917-0678)

$7.49

$

In Stock, only 3 left!

0

40

MTD AF-44277

Screw, Hex Cap, 1/4-20 x 1.5 Lg.

$

$

Not available

41

MTD AF-44123

Screw, Hex Self-Tap, 1/4-20 x 2.0 Lg.

$

$

Not available

42

MTD AF-44124

Screw, Hex Self-Tap, 1/4-20 x 2.75 Lg.

$

$

Not available

43

MTD 741-0155

Bearing, Ball
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

44

MTD 741-0361

Bearing, Ball
(Superseded to 941-0361)

$49.99

$

In Stock, only 2 left!

0

45

MTD AF-44083

Shaft, Pinion w/11 Tooth Gear
(Superseded to HG-44083P)

$

$

Not available

46

MTD AF-44080

Shaft, Drive
(Superseded to HG-44080)

$181.99

$

Usually ships in 3-6 days

0

47

MTD AF-44342

Bearing, Needle
(Superseded to 941-0478)

$

$

Not available

49

MTD AF-44110

Washer, Flat, 5/8 x 1.12 x .060 Thk.

$

$

Currently unavailable

51

MTD AF-44084

Coupling
(Superseded to HG-44084P)

$17.99

$

In Stock, Qty 6

0

52

MTD AF-44082

Gear, Tooth 60 & 17
(Superseded to HG-62760P)

$

$

Not available

53

MTD 712-0298

Nut, Hex Jam, 1/4-20
(Superseded to 912-0298)

$6.49

$

Usually ships in 3-6 days

0

54

MTD AF-44079

Gear, Drive Pinion, 17 Tooth

$

$

Not available

55

MTD 717-0796

Bolt, Square Hd. 5/16-24

$

$

Not available

56

MTD 736-0176

Washer, Flat, .265 x .938 x .12 Thk.

$4.99

$

In Stock, only 4 left!

0

57

MTD 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

58

MTD AF-44269

Pin, Roll, 3/16 Dia. x .50 Lg.

$

$

Not available

60

MTD AF-44343

Bronze Thrust Brg. 518" I.D.
(Superseded to HG-44343)

$28.99

$

In Stock, only 1 left!

0

61

MTD AF-44346

Dowel Pin 3/32" x 1/4"

$

$

Not available

MTD 737-3047

Grease, Transmission

$

$

Currently unavailable
