130-659F - MTD Lawn Tractor (1990) Electrical Parts Diagram

Lawn Tractor

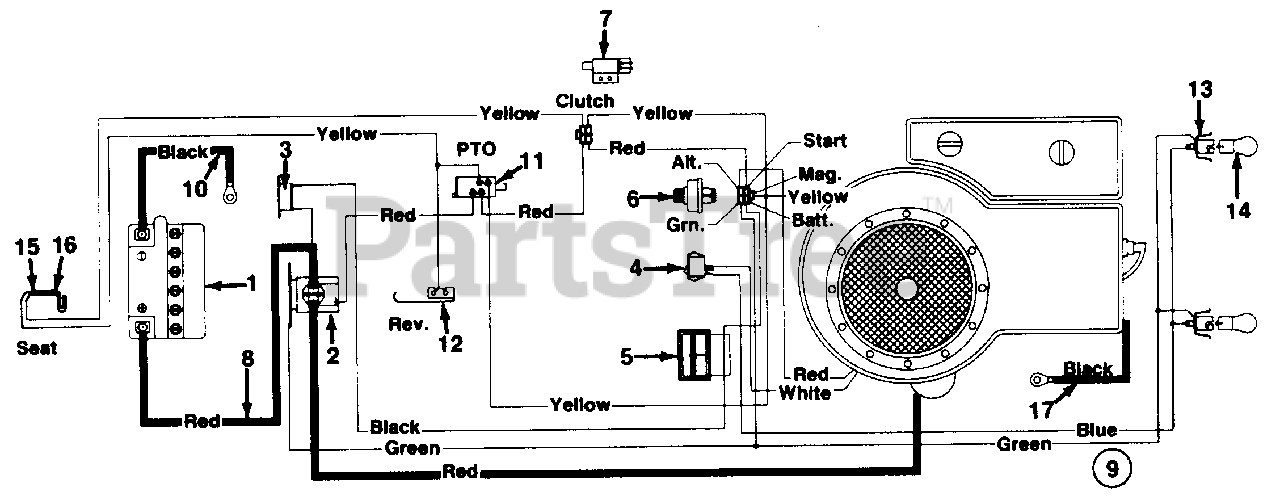

Electrical Parts Diagram

  • Title

1

MTD 725-0514A

Battery
(Superseded to 753-0607)

$170.99

$

Usually ships in 3-6 days

0

2

MTD 725-1426

Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

3

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

4

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

5

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

Usually ships in 3-6 days

0

6

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

7

MTD 725-3169

Safety Switch (Clutch)
(Superseded to 925-04039)

$24.99

$

In Stock, Qty 9

0

8

MTD 725-1351

Electric Wire 8" Lg.

$

$

Not available

9

MTD 725-1494

Wire Harness

$

$

Not available

10

MTD 725-0977

Ground Wire 11.5" Lg.

$

$

Not available

11

MTD 725-0803B

Safety Switch (Deck)

$33.99

$

In Stock, only 1 left!

0

12

MTD 725-0759

Safety Switch (Reverse)
(Superseded to 753-0579)

$

$

Not available

13

MTD 725-1058A

Socket
(Superseded to 925-1058A)

$

$

Not available

14

MTD 725-0963

Bulb
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

15

MTD 725-1303

Safety-Switch (Seat)
(Superseded to 925-1303)

$6.49

$

In Stock, Qty 7

0

16

MTD 725-1439

Safety Switch (Seat)

$8.49

$

In Stock, Qty 8

0

17

MTD 725-0980

Ground Wire 7.5" Lg.

$

$

Not available
