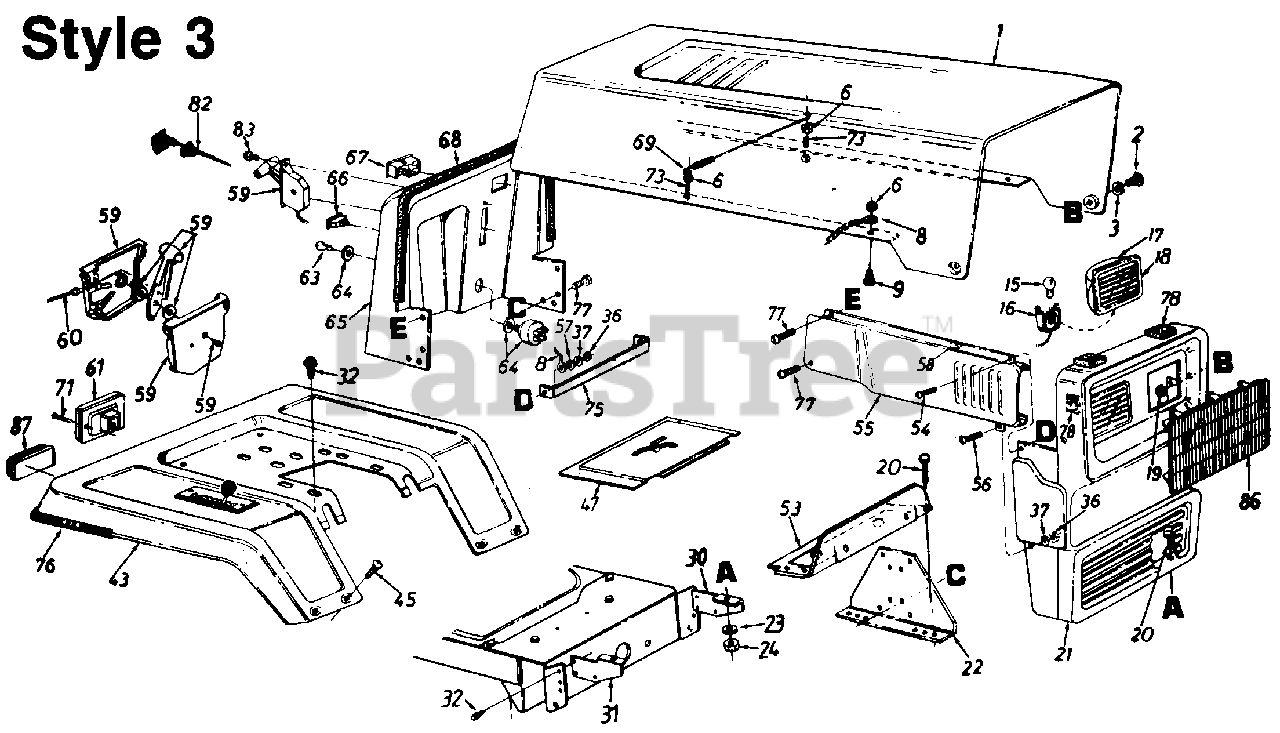

130-643-000 - MTD Lawn Tractor, Style 3 (1990) Parts Parts Diagram

Lawn Tractor, Style 3

Parts Parts Diagram

  • Title

1

MTD 15808D

Hood

Variations

MTD 15808D-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 15808D-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 15808D-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 15808D-0606

No Longer Available HOOD - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 15808D-0629

No Longer Available HOOD - SILVER FLAKE (0629)

$

$

Not available

MTD 15808D-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 15808D-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 15808D-0660

No Longer Available - TEAL (0660)

$

$

Not available

MTD 15808D-0662

No Longer Available HOOD - OYSTER GRAY (0662)

$

$

Not available

MTD 15808D-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 15808D-0671

No Longer Available - BEAVER GREEN (0671)

$

$

Not available

MTD 15808D-0674

No Longer Available HOOD - YARDMAN YELLOW (0674)

$

$

Not available

$

$

2

MTD 738-0724

Shld. Bolt .375 Dia. x .125
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

3

MTD 736-0413

Washer.39" I.D. x .62"

$6.99

$

In Stock, only 2 left!

0

6

MTD 712-0272

Hex Sems Nut #10-24 Thd.

$3.99

$

In Stock, only 1 left!

0

8

MTD 727-0290

Hood Stop
(Superseded to 727-0290A)

$12.99

$

Usually ships in 3-6 days

0

9

MTD 710-0473

Truss Hd. Scr. #10-24 x 1/2"

$4.49

$

In Stock, only 2 left!

0

15

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 4 left!

0

16

MTD 725-1058A

Twist Lock-Lamp Socket
(Superseded to 925-1058A)

$

$

Not available

17

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

18

MTD 731-0706

Lens
(Superseded to 931-0706)

$

$

Not available

19

MTD 712-0380

L-Nut 1/4-28 Thd.

$3.99

$

In Stock, only 2 left!

0

20

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

MTD 15804A

Grille

Variations

MTD 15804A-0480

No Longer Available GRILLE - BRILLIANT GREEN (0480)

$

$

Not available

MTD 15804A-0483

No Longer Available GRILLE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 15804A-0499

No Longer Available GRILLE - CUB BEIGE (0499)

$

$

Not available

MTD 15804A-0629

No Longer Available GRILLE - SILVER FLAKE (0629)

$

$

Not available

MTD 15804A-0638

No Longer Available GRILLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 15804A-0640

No Longer Available GRILLE - CO-OP GREEN (0640)

$

$

Not available

MTD 15804A-0650

No Longer Available GRILLE - RED METALLIC (0650)

$

$

Not available

MTD 15804A-0662

No Longer Available GRILLE - OYSTER GRAY (0662)

$

$

Not available

MTD 15804A-0674

No Longer Available GRILLE - YARDMAN YELLOW (0674)

$

$

Not available

$

$

MTD 16457

Grille-Used w/Headlight Bezel

Variations

MTD 16457-0480

No Longer Available GRILLE - BRILLIANT GREEN (0480)

$

$

Not available

MTD 16457-0499

No Longer Available GRILLE - CUB BEIGE (0499)

$

$

Not available

MTD 16457-0638

No Longer Available GRILLE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 16457-0648

No Longer Available GRILLE - TECH GRAY (0648)

$

$

Not available

MTD 16457-0665

No Longer Available GRILLE - YARDMAN GREEN (0665)

$

$

Not available

$

$

22

MTD 17300

Dash Support Bracket

$

$

Not available

23

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

30

MTD 15821

Grille Mount Brk't.-L.H.

$

$

Not available

31

MTD 15822

Grille Mount Brk't.-R.H.

Variations

MTD 15822-0637

No Longer Available BRACKET-GR - POWDER BLACK (0637)

$

$

Not available

$

$

32

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

36

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

37

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

43

MTD 17228

Rear Fender

Variations

MTD 17228-0483

No Longer Available FENDER - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17228-0498

No Longer Available FENDER - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17228-0629

No Longer Available FENDER - SILVER FLAKE (0629)

$

$

Not available

MTD 17228-0638

No Longer Available FENDER - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

MTD 17229

Rear Fender Used w/Taillights

$

$

Currently unavailable

45

MTD 710-0167

Carriage Bolt 1/4-20 x .50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

47

MTD 17286

Transmission Panel
(Superseded to 17286B-0637)

$42.99

$

Usually ships in 3-6 days

0

53

MTD 17633

Fuel Tank Support

$

$

Not available

54

MTD 710-0255

Truss Hd. Scr. 1/4-20 x .75"
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

55

MTD 15814A

Side Cover-R.H.

$

$

Not available

MTD 15815A

Side Cover-L.H.

Note: (Not Shown)

Variations

MTD 15815A-0480

No Longer Available PANEL-SIDE - BRILLIANT GREEN (0480)

$

$

Not available

MTD 15815A-0499

No Longer Available PANEL-SIDE - CUB BEIGE (0499)

$

$

Not available

MTD 15815A-0606

No Longer Available PANEL-SIDE - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 15815A-0629

No Longer Available PANEL-SIDE - SILVER FLAKE (0629)

$

$

Not available

MTD 15815A-0638

No Longer Available PANEL-SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 15815A-0640

No Longer Available PANEL-SIDE - CO-OP GREEN (0640)

$

$

Not available

MTD 15815A-0662

No Longer Available PANEL-SIDE - OYSTER GRAY (0662)

$

$

Not available

$

$

56

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .50" Lg.

$4.49

$

Usually ships in 3-6 days

0

57

MTD 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, only 4 left!

0

58

MTD 726-0152

Mounting Clamp

$

$

Not available

59

MTD 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

60

MTD 746-0500

Throttle Control Wire
(Superseded to 946-0500)

Note: (B&S)

$15.99

$

In Stock, only 2 left!

0

MTD 746-0638

Throttle Control Wire
(Superseded to 946-0638)

Note: (Tec.)

$10.99

$

In Stock, Qty 7

0

61

MTD 725-3018

Taillight

$

$

Currently unavailable

63

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

64

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 8

0

65

MTD 17295

Dash Panel

Variations

MTD 17295-0637

No Longer Available PANEL-DASH - POWDER BLACK (0637)

$

$

Not available

$

$

66

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, Qty 5

0

67

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, only 1 left!

0

68

MTD 731-0511-31

Trim Strip-31"

$41.99

$

Usually ships in 3-6 days

0

69

MTD 732-0462

Hood Spring

$

$

Not available

71

MTD 710-0936

Truss Hd. AB-Tap Scr. #6 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

73

MTD 710-0749

Hex Scr. #10-24 x 1.0" Lg.
(Superseded to 910-0749)

$3.49

$

Usually ships in 3-6 days

0

75

MTD 15931

Tie Strap-Grille/Side Panel

$

$

Not available

76

MTD 731-0511-81

Trim Strip-81"

$105.99

$

Usually ships in 3-6 days

0

77

MTD 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

78

MTD 722-0157

Foam Strip 3/8 x 1-1/8" x 11/2" Lg.

$4.49

$

Usually ships in 3-6 days

0

82

MTD 746-0615A

Choke Control 29" Lg.
(Superseded to 946-0615A)

$47.99

$

Usually ships in 3-6 days

0

83

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

86

MTD 731-0967

Headlight Bezel

$

$

Not available

87

MTD 730-0116

Reflector

$

$

Currently unavailable
